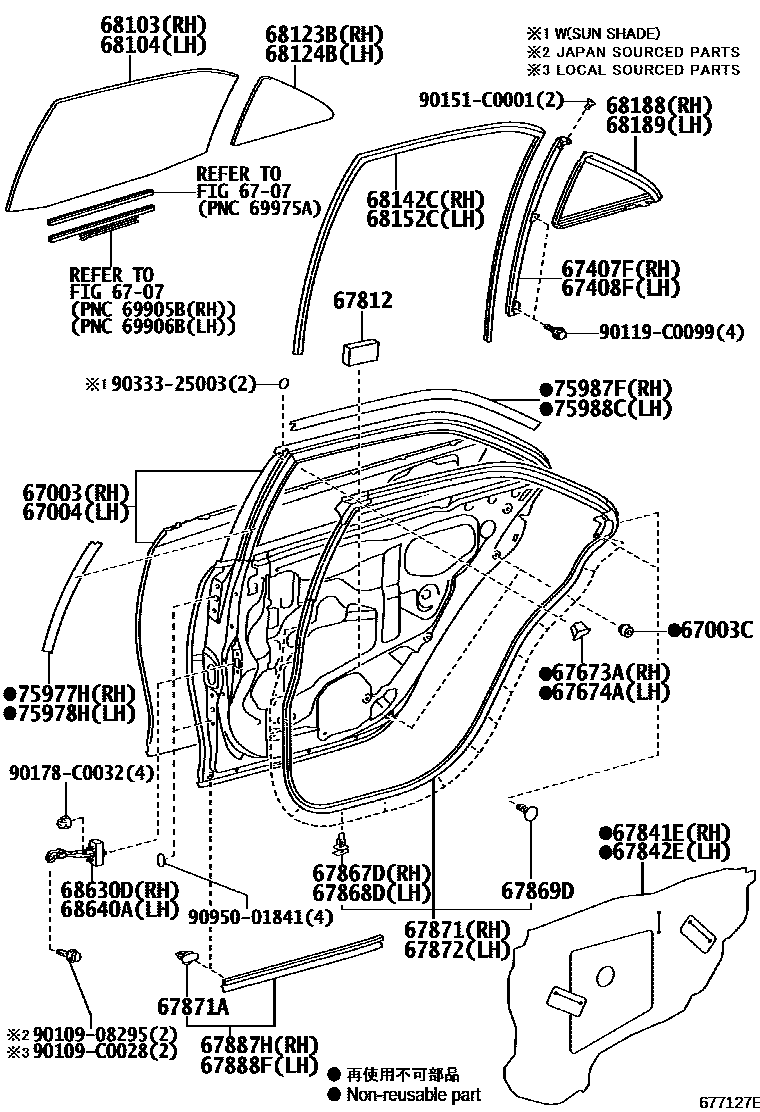

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-06050 |
| 67003 | Right rear door panel sub-assembly | 67003-06170 · 67003-06200 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-C0003 |
| 67004 | Left rear door panel sub-assembly | 67004-06170 · 67004-06200 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-06080 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-06080 |
| 67603E | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-06090 · 67673-06130 |
| 67674A | Left rear door frame decorative strip | 67674-06090 · 67674-06130 |
| 67812 | Rear door silencer pad | 67811-06050 |
| 67841E | Right rear door access hole cover | 67841-06210 |
| 67842E | Left rear door access hole cover | 67842-06210 |
| 67867D | Right rear door seal strip fixing | 67867-0D090 · 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-0D030 |
| 67869D | Car door seal strip clip | 67868-30030 |
| 67871 | Right rear door sealing strip | 67871-06110 |
| 67871A | Fixings (for rear door sealing strip) | 67867-0D090 · 67867-12150 · 67868-0D030 |
| 67872 | Left rear door sealing strip | 67872-06110 |
| 67887H | Right rear door seal No. 2 | 67887-06040 |
| 67888F | Left rear door seal No. 2 | 67888-06030 |
| 68103 | Right rear door glass sub-assembly | 68113-06200 |
| 68104 | Left rear door glass sub-assembly | 68114-06200 |
| 68123B | Right rear door corner window glass | 68123-06160 |
| 68124B | Left rear door corner window glass | 68124-06160 |
| 68142C | Right rear door glass lift slot | 68142-06100 |
| 68152C | Left rear door glass lift slot | 68152-06100 |
| 68173B | Right rear door glass inner sealing strip | 68173-06100 · 68173-06101 |
| 68174A | Left rear door glass inner sealing strip | 68174-06100 · 68174-06101 |
| 68188 | Right rear door corner window seal | 68188-06090 |
| 68189 | Left rear door corner window seal | 68189-06090 |
| 68630D | Right rear door opening limiter assembly | 68630-06102 · 68630-06103 |
| 68640A | Left rear door opening limiter assembly | 68630-06102 · 68640-06140 |
| 75977H | Right rear door outer lower trim strip | 75977-06070 |
| 75978H | Left rear door outer lower trim strip | 75978-06070 |
| 75987F | Right rear door outer trim | 75987-06080 · 75987-06130 |
| 75988C | Left rear door outer trim | 75988-06080 · 75988-06130 |
