Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 38 PNC and OE references.

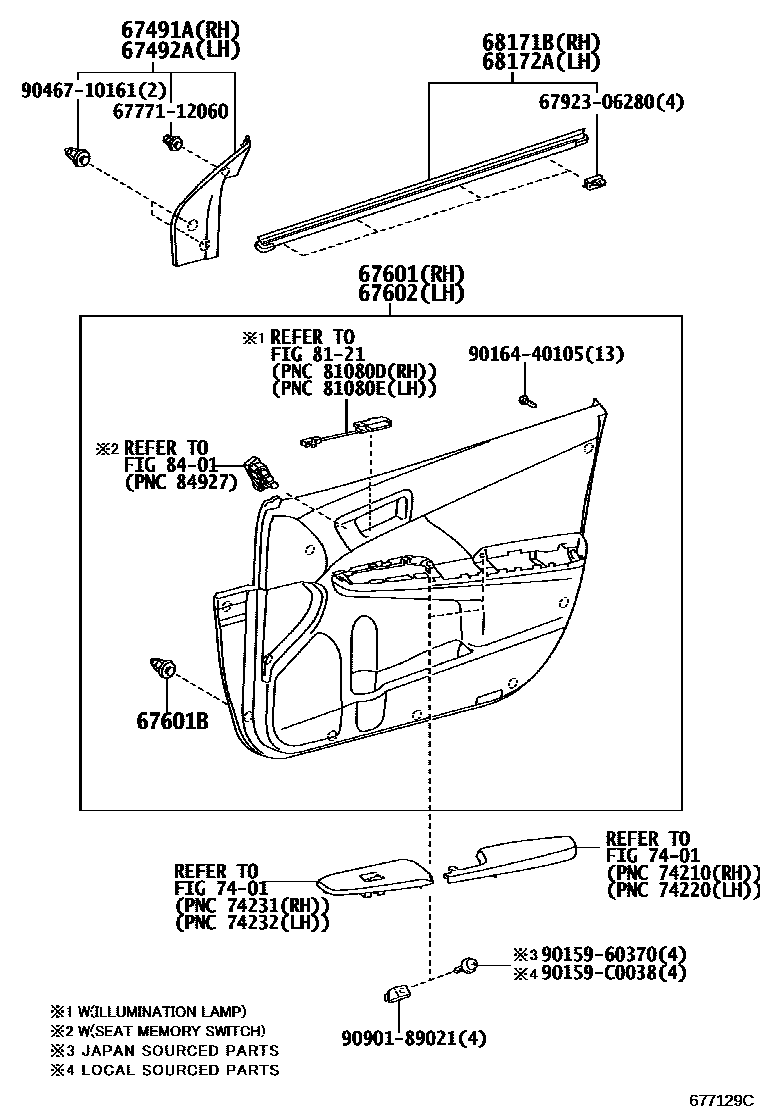

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 677129C
前门板和前门玻璃 — 677129C (201112 – 999999)

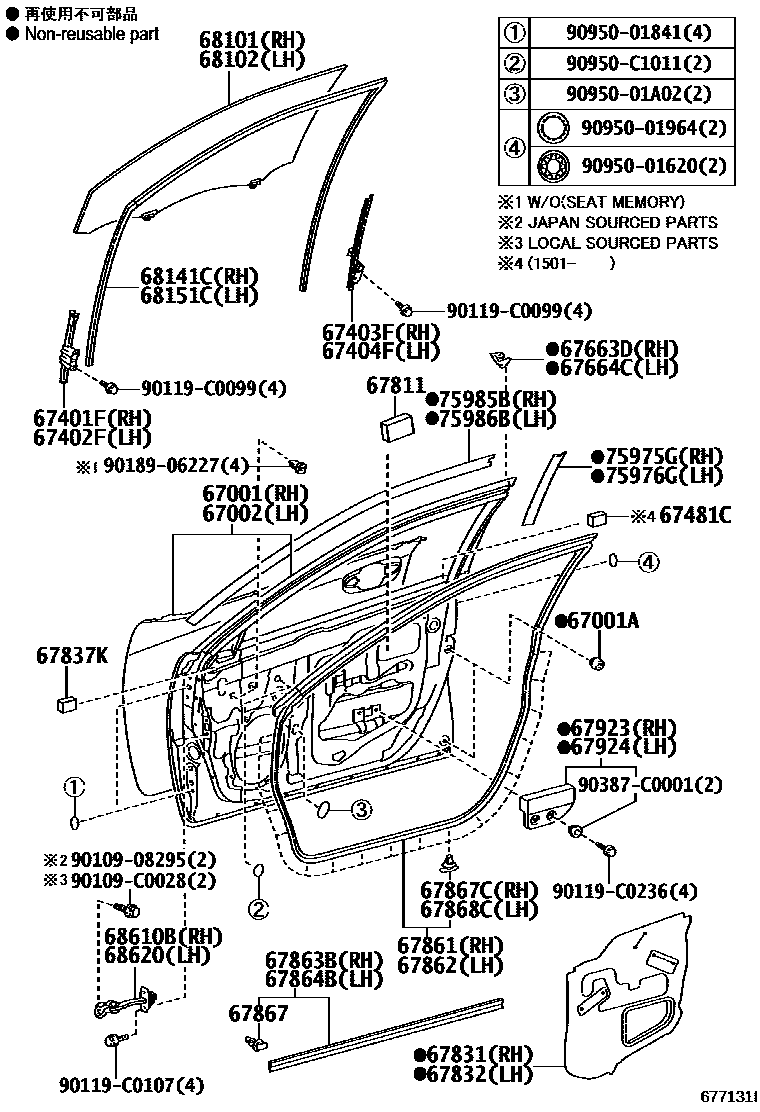

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 677131I
前门板和前门玻璃 — 677131I (201112 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-06190
67001AFront door panel cushion90541-09124 · 90541-C0003
67002Left front door panel sub-assembly67002-06190
67401FRight front door front lower door frame sub-assembly67401-06120
67402FLeft front door front lower door frame sub-assembly67402-06120
67403FRight front door rear lower door frame sub-assembly67403-06100
67404FLeft front door rear lower door frame sub-assembly67404-06100
67481CFront door lower door frame seal67481-06120
67491ARight front door lower door frame bracket decorative strip67491-06110
67492ALeft front door lower door frame bracket decorative strip67492-06110
67601BCatch (for front door trim panel)90467-09206
67663DRight door frame decorative strip67663-06080 · 67663-06120
67664CLeft door frame decorative strip67664-06080 · 67664-06120
67811Front door silencer pad67811-06050
67831Right front door access hole cover67831-06150
67832Left front door access hole cover67832-06150
67837KFront door ventilator seal67837-06020
67861Right front door seal67861-06110
67862Left front door seal67862-06110
67863BRight front door seal No. 267863-06030
67864BLeft front door seal No. 267864-06030
67867Car door seal strip clip67867-0D070 · 67867-12150
67867CRight front door seal strip fixing67867-0D070 · 67867-12150
67868CLeft front door seal strip fixing67867-12150
67923Front door No. 1 reinforcement cushion pad67923-06130
67924Front door No. 2 reinforcement cushion pad67924-06060
68101Right front door glass sub-assembly68101-06220 · 68101-06221 · 68101-06230 · 68101-06231
68102Left front door glass sub-assembly68102-06220 · 68102-06221 · 68102-06230 · 68102-06231
68141CRight front door glass lift channel68141-06120
68151CLeft front door glass lift channel68151-06110
68171BRight front door glass inner sealing strip68171-06110 · 68171-06111 · 68171-06112 · 68171-06201
68172ALeft front door glass inner sealing strip68172-06110 · 68172-06111 · 68172-06112 · 68172-06201
68610BRight front door opening limiter assembly68610-06111
68620Left front door opening limiter assembly68610-06111
75975GRight front door trim strip No. 275975-06070
75976GLeft front door trim strip No. 275976-06070
75985BRight front door trim strip No. 375985-06070
75986BLeft front door No. 3 trim75986-06070
