Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

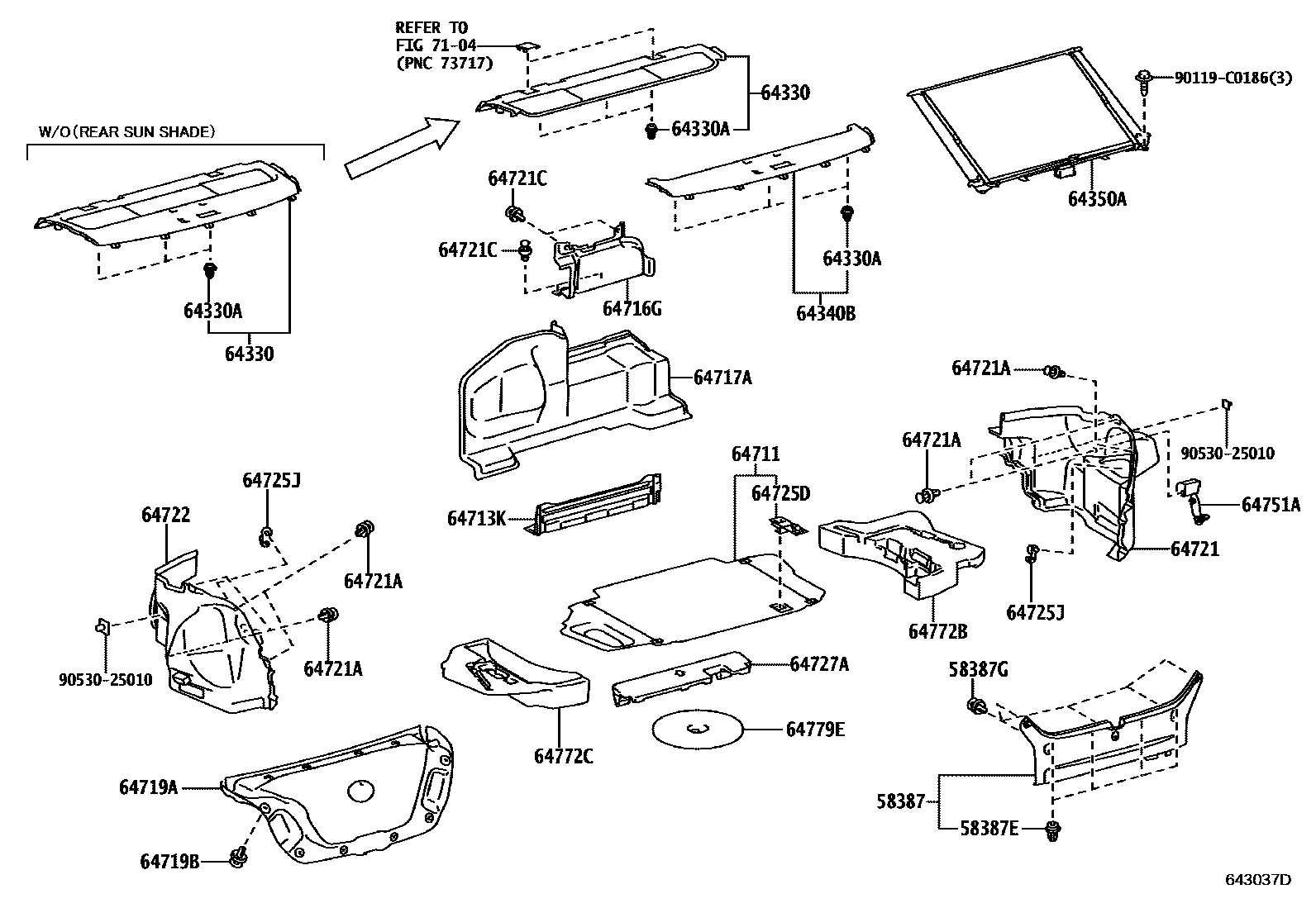

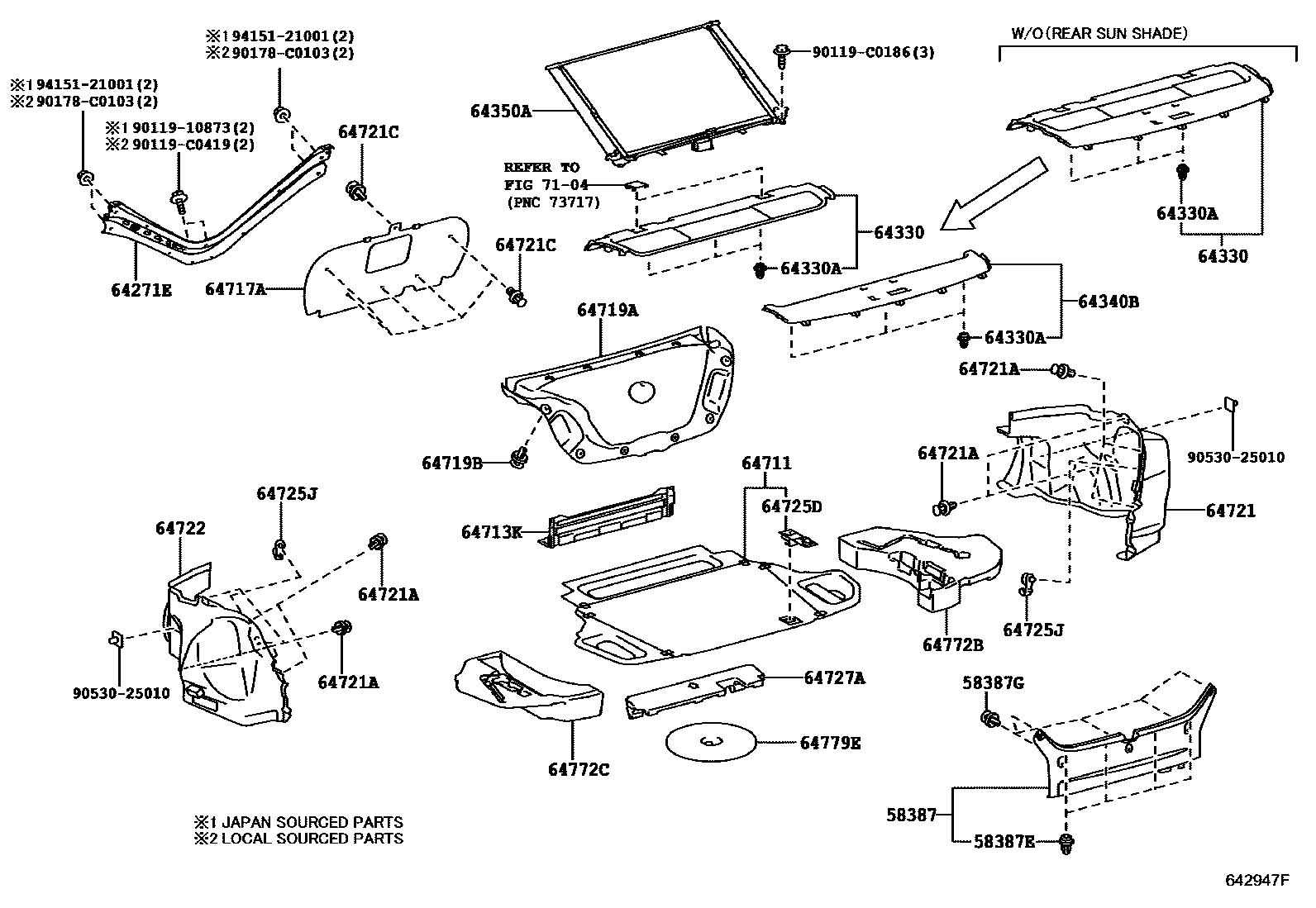

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-06161 · 58387-06162 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 |
| 58387G | Clip (for rear floor trim panel) | 90467-07201 |
| 64271E | compartment partition | 64241-06060 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64350A | Rear window sun visor assembly | 64350-06110 · 64350-06111 |
| 64719B | Catch (for trunk door) | 90467-07201 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-07201 |
| 64721C | Clip (suitcase) | 90467-07201 |
| 64725D | Luggage decorative hook No. 1 | 64725-06060 |
| 64727A | Luggage interior decorative mat | 64727-06070 |
| 64751A | No. 1 trunk door decorative cover bracket | 64751-06020 |
| 64772B | Spare tire cover liner | 64772-06181 · 64772-06182 · 64772-06191 · 64772-06192 |
| 64772C | Spare tire cover liner | 64773-06171 · 64773-06172 |
| 64779E | Spare tire cover bracket | 64779-06141 · 64779-06142 |
