Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

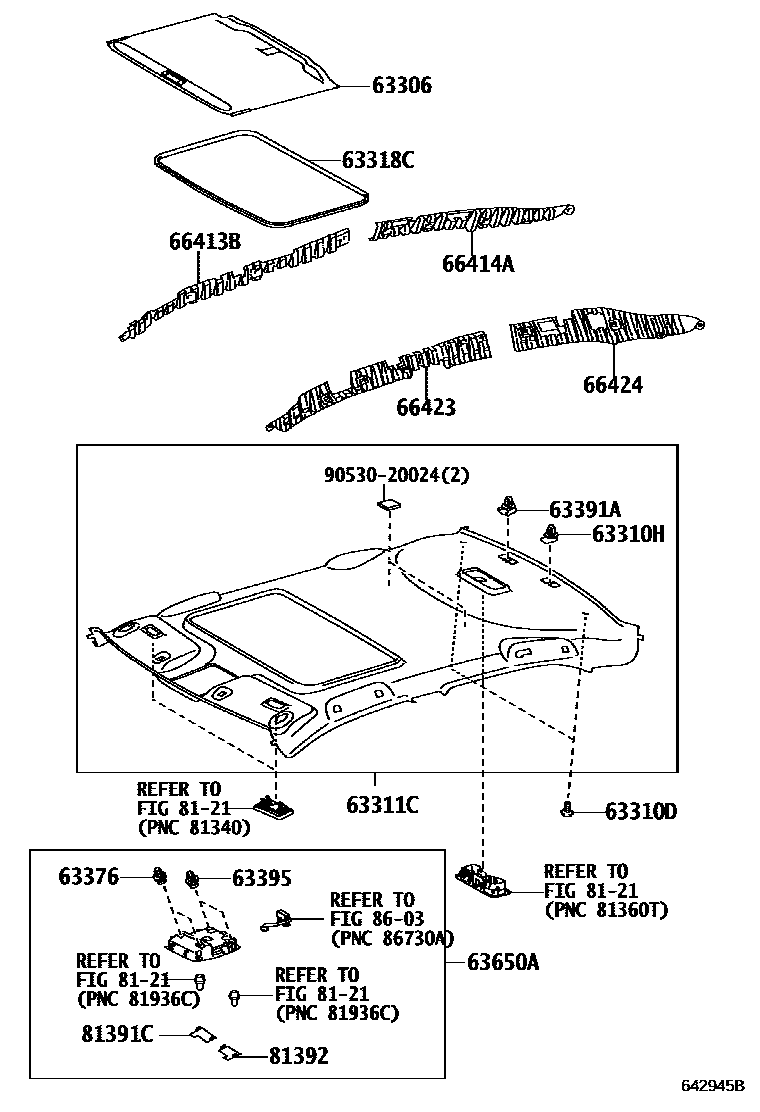

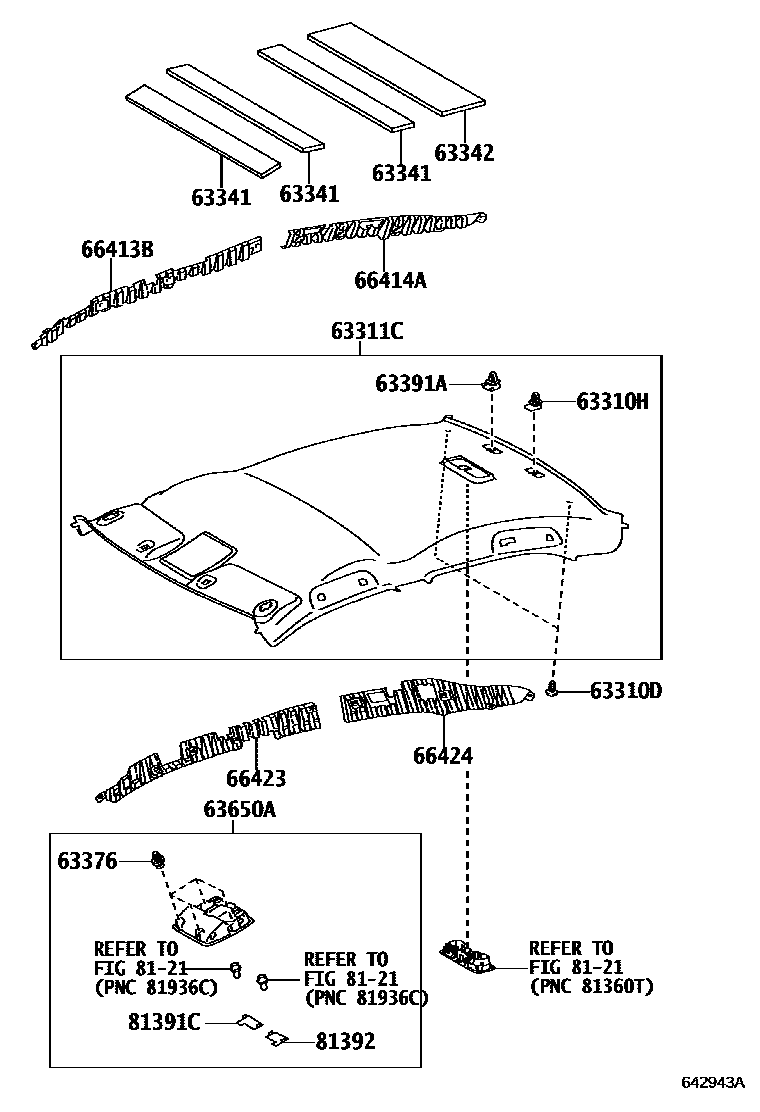

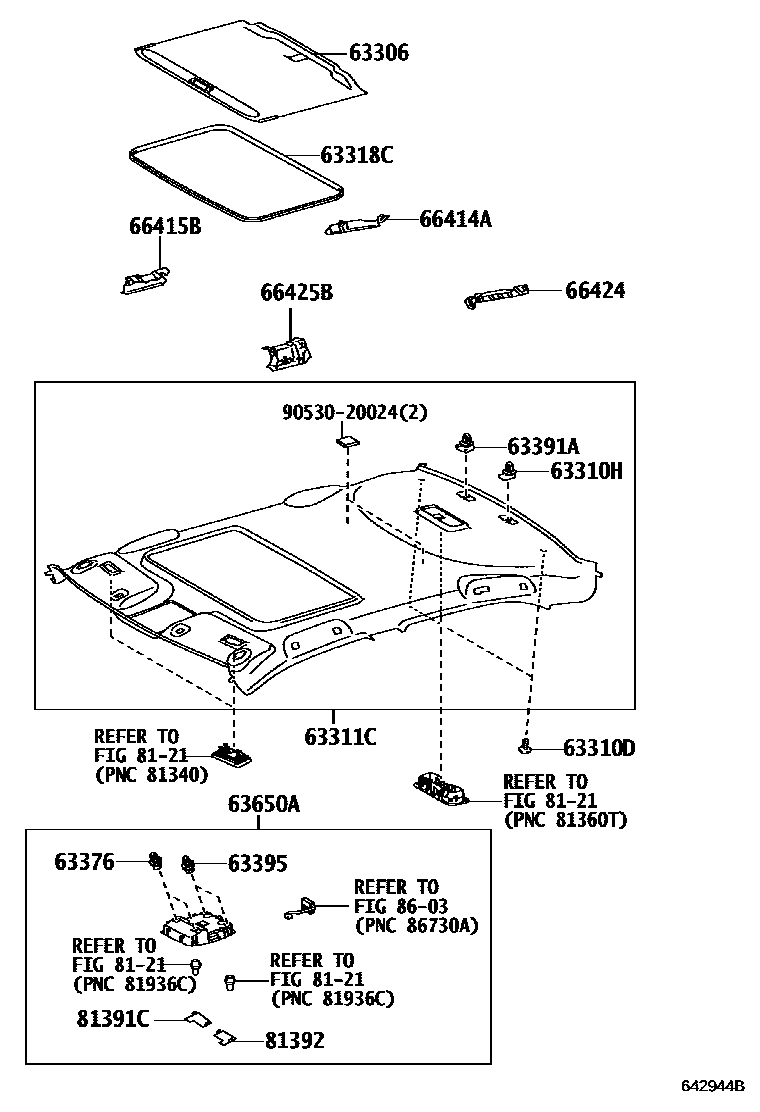

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310H | Clip (for headliner) | 90467-09126 |
| 63341 | No. 1 roof silencer mat | 63341-06170 |
| 63342 | No. 2 roof muffler pad | 63342-06140 |
| 63376 | Lined clips | 90467-10167 |
| 63391A | Clip (for headliner trim) | 90467-10181 |
| 63395 | Headlining trim panel clip | 63395-12150 |
| 66413B | Right front longitudinal member spacer | 66413-06150 |
| 66414A | Right rear longitudinal member spacer | 62495-06020 · 66414-06080 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-06120 |
| 66423 | Left front longitudinal member spacer | 66423-06140 |
| 66424 | Left rear longitudinal member spacer | 62496-06020 · 66424-06080 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-06100 |
| 81391C | Lampshade right front fixing piece | 81391-06050 · 81391-06060 |
| 81392 | Lampshade left front fixing piece | 81392-06030 · 81392-06040 |
