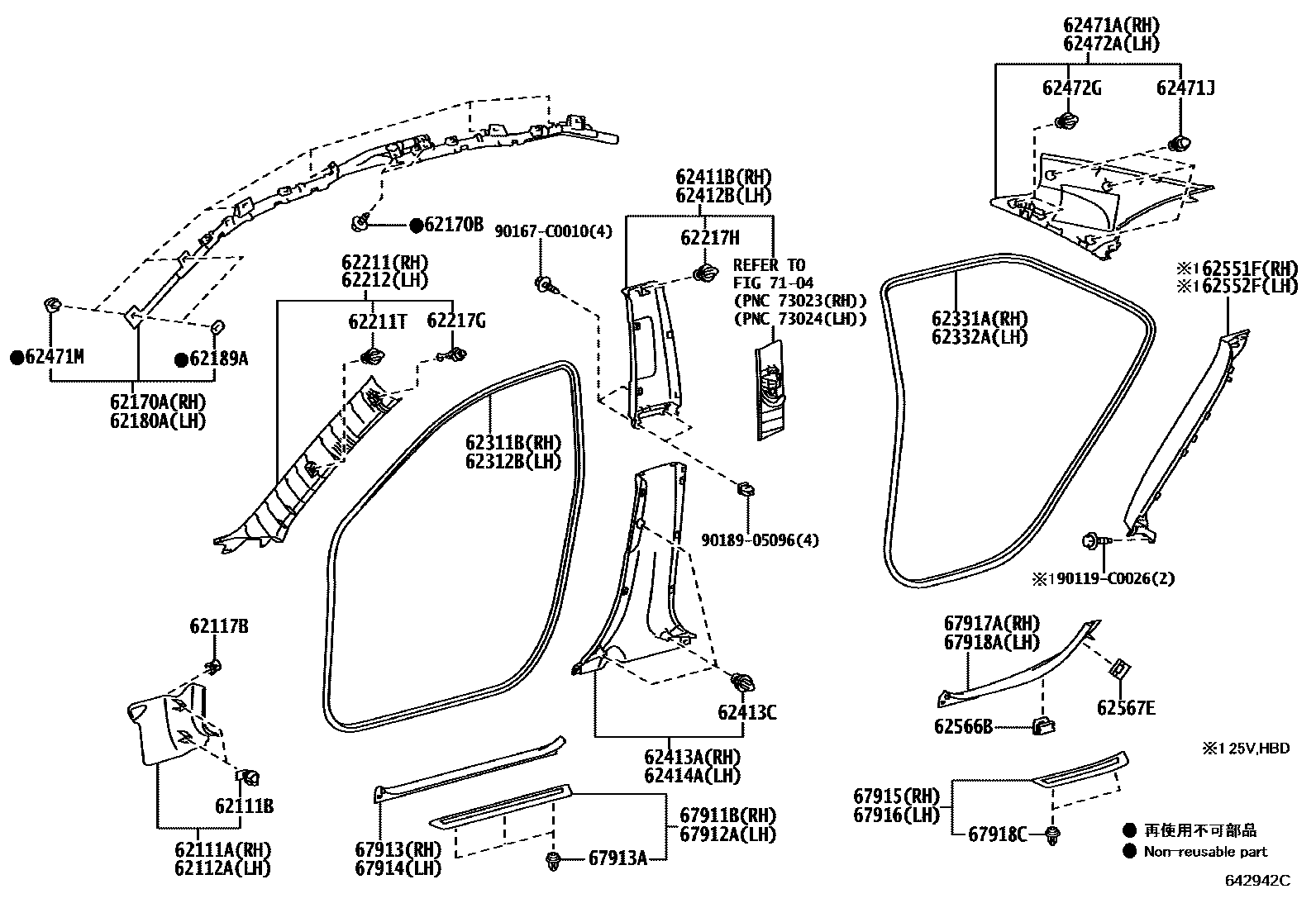

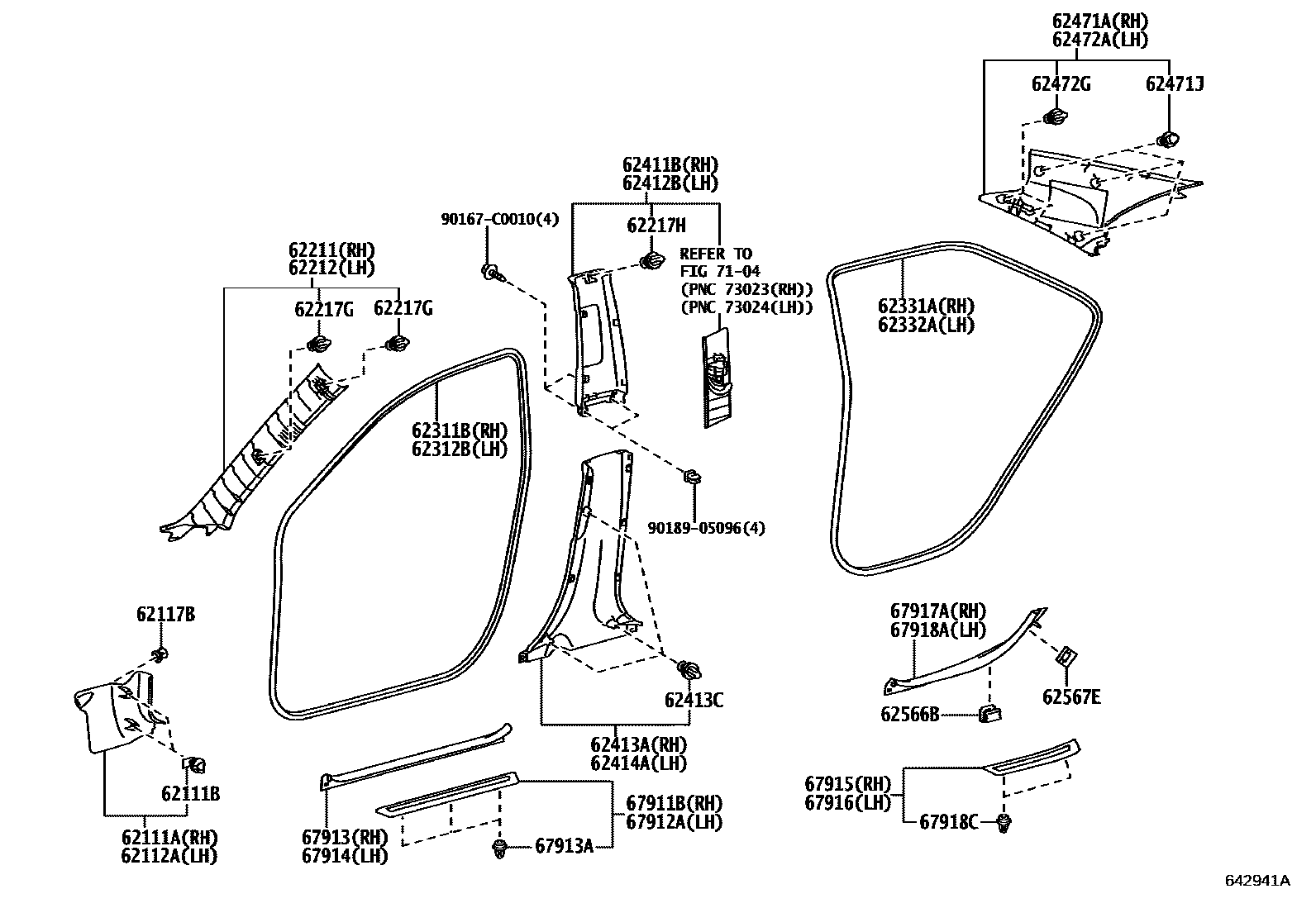

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-09212 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-06070 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-06070 |
| 62189A | Curtain air bag clip spacer | 62189-33010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 62217-33040 · 90467-10161 |
| 62217H | Center pillar decorative plate clip | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-A0033 |
| 62471M | clip | 62184-06010 |
| 62472G | Clips (for roof side trim panels) | 90467-10188 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67911B | Right front door outer wear plate | 67910-06010 |
| 67912A | Left front door outer wear plate | 67920-06010 |
| 67913A | Clip (for wear plate) | 90467-10162 |
| 67915 | Right rear door outer wear plate | 67930-06010 |
| 67916 | Left rear door outer wear plate | 67940-06010 |
| 67918C | Catch (for rear door wear plate) | 90467-10162 |
