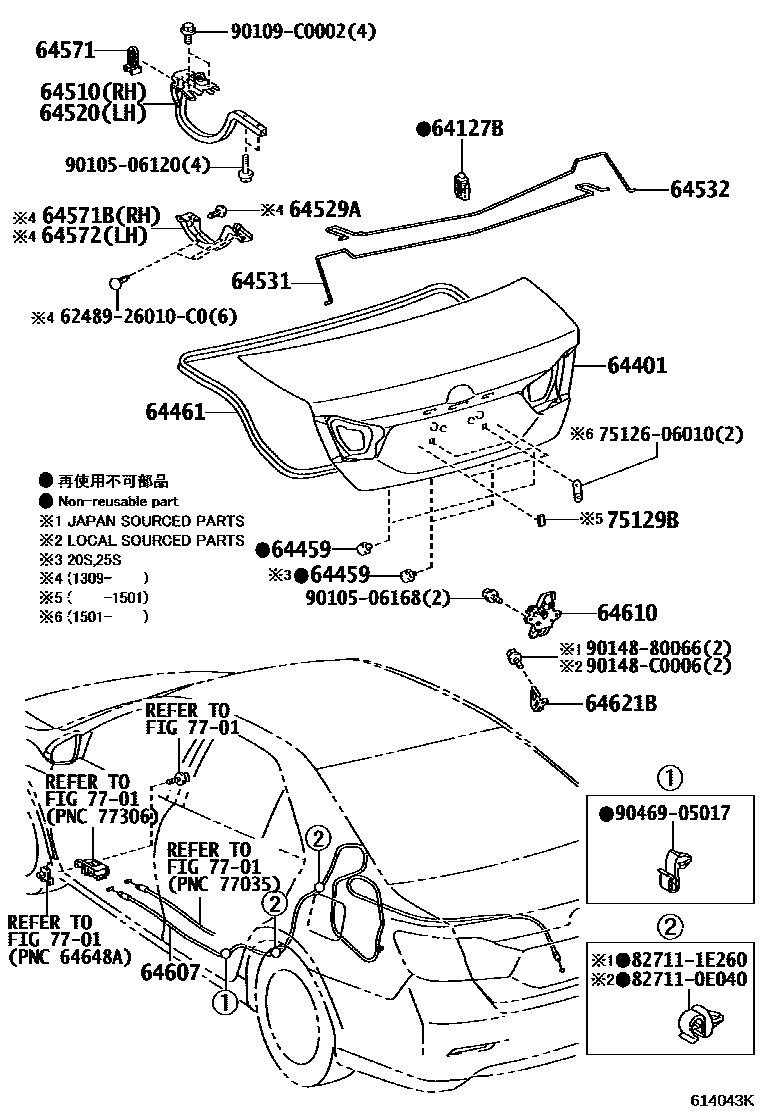

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06101 |
| 64401 | Trunk door panel sub-assembly | 64401-06710 · 64401-06711 · 64401-06720 · 64401-06721 · 64401-06730 · 64401-06731 · 64401-06740 · 64401-06741 · 64401-06750 · 64401-06751 · 64401-06F60 |
| 64459 | Trunk door cushion | 90541-09116 |
| 64461 | Trunk door seal | 64461-06130 |
| 64510 | Trunk door right hinge assembly | 64510-06130 · 64510-06131 · 64510-06132 |
| 64520 | Trunk door left hinge assembly | 64510-06130 · 64510-06131 · 64510-06132 |
| 64529A | Trunk door hinge gasket | 64529-33010 · 64529-33020 |
| 64531 | Trunk door right hinge torsion bar | 64531-06250 · 64531-06300 |
| 64532 | Trunk door left hinge torsion bar | 64532-06270 · 64532-06320 |
| 64571 | Trunk door hinge cover | 64571-33040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06260 |
| 64610 | Trunk door lock assembly | 64600-06060 |
| 64621B | Trunk door latch | 64621-06070 |
| 75129B | rear license plate cushion | 75129-06010 · 75129-13020 |
