Toyota CAMRY 中央扶手箱和支架 — Figure 5806

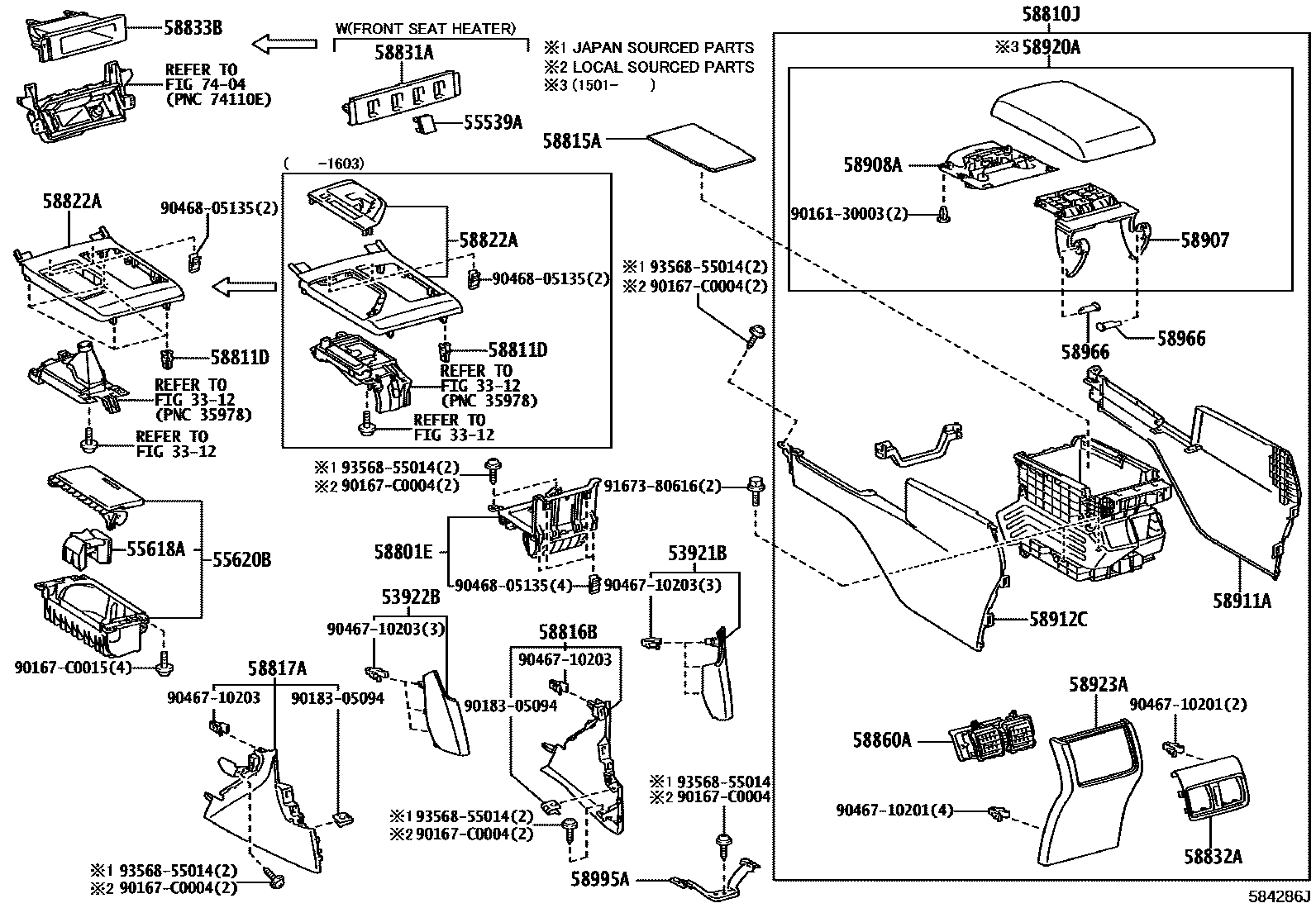

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-06170 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58815A | Armrest box felt pad | 58815-06130 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06650 · 58831-06660 · 58831-06670 · 58831-06671 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-06800 · 58831-06830 |
| 58908A | Armrest box lid lock assembly | 58908-06101 |
| 58966 | Armrest box cover hinge shaft | 58966-30030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06170 |
