Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

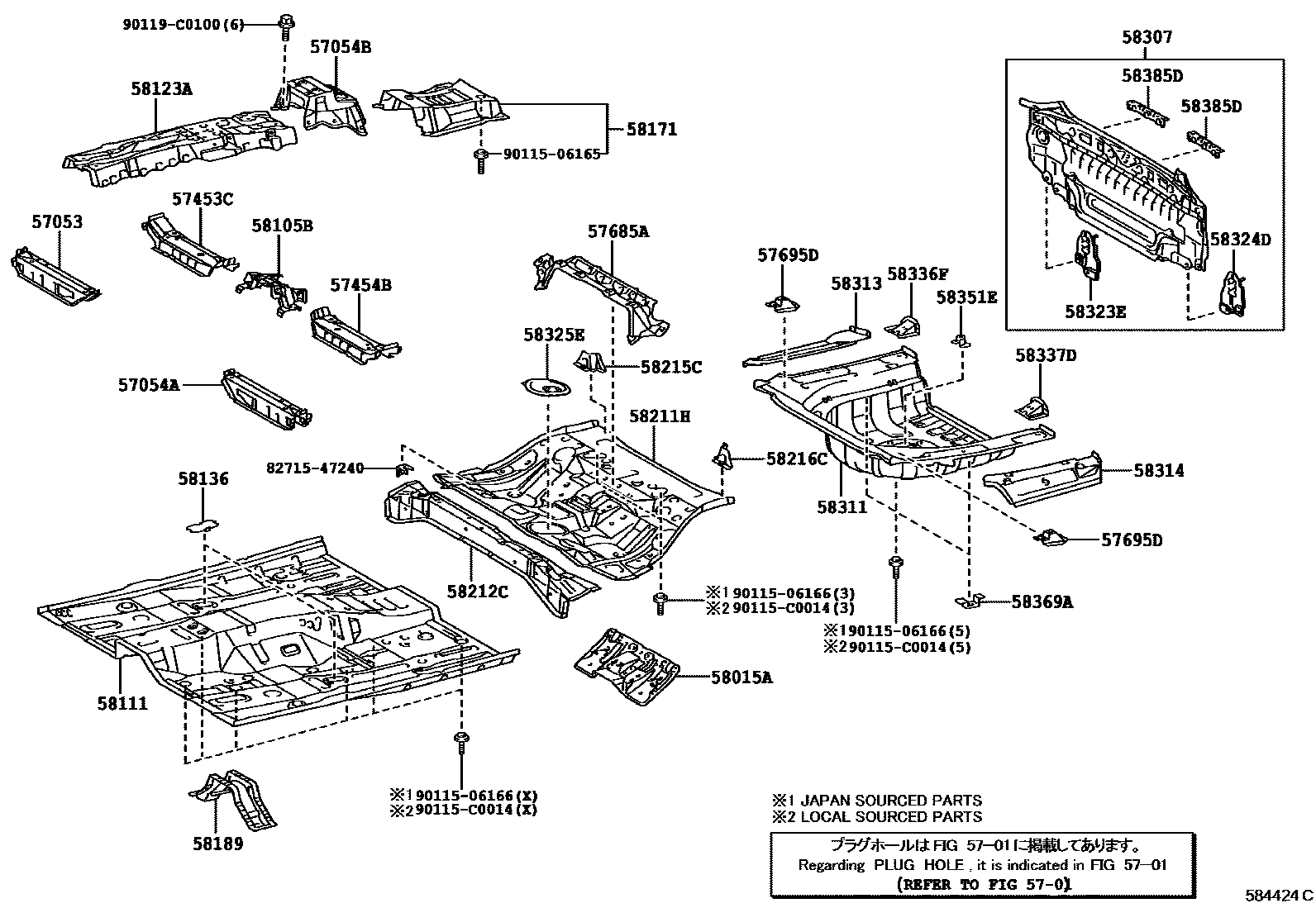

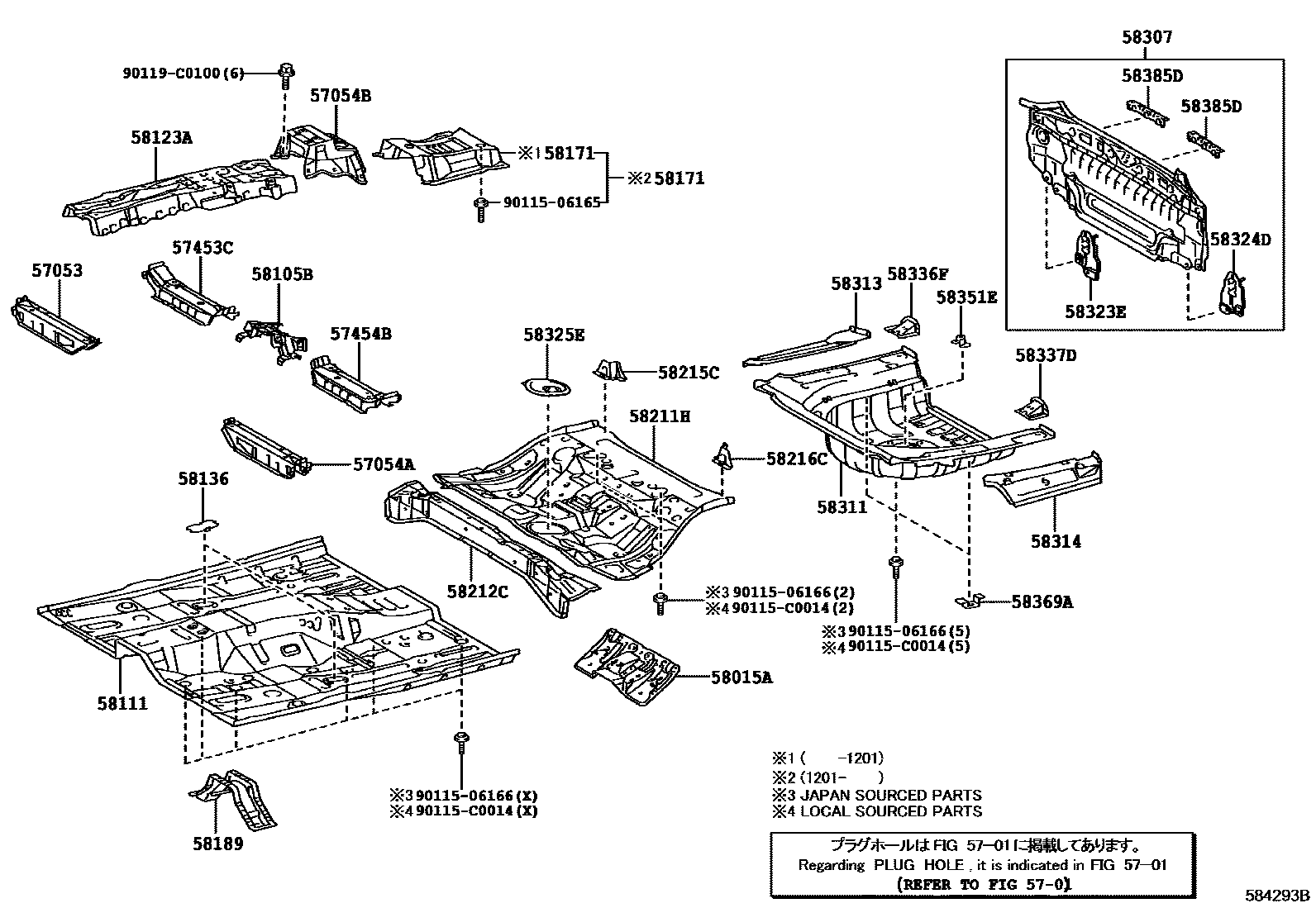

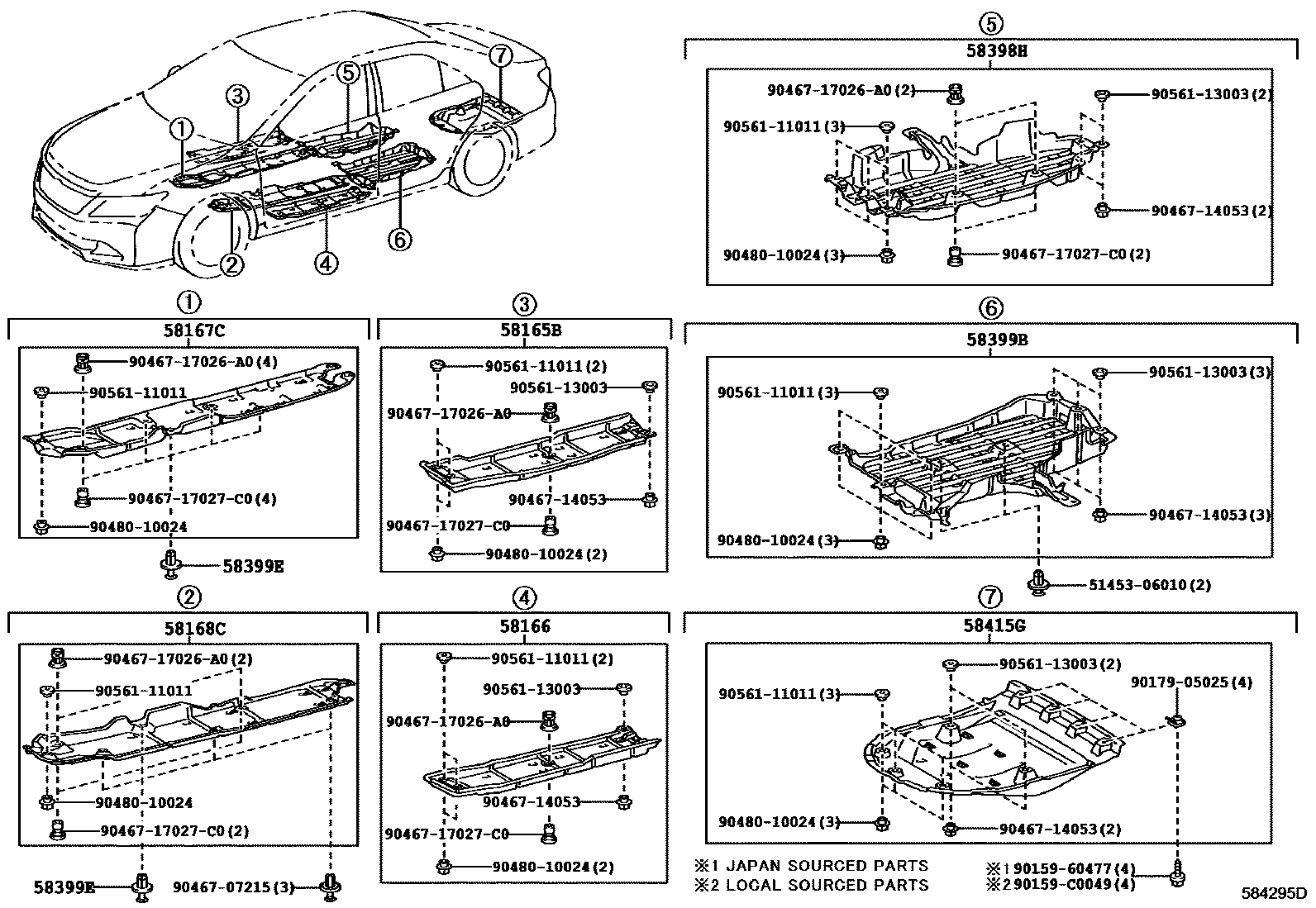

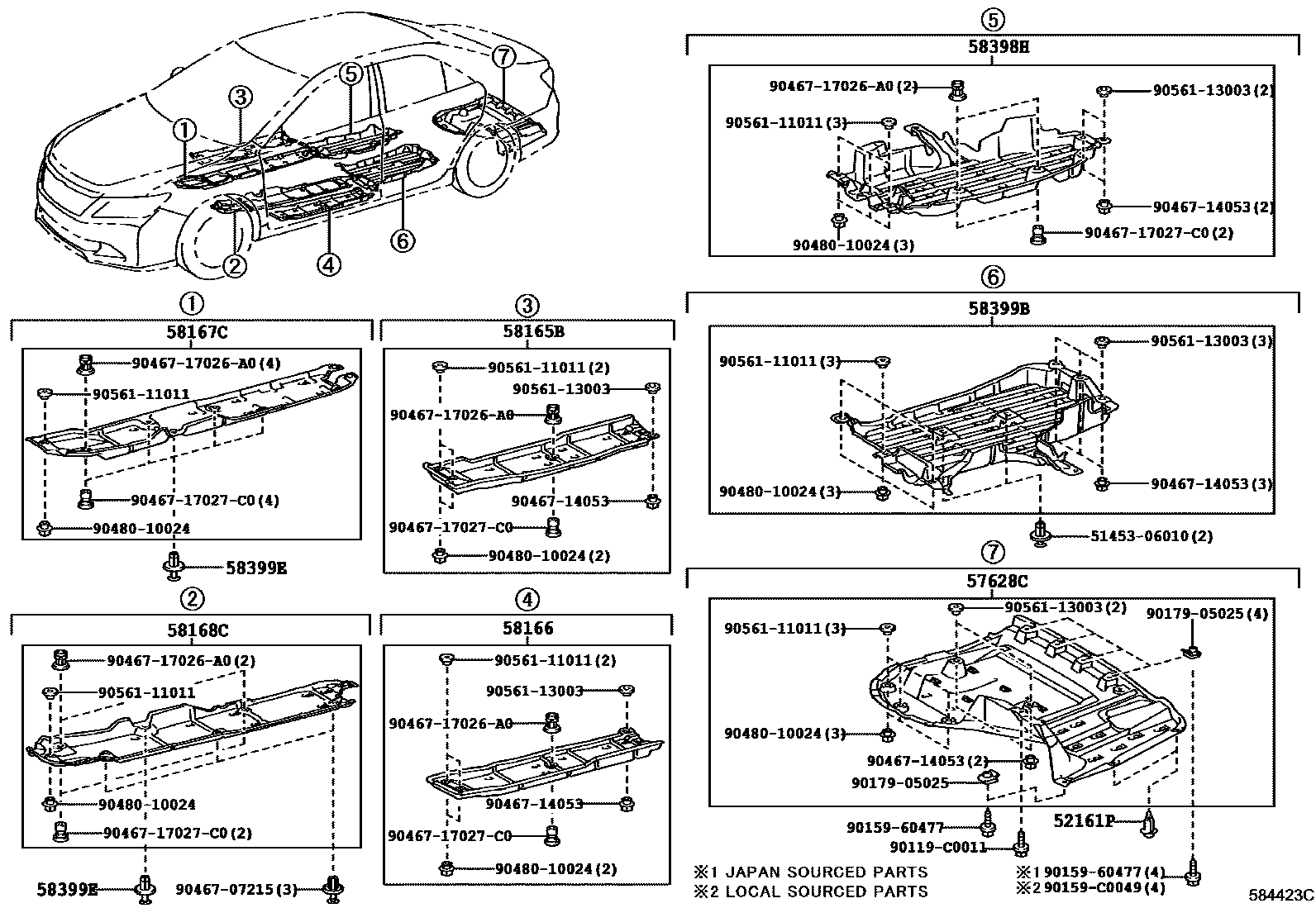

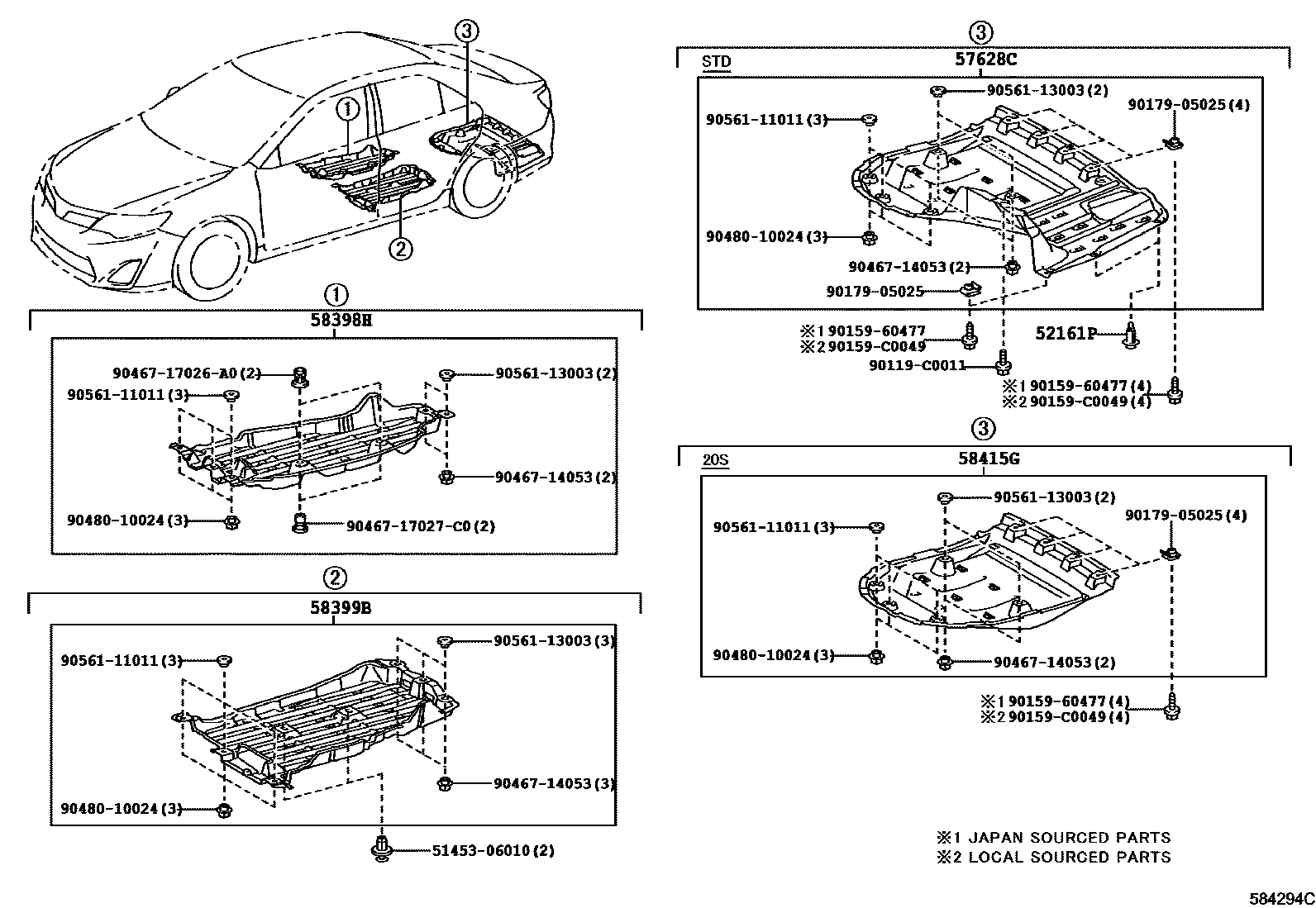

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-02040 · 52161-16010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-06010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-06020 |
| 57054B | Floor No. 4 beam reinforcement sub-assembly | 57054-06060 |
| 57453C | Front floor right cross member | 57453-06080 |
| 57454B | Front floor left longitudinal beam | 57454-06080 |
| 57628C | Rear floor left longitudinal member cover | 57628-06090 · 57628-06130 |
| 57685A | Rear floor No. 1 right mounting bracket | 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06090 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-06051 |
| 58111 | front floor pan | 58111-06121 |
| 58123A | shift lever bracket | 58013-06091 · 58013-06092 |
| 58136 | Front floor hole cover | 58136-06060 |
| 58165B | Front floor right cover | 58165-06010 |
| 58166 | Front floor left cover | 58166-06010 |
| 58167C | Front floor center right cover | 58167-06030 · 58167-06040 |
| 58168C | Front floor center left cover | 58168-06020 |
| 58171 | Parking brake base reinforcement | 58171-06081 · 58171-06082 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06080 · 58189-06081 |
| 58211H | central floor base | 58211-06140 · 58211-06180 |
| 58212C | Center floor front floor | 58212-06060 |
| 58215C | Center floor No. 2 right reinforcement | 58215-06050 |
| 58216C | Center floor No. 2 left reinforcement | 58216-06050 |
| 58307 | Body lower back panel sub-assembly | 58307-06170 |
| 58311 | rear floor pan | 58311-06141 |
| 58313 | Rear floor right panel | 58313-06160 · 58313-06170 |
| 58314 | rear floor left panel | 58314-06140 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-06060 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-06060 |
| 58325E | Rear floor access hole cover | 58325-06040 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06060 |
| 58337D | Rear floor bottom left reinforcement | 58337-06050 |
| 58351E | Spare tire clip bracket | 58351-06020 |
| 58369A | No. 3 fuel pipe bracket | 58369-06030 |
| 58385D | Rear bumper cover bracket | 58385-06100 |
| 58398H | No. 1 floor under cover | 58398-06050 · 58398-06130 |
| 58399B | Floor No. 2 lower cover | 58399-06050 · 58399-06130 |
| 58399E | Clamp No. 1 (for lower floor cover) | 51454-08010 |
| 58415G | Rear floor panel No. 1 | 58415-06060 · 58415-06090 |
