Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

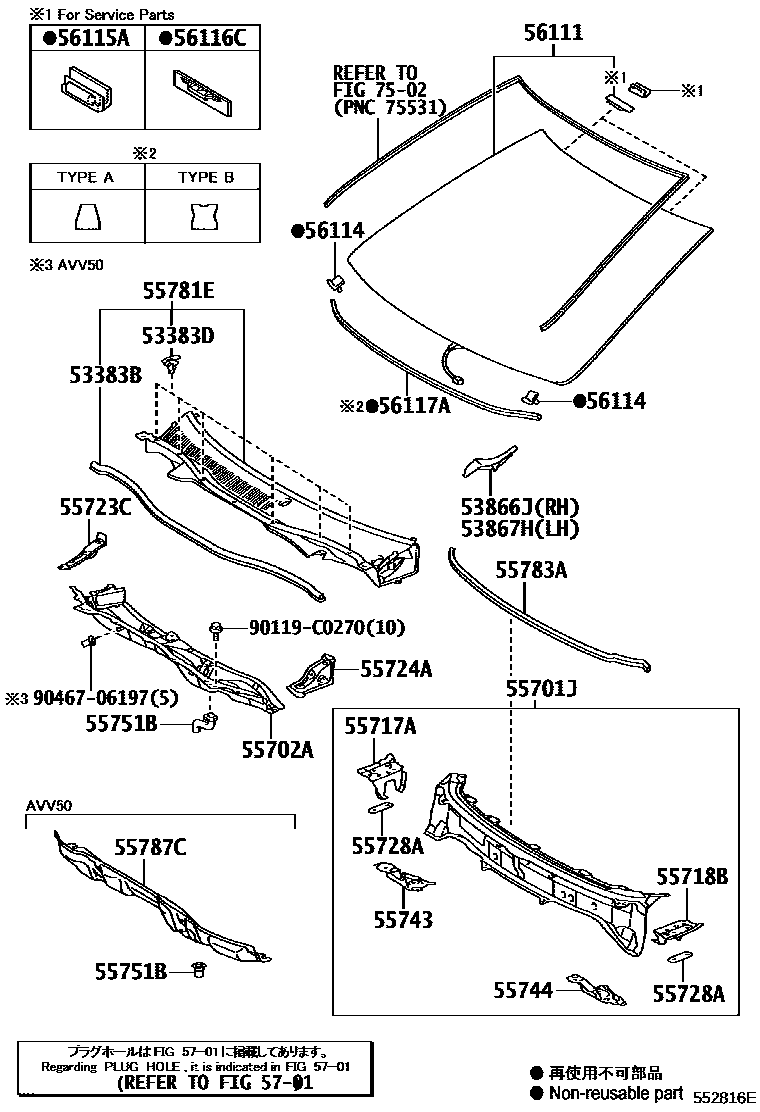

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06140 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-0E010 · 67867-48030 |
| 53866J | Right front fender to cowl side seal | 53866-06080 |
| 53867H | Left front fender to cowl side seal | 53867-06080 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06220 · 55701-06260 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06160 · 55702-06161 · 55702-06162 · 55702-06170 · 55702-06171 · 55702-06172 |
| 55717A | Upper right inner panel of cowl | 55717-06140 |
| 55718B | Upper left inner panel of front wall | 55718-06140 |
| 55723C | Right front wall upper side reinforcement | 55723-06140 |
| 55724A | Left front wall upper side reinforcement | 55724-06150 |
| 55728A | Engine cover block reinforcement | 55728-06110 |
| 55743 | Right front upper outer corner panel | 55743-06080 |
| 55744 | Left front upper outer corner panel | 55744-06050 |
| 55751B | Front no. 1 water hose | 55751-06130 · 55751-06180 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06170 |
| 55783A | Front cowl upper cover silencer pad | 55783-06110 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-06050 |
| 56111 | windshield | 56101-06950 · 56101-06951 · 56101-06952 · 56101-06955 · 56101-06956 · 56101-06971 · 56101-06972 · 56101-06973 |
| 56114 | windshield stopper | 56114-06080 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06100 · 56117-06160 |
