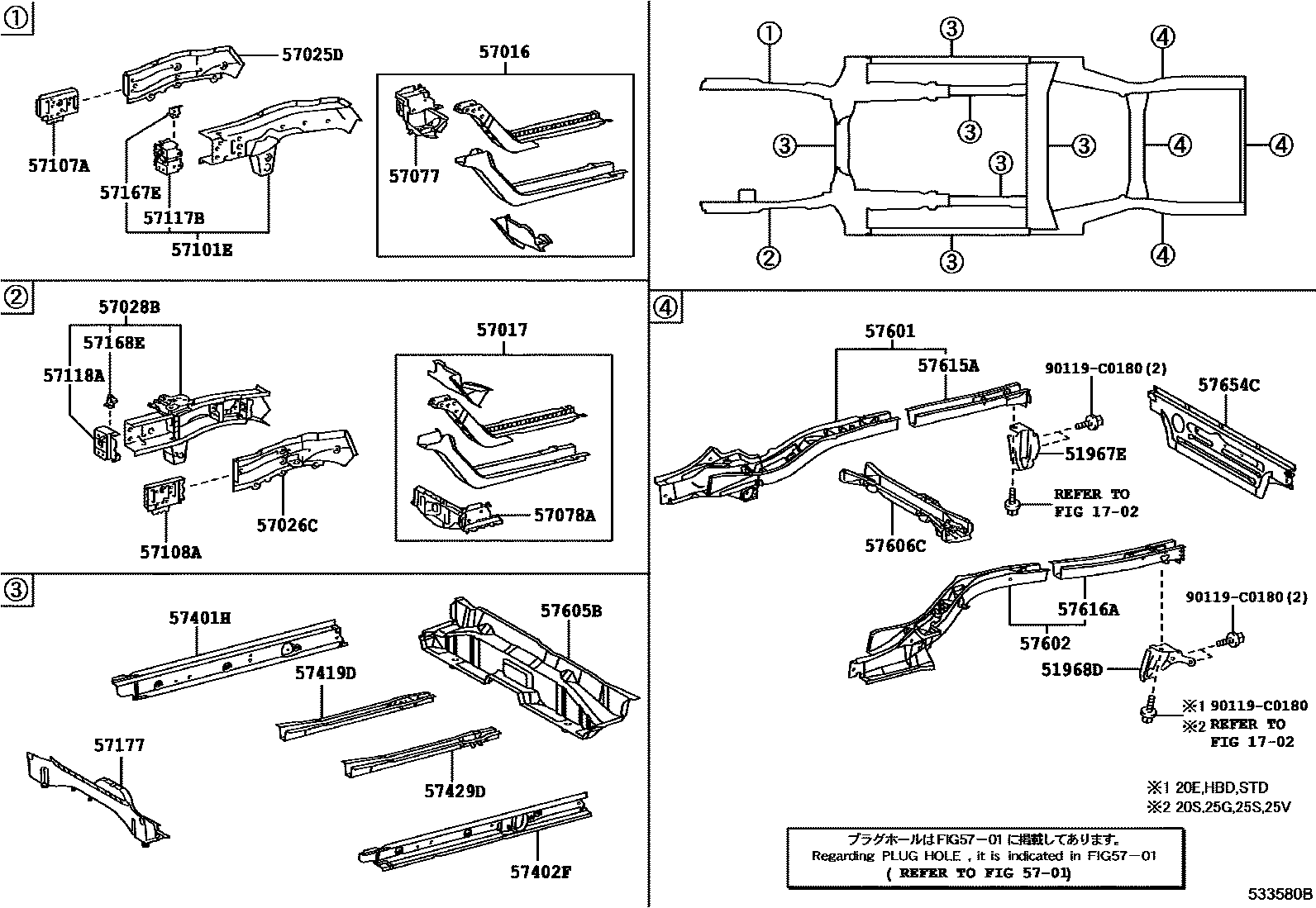

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51967E | right rear transport hook | 51967-06050 |
| 51968D | Left rear transport hook | 51968-06070 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06110 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06100 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-06080 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-06080 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-06121 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-06080 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-06080 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57027-06051 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06041 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06041 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06080 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06080 |
| 57167E | Front cross member right corner panel | 57167-06040 |
| 57168E | Front cross member left corner panel | 57168-06030 |
| 57177 | Front longitudinal beam to dash panel cross member | 57103-06110 · 57103-06111 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-06231 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-06221 |
| 57419D | Front floor right rear lower reinforcement | 57419-33050 |
| 57429D | Left rear reinforcement under front floor | 57429-33020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06341 · 57601-06390 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06190 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06170 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06140 |
| 57615A | Rear floor right rear longitudinal member | 57615-06926 · 57615-06927 |
| 57616A | Rear floor left rear longitudinal member | 57616-06917 |
| 57654C | Rear floor beam No. 3 | 57654-06060 |
