Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

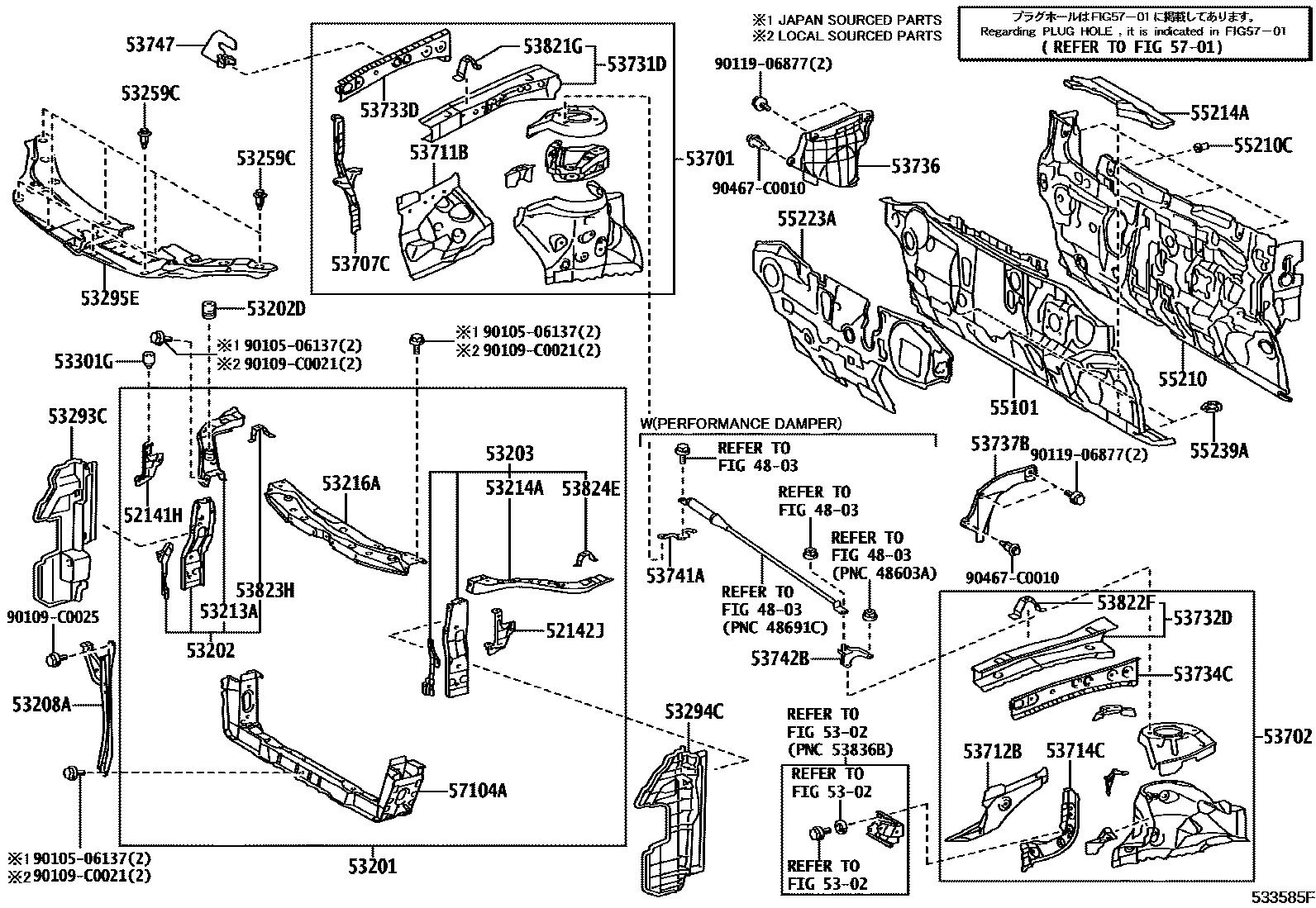

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06120 |
| 52142J | Front bumper left upper arm | 52142-06100 |
| 53201 | Radiator bracket sub-assembly | 53201-06241 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06150 |
| 53202D | Radiator bracket cushion | 90541-15004 · 90541-C0001 |
| 53203 | Radiator left bracket sub-assembly | 53203-06190 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06100 · 53208-06101 |
| 53213A | Radiator upper right bracket | 53213-06120 |
| 53214A | Radiator upper left bracket | 53214-06140 |
| 53216A | Radiator upper bracket | 53216-06150 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 · 90467-07217 · 90467-C0009 |
| 53293C | Radiator right baffle | 53293-06250 · 53293-06260 · 53293-06370 · 53293-06390 |
| 53294C | Radiator left baffle | 53294-06240 · 53294-06250 · 53294-06370 · 53294-06390 |
| 53295E | Cold air intake pipe seal | 53295-06080 · 53295-06140 |
| 53301G | engine cover cushion | 90541-09128 |
| 53701 | Right front fender fender sub-assembly | 53701-06190 |
| 53702 | Left front fender fender sub-assembly | 53702-06170 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-06050 |
| 53711B | Right front fender front fender | 53711-06140 |
| 53712B | Left front fender front fender | 53712-06100 |
| 53714C | Left front fender fender front extension | 53714-06110 |
| 53731D | Right front fender to cowl side upper beam | 53731-06906 |
| 53732D | Left front fender to cowl side upper beam | 53732-06905 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06110 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06110 |
| 53736 | Right front fender fender seal | 53736-06060 |
| 53737B | Left front fender fender seal | 53737-06070 · 53737-06080 |
| 53741A | Right fender fender reinforcement panel | 53741-06010 |
| 53742B | Left fender fender reinforcement plate | 53742-06010 |
| 53747 | Right air sealing plate | 53747-06040 |
| 53821G | Right front fender rear support | 53821-06080 |
| 53822F | Left front fender rear support | 53822-06080 |
| 53823H | Right front fender corner panel | 53823-06080 |
| 53824E | Left front fender corner panel | 53824-06080 |
| 55101 | Front apron sub-assembly | 55101-06510 |
| 55210 | Front wall insulation pad assembly | 55210-06310 · 55210-06311 · 55210-06313 · 55210-06321 · 55210-06322 · 55210-06323 |
| 55210C | clip | 90467-06197 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-06080 |
| 55223A | Front wall outer heat insulation pad | 55223-06350 · 55223-06351 · 55223-06360 · 55223-06361 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06030 |
| 57104A | Front cross member sub-assembly | 57104-06051 |
