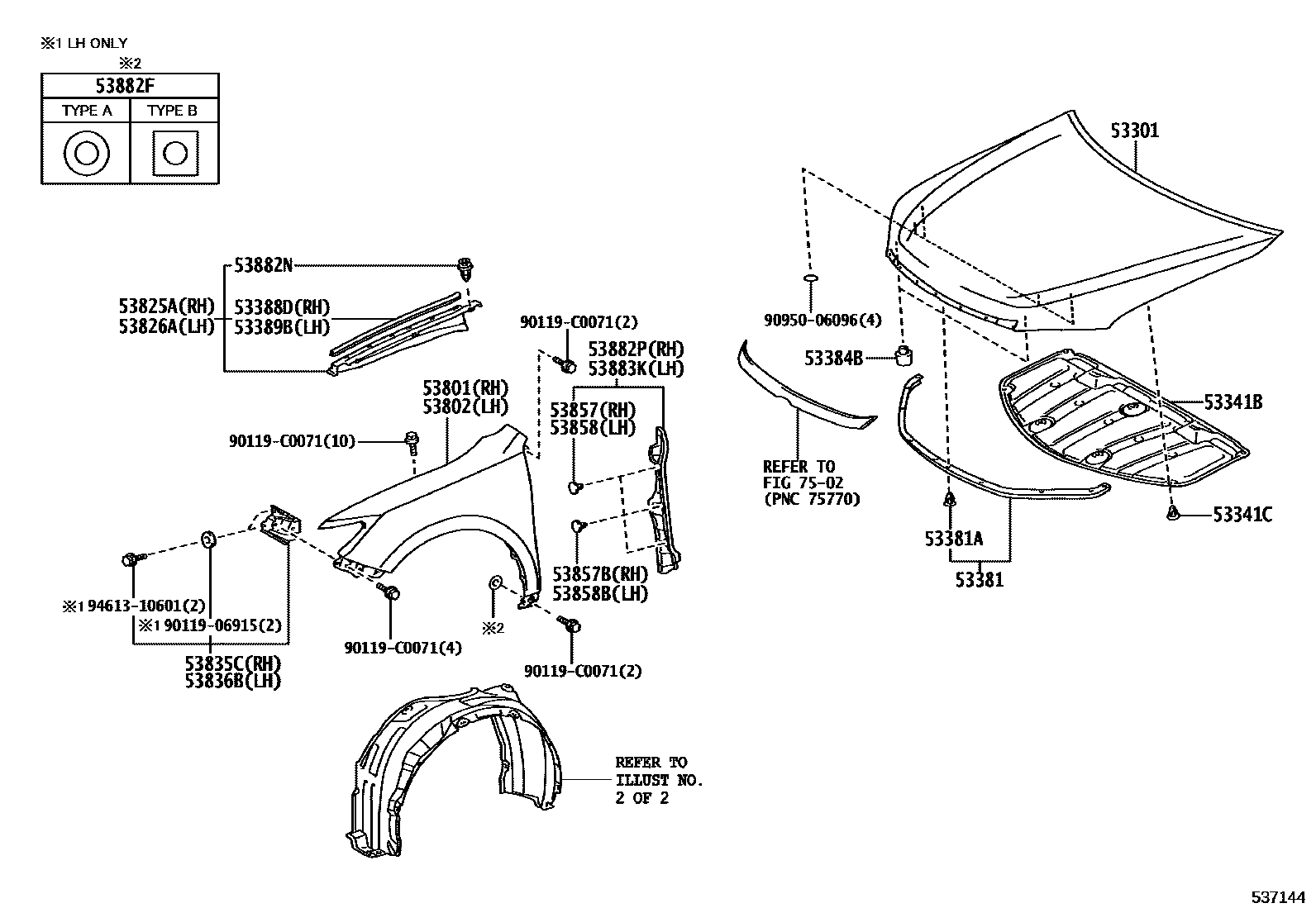

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06180 · 53301-06181 · 53301-06270 |
| 53341B | engine cover gasket | 53341-06300 · 53341-06310 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0006 |
| 53381 | Engine cover to radiator bracket seal | 53381-06120 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 · 90467-C0039 |
| 53384B | Engine cover center cushion | 53384-06010 · 53384-22080 |
| 53388D | Engine cover to right front fender seal | 53388-06090 |
| 53389B | Engine cover to left front fender seal | 53388-06090 |
| 53801 | Right front fender sub-assembly | 53811-06160 |
| 53802 | Left front fender sub-assembly | 53812-06170 |
| 53825A | Right front fender protection piece | 53825-06090 |
| 53826A | Protection piece on left front fender | 53826-06090 |
| 53835C | Right front side panel bracket | 53835-06090 |
| 53836B | Left front side panel bracket | 53804-33030 |
| 53857 | Right front fender external panel fixing piece | 53857-06010 · 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-06010 · 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-06010 · 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-06010 · 53857-47011 |

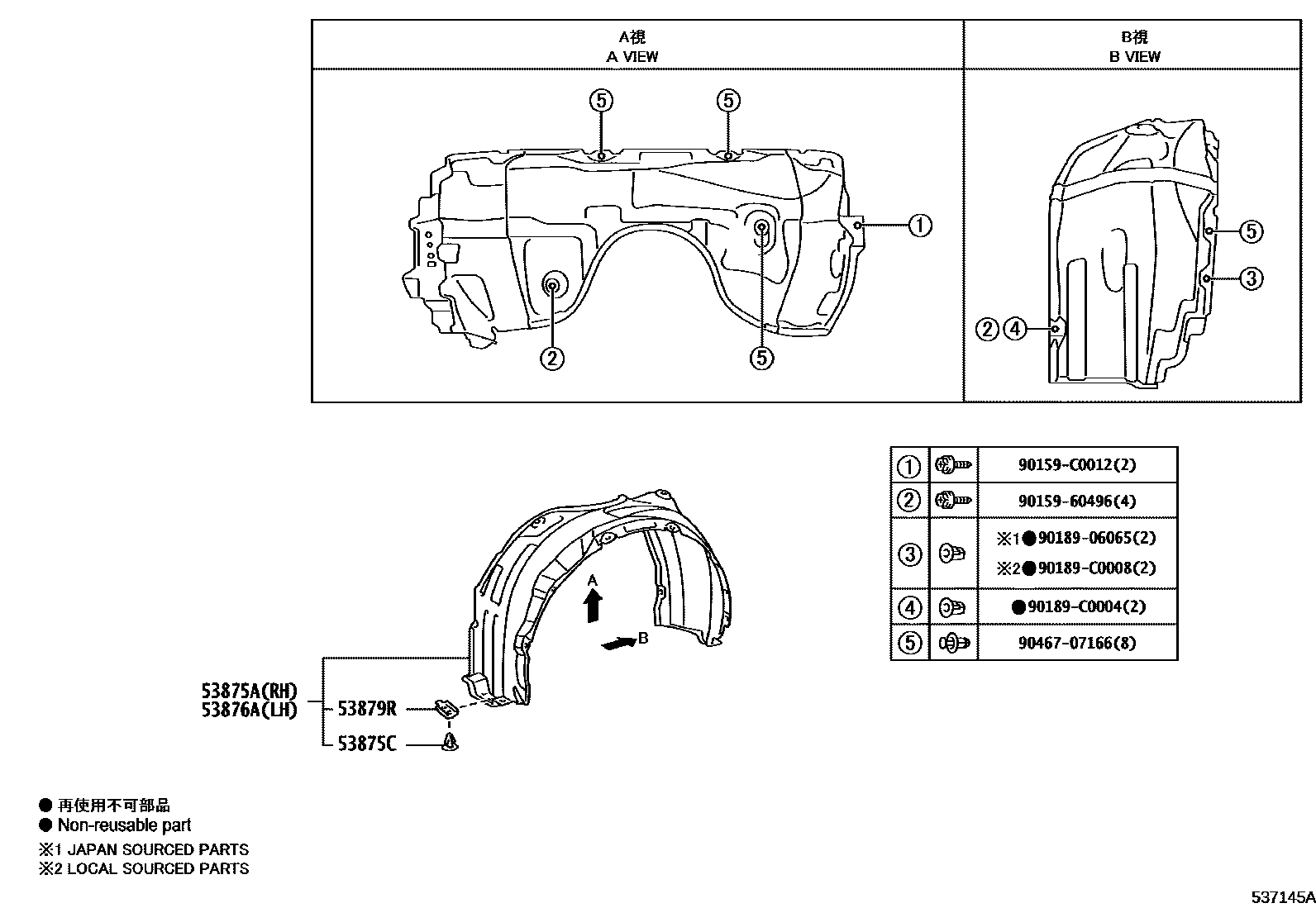

| 53875A | Right front fender lining | 53805-06060 · 53805-06090 · 53805-06130 |
| 53875C | Front fender lining clip | 90467-06192 |
| 53876A | Left front fender lining | 53806-06070 · 53806-06100 · 53806-06140 |
| 53879R | Front fender lining fixing parts | 53879-06090 |
| 53882F | front fender seal | 53882-30030 · 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-C0020 |
| 53882P | Right front fender seal | 53882-06120 |
| 53883K | Left front fender seal | 53883-06110 |
