Toyota CAMRY 后保险杠及附件 — Figure 5202

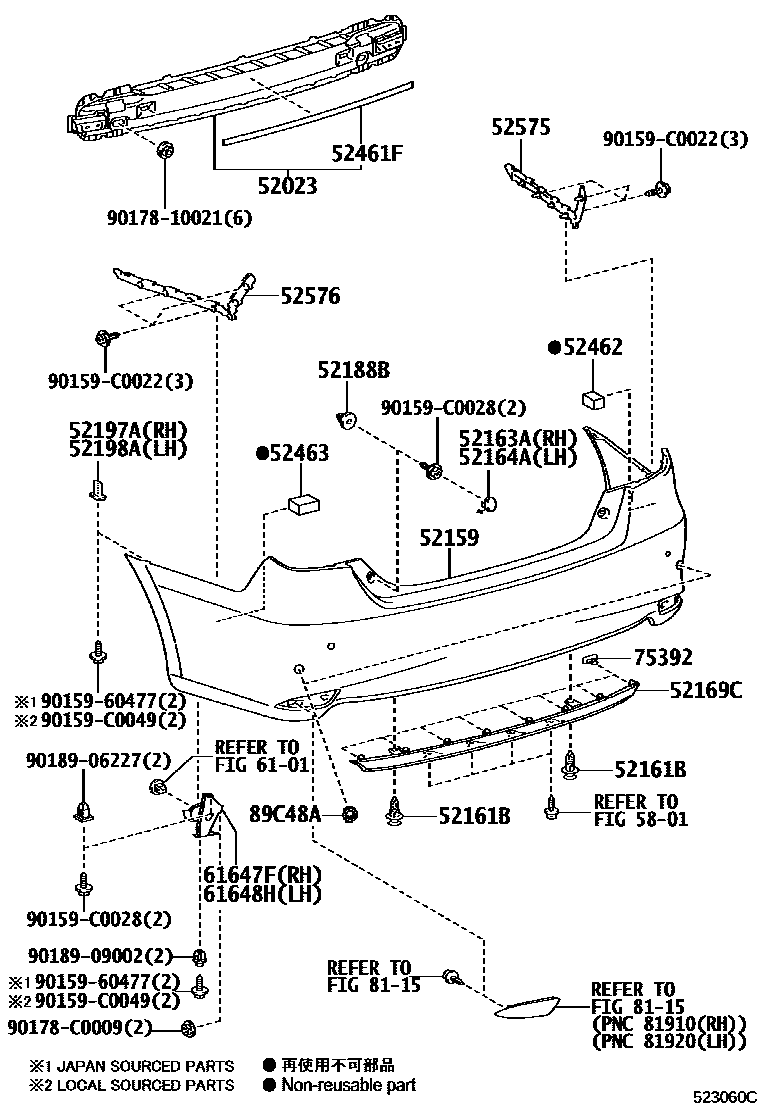

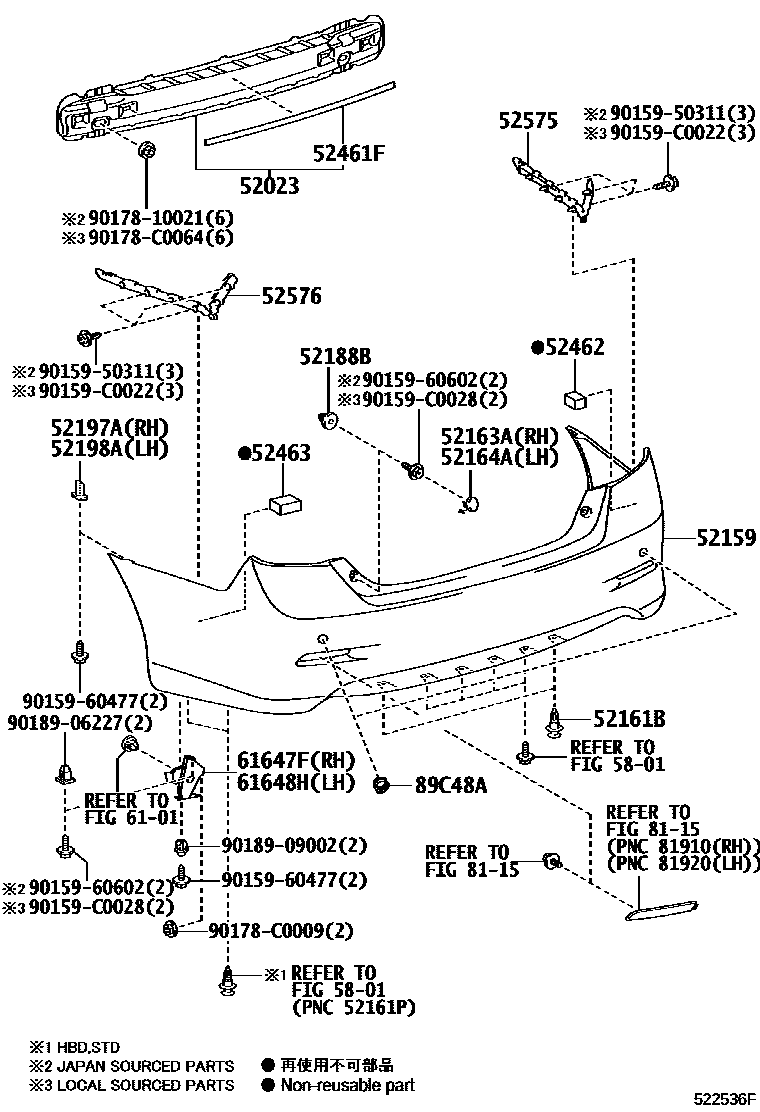

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06190 · 52023-06200 |
| 52159 | rear bumper cover | 52159-06978 · 52159-06979 · 52159-06980 · 52159-06992 · 52159-06993 |
| 52161B | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-06913 |
| 52164A | Rear bumper left fender | 52164-06913 |
| 52169C | Rear bumper lower cover | 52169-06050 |
| 52188B | Rear bumper installation spacer | 52188-06040 |
| 52197A | Rear bumper right seal support | 52197-06010 |
| 52198A | Rear bumper left seal support | 52197-06010 |
| 52461F | rear bumper lining | 52461-06050 |
| 52462 | Rear bumper right side lining | 52462-06060 · 52462-06110 · 52462-06150 |
| 52463 | Rear bumper left lining | 52463-06020 · 52463-06060 · 52463-06080 |
| 52575 | Rear bumper right side fixing bracket | 52575-06110 · 52575-06111 |
| 52576 | Rear bumper left side fixing bracket | 52576-06110 · 52576-06111 |
| 61647F | Right wheel arch reinforcement | 61647-06100 · 61647-06110 |
| 61648H | Left wheel arch reinforcement | 61648-06100 · 61648-06110 |
| 75392 | External protective strip fixings | 75392-33030 |
