Toyota CAMRY 前保险杠及附件 — Figure 5201

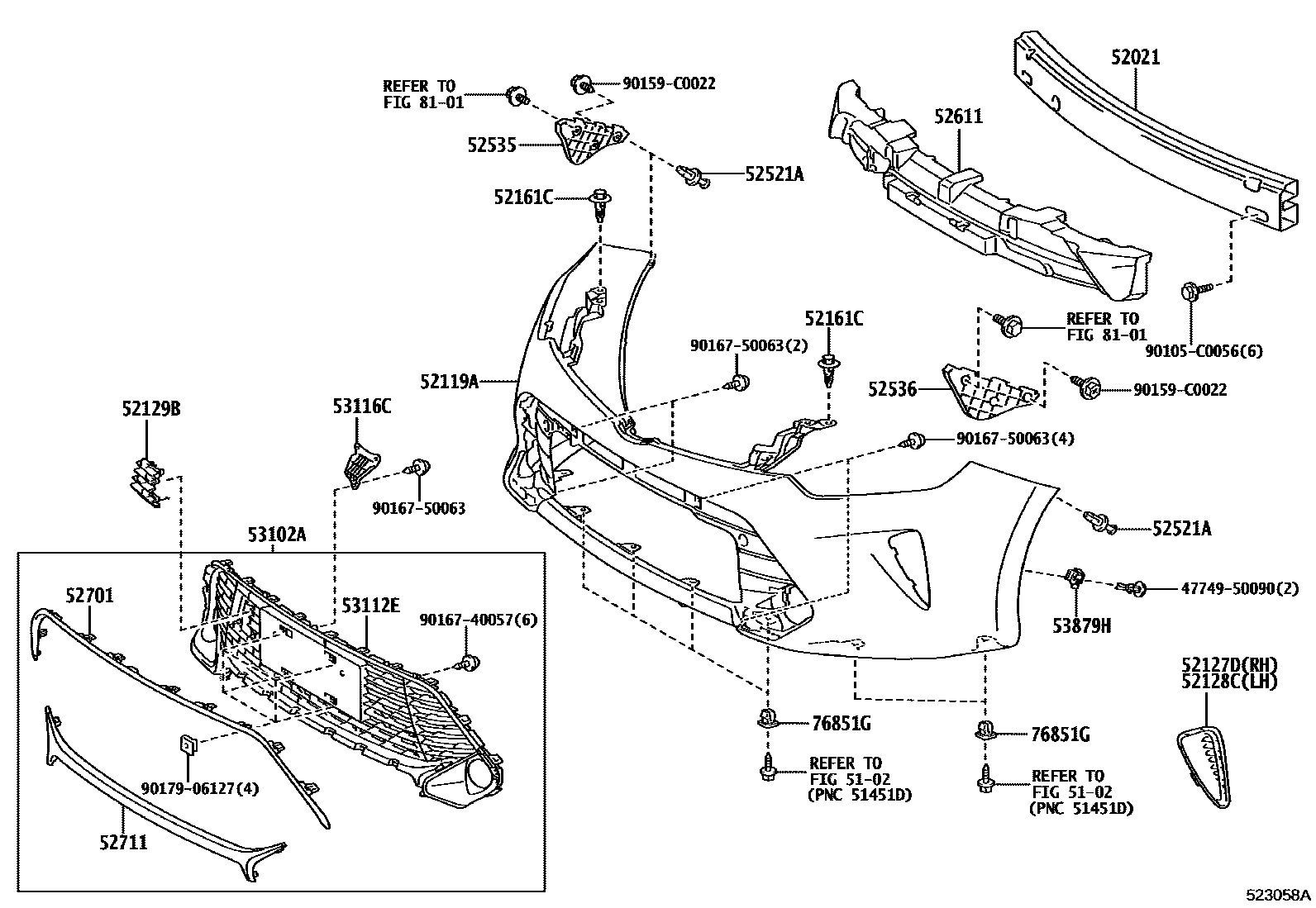

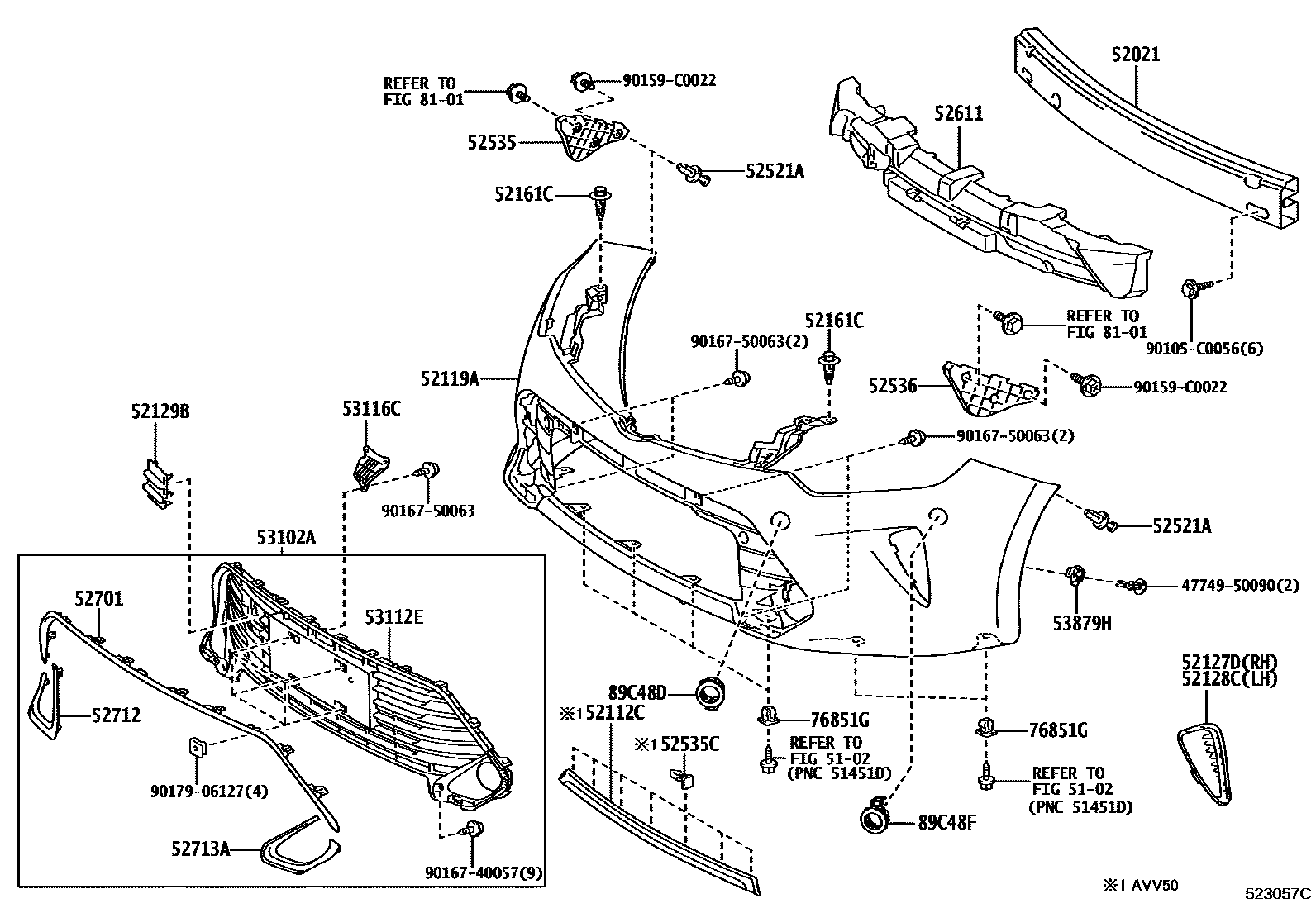

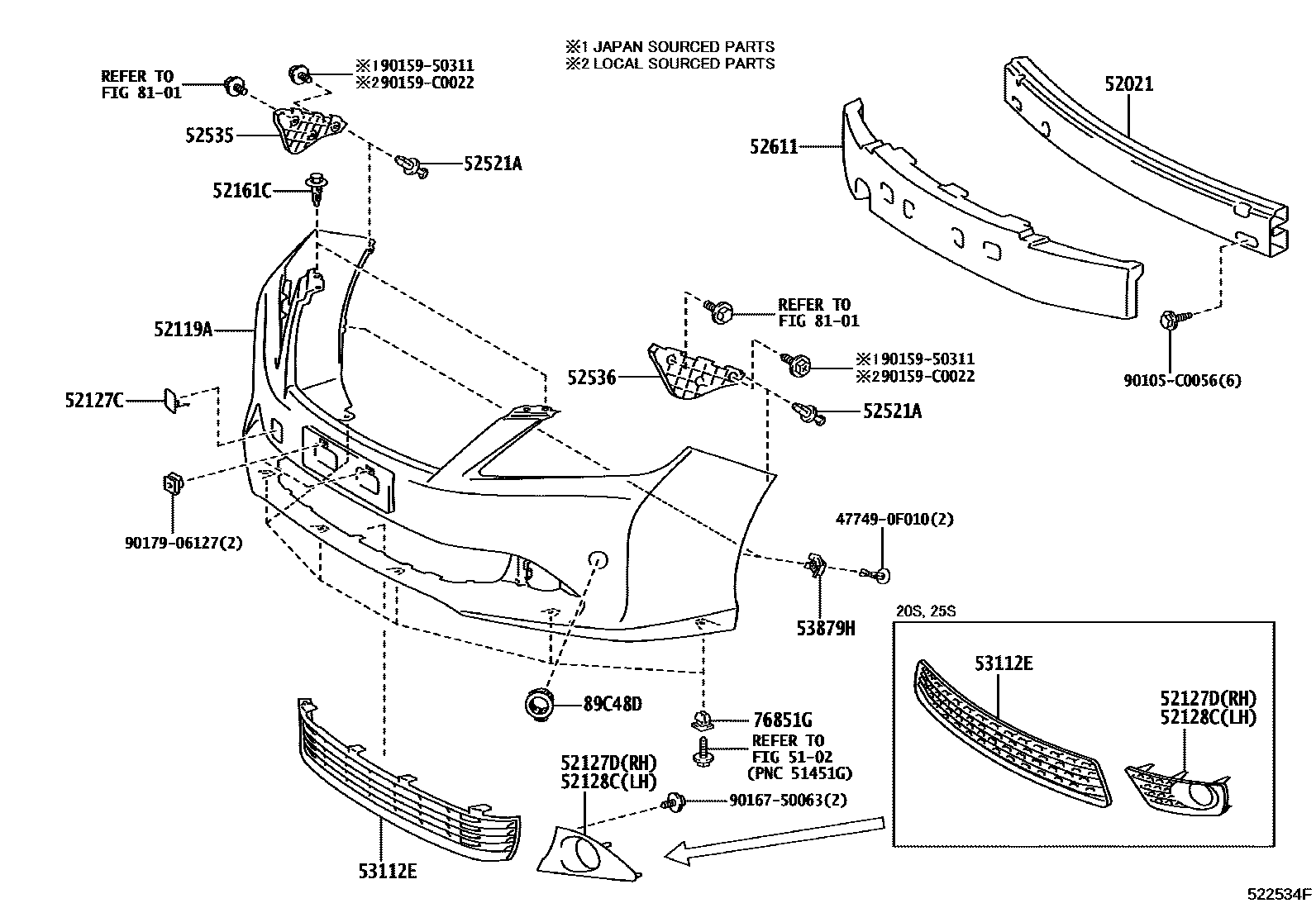

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-06120 · 52021-06121 |
| 52112C | Front bumper extension | 52112-06080 |
| 52119A | front bumper cover | 52119-06989 · 52119-06990 · 52119-06991 · 52119-06992 · 52119-0Z957 · 52119-0Z958 · 52119-0Z959 · 52119-0Z960 · 52119-0Z961 · 52119-0Z968 · 52119-0Z969 |
| 52127C | Front bumper hole cover | 52129-06939 · 52129-06942 |
| 52127D | Front bumper right hole cover | 52030-06260 · 52030-06261 · 52127-06370 · 52127-06371 · 52127-06490 |
| 52128C | Front bumper left hole cover | 52040-06260 · 52040-06261 · 52128-06370 · 52128-06371 · 52128-06490 |
| 52129B | Front bumper lower cover | 52129-06290 · 52129-06300 · 52129-06430 · 52129-06440 |
| 52161C | front bumper insert | 52161-02040 · 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-06150 |
| 52535C | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-06140 |
| 52611 | front bumper energy absorber | 52611-06280 · 52611-06290 · 52611-06400 |
| 52701 | Front bumper protection strip sub-assembly | 52711-06160 |
| 52711 | Front bumper protection strip | 52714-06010 |
| 52712 | Front bumper right side protective strip | 52712-06090 |
| 52713A | Front bumper left protective strip | 52713-06090 |
| 53102A | Radiator lower grille sub-assembly | 53102-06010 · 53102-06020 · 53102-06410 · 53102-06430 |
| 53112E | No. 1 radiator lower grille | 53112-06300 · 53112-06310 · 53112-06390 · 53112-06410 · 53112-06760 · 53112-06770 |
| 53116C | Radiator grille bracket No. 2 | 53115-06060 |
| 53879H | Front fender lining fixing parts | 53879-30040 · 53879-30050 |
| 76851G | No. 1 screw seal | 90189-06193 · 90189-C0006 |
