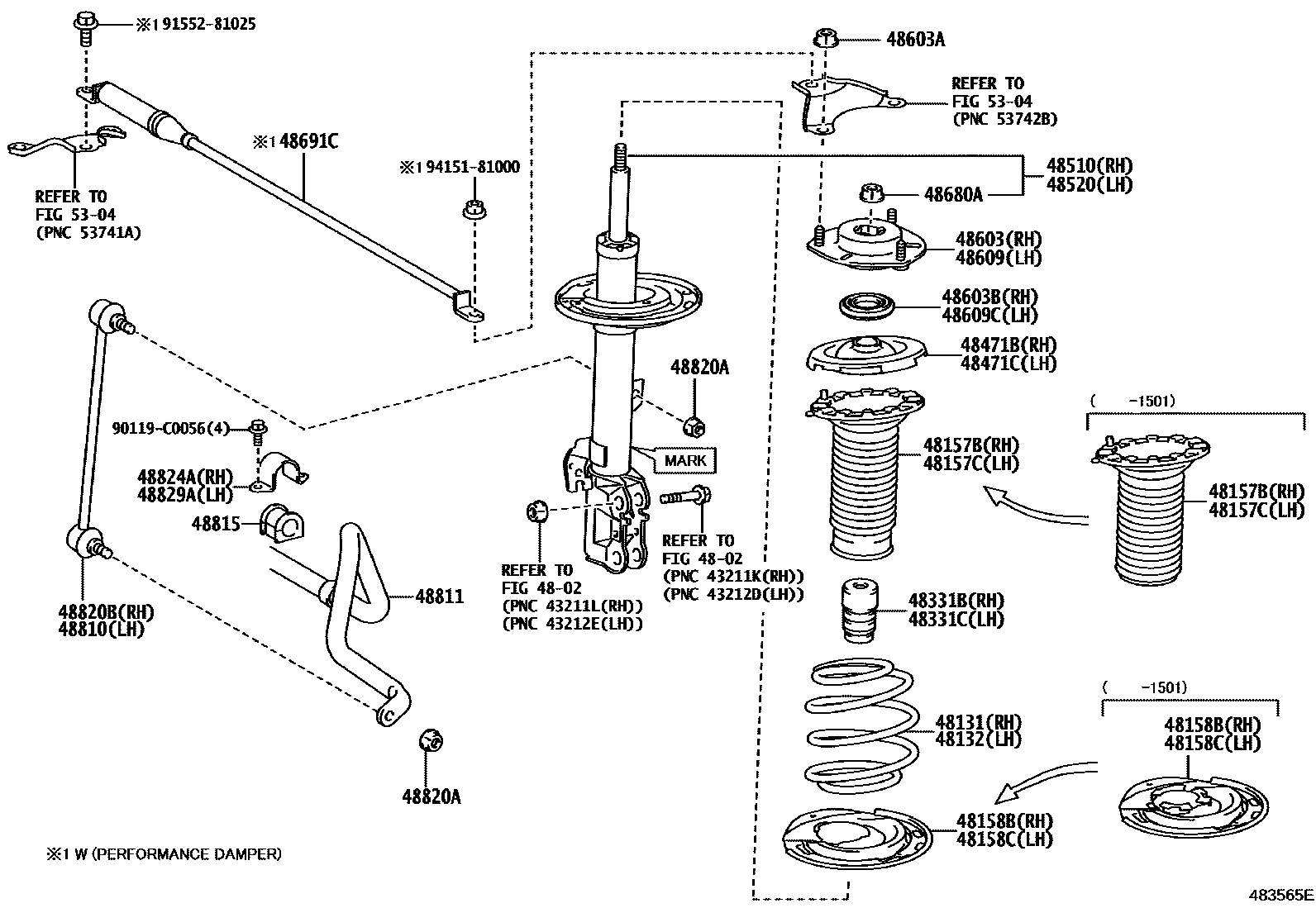

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-06D50 · 48131-06D60 · 48131-06E40 |
| 48132 | Left front coil spring | 48131-06D50 · 48131-06D60 · 48131-06E40 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06100 · 48157-06180 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06100 · 48157-06180 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06110 · 48158-06210 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06110 · 48158-06210 |
| 48331B | Right front spring buffer block | 48331-33070 · 48331-33071 |
| 48331C | Left front spring buffer block | 48331-33070 · 48331-33071 |
| 48471B | Front coil spring upper right seat | 48471-41012 |
| 48471C | Front coil spring upper left seat | 48471-41012 |
| 48510 | Right front shock absorber assembly | 48510-8Z048 · 48510-8Z049 · 48510-8Z182 · 48510-8Z183 |
| 48520 | Left front shock absorber assembly | 48520-09X30 · 48520-09X40 · 48520-8Z064 · 48520-8Z065 |
| 48603 | Right front suspension bearing sub-assembly | 48609-06170 · 48609-06240 · 48609-06310 · 48609-06320 |
| 48603A | Nut (for front suspension mount) | 90178-C0001 |
| 48603B | Bearing (for right front suspension mount) | 90369-C0001 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06170 · 48609-06240 · 48609-06310 · 48609-06320 |
| 48609C | Bearing (for left front suspension mount) | 90369-C0001 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-C0009 · 90179-14015 |
| 48691C | Suspension support cover damper | 48691-33020 |
| 48810 | Left front stabilizer bar link assembly | 48820-06061 |
| 48811 | front stabilizer bar | 48811-06220 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06191 |
| 48820A | Nut (for front stabilizer bar link) | 90178-C0027 |
| 48820B | Right front stabilizer bar link assembly | 48820-06061 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06070 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06070 |
