Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 6 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

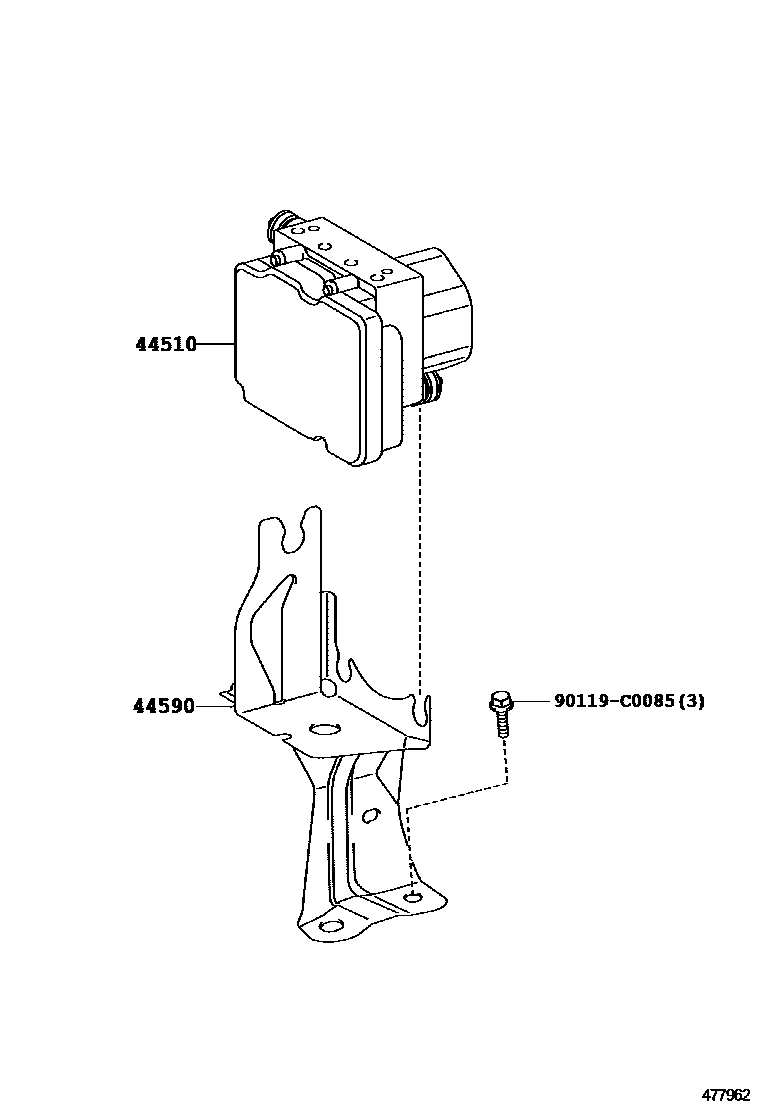

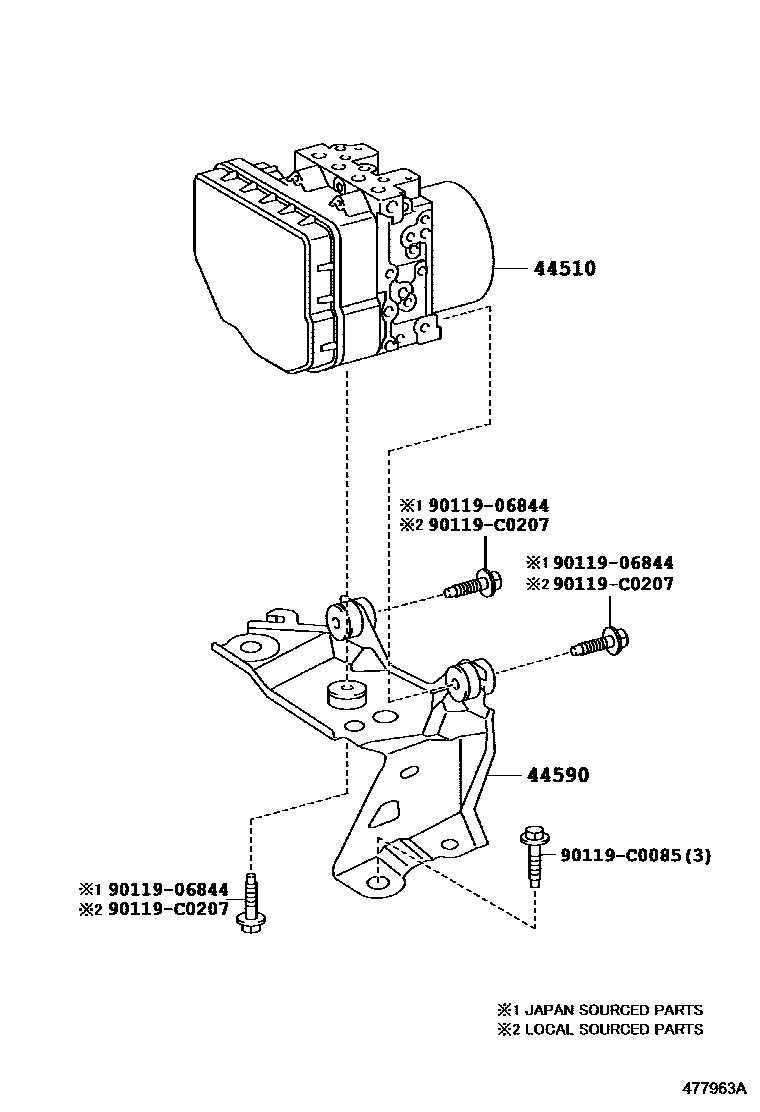

| 44510 | brake actuator assembly | 44050-06220 · 44050-06230 · 44050-06290 · 44050-06300 · 44050-06310 · 44050-06490 · 44050-06500 |
| 44515A | Clamp (for brake actuator hose) | 90466-C0026 · 96135-51300 · 96137-41501 |
| 44551 | No. 1 brake actuator pipe | 44551-06040 |
| 44571 | brake actuator hose | 44571-33140 |
| 44572 | No. 2 brake actuator hose | 44571-33130 |
| 44590 | Brake actuator bracket assembly | 44590-06260 · 44590-06270 · 47940-06050 |

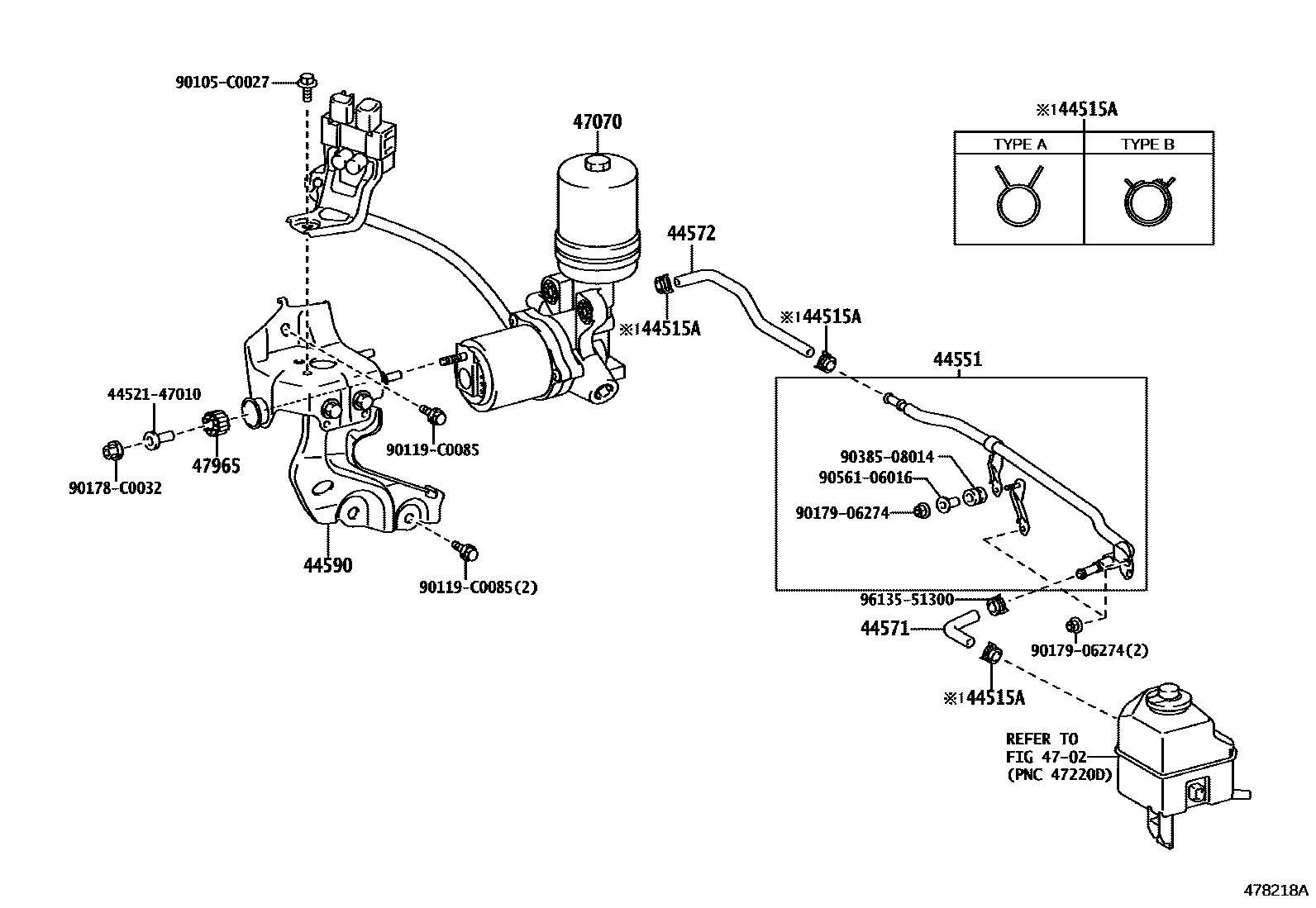

| 47070 | Brake booster pump assembly | 47070-33020 |

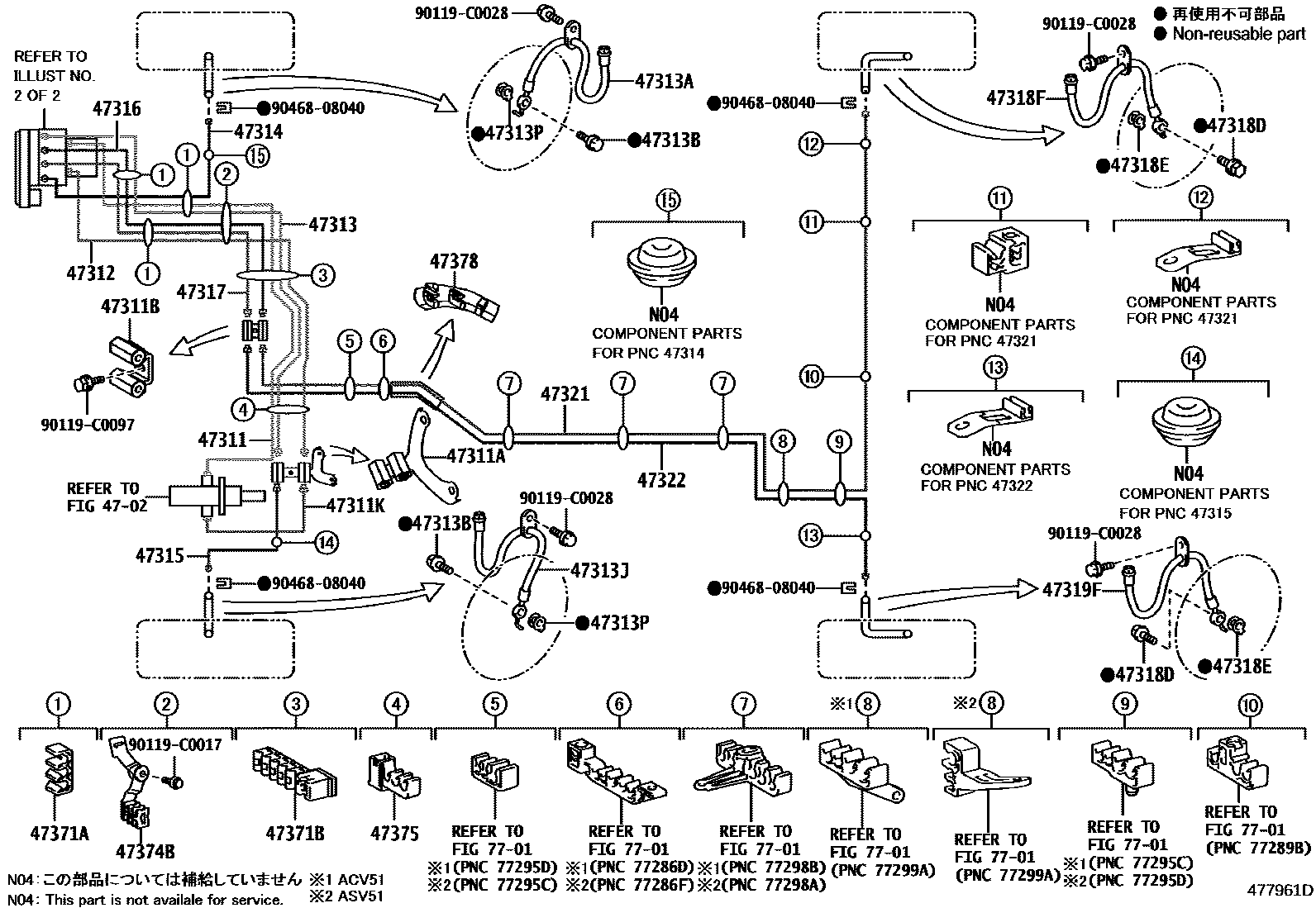

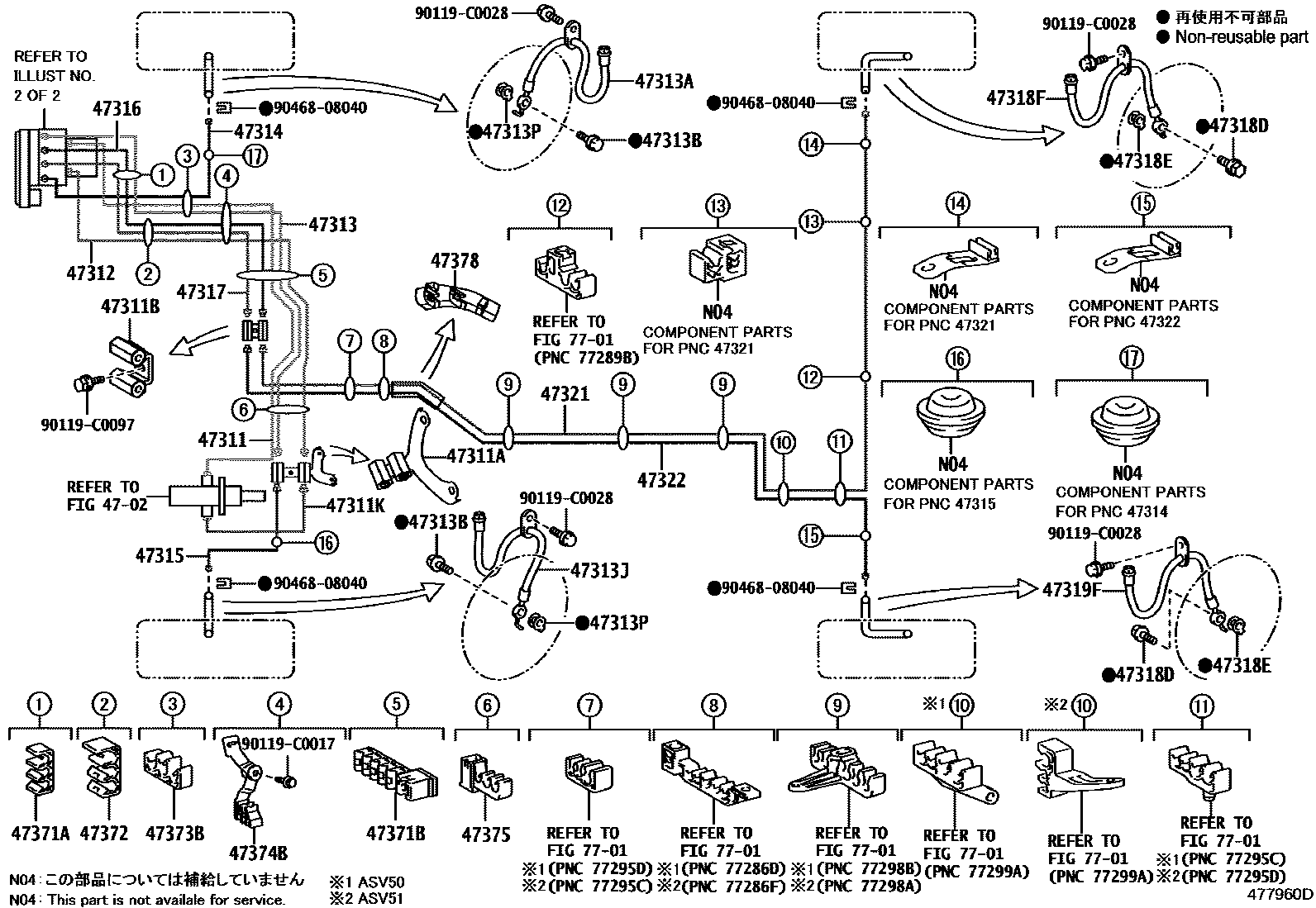

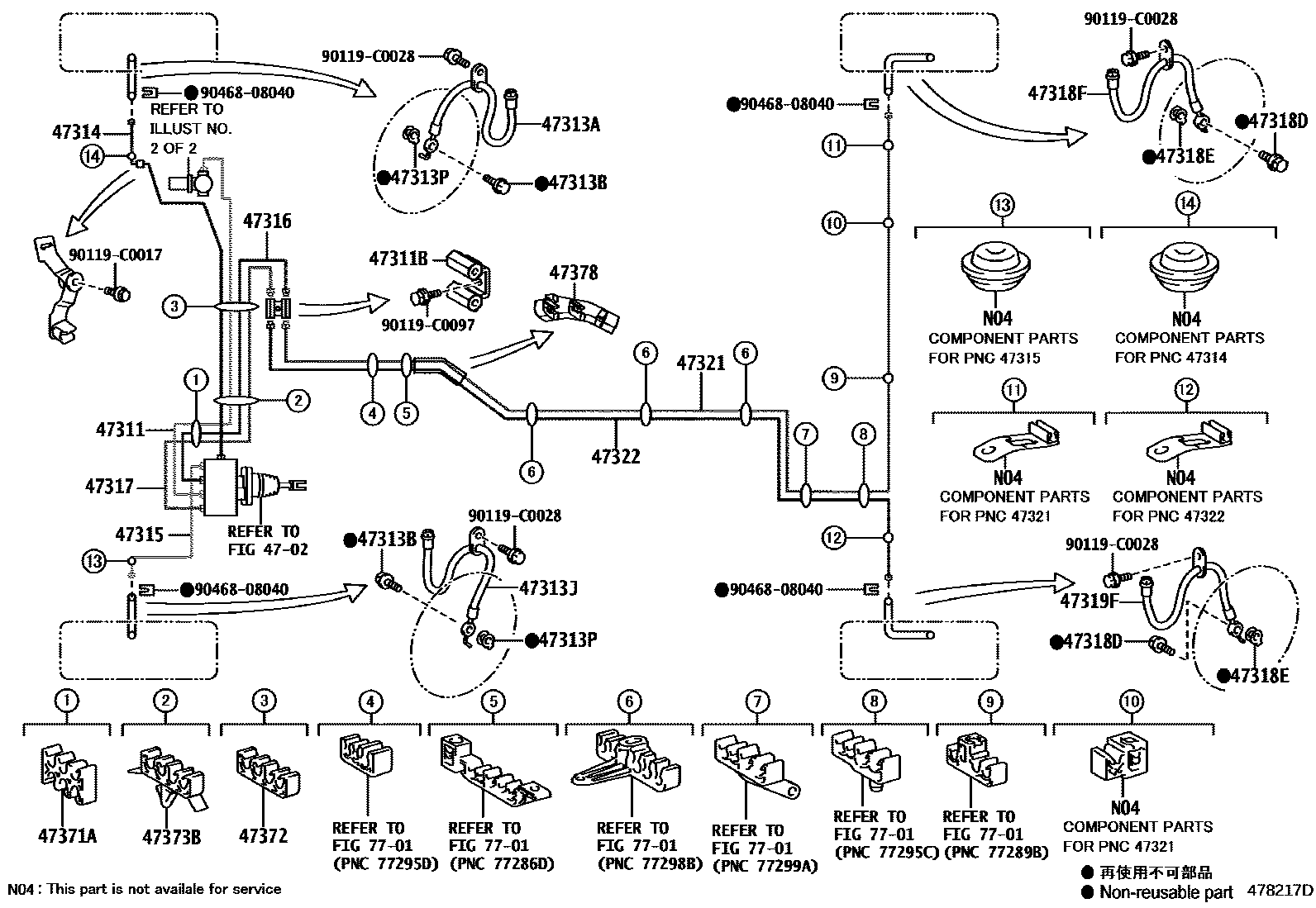

| 47311 | No. 1 front brake pipe | 47311-06460 · 47311-06470 · 47311-06481 |
| 47311A | Pipe fitting (for front brake pipe) | 47392-06010 · 90412-10286 · 90412-12065 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-C0001 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-06490 · 47311-06500 |
| 47312 | No. 2 front brake pipe | 47312-06370 · 47312-06380 |
| 47313 | No. 3 front brake pipe | 47313-06340 · 47313-06350 |
| 47313A | No. 1 front flexible hose | 90947-C2047 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2048 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06330 · 47314-06340 |
| 47315 | No. 5 front brake pipe | 47315-06340 · 47315-06341 · 47315-06350 |
| 47316 | No. 6 front brake pipe | 47316-06410 · 47316-06420 · 47316-06430 |
| 47317 | No. 7 front brake pipe | 47317-06390 · 47317-06400 · 47317-06410 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2045 |
| 47319F | Left rear flexible hose | 90947-C2046 |
| 47321 | No. 1 rear brake pipe | 47321-06170 · 47321-06230 |
| 47322 | No. 2 rear brake pipe | 47322-06170 · 47322-06230 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00880 |
| 47371B | No. 6 brake pipe clamp | 90949-01D06 · 90949-01D51 |
| 47372 | No. 2 brake pipe clamp | 90464-00894 · 90949-01540 |
| 47373B | No. 3 brake pipe clamp | 90464-00919 · 90949-01D16 |
| 47374B | No. 4 brake pipe clamp | 47371-33280 · 47371-33290 |
| 47375 | No. 5 brake pipe clamp | 90949-01D08 · 90949-01D50 |
| 47378 | Brake pipe guard | 77267-33030 · 77267-33040 |
| 47965 | brake booster pump bushing | 47965-30010 |
