Toyota CAMRY 制动助力器和真空管 — Figure 4703

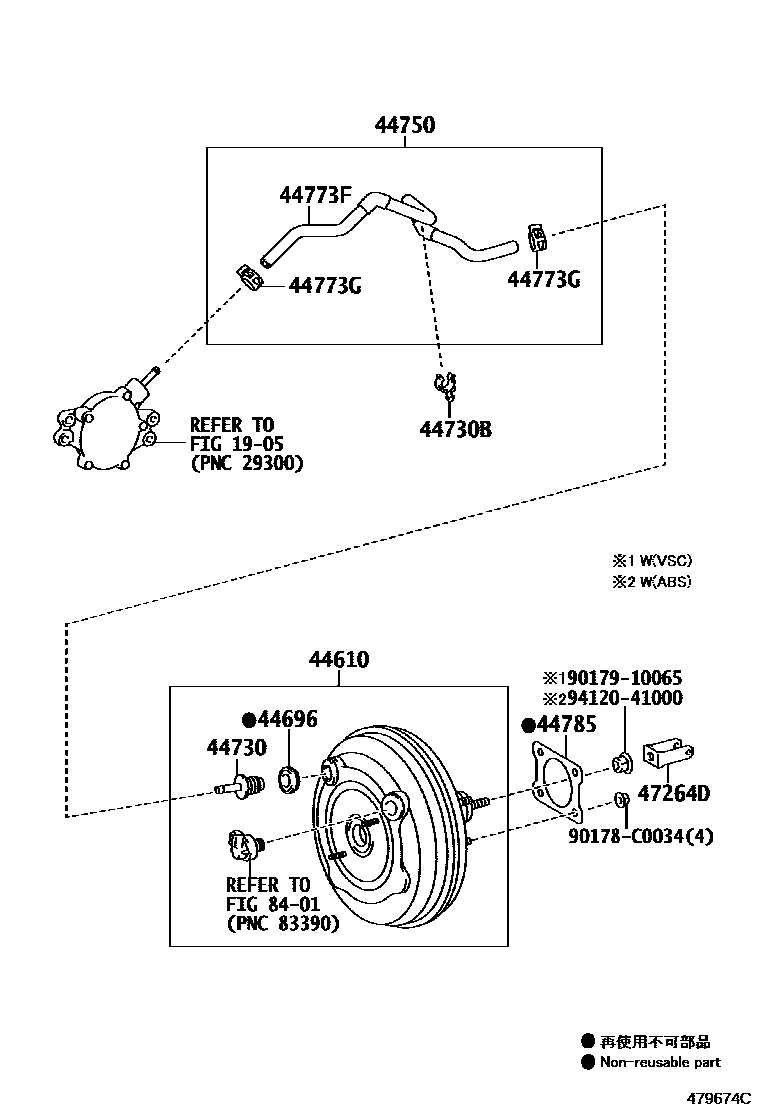

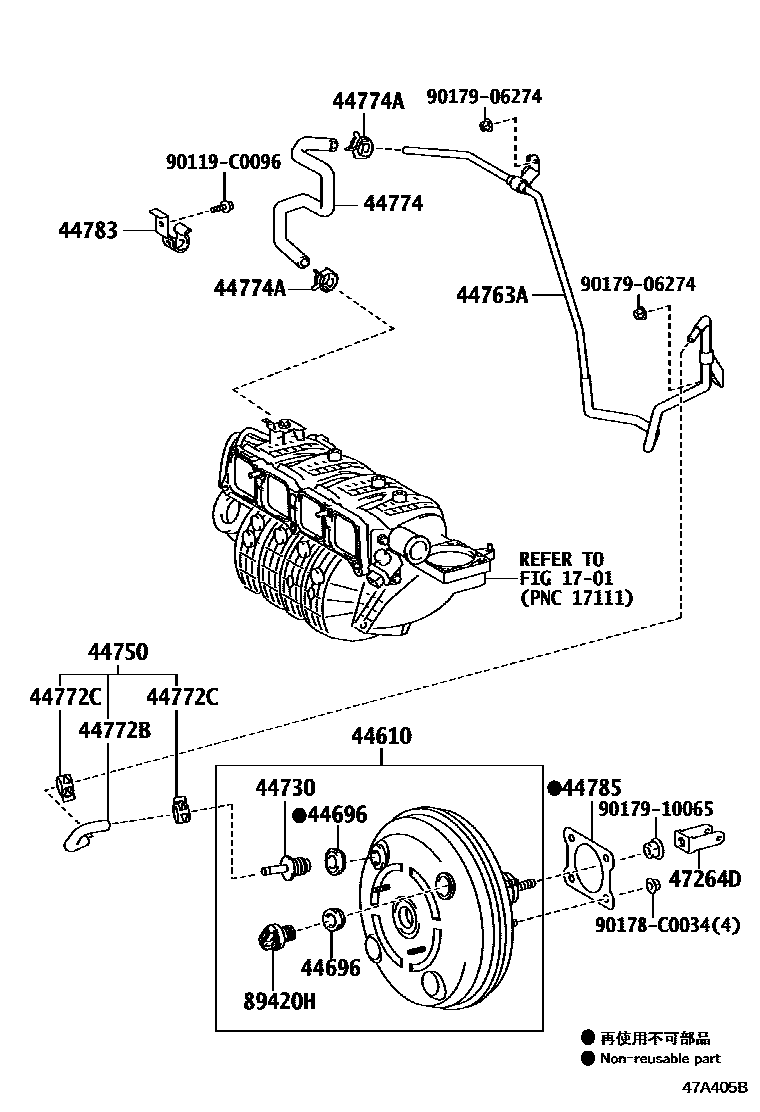

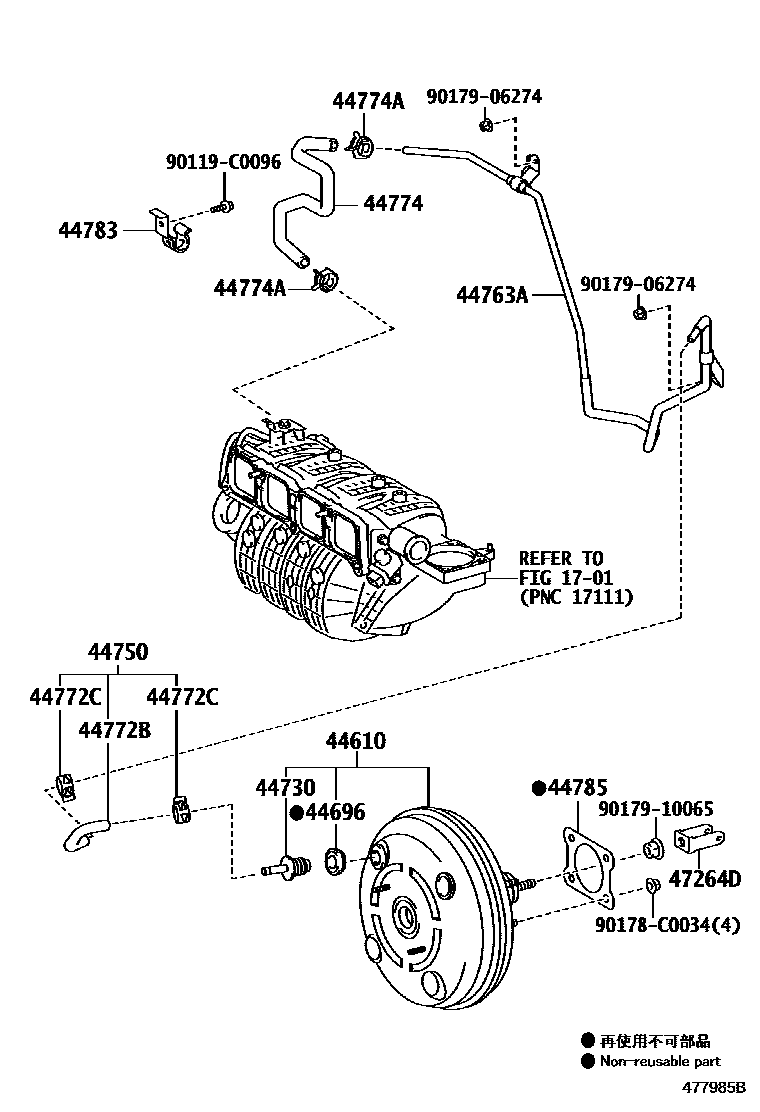

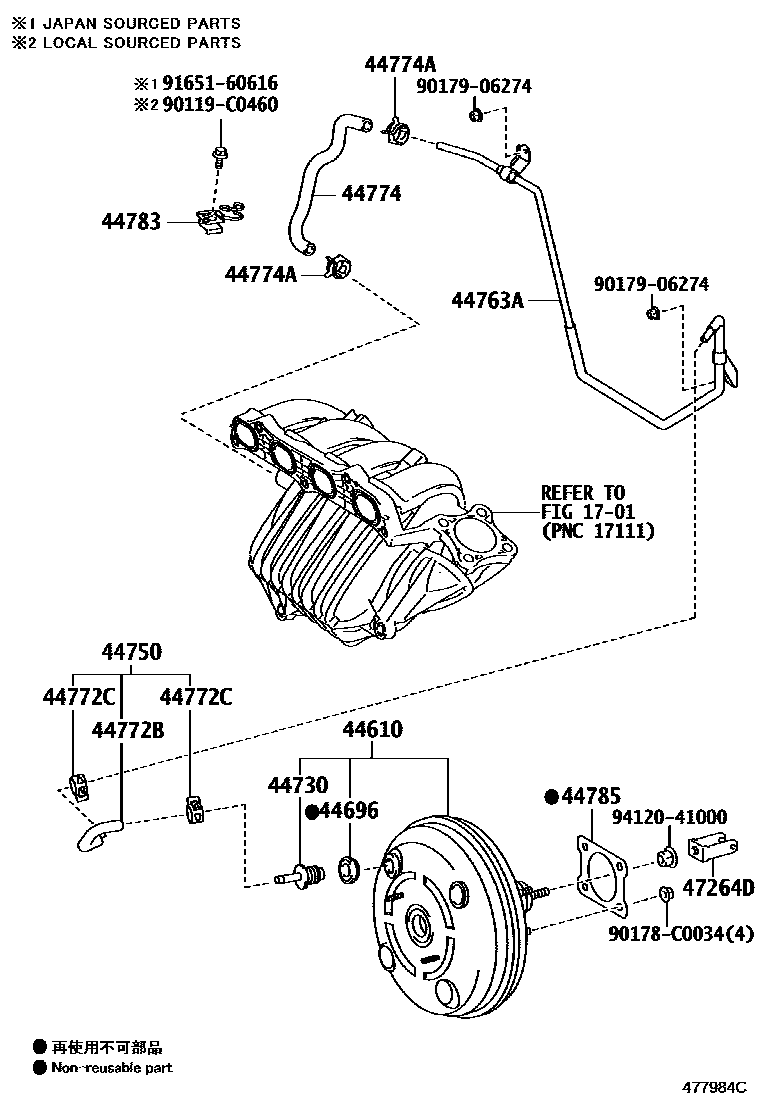

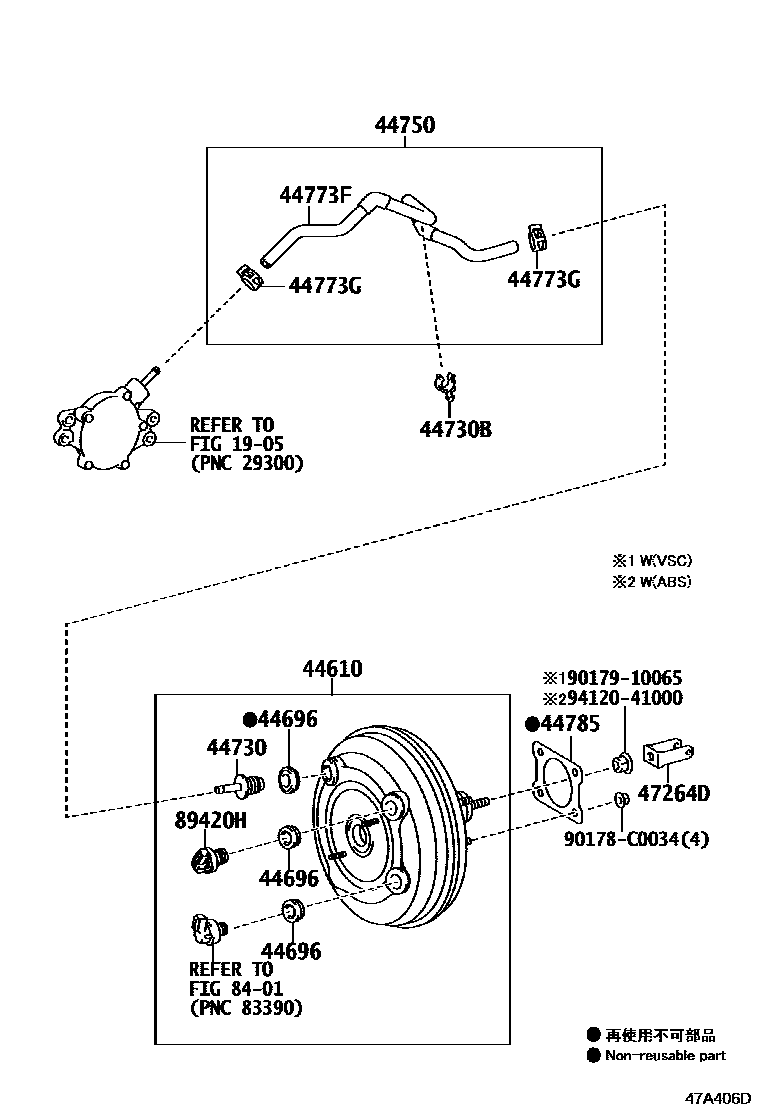

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06490 · 44610-06491 · 44610-06500 · 44610-06580 · 44610-06620 · 44610-06621 · 44610-06630 · 44610-06631 · 44610-06770 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-60070 |
| 44730B | Vacuum hose clamp | 90469-17003 |
| 44750 | Vacuum hose assembly | 44750-06320 · 44750-06340 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-06060 · 44763-06070 |
| 44772B | Hoses (check valve to brake booster) | 44772-06340 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-06130 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-06100 · 44774-06110 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44783 | Vacuum hose clamp | 44783-42030 · 44783-44010 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D050 · 47264-0N010 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
