Toyota CAMRY 制动总泵 — Figure 4702

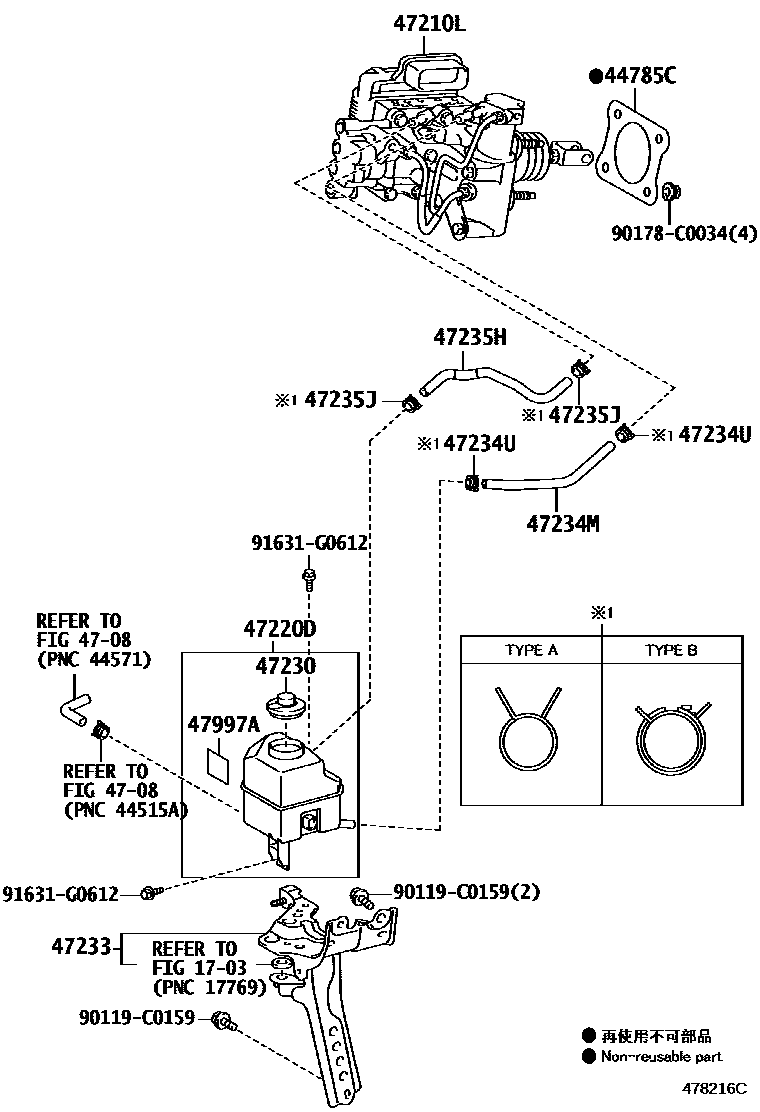

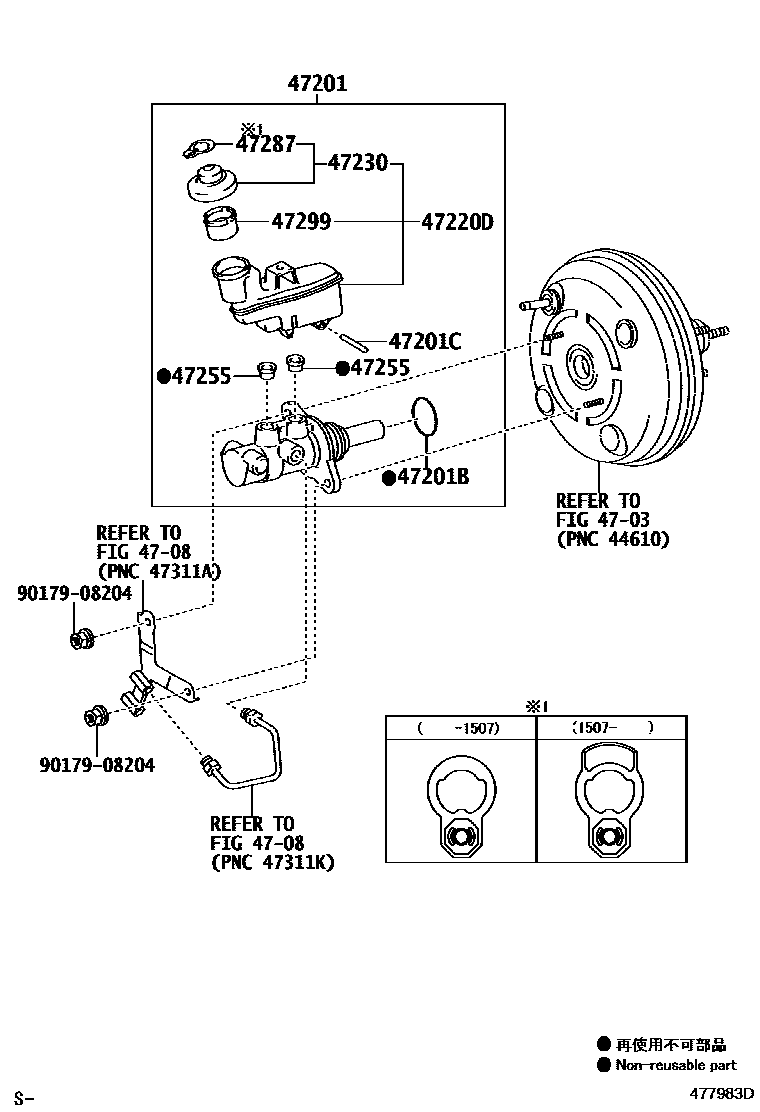

Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785C | brake booster pad | 44785-02050 |
| 47201 | Brake master cylinder sub-assembly | 47201-06450 · 47201-06451 · 47201-06452 · 47201-06453 · 47201-06460 · 47201-06461 · 47201-06462 · 47201-06463 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90016-AH902 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-33071 · 47050-33072 · 47050-33200 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06280 · 47220-33120 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02260 · 47230-0R030 · 47230-20140 |
| 47233 | Reservoir tank bracket | 47233-06050 |
| 47234M | Reservoir Tank No. 1 Hose | 47234-06040 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 90466-C0026 · 96135-51300 · 96137-41501 |
| 47235H | Reservoir tank No. 2 hose | 47235-06040 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-C0026 · 96135-51300 · 96137-41501 |
| 47255 | Master pump reservoir seal | 90016-AT002 · 90029-48001 |
| 47287 | brake fluid information label | 47287-02360 · 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
