Toyota CAMRY Front Drive Shaft — Figure 4302

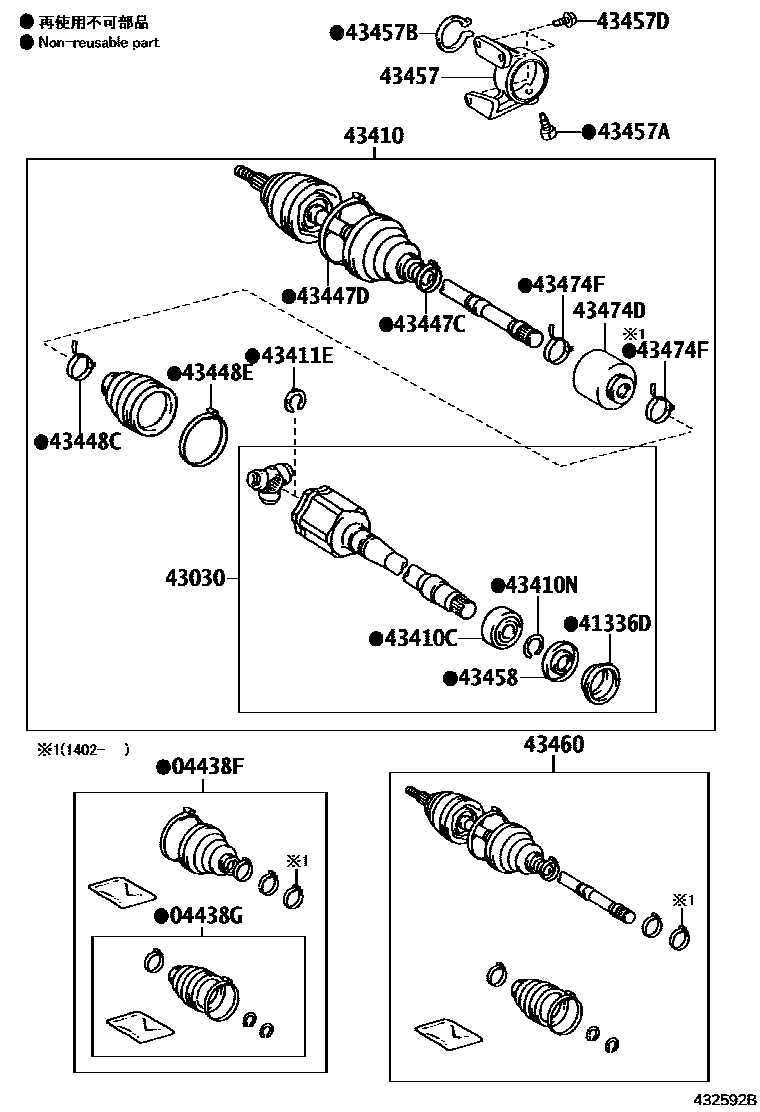

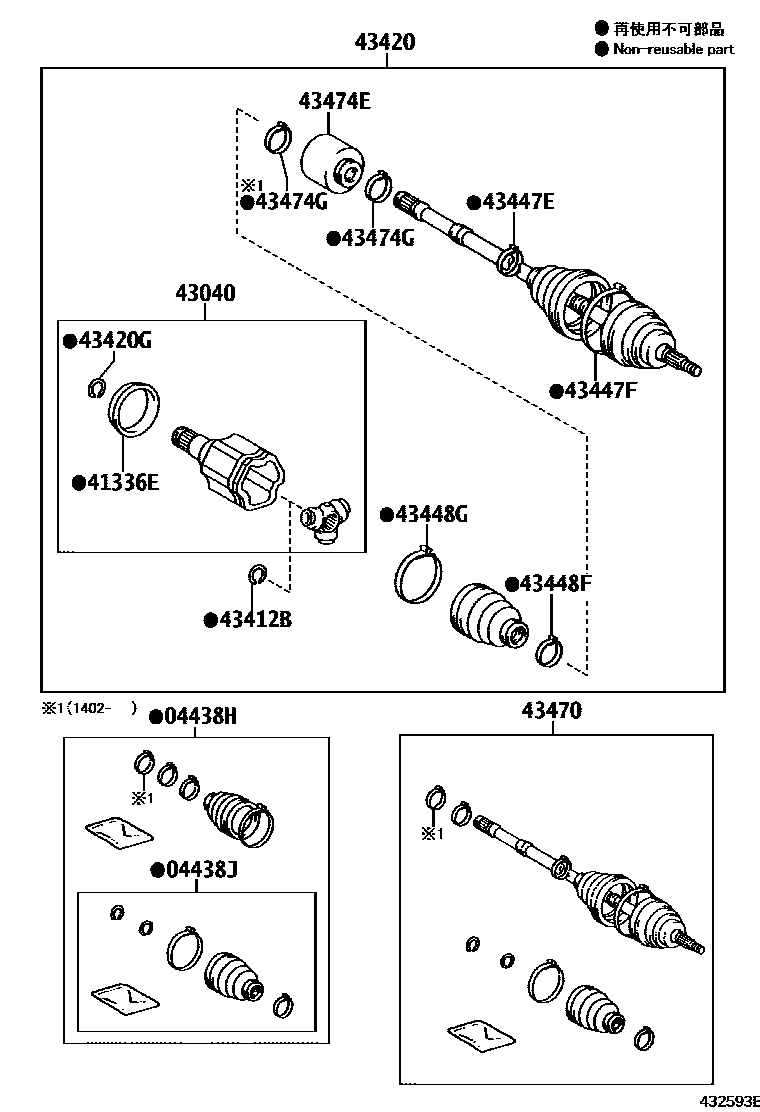

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06430 · 04427-06431 · 04427-06432 · 04427-06460 · 04427-06461 · 04427-06462 · 04427-06463 · 04427-06590 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06200 · 04437-06201 · 04437-06230 · 04437-06231 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06510 · 04428-06511 · 04428-06512 · 04428-06540 · 04428-06541 · 04428-06542 · 04428-06543 · 04428-06620 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06310 · 04438-06311 · 04438-06630 · 04438-06631 |
| 41336D | Right front driveshaft dust cover | 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-28020 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06190 · 43030-06200 · 43030-06350 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06190 · 43040-06300 · 43040-0R020 |
| 43410 | Right front driveshaft assembly | 43410-06670 · 43410-06820 · 43410-06821 · 43410-06830 · 43410-06831 · 43410-06860 · 43410-06861 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 · 90363-C0001 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 · 90520-C0032 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 90520-C0030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90520-C0030 |
| 43420 | Left front drive shaft assembly | 43420-06730 · 43420-06A00 · 43420-06A01 · 43420-06A10 · 43420-06A11 · 43420-06B20 · 43420-06B21 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-42010 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-06030 · 43457-06070 · 43457-0E010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-C0014 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-A9010 · 43470-A9011 · 43470-A9012 · 43470-A9030 · 43470-A9031 · 43470-A9032 · 43470-A9040 · 43470-A9041 · 43470-A9042 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z019 · 43470-8Z020 · 43470-8Z243 · 43470-8Z244 · 43470-8Z246 · 43470-8Z283 · 43470-8Z284 · 43470-8Z285 · 43470-A9020 · 43470-A9021 |
| 43474D | Right front driveshaft shock absorber | 43474-06140 · 43474-06500 |
| 43474E | Left front driveshaft shock absorber | 43474-06190 · 43474-06260 · 43474-06510 · 43474-0R010 · 43474-0R140 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06420 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-14010 |
