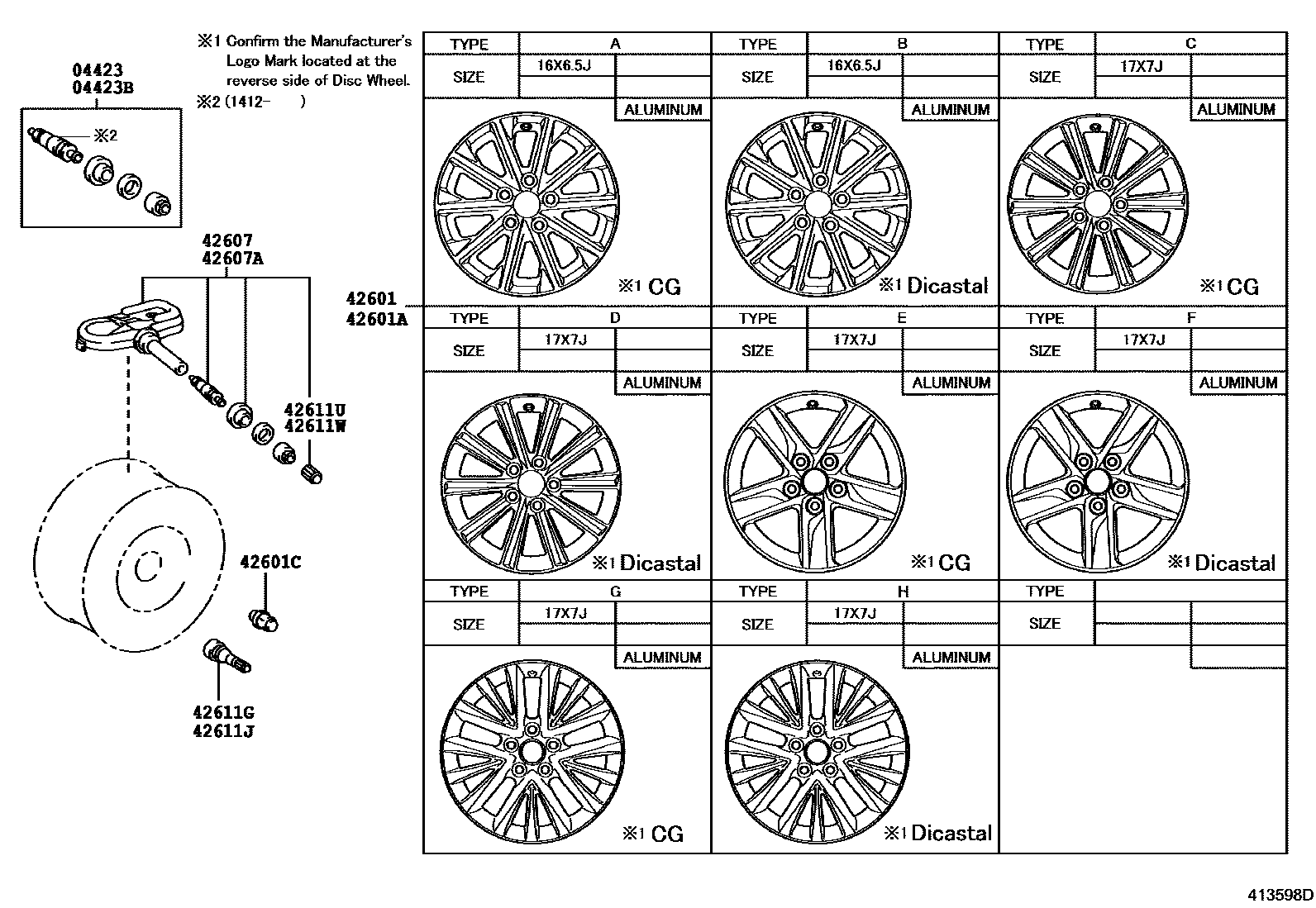

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 · 04423-33030 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-0N010 · 04423-33030 · 04423-33060 |
| 42601 | spoke wheel | 42611-06820 · 42611-06830 · 42611-06840 · 42611-06850 · 42611-06860 · 42611-06870 · 42611-06C20 · 42611-06C30 · 4261A-06110 · 4261A-06120 · 4261A-06170 · 4261A-06180 |
| 42601A | Spoke wheel (for spare tire) | 42611-06820 · 42611-06830 · 42611-06840 · 42611-06850 · 42611-06860 · 42611-06870 · 42611-06C20 · 42611-06C30 · 4261A-06110 · 4261A-06120 · 4261A-06170 · 4261A-06180 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-C1001 |

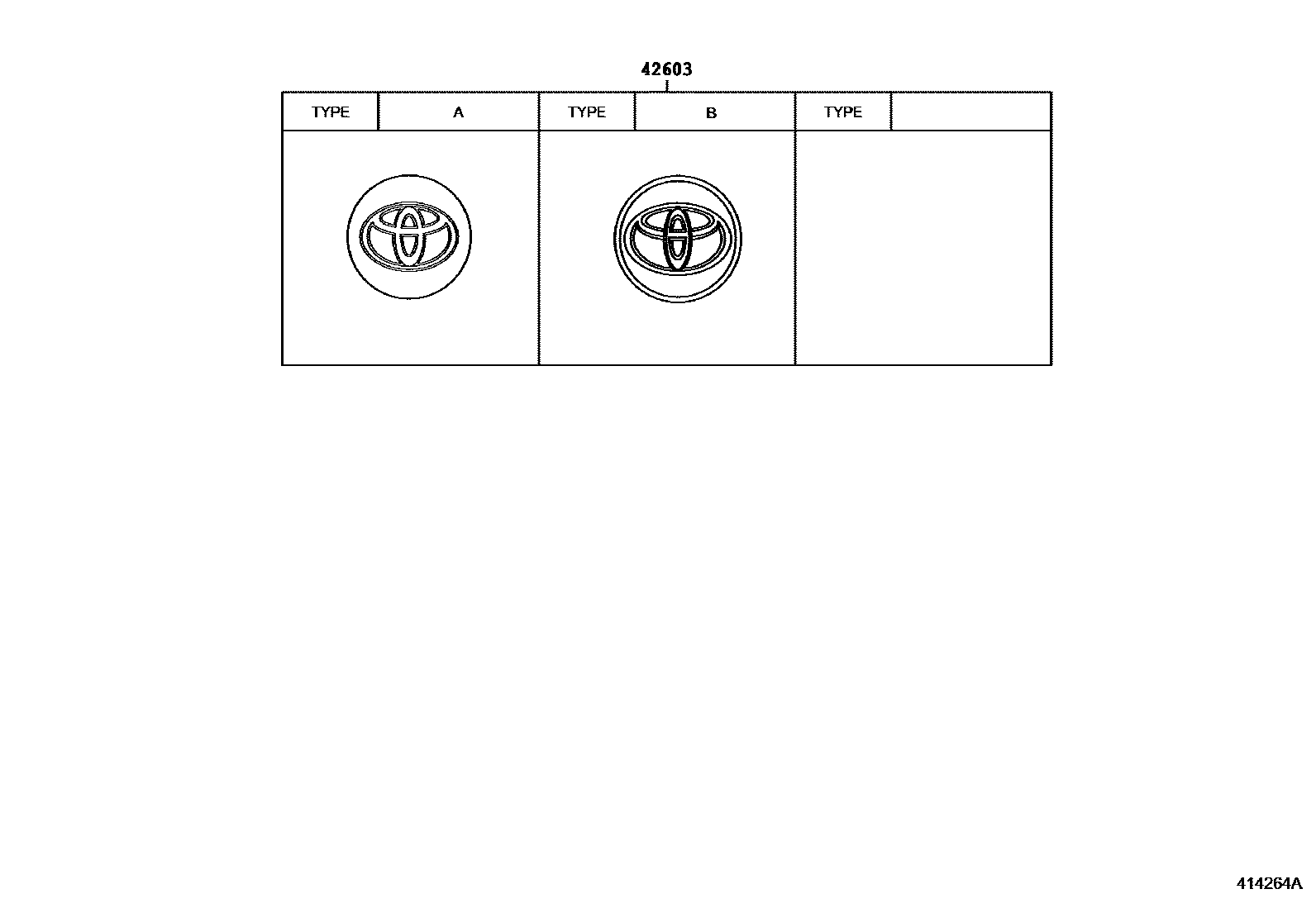

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 · 42603-0E030 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02040 · 42607-33040 · 42607-33070 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-02040 · 42607-33040 · 42607-33070 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 · 90942-C5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 · 90942-C5001 |
