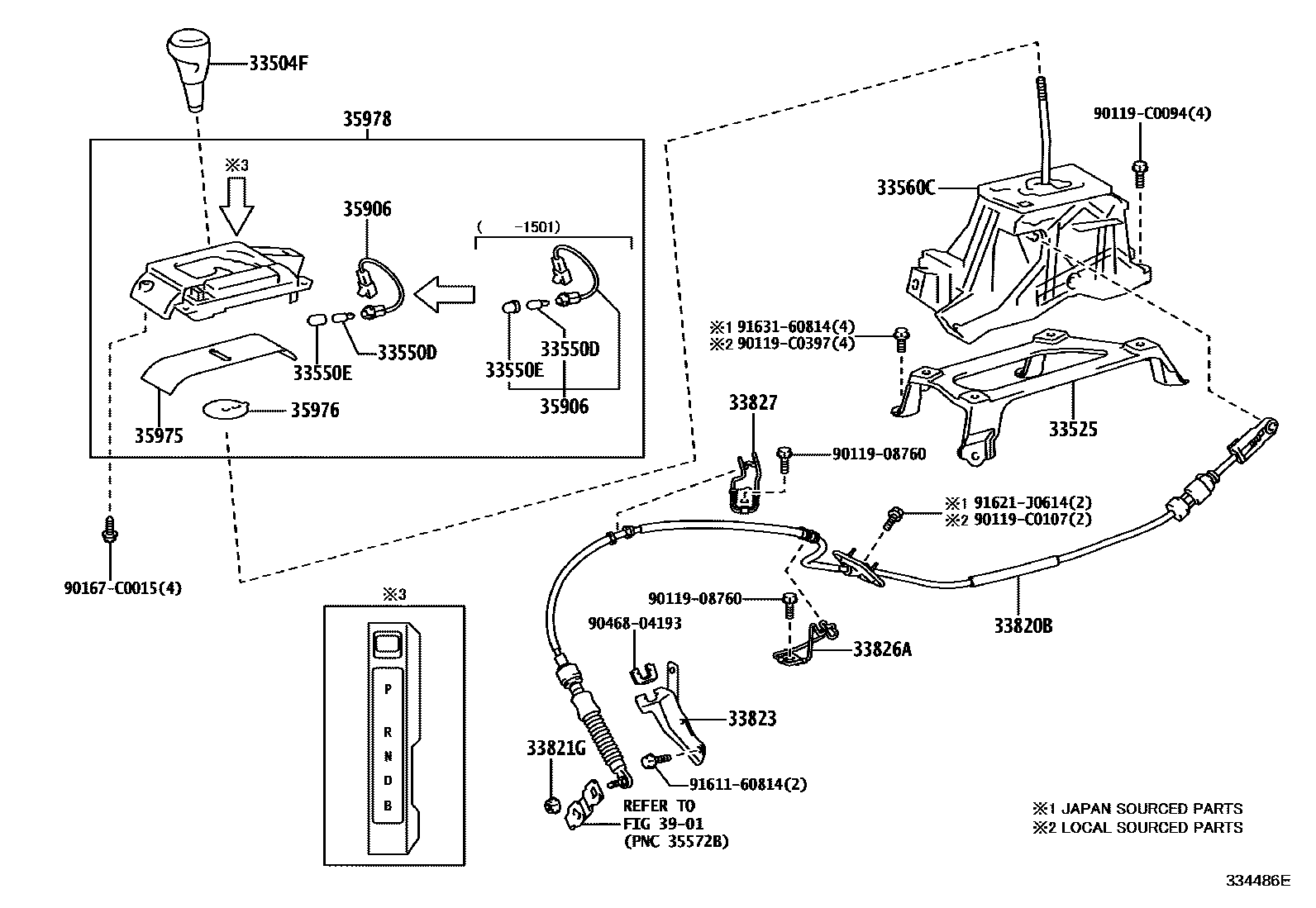

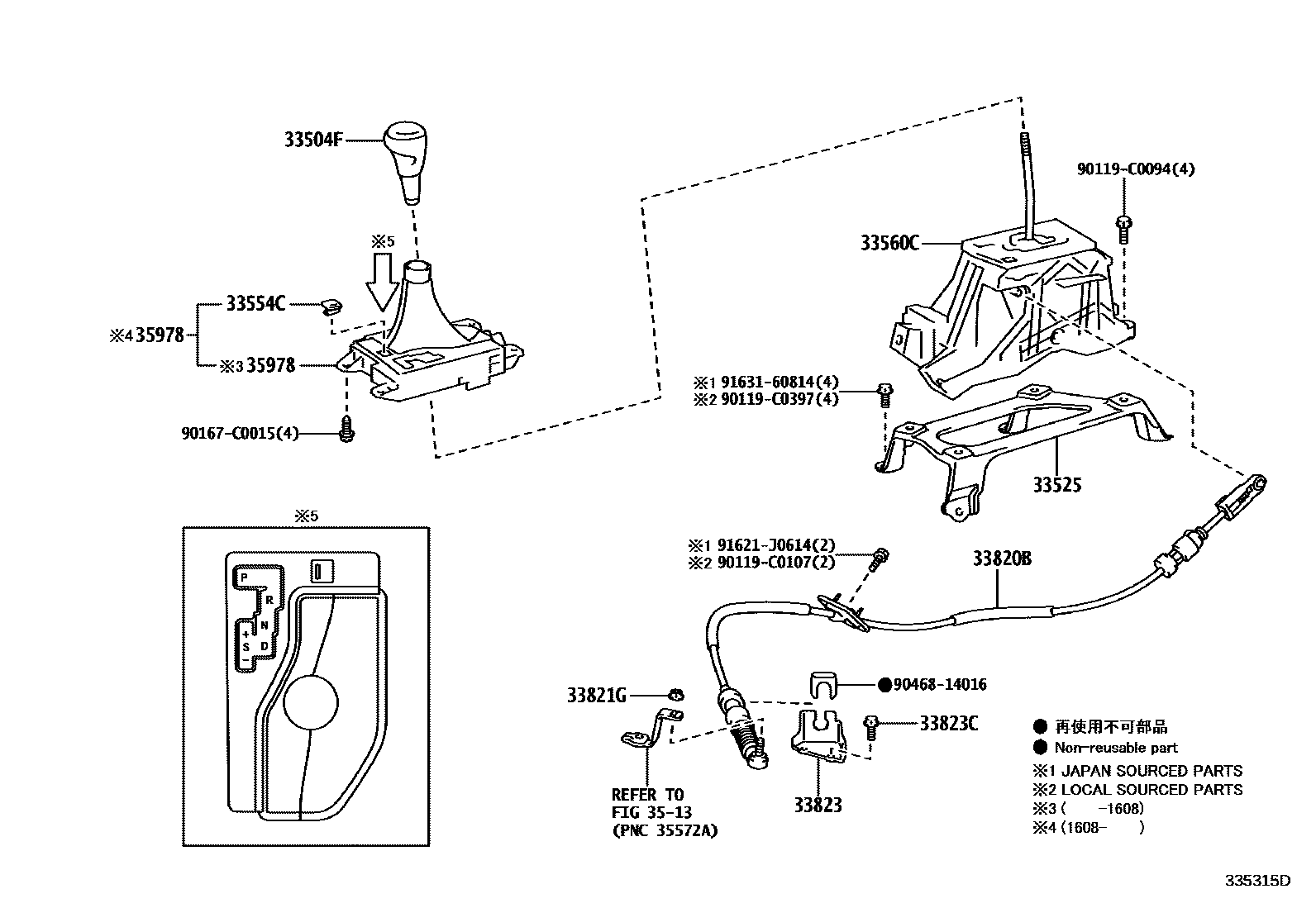

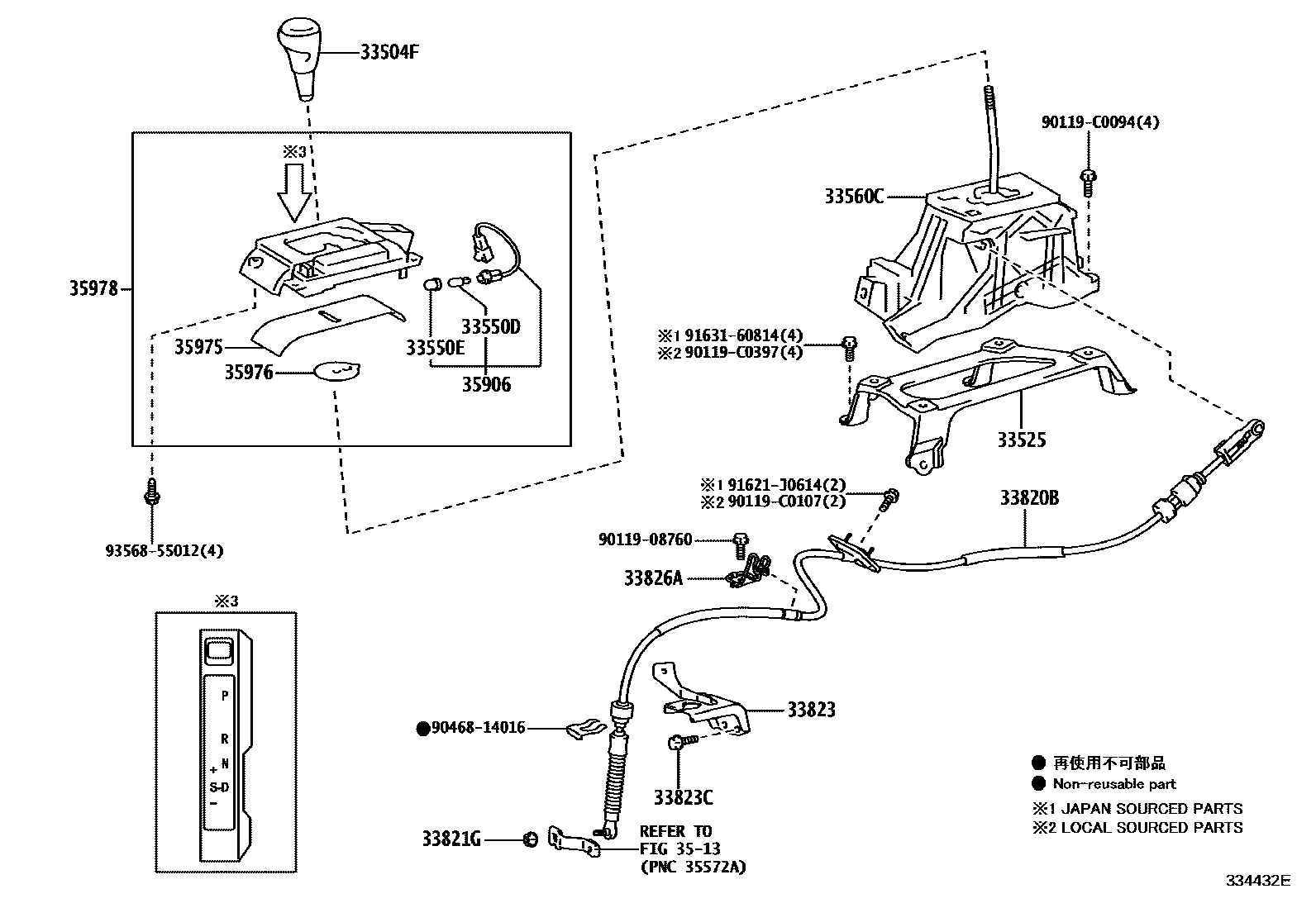

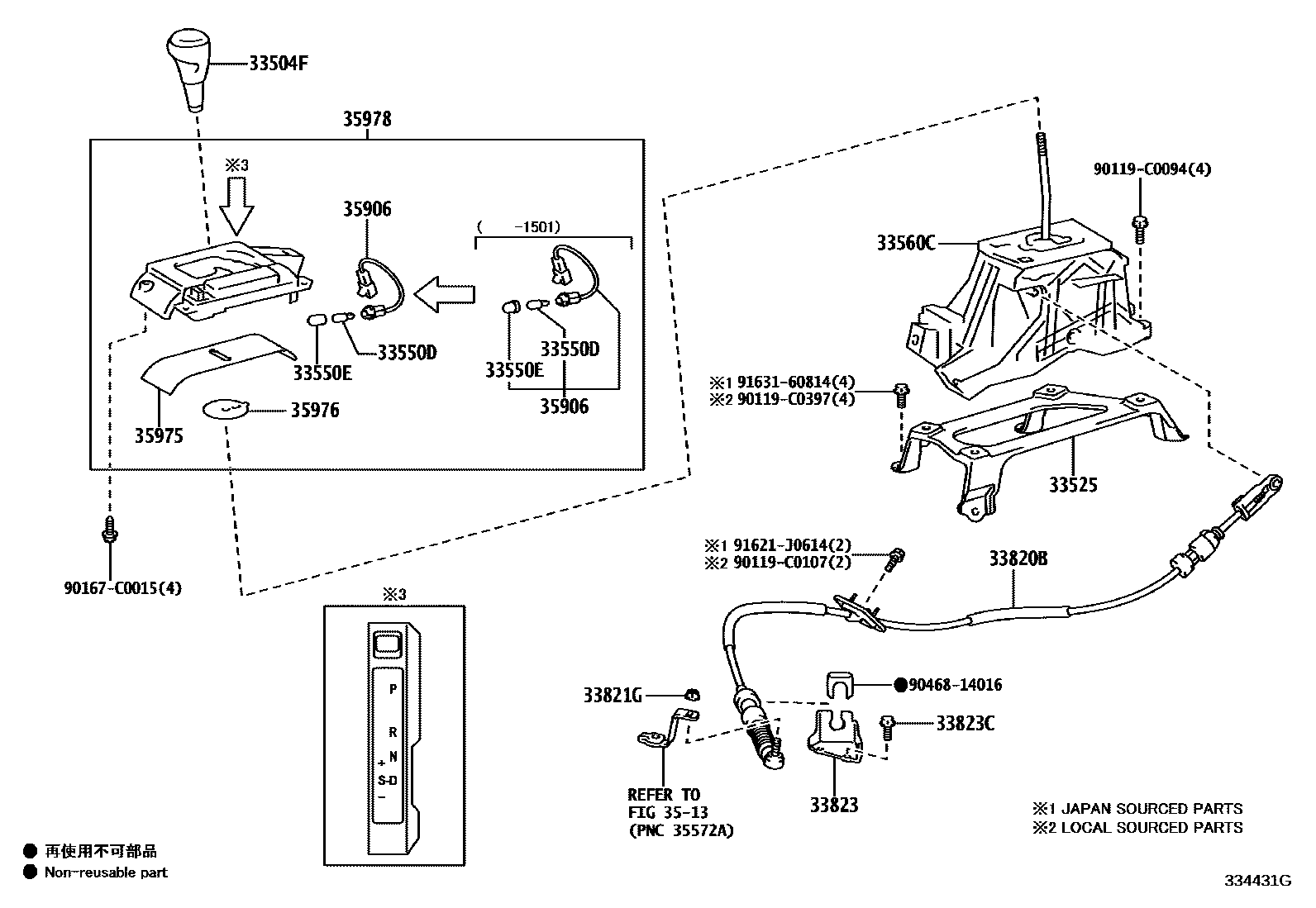

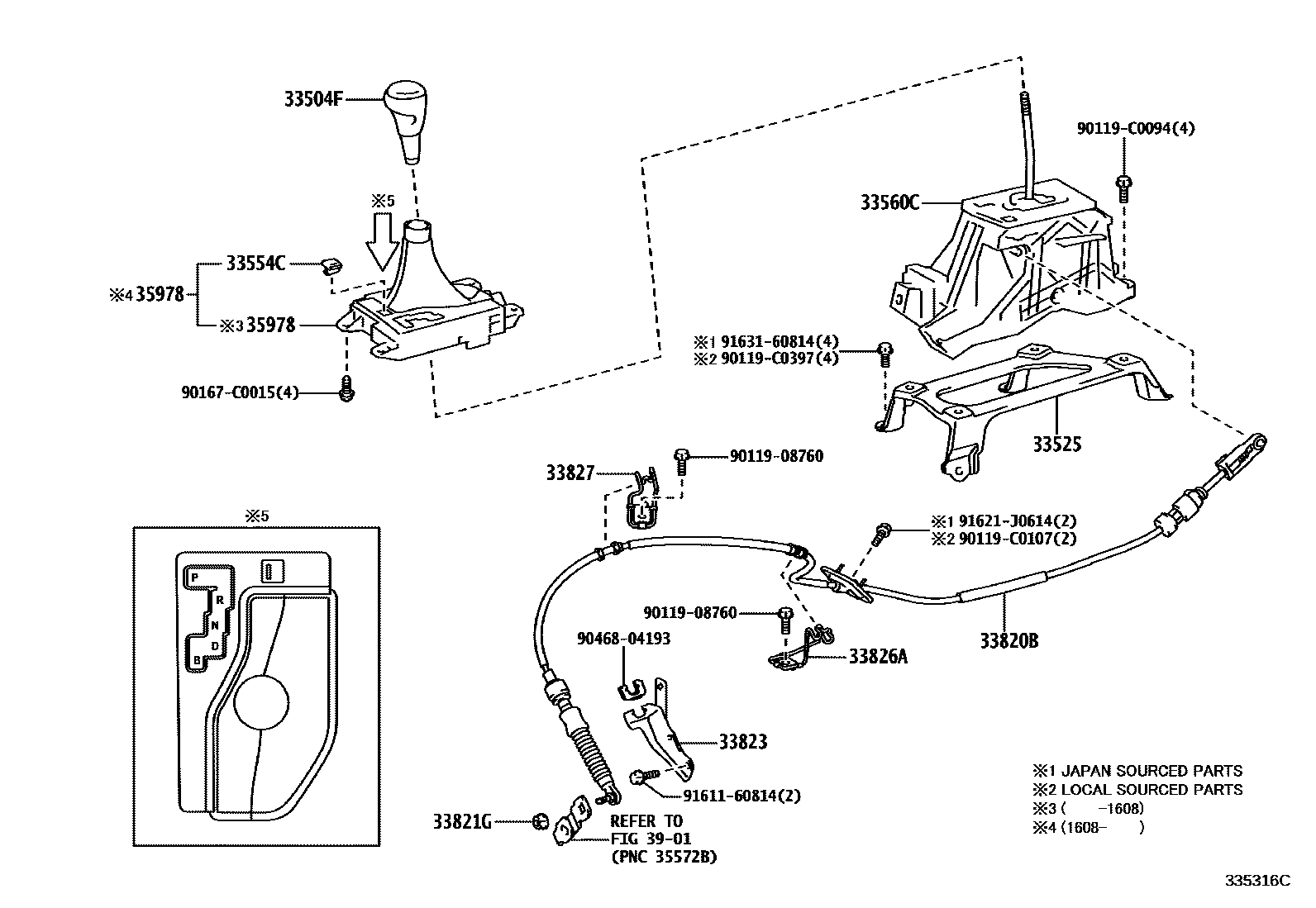

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33525 | shift lever bracket | 58123-06070 |
| 33550D | position indicator light bulb | 35955-20010 · 90981-11018 |
| 33550E | position indicator cover | 35956-12010 · 90339-04053 |
| 33554C | Shift lock release button cover | 33554-06140 |
| 33560C | Lower shift lever assembly | 33560-06260 · 33560-06270 · 33560-06280 · 33560-06470 · 33560-06480 · 33560-06490 |
| 33820B | Transmission control cable assembly | 33820-06450 · 33820-06460 · 33820-06470 |
| 33821G | Nut (for transmission control cable) | 90179-08054 |
| 33823 | No. 1 transmission control cable bracket | 33823-06020 · 33823-06030 · 33823-06050 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-C0212 |
| 33826A | No. 2 transmission control cable bracket | 33826-33041 · 33826-33060 |
| 33827 | No. 3 transmission control cable bracket | 33827-33050 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06200 |
| 35975 | Slide cover (for position indicator light) | 35975-06110 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06120 |
| 35978 | Shift lever position indicator light | 35978-06030 · 35978-06040 · 35978-06160 · 35978-06170 · 35978-06330 · 35978-06340 |
