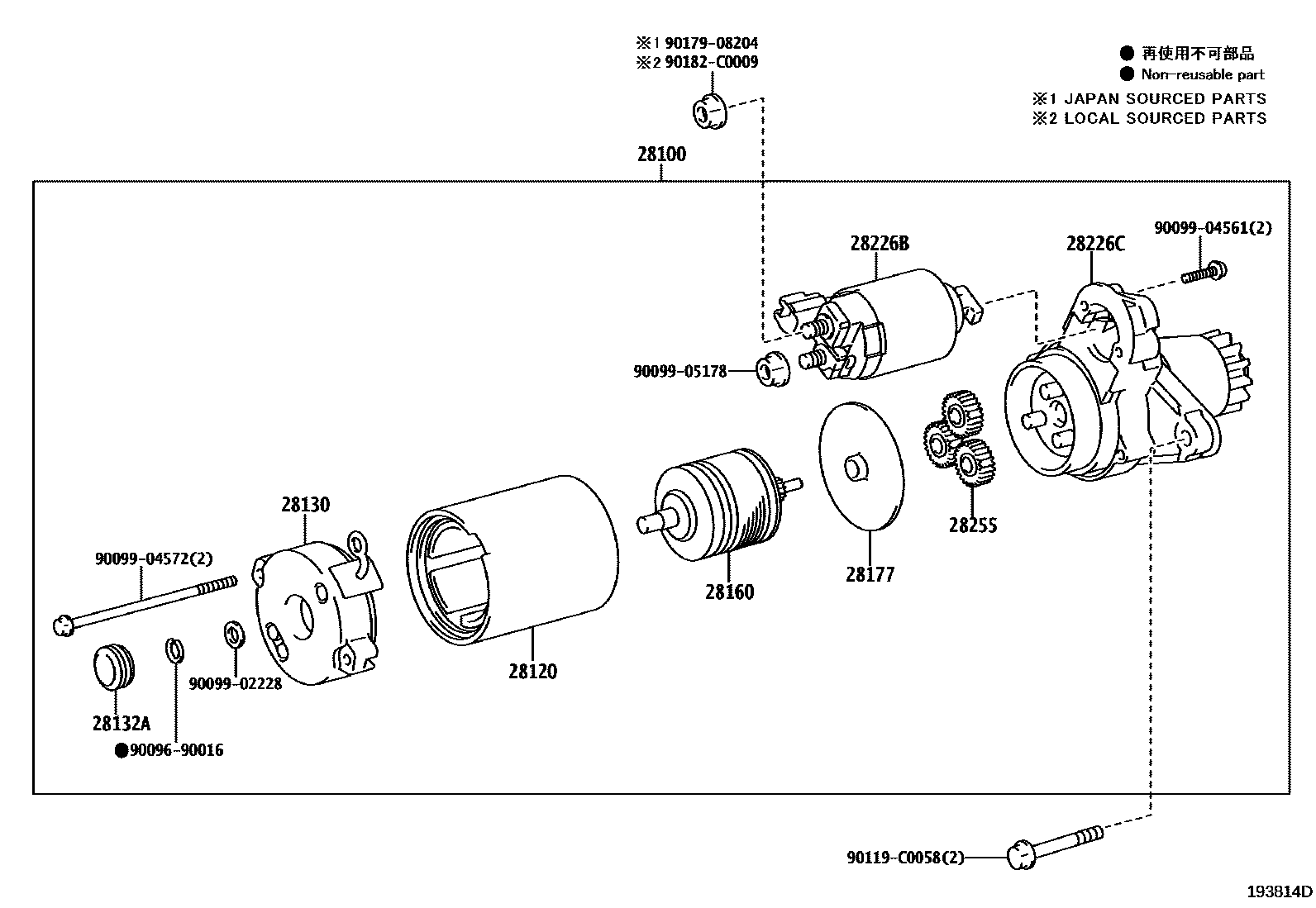

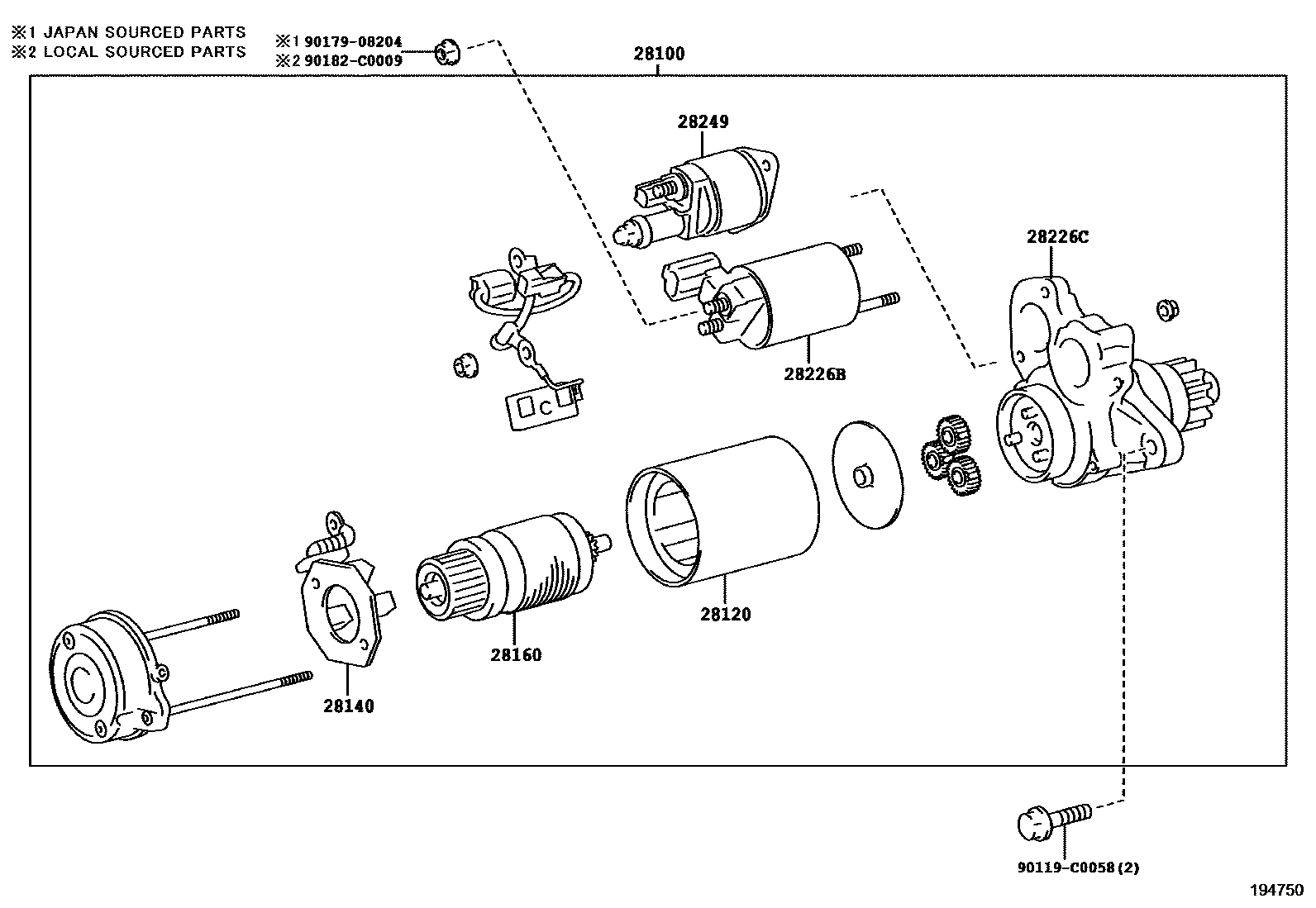

Toyota CAMRY 起动机 — Figure 1904
Toyota CAMRY EPC diagram 1904, 起动机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28100 | Starter assembly | 28100-0H080 · 28100-0V060 |
| 28120 | Starter yoke assembly | 28120-0H120 · 28120-0V020 |
| 28130 | Starter commutator end frame assembly | 28130-0H120 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-0V020 |
| 28160 | Starter armature assembly | 28160-0S050 · 28160-28040 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226B | starter magnetic switch | 28226-28051 · 28226-31100 |
| 28226C | No. 2 starter magnetic switch | 28226-0V060 · 28226-28041 |
| 28249 | Starter starting current deceleration relay | 28249-36110 |
| 28255 | Planetary gear | 28255-20020 |
