Toyota CAMRY Alternator — Figure 1903

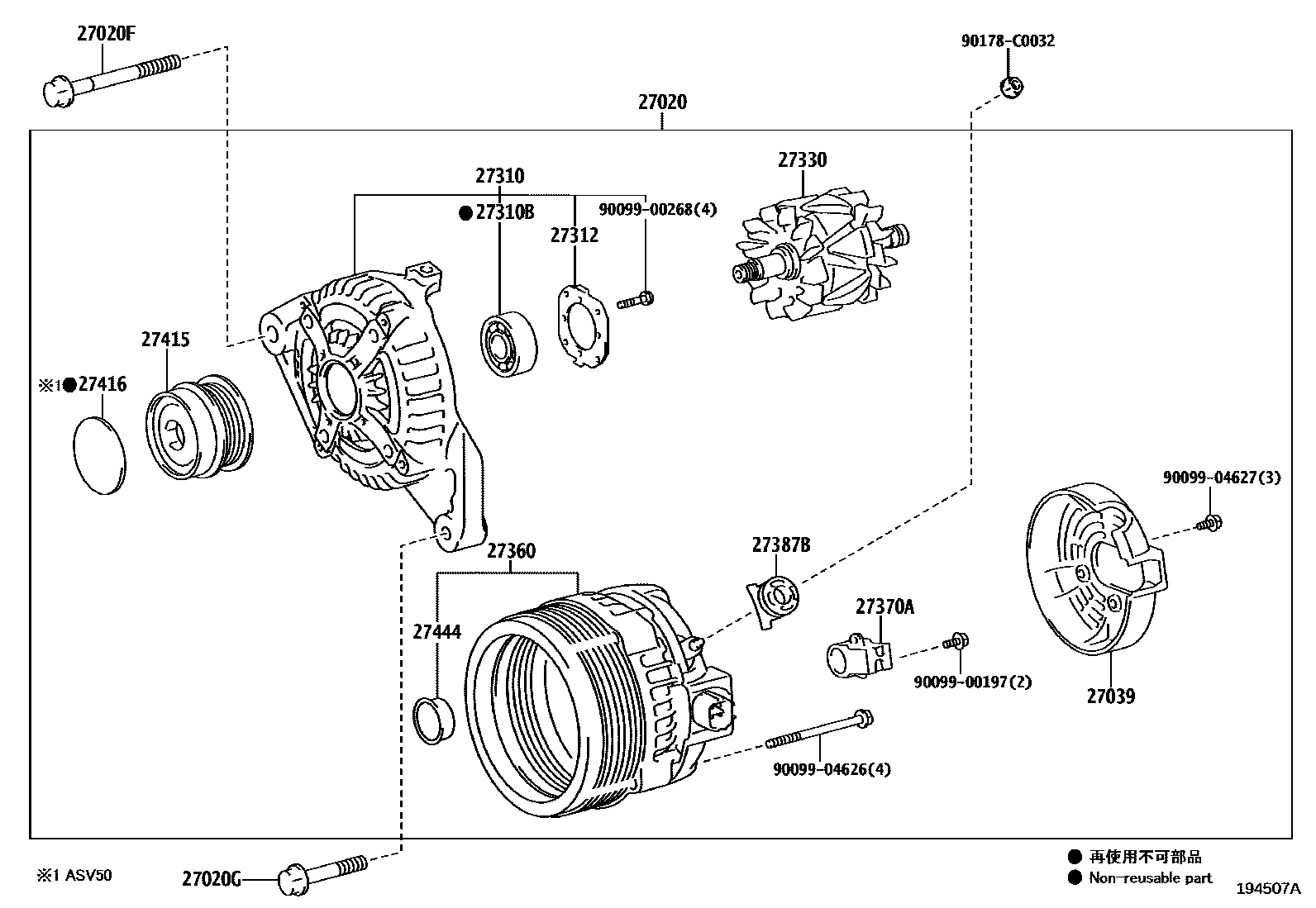

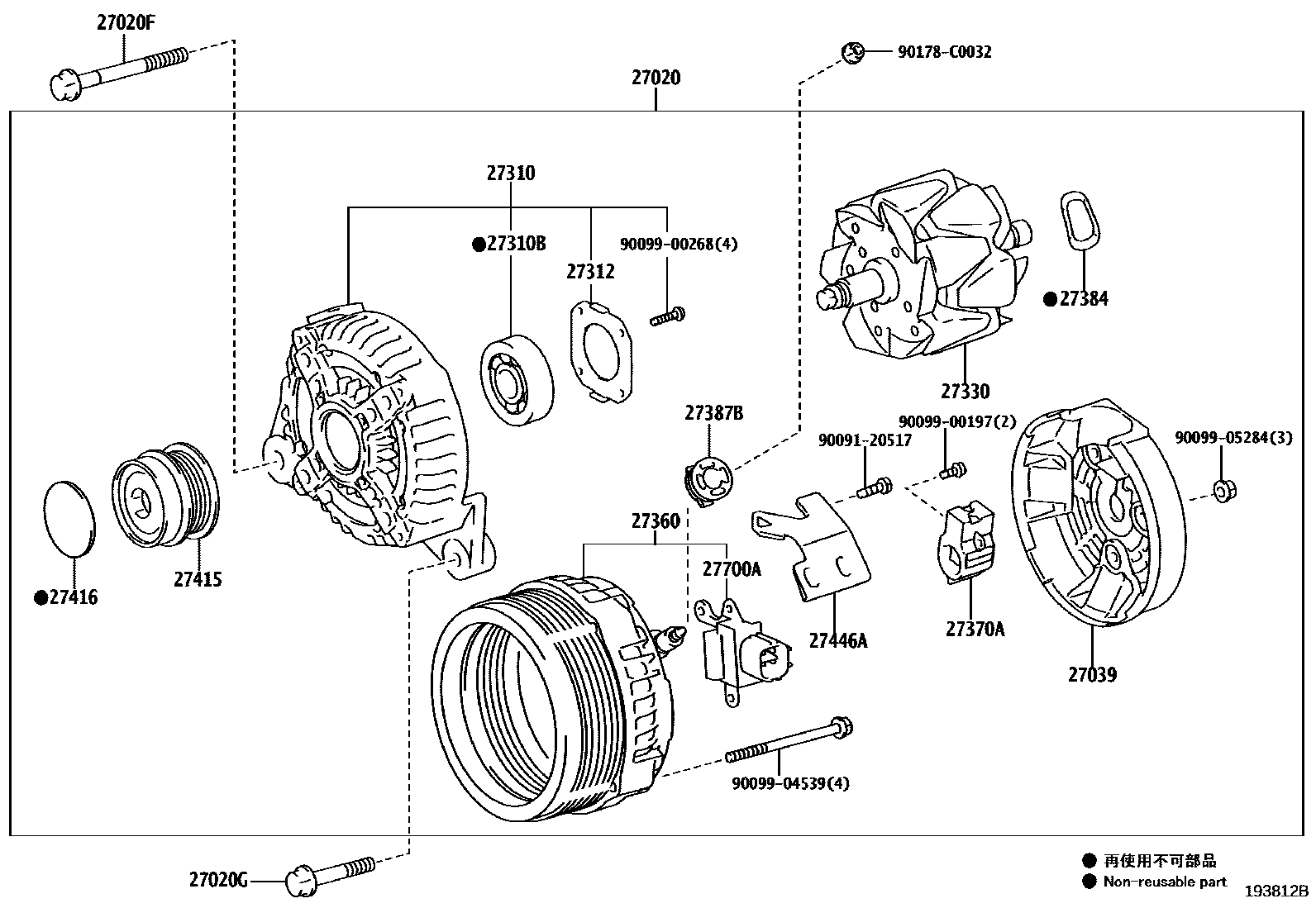

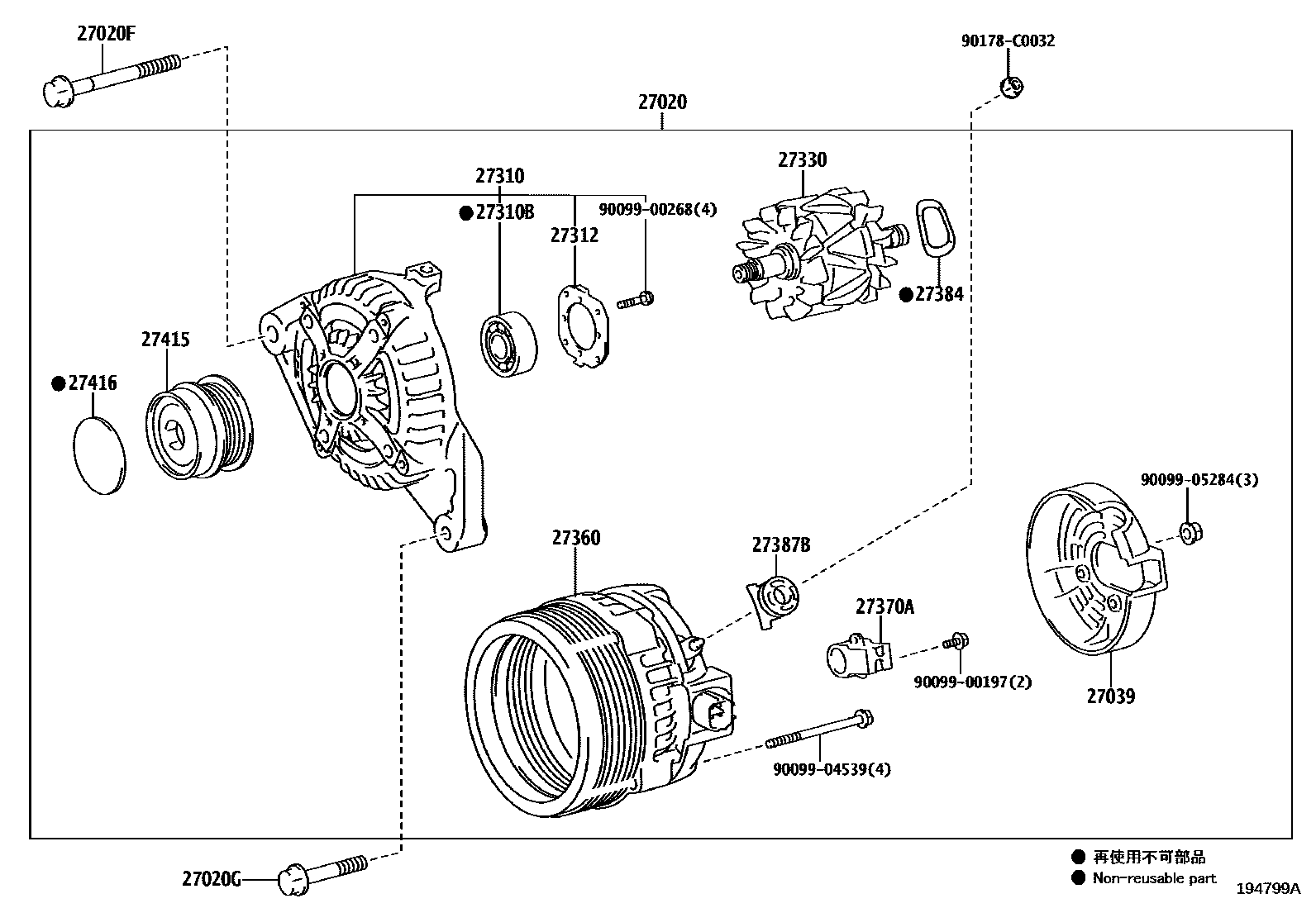

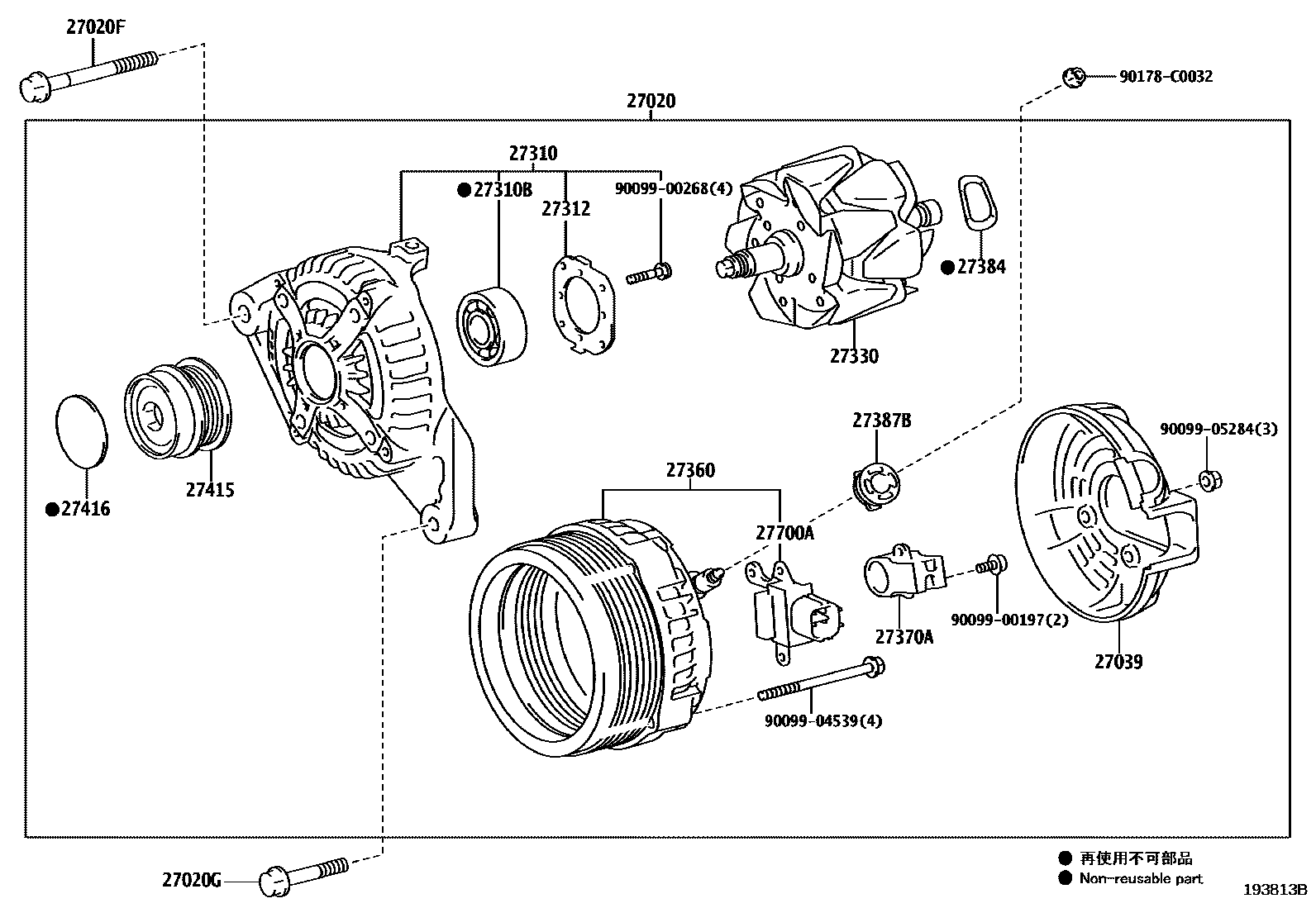

Toyota CAMRY EPC diagram 1903, Alternator, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H230 · 27060-0V110 · 27060-0V150 · 27060-0V210 · 27060-0V350 |
| 27020F | Bolt No. 1 (for generator) | 90105-C0034 · 90105-C0160 · 91512-81085 |
| 27020G | Bolt No. 2 (for generator) | 90105-C0028 · 90105-C0202 · 91551-80840 |
| 27039 | Alternator Rear End Cover | 27039-0P070 · 27039-0T260 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H160 · 27310-0V010 · 27310-0V110 · 27310-0V200 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90068-10042 · 90068-10050 |
| 27312 | Retainer Plate | 27312-0M070 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0P180 · 27330-0T030 · 27330-0T260 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H170 · 27360-0V010 · 27360-0V140 · 27360-0V210 · 27360-0V320 |
| 27370A | Alternator Brush Holder Assembly | 27370-0H110 · 27370-0T030 |
| 27384 | Washer | 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-0H110 · 27387-0T030 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0V040 · 27415-0W020 · 27415-0W021 · 27415-0W041 · 27415-0W042 · 27415-36020 |
| 27416 | Generator pulley cover | 27416-0W020 · 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
| 27446A | card holder | 27446-28120 |
| 27700A | Generator voltage regulator assembly | 27700-0T030 |
