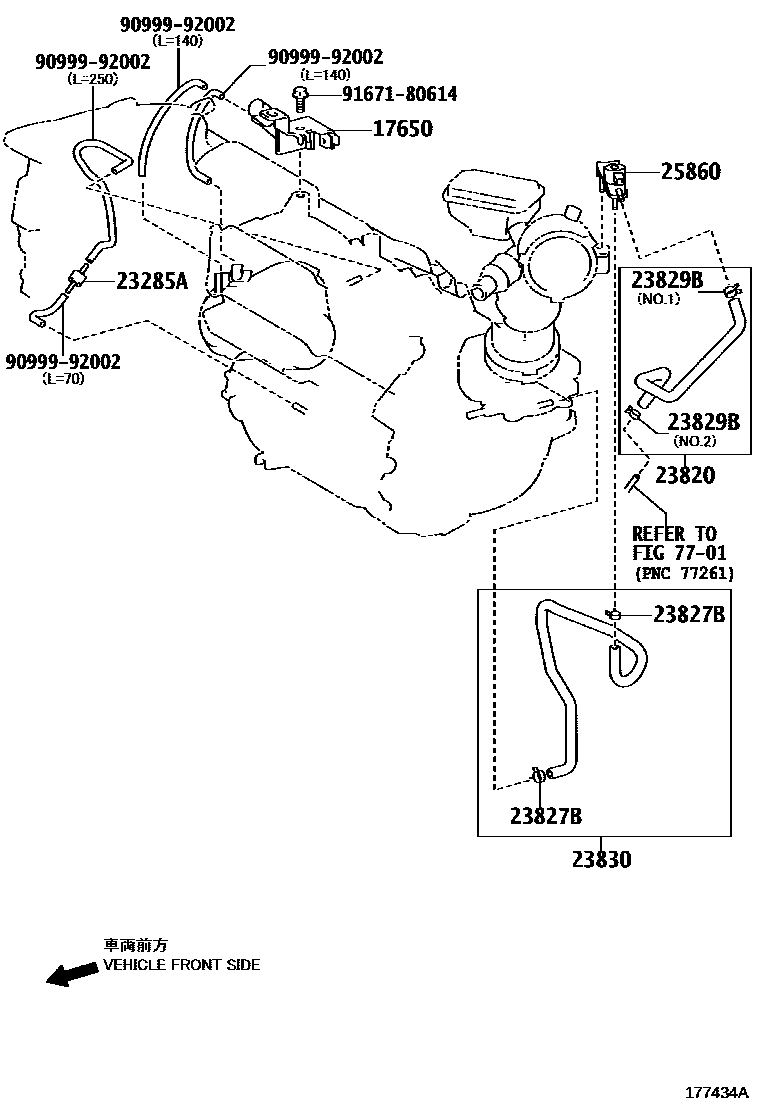

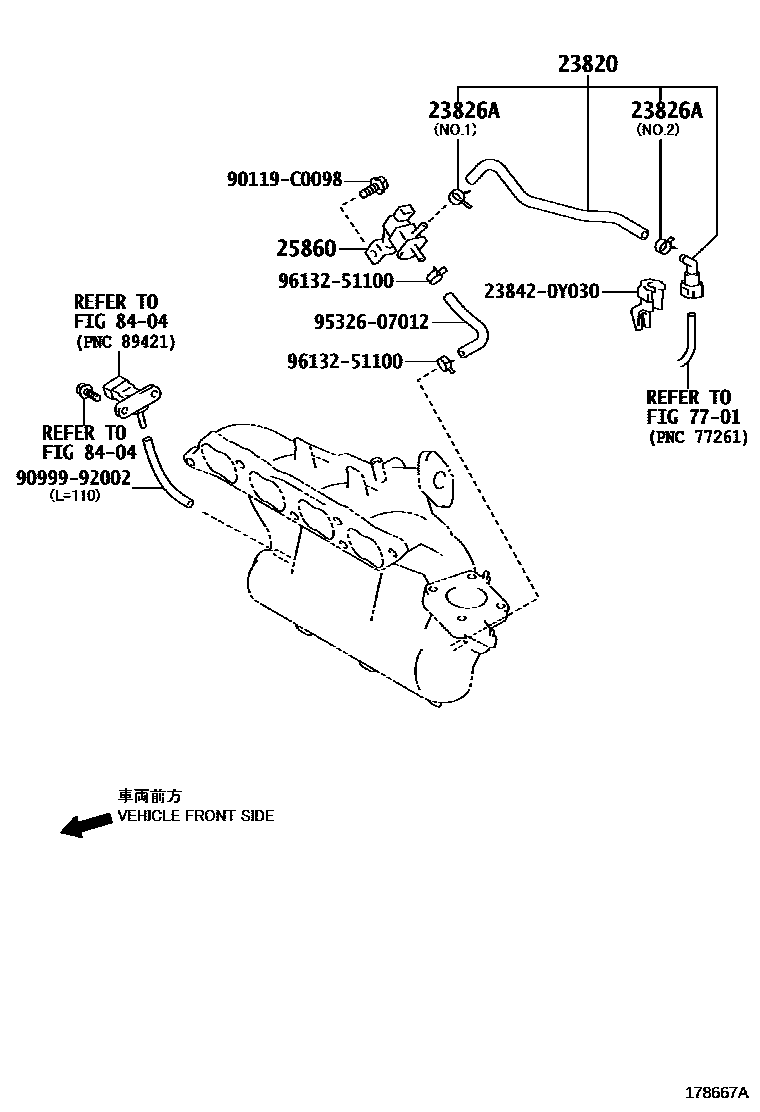

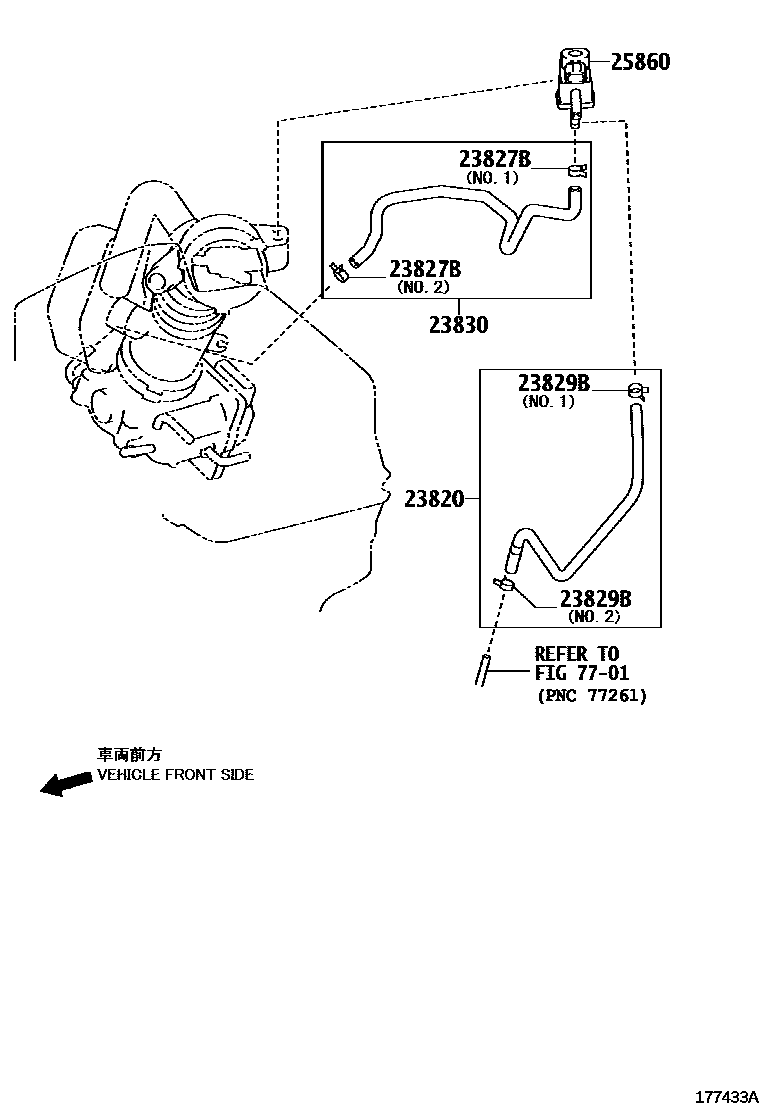

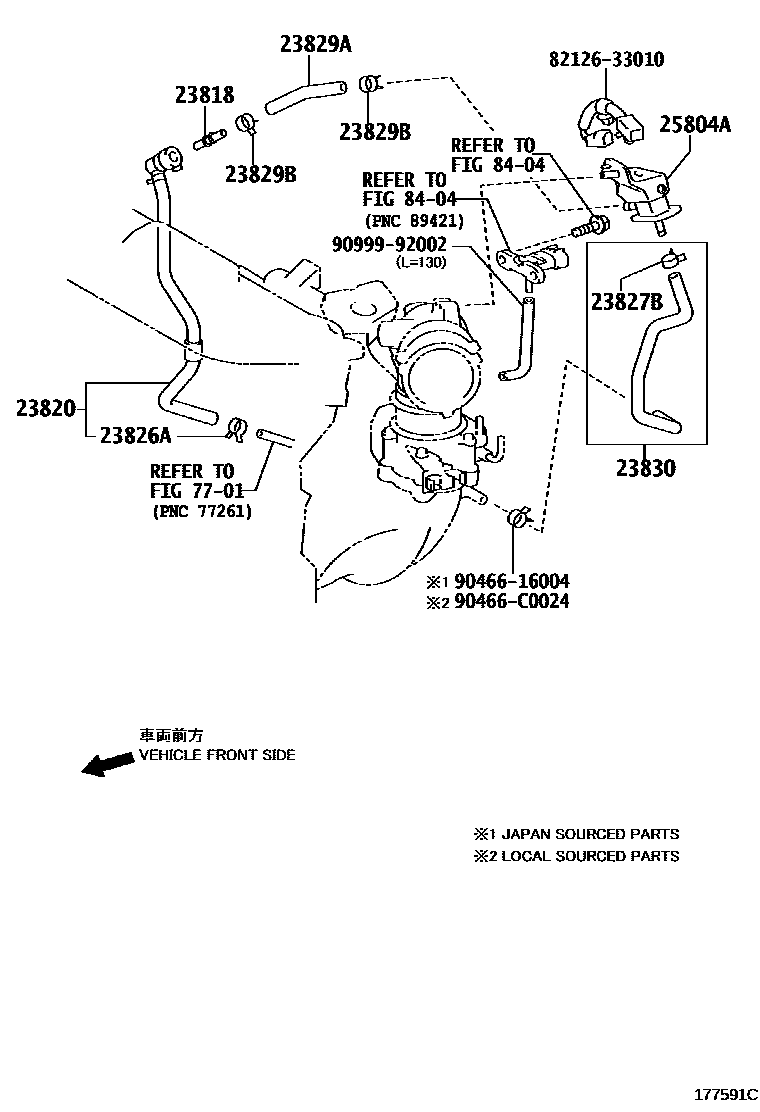

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23818 | Fuel vapor supply pipe | 23818-36020 |
| 23820 | Fuel vapor supply hose assembly | 23820-0H200 · 23820-0V120 · 23820-0V130 · 23820-0V200 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-C0012 · 90466-C0037 · 96132-51300 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 90466-13004 · 96132-51000 |
| 23829A | Fuel vapor supply hose | 23829-36020 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 · 90466-13004 · 90467-12056 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0H100 · 23830-0V080 · 23830-0V090 |
| 25804A | Vacuum switch valve sub-assembly | 25805-36010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H130 · 25860-0V150 |
