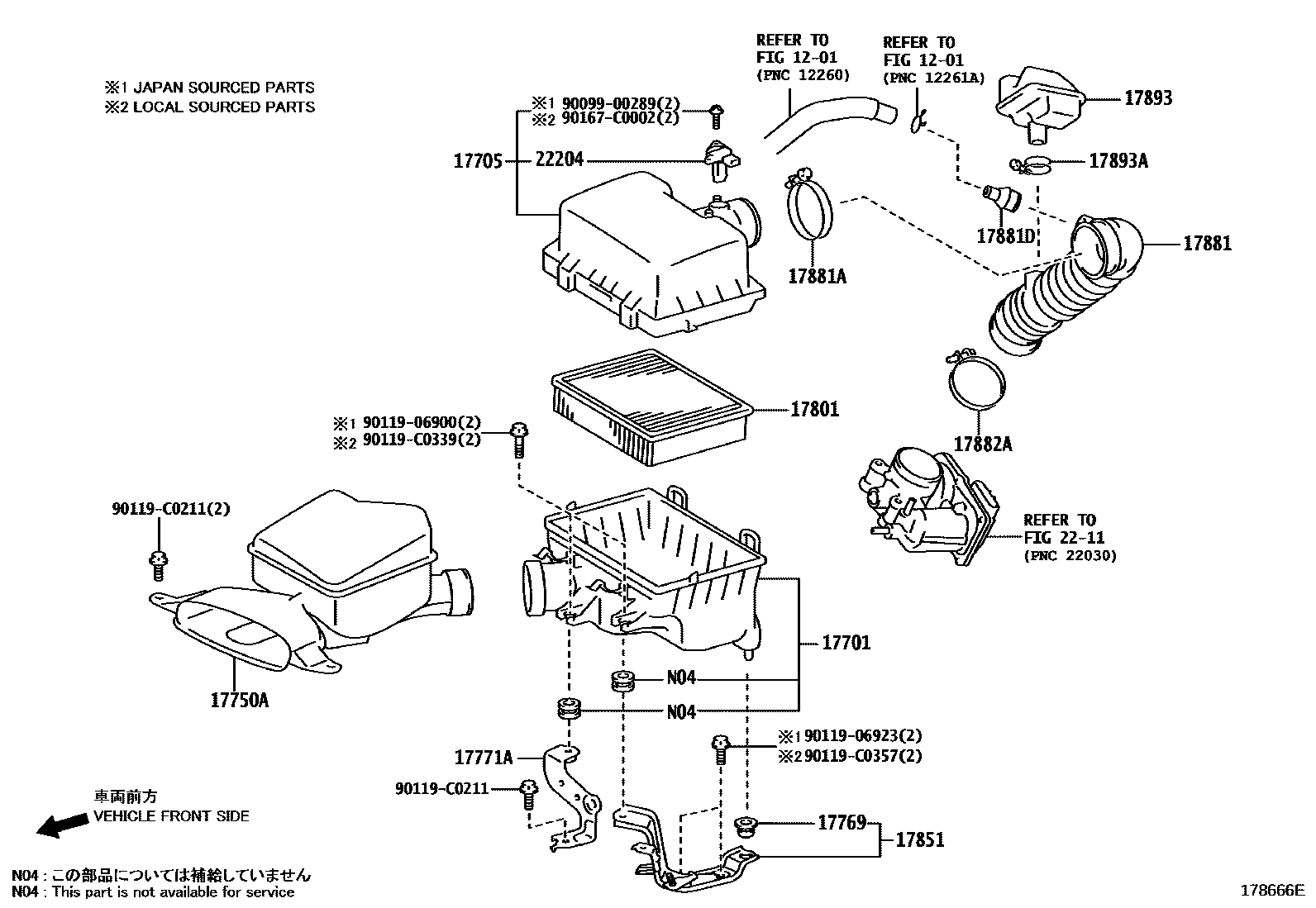

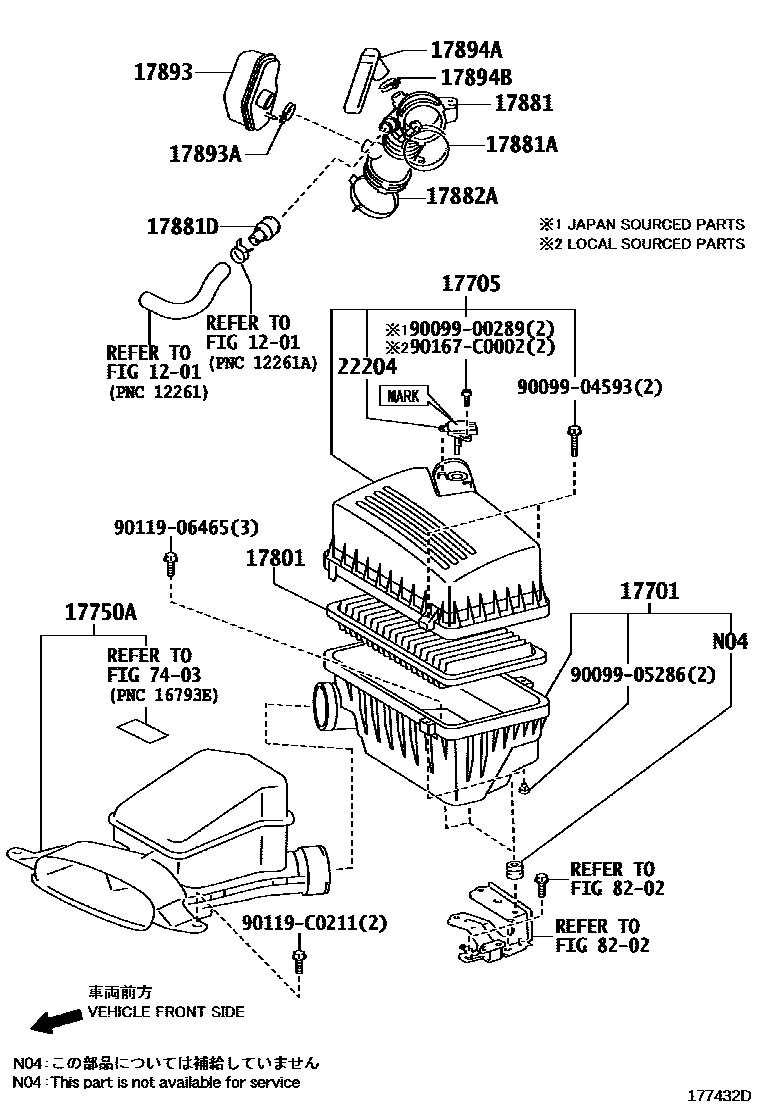

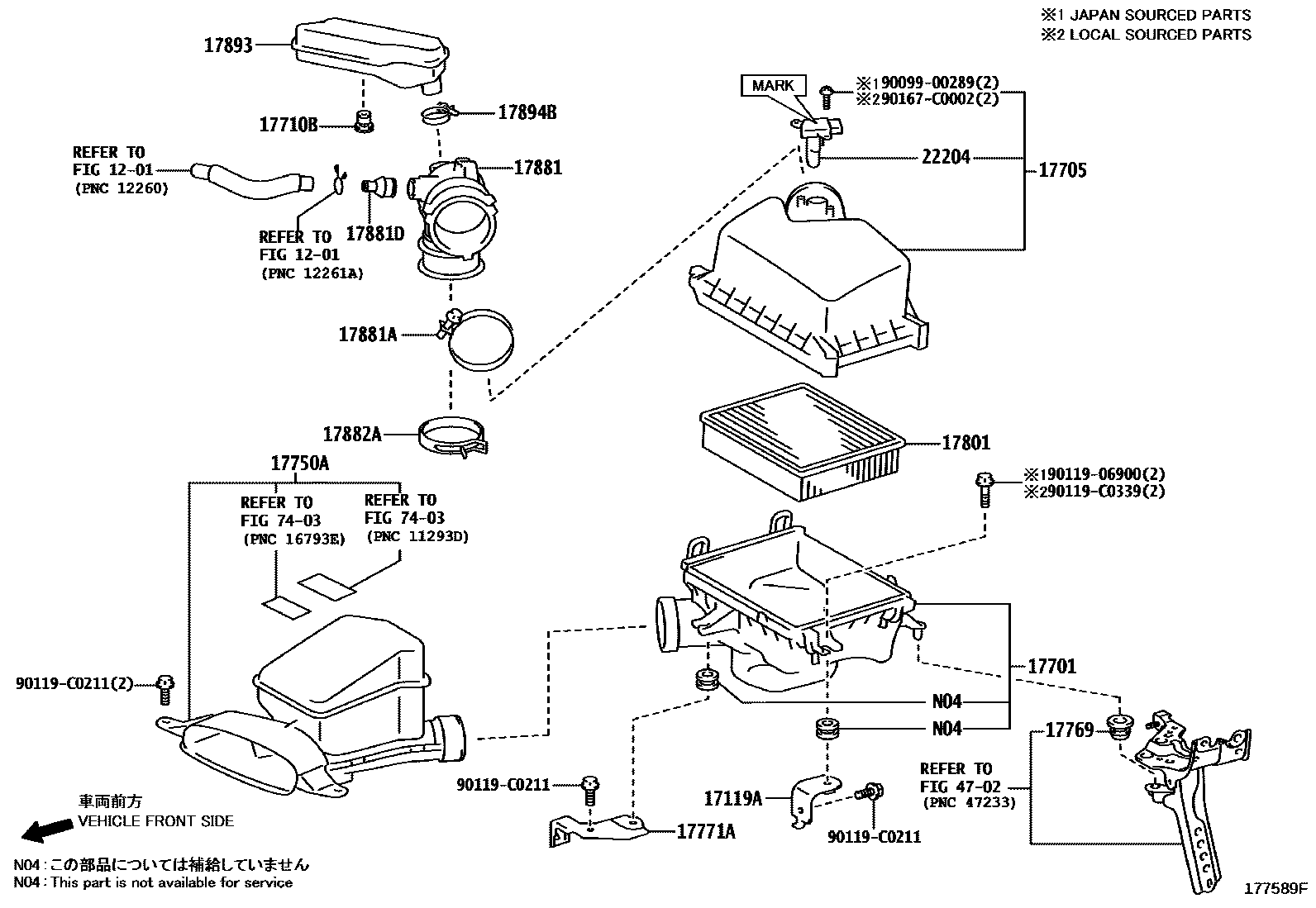

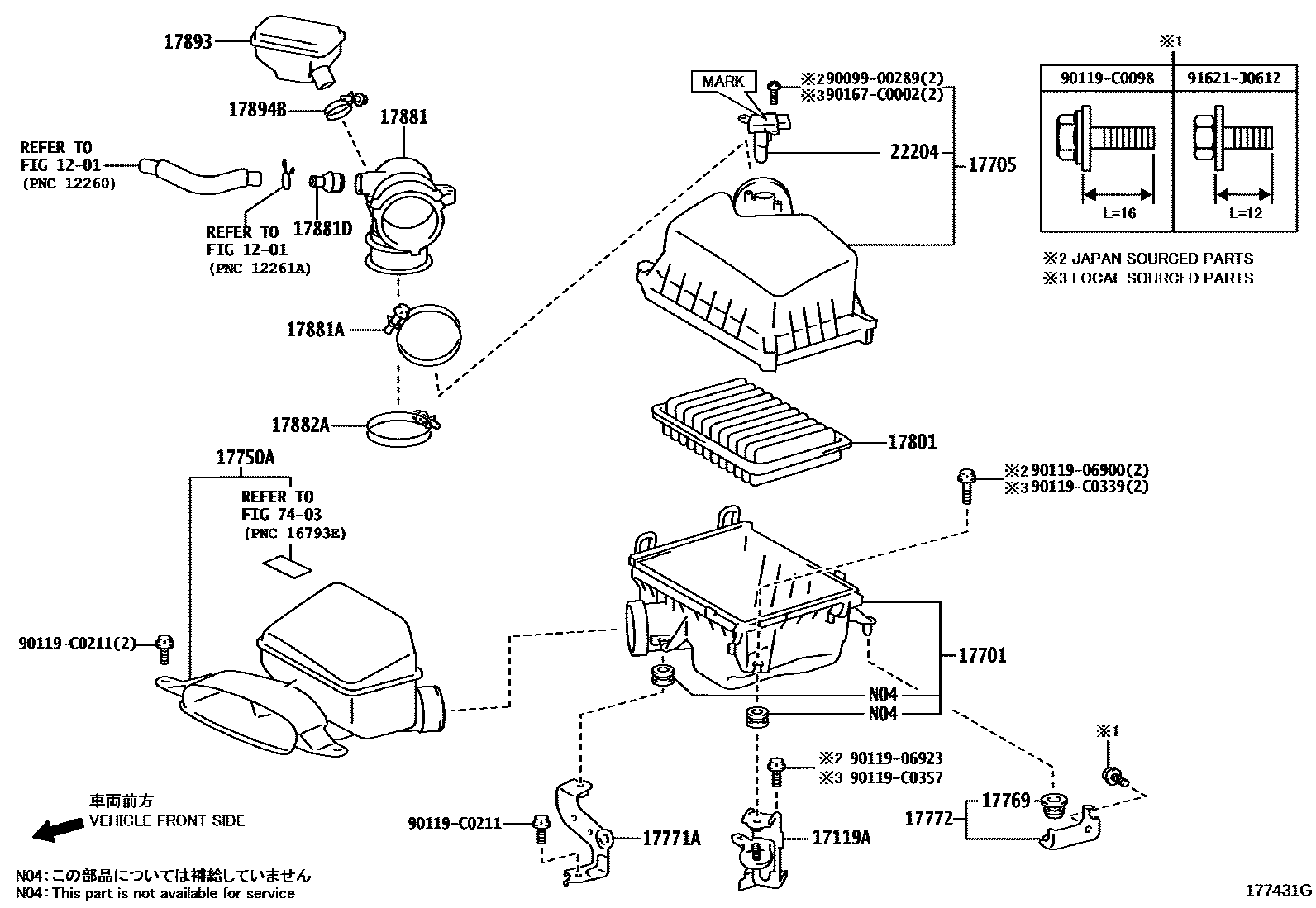

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0V060 · 17119-0V070 |
| 17701 | Air filter housing sub-assembly | 17701-0H160 · 17701-0V060 · 17701-0V070 · 17701-0V160 |
| 17705 | Air filter cover sub-assembly | 17705-0H171 · 17705-0V060 · 17705-0V070 · 17705-0V170 |
| 17710B | gasket | 90480-16049 |
| 17750A | Air filter air inlet assembly | 17750-0H050 · 17750-0V070 · 17750-0V080 · 17750-0V130 |
| 17769 | air filter bracket | 90480-18006 |
| 17771A | air filter bracket | 17771-0V050 · 17771-0V060 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0V050 |
| 17801 | Air filter element sub-assembly | 17801-0H080 · 17801-0V100 · 17801-28030 · 17801-38011 |
| 17851 | air filter bracket | 89060-06040 |
| 17881 | No. 1 air cleaner hose | 17881-0H120 · 17881-0V120 · 17881-0V130 · 17881-0V220 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V030 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-C0019 · 96111-10750 · 96111-10850 |
| 17893 | Intake resonator | 17893-0H090 · 17893-0V100 · 17893-0V110 · 17893-0V180 |
| 17893A | hose clamp | 96111-10400 · 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-0H090 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 · 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0P010 · 22204-0T010 · 22204-0T040 · 22204-0V020 · 22204-28010 · 22204-31020 · 22204-75040 |
