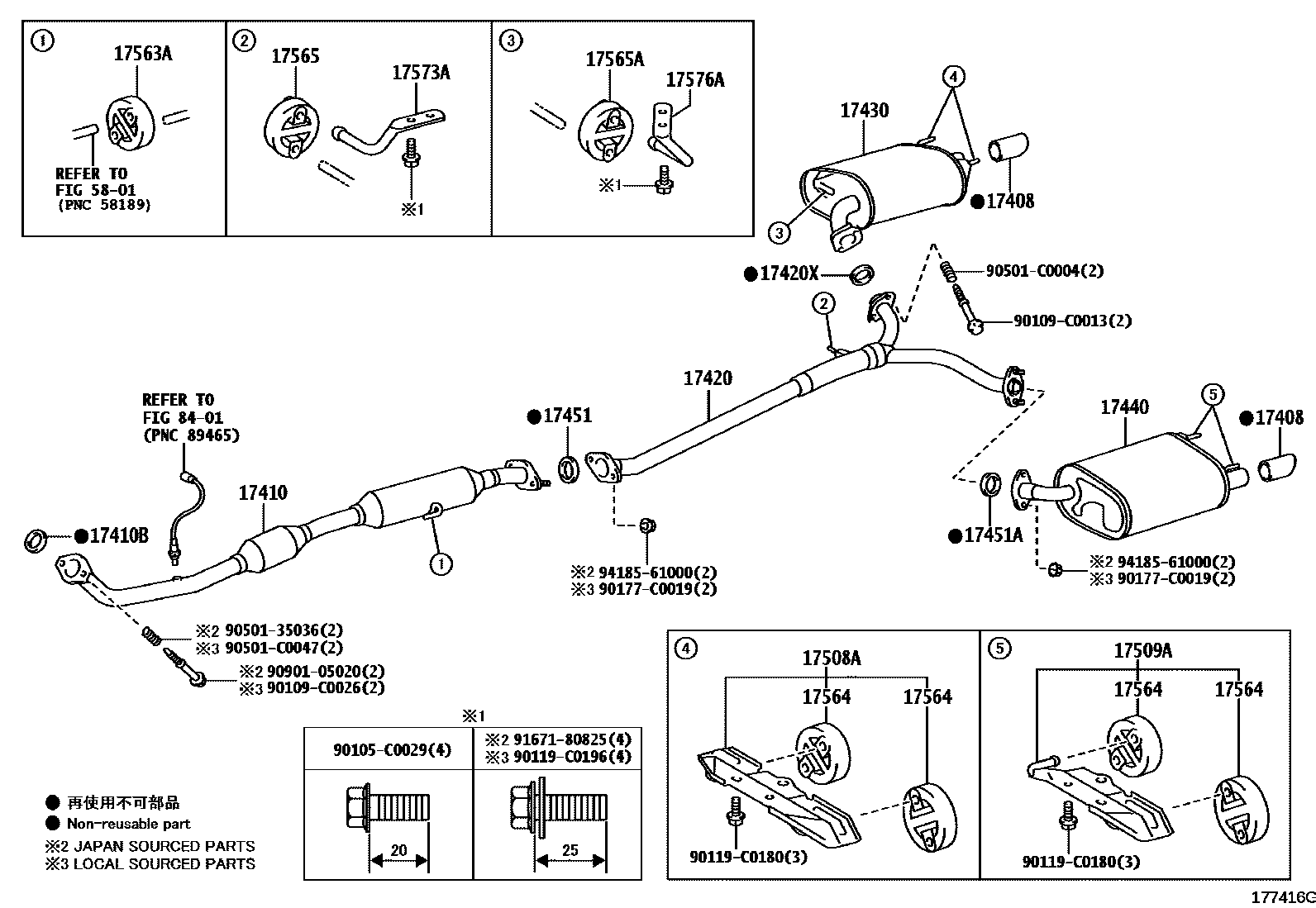

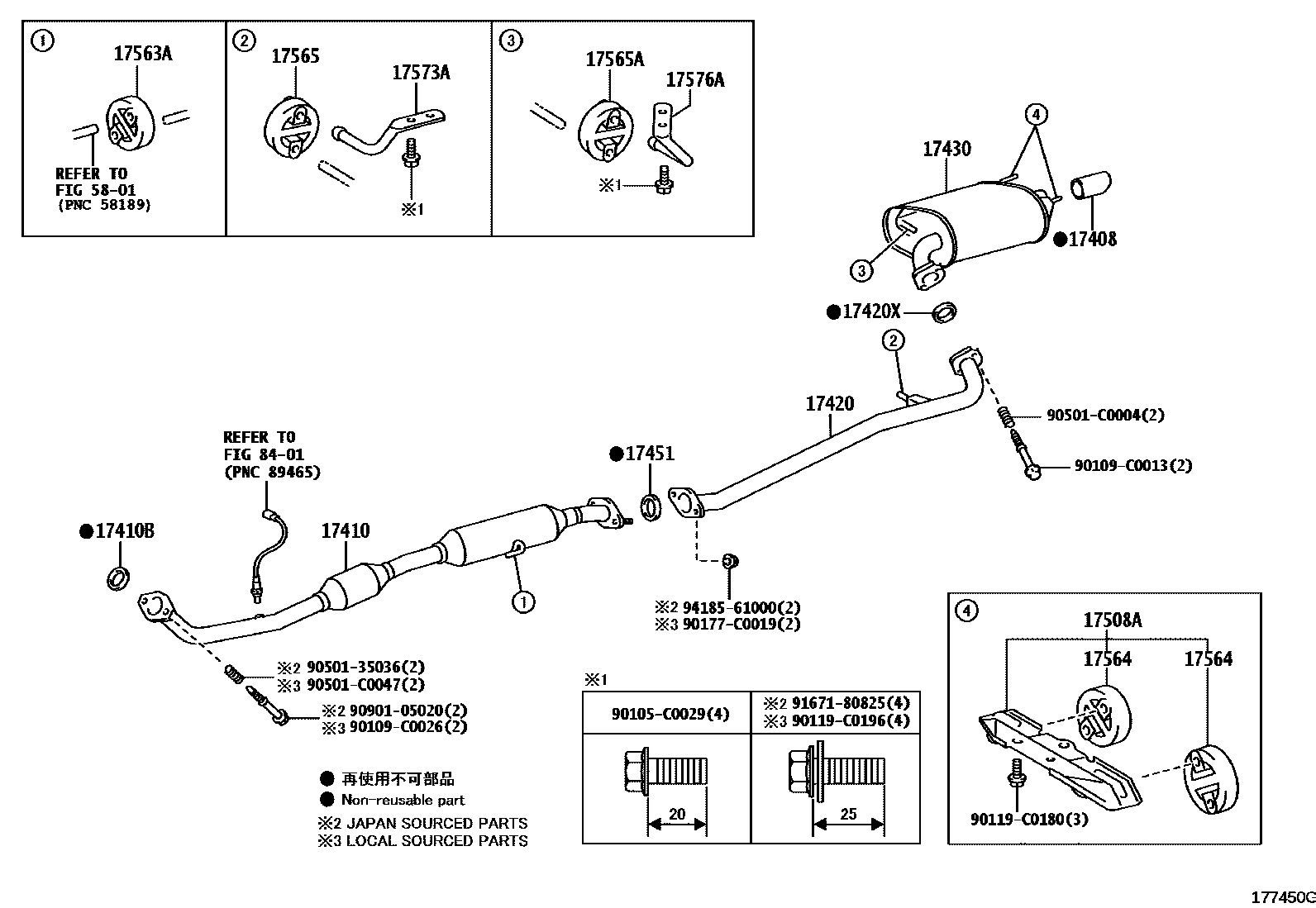

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-0V040 · 17408-31080 |
| 17410 | Front exhaust pipe assembly | 17410-0H380 · 17410-0V140 · 17410-0V150 · 17410-0V160 · 17410-0V240 |
| 17410B | Exhaust pipe gasket | 17451-0H020 · 17451-0V030 |
| 17420 | Central exhaust pipe assembly | 17420-0H270 · 17420-0V140 |
| 17420X | Center exhaust pipe liner | 17451-0T022 · 17451-0V060 |
| 17430 | Exhaust tailpipe assembly | 17430-0H270 · 17430-0V190 · 17430-0V191 |
| 17440 | Left exhaust tailpipe | 17440-0V020 · 17440-0V021 |
| 17451 | Exhaust pipe gasket | 90917-06078 · 90917-C6001 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06045 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-0V190 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-0V060 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0H060 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0H070 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0H070 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0H080 |
| 17573A | No. 3 exhaust pipe bracket | 17573-0V030 · 17573-31020 |
| 17576A | No. 6 exhaust pipe bracket | 17576-0V030 · 17576-31070 |
