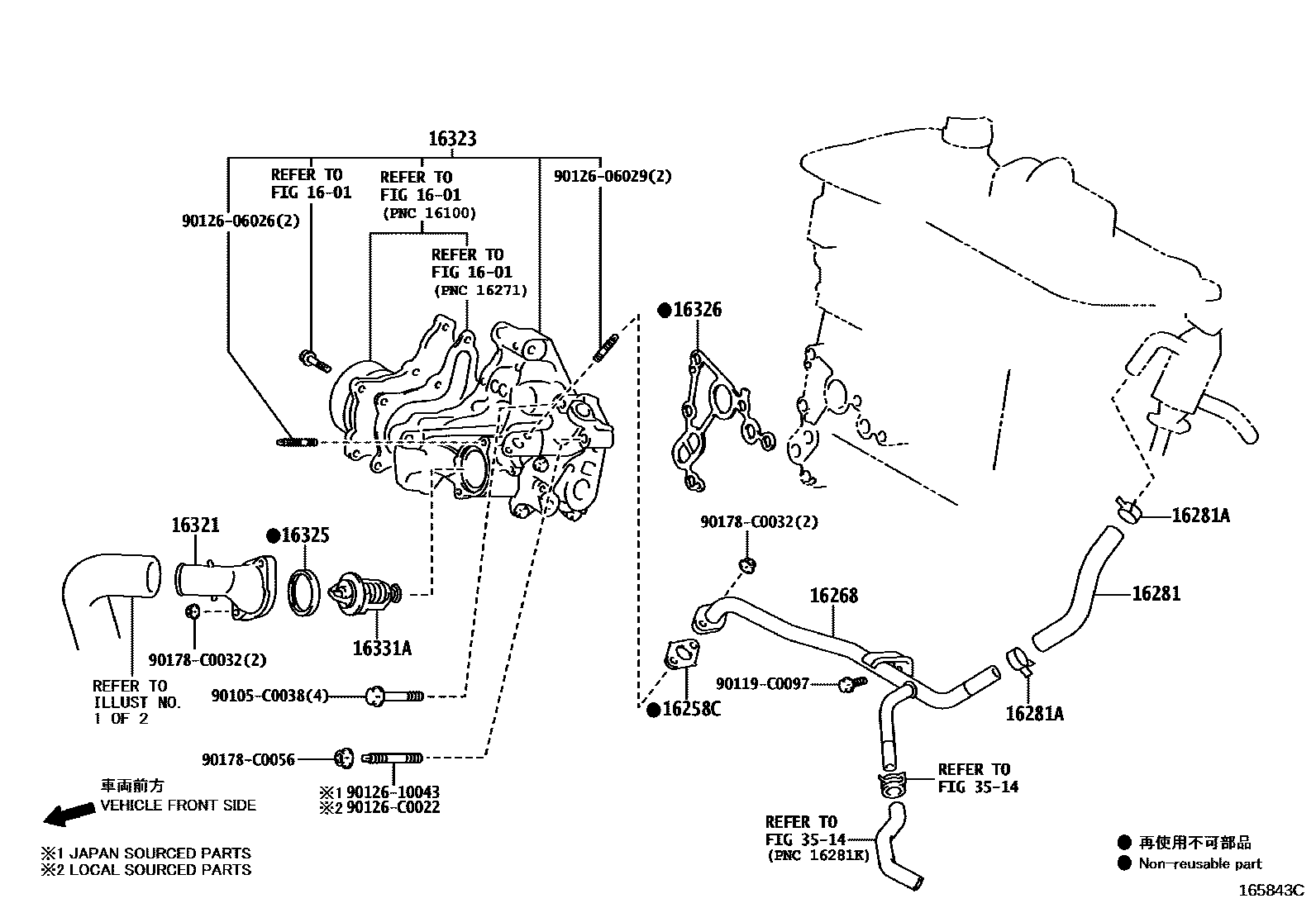

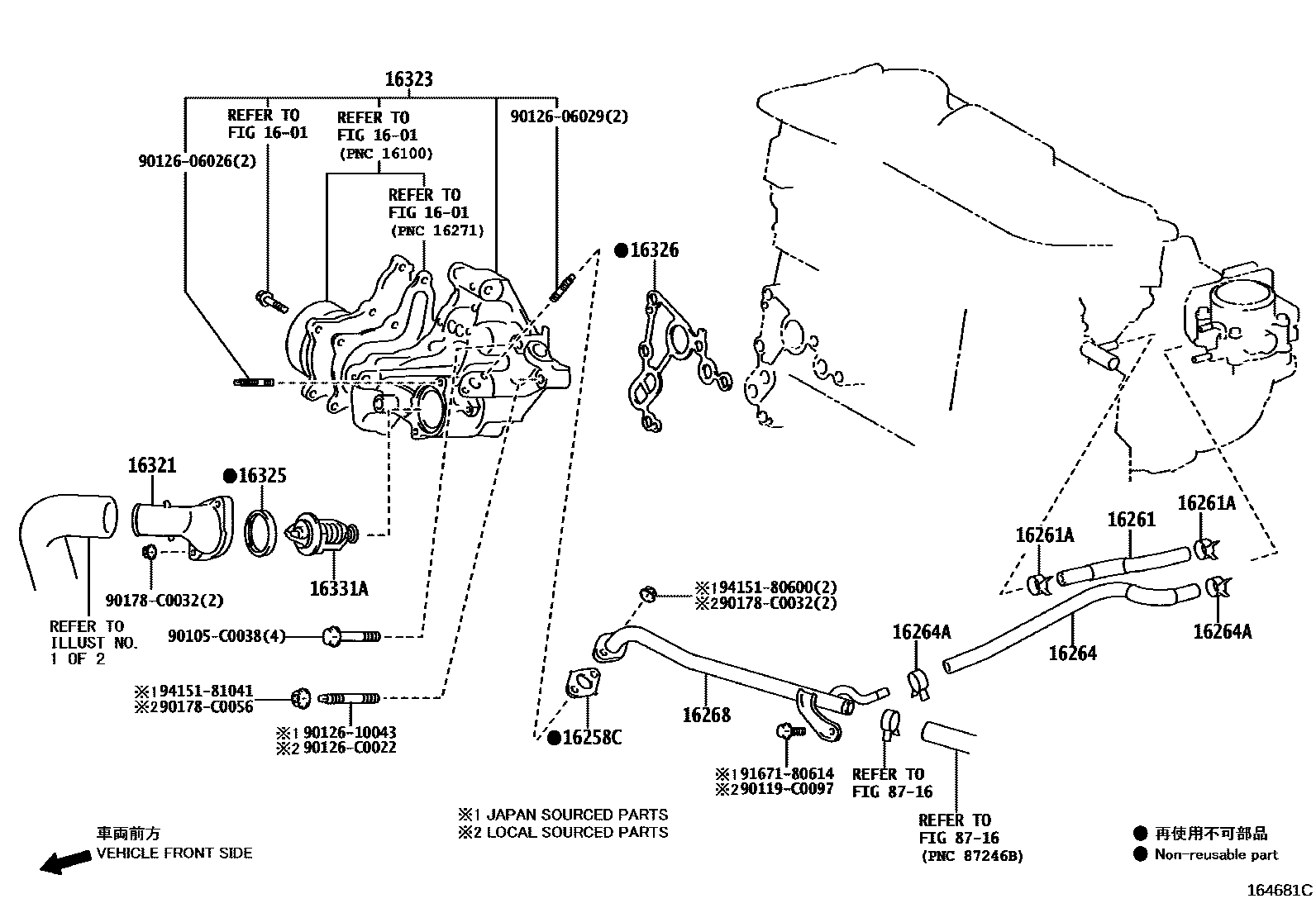

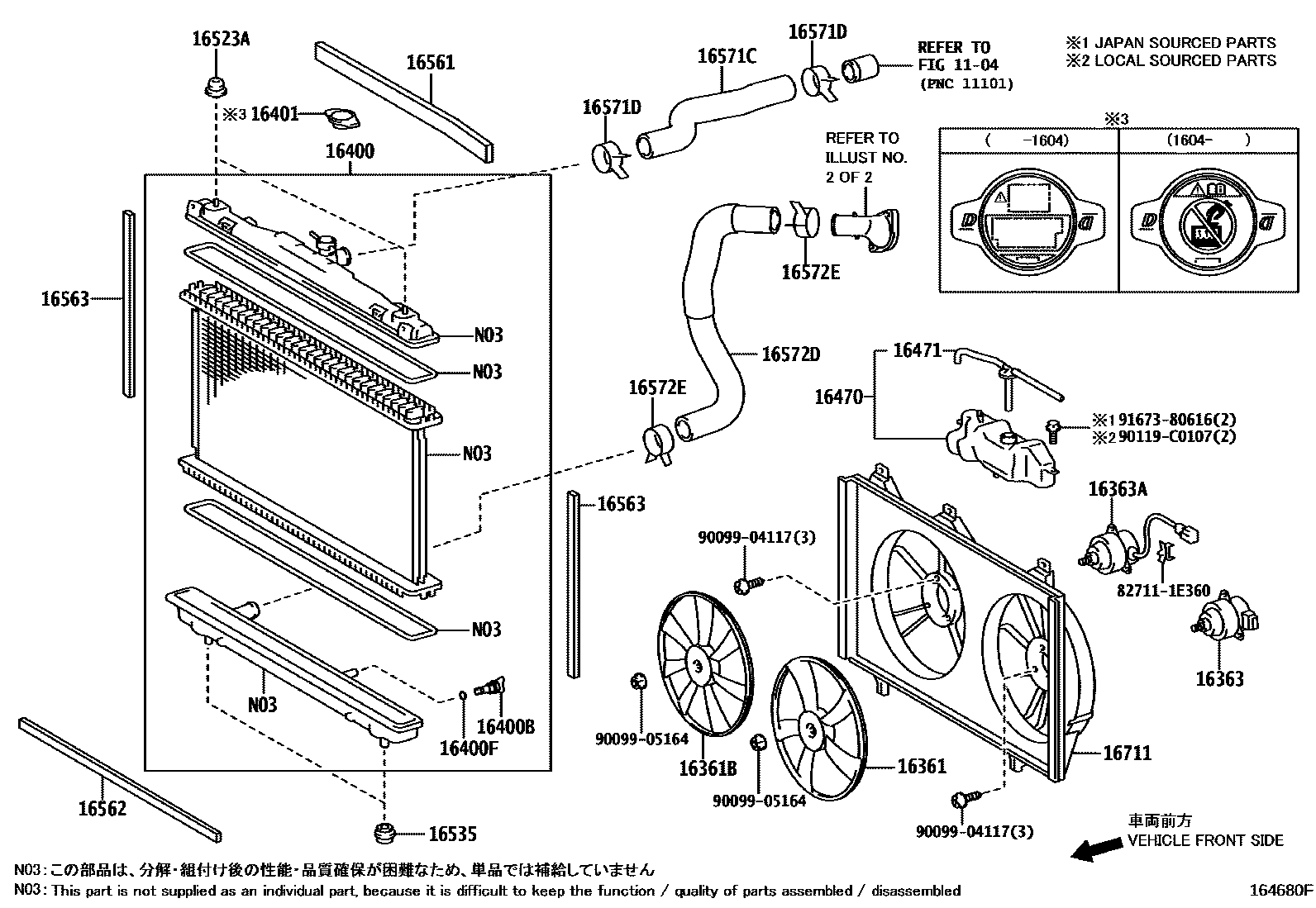

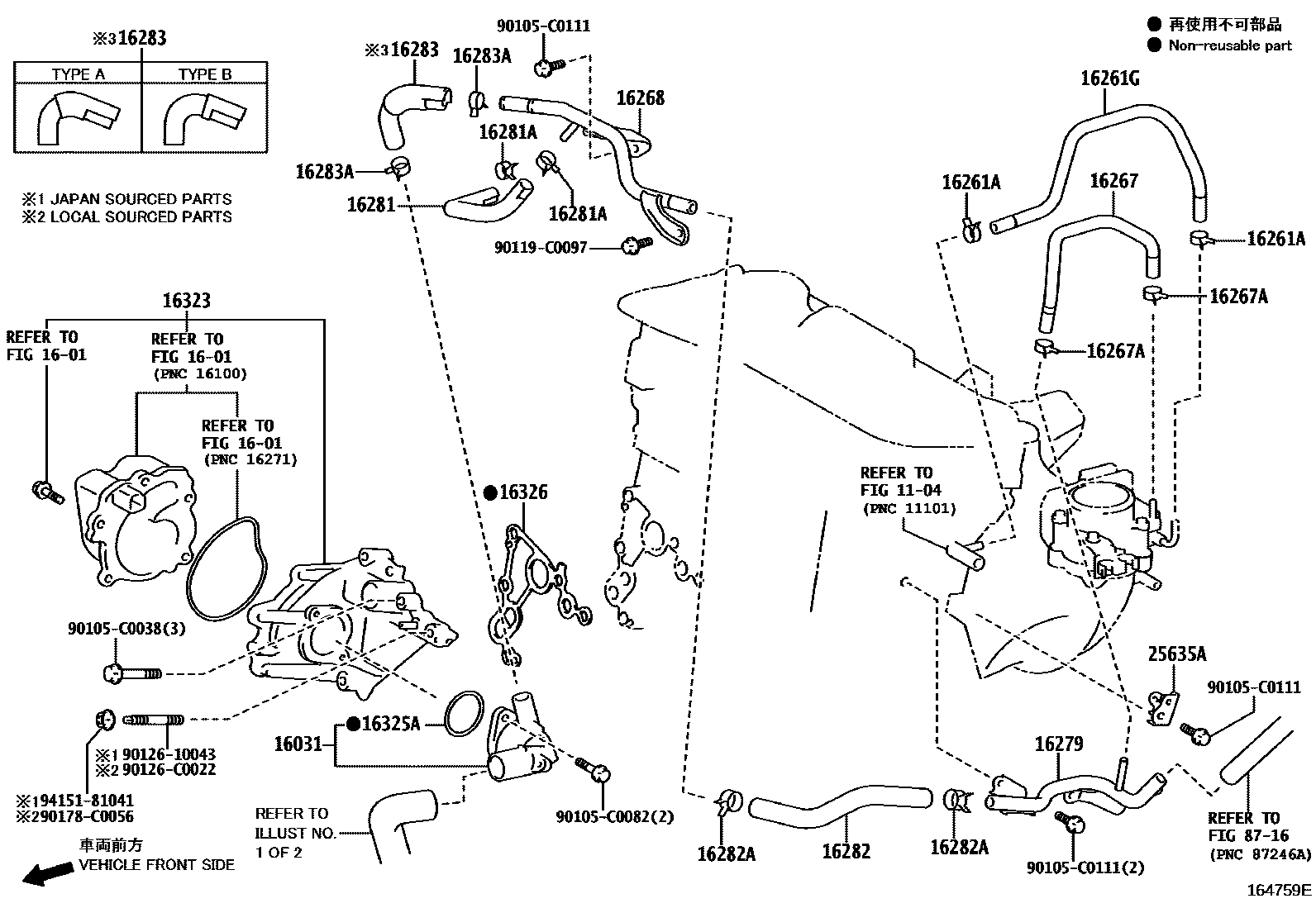

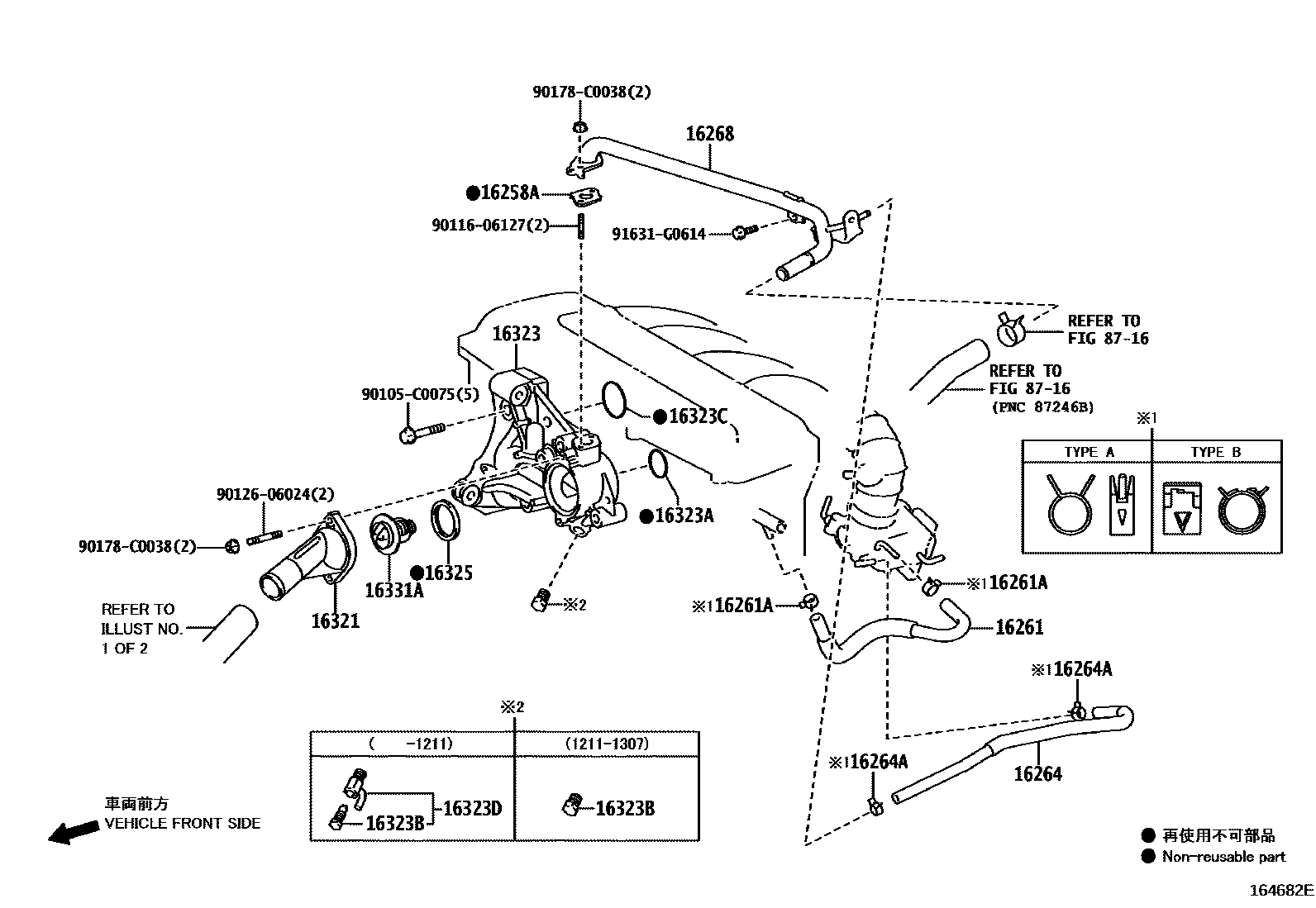

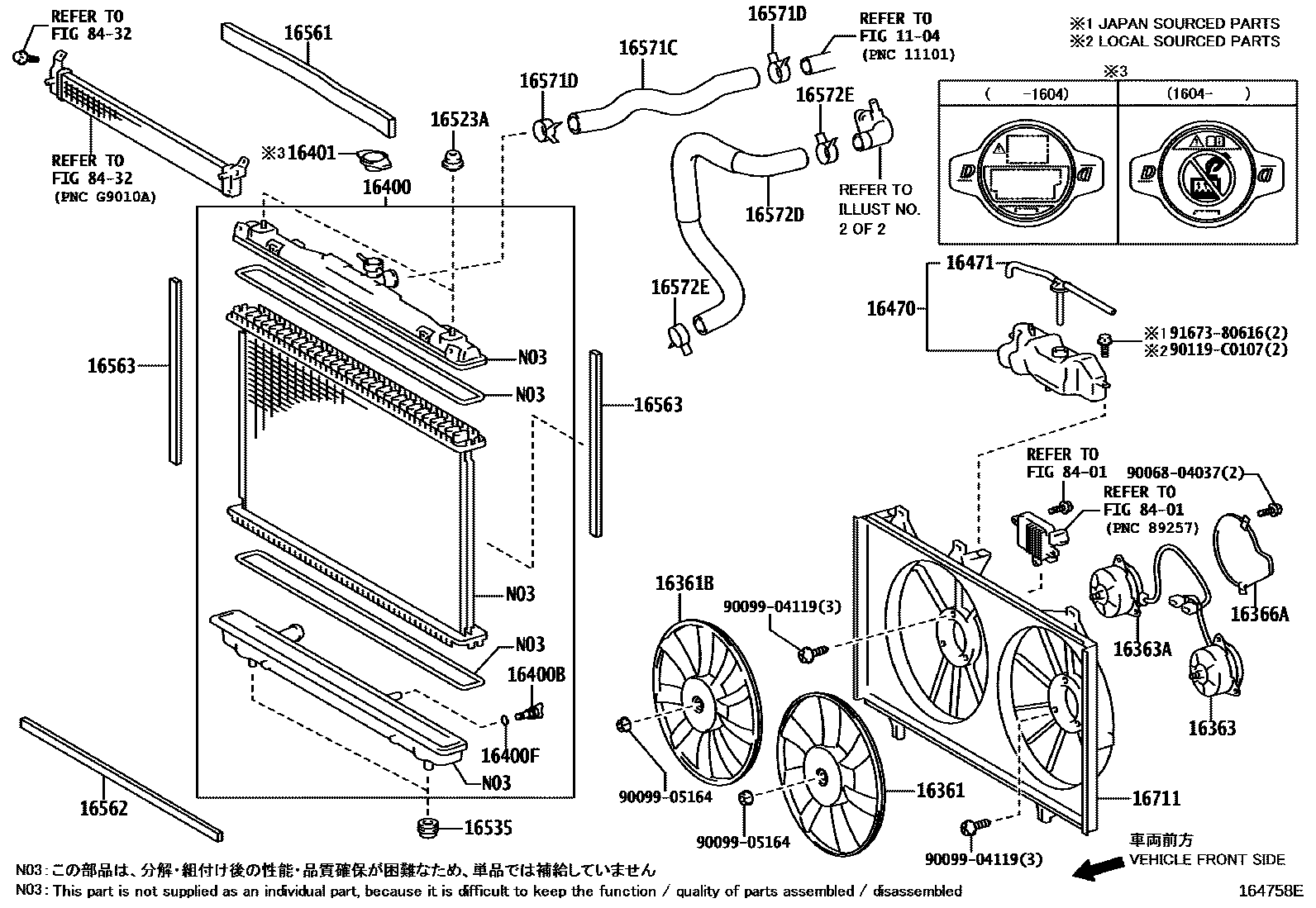

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-36010 |
| 16258A | Pad (for heater return) | 16258-0H040 |
| 16258C | Gasket (for water bypass pipe) | 16258-0V010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0H080 · 16261-0V030 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0V040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0H100 · 16264-0V040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0V030 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0026 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V040 · 16268-0V050 · 16268-0V060 · 16268-28160 · 16268-36090 · 16268-36091 |
| 16279 | No. 3 water bypass pipe | 16279-0V010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-36020 · 16281-36140 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0014 · 90466-C0026 · 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-36030 · 16283-36031 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-21001 |
| 16321 | water inlet | 16321-0H060 · 16321-0V020 |
| 16323 | HOUSING, WATER INLET | 16032-0V020 · 16032-0V030 · 16032-36050 · 16323-0H010 · 16323-0H011 |
| 16323A | Gasket (for inlet housing) | 90301-C0029 |
| 16323B | Screw plug (for water inlet housing) | 90345-52001 · 90910-09087 |
| 16323C | O-ring (for water inlet housing) | 90301-C0030 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-28010 |
| 16325A | Water inlet shell gasket | 16325-36010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0V010 · 16326-36010 |
| 16331A | thermostat | 90916-C3001 |
| 16361 | Fan | 16361-0V190 · 16361-0V210 |
| 16361B | Fan No. 2 | 16361-0V200 · 16361-0V220 |
| 16363 | cooling fan motor | 16363-02120 · 16363-0V250 |
| 16363A | Cooling fan motor No. 2 | 16363-0V240 · 16363-0V260 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-36100 |
| 16400 | Radiator assembly | 16400-0V150 · 16400-0V160 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-0M010 · 16401-0Y060 · 16401-31480 |
| 16470 | Radiator reservoir assembly | 16470-0V040 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0V010 |
| 16523A | Radiator bracket cushion | 16523-0H040 |
| 16535 | Radiator lower support | 16535-0H040 · 16535-0V020 · 16535-20010 · 16535-28060 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0V100 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0V060 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-0V060 |
| 16571C | Radiator hose No. 1 | 16571-0H200 · 16571-0V110 · 16571-0V120 · 16571-0V200 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 90466-C0009 |
| 16572D | Radiator hose No. 2 | 16572-0H170 · 16572-0V100 · 16572-0V110 |
| 16572E | No. 2 radiator hose clip | 90466-35001 · 90466-C0009 |
| 16711 | fan cover | 16711-0V140 · 16711-0V150 |
| 25635A | No. 1 EGR tube holder | 25635-36010 |
