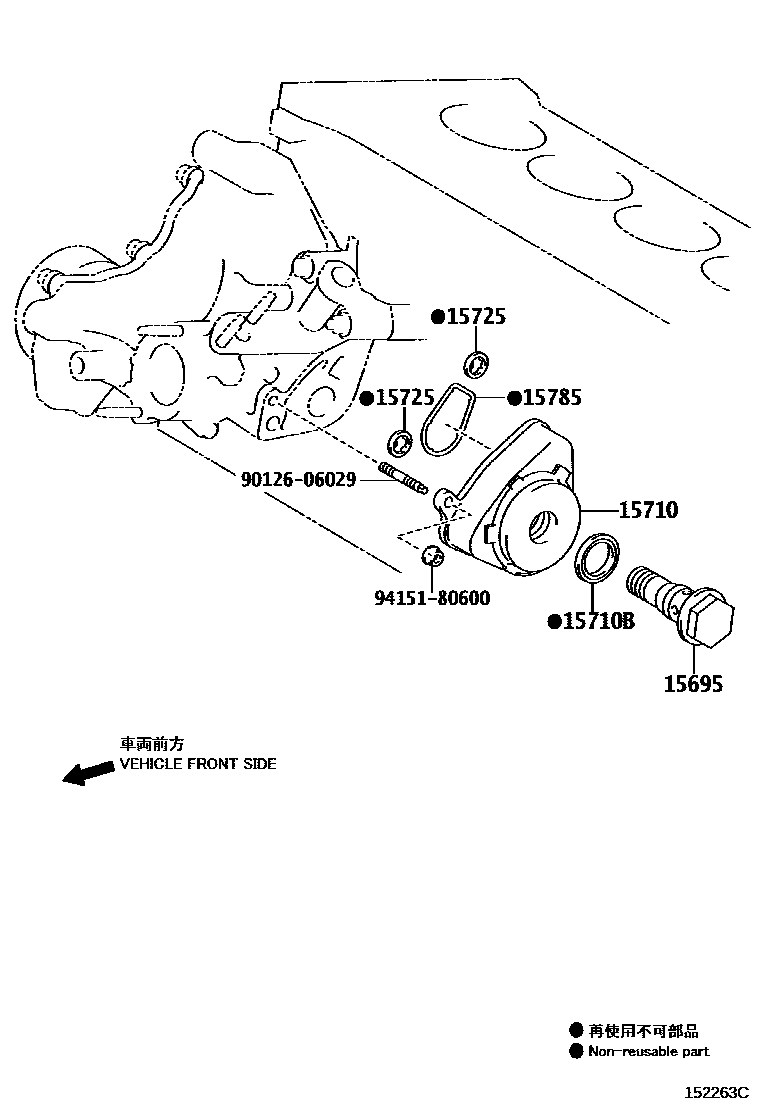

Toyota CAMRY Engine Oil Cooler — Figure 1503
Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15695 | Oil cooler joint bolts | 15695-62030 |
| 15710 | Oil cooler assembly | 15710-36010 |
| 15710B | O-ring (for transmission oil cooler) | 90210-22001 |
| 15725 | Oil cooler cover gasket | 15725-36010 |
| 15785 | oil cooler gasket | 15785-36010 |
