Toyota CAMRY Crankshaft & Piston — Figure 1301

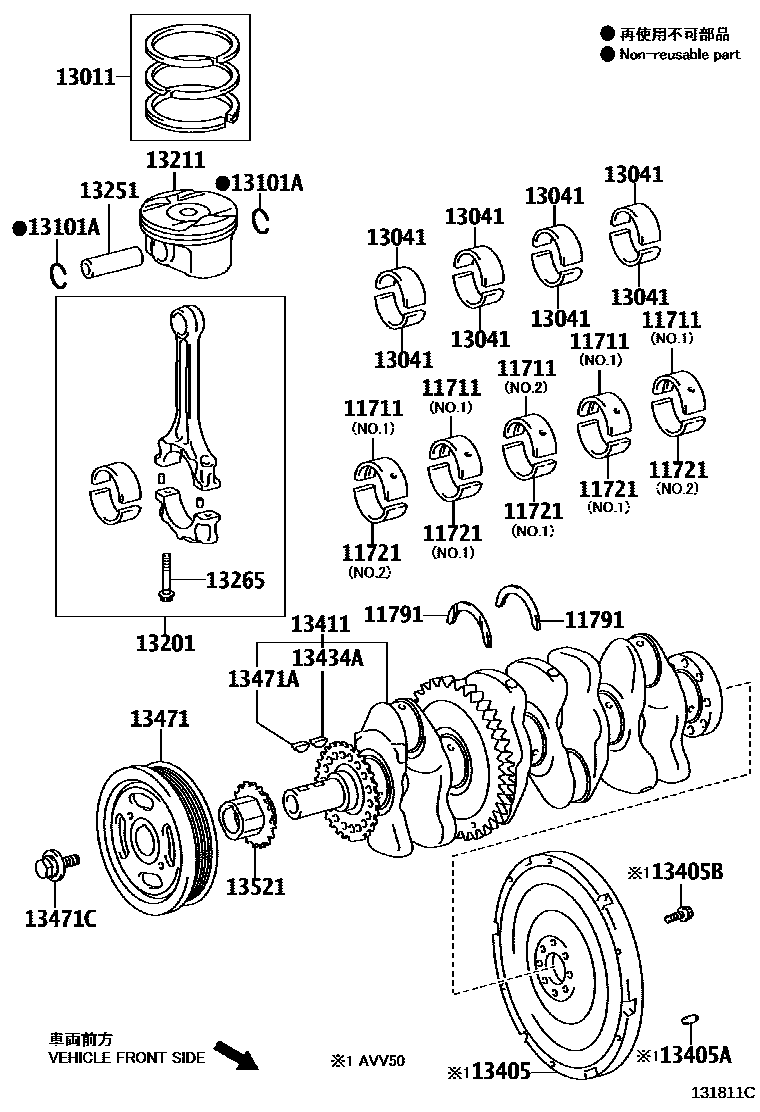

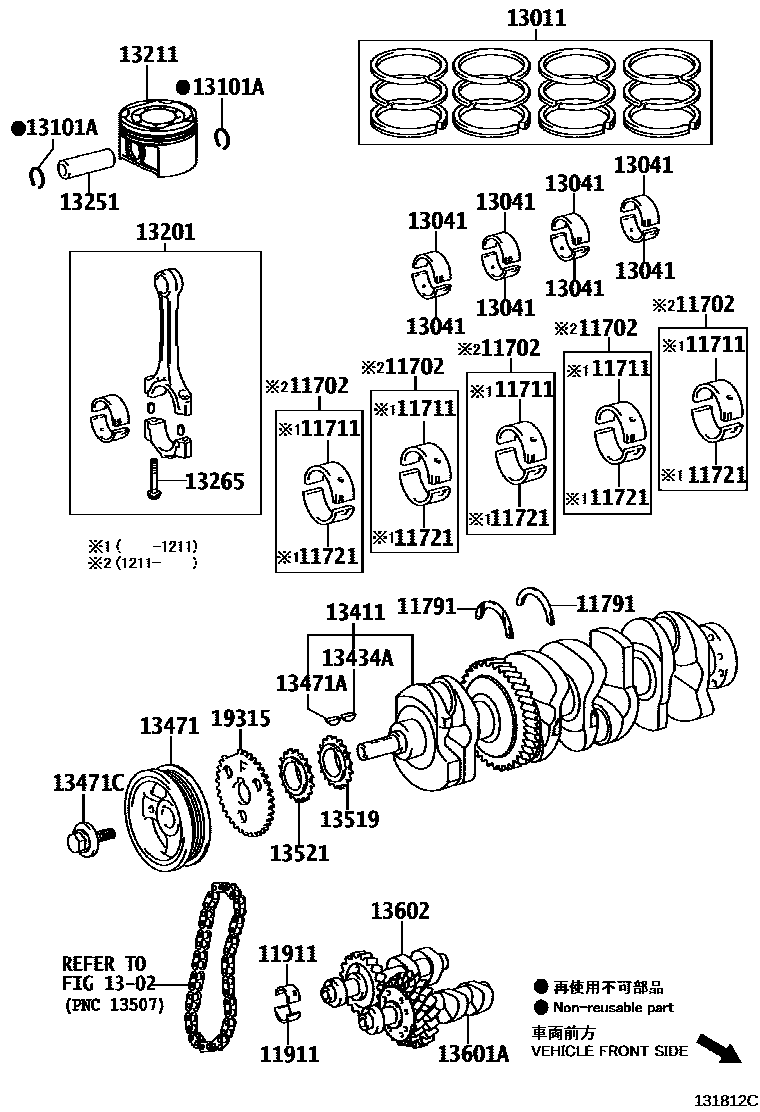

Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0H030 · 11791-0V020 · 11791-36020 |
| 13011 | Piston ring assembly | 13011-0H080 · 13011-0V020 · 13011-0V070 · 13011-0V080 · 13011-28210 |
| 13101A | Bore snap ring (for piston pin) | 90520-22025 |
| 13265 | Connecting rod bolts | 13265-0V010 · 13265-28010 · 13265-31020 |
| 13405 | Flywheel sub-assembly | 13451-0V010 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90105-12384 · 90105-C0224 |
| 13411 | crankshaft | 13401-0H050 · 13401-0V020 · 13401-0V021 · 13401-0V060 · 13401-0V070 |
| 13434A | Key (for oil pump active spline) | 95161-30416 · 95161-30516 |
| 13471 | crankshaft pulley | 13470-0H030 · 13470-0V030 · 13470-0V050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16020 · 90119-C0124 · 90119-C0429 |
| 13519 | Oil pump driving gear | 13519-0H050 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0H050 · 13521-0V020 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-0H030 · 13601-0H031 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-0H030 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-28010 |
