Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

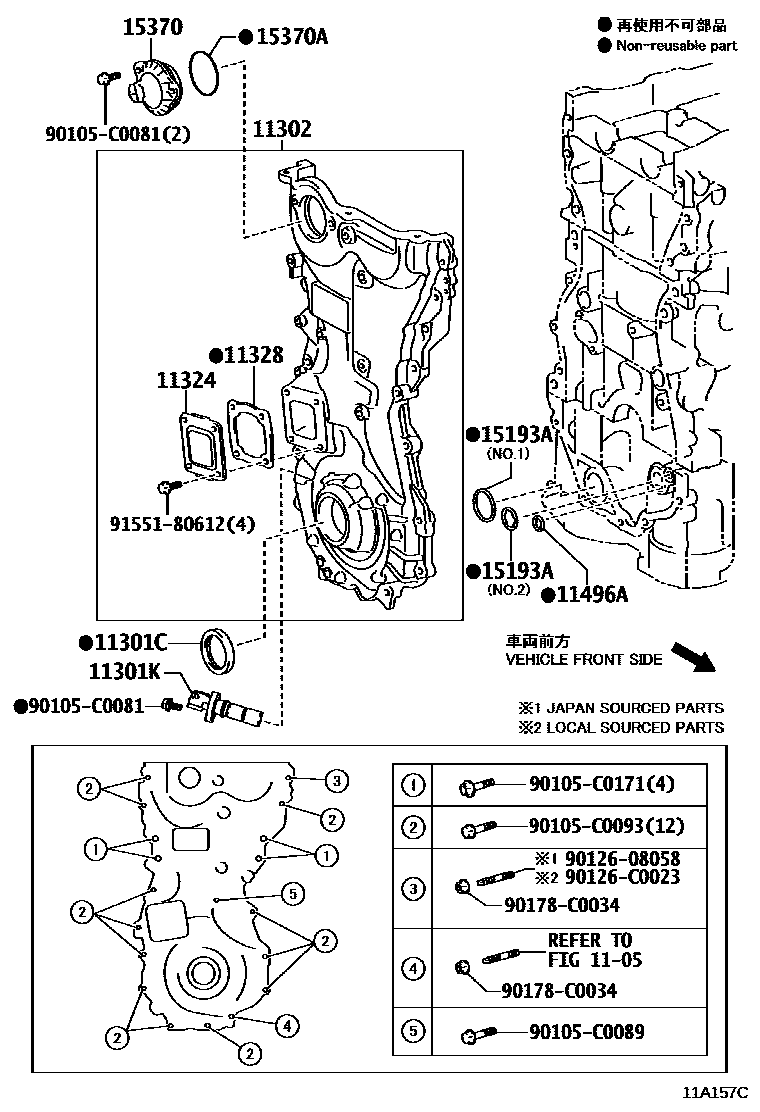

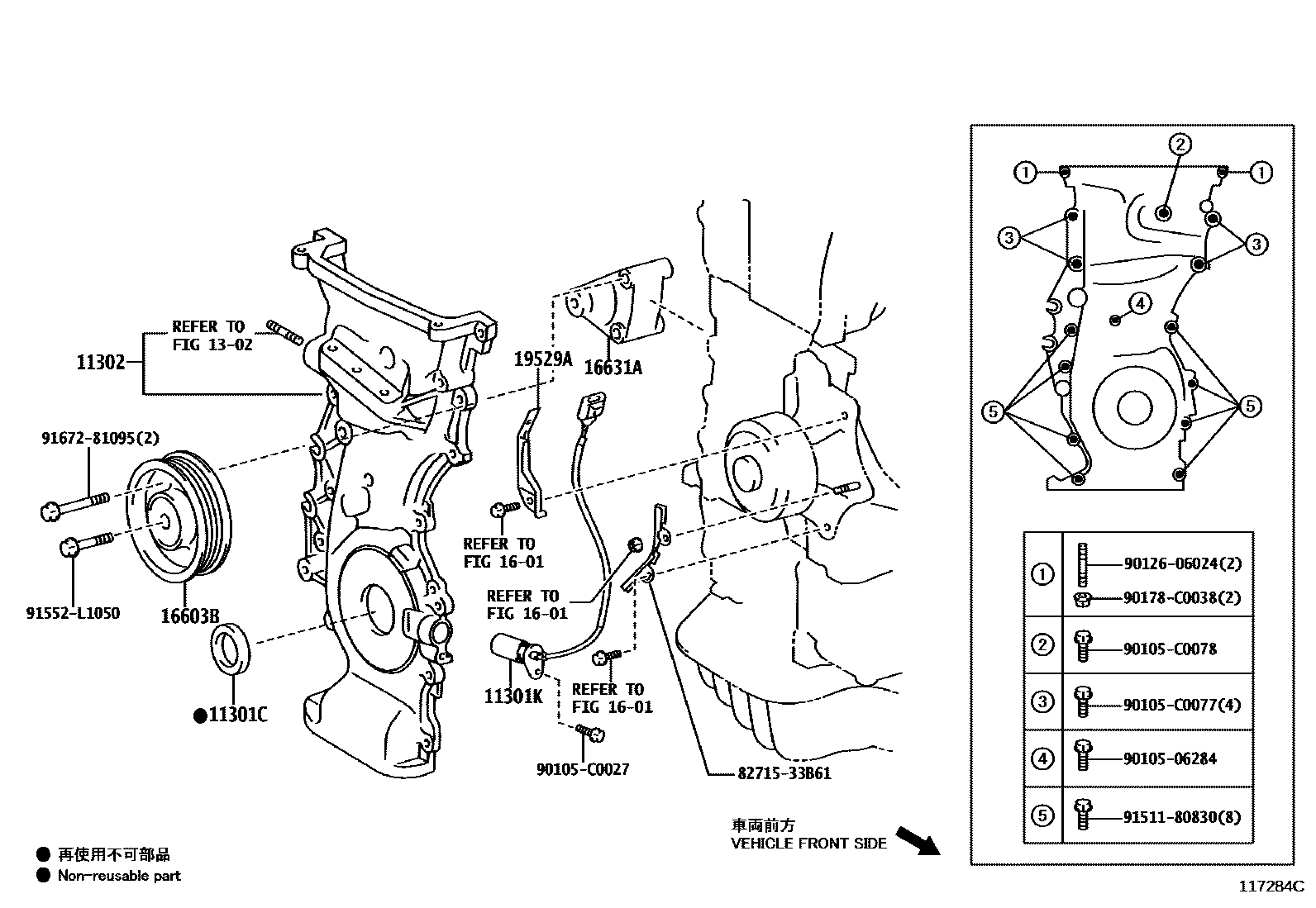

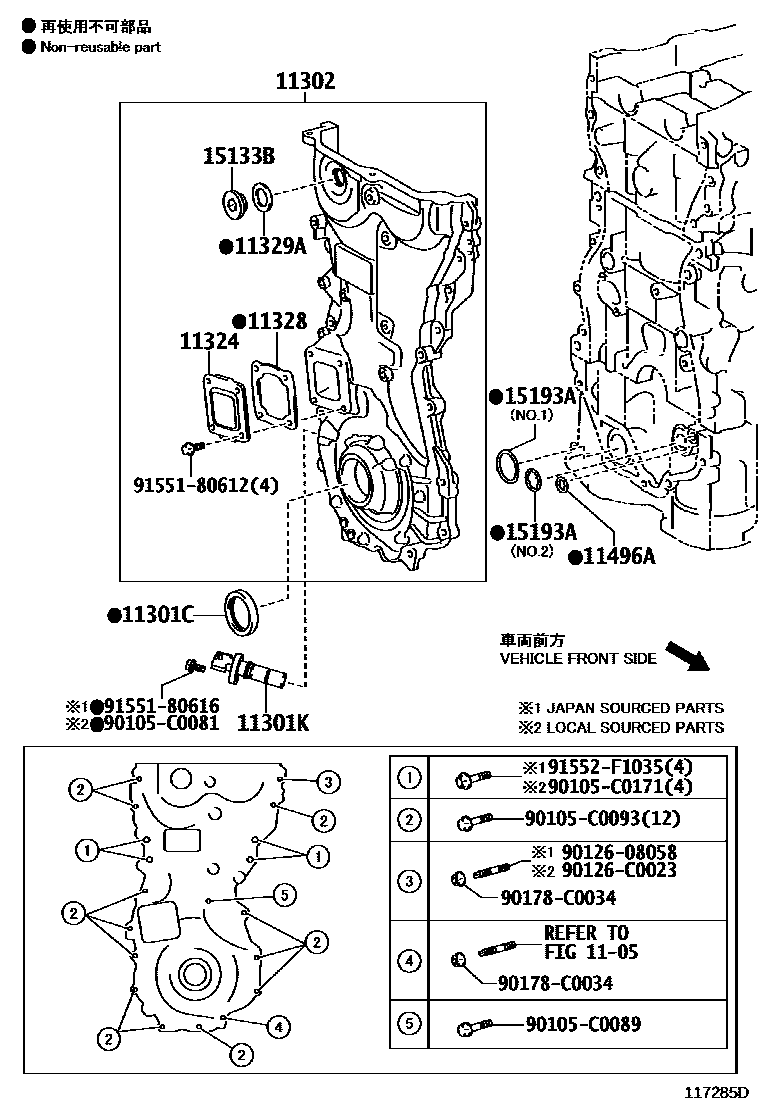

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-C0017 · 90311-C0025 · 90311-C0036 · 90311-C0040 · 90311-C0046 · 90311-T0024 |
| 11301K | crankshaft position sensor | 90919-05067 · 90919-05070 · 90919-05088 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0H060 · 11310-0V030 · 11310-0V040 |
| 11324 | Timing chain cover | 11324-36010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-36020 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-36010 · 11329-36020 |
| 11496A | Oil hole cover gasket | 11496-0V010 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-36020 |
| 15193A | oil pump gasket | 15193-0V010 · 15197-0V010 |
| 15370 | Camshaft timing oil control solenoid valve assembly | 15370-0V010 |
| 15370A | O-ring (for camshaft timing oil control solenoid valve) | 90301-50003 |
| 16603B | Idler gear sub-assembly | 16603-28050 |
| 16631A | Idler gear bracket | 16631-28031 |
| 19529A | card holder | 19529-28050 |
