Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

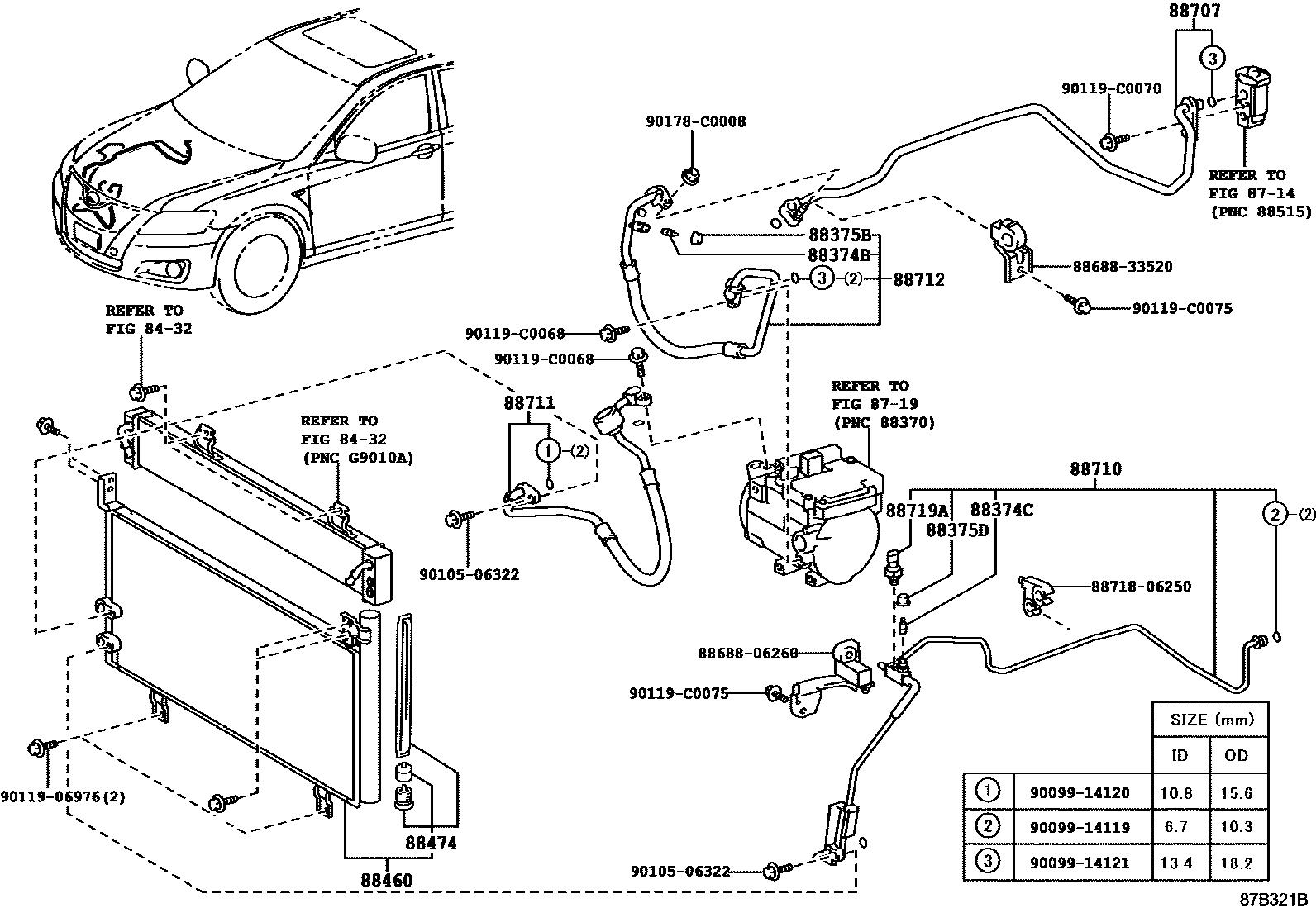

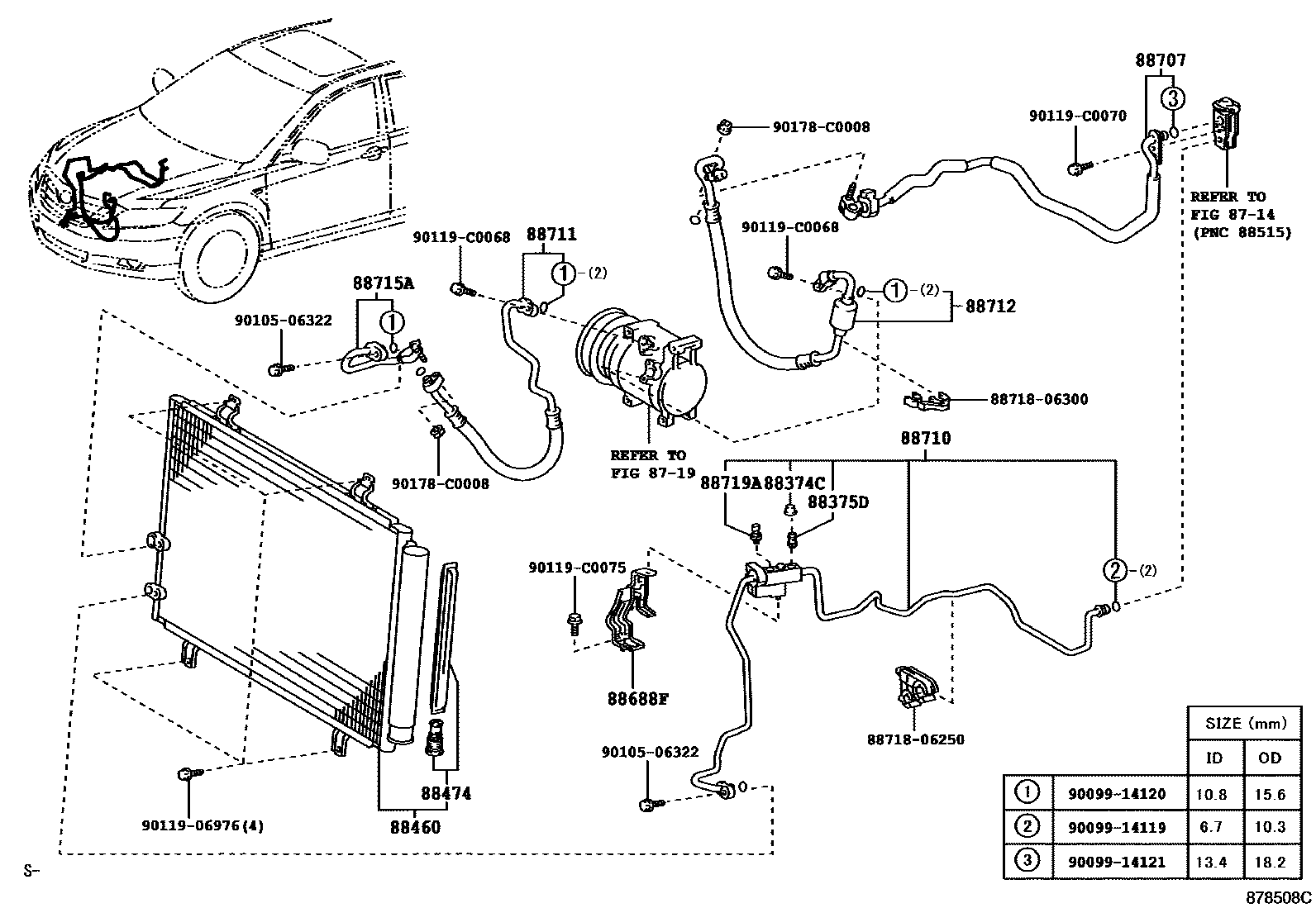

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-06220 · 88460-33120 |
| 88474 | cooler dryer | 88474-17010 · 88474-47020 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-06190 |
| 88707 | Suction pipe sub-assembly | 88707-06080 · 88707-06110 |
| 88710 | Air conditioning pipe assembly | 88710-06270 · 88710-06271 · 88710-06300 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06340 · 88711-06400 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06180 · 88712-06230 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-06080 · 88715-06081 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
