Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

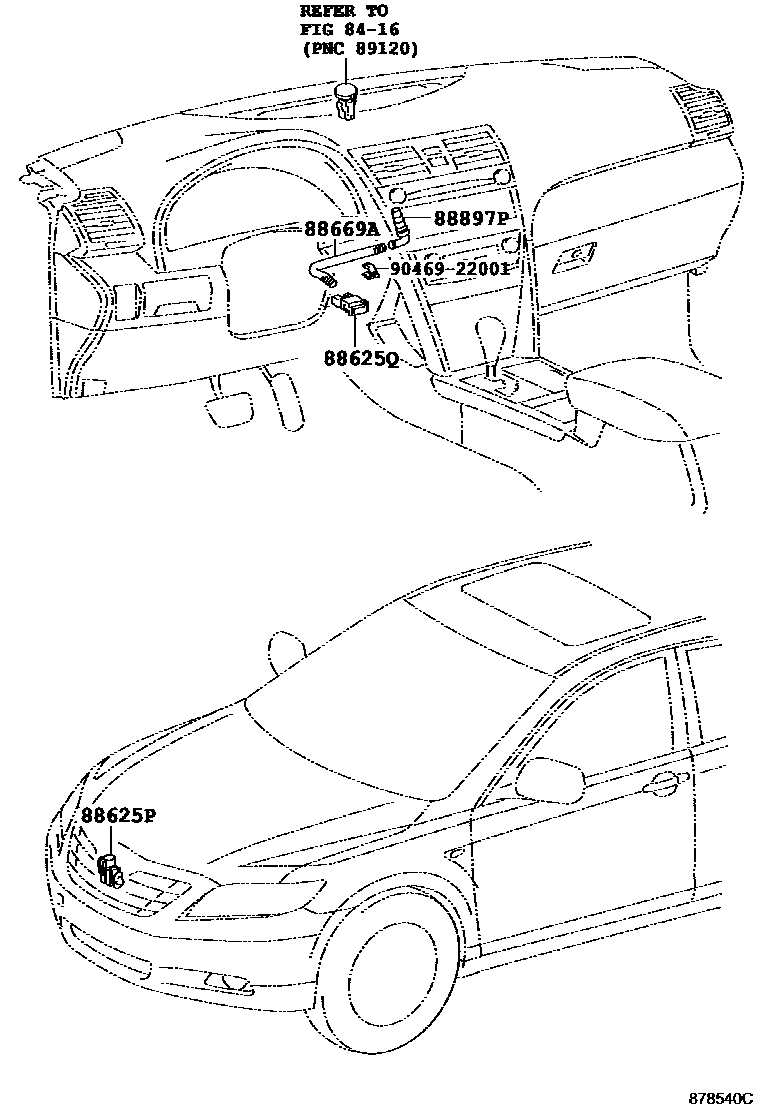

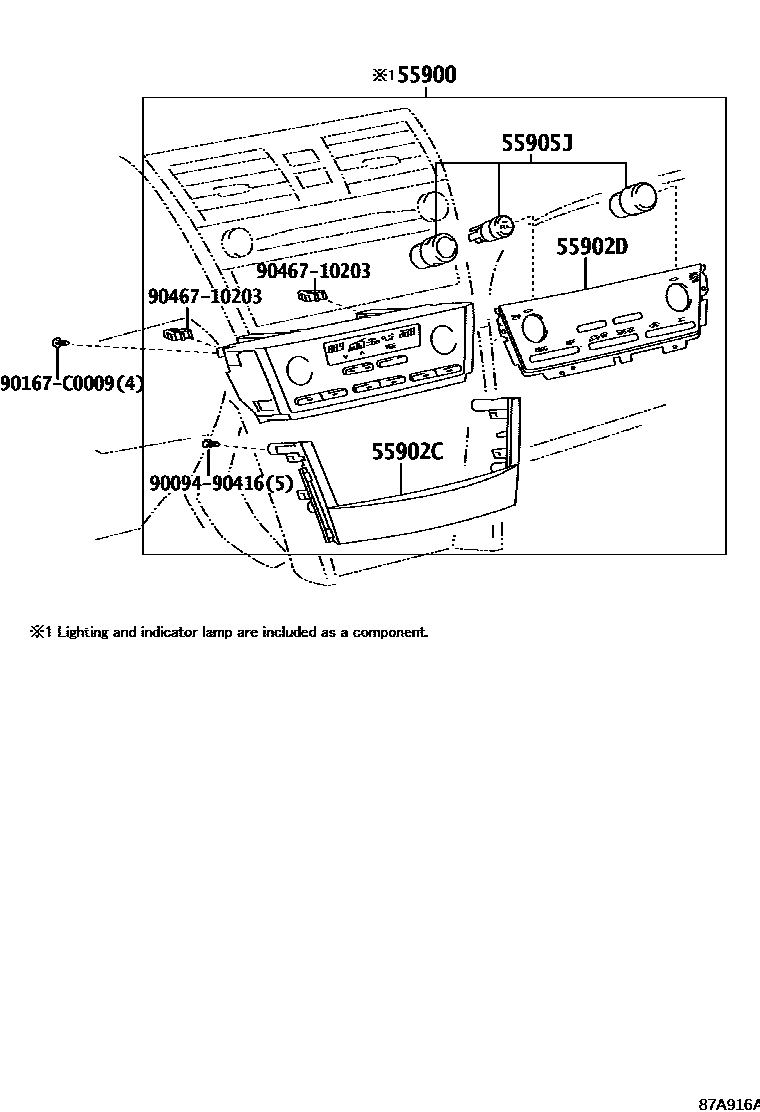

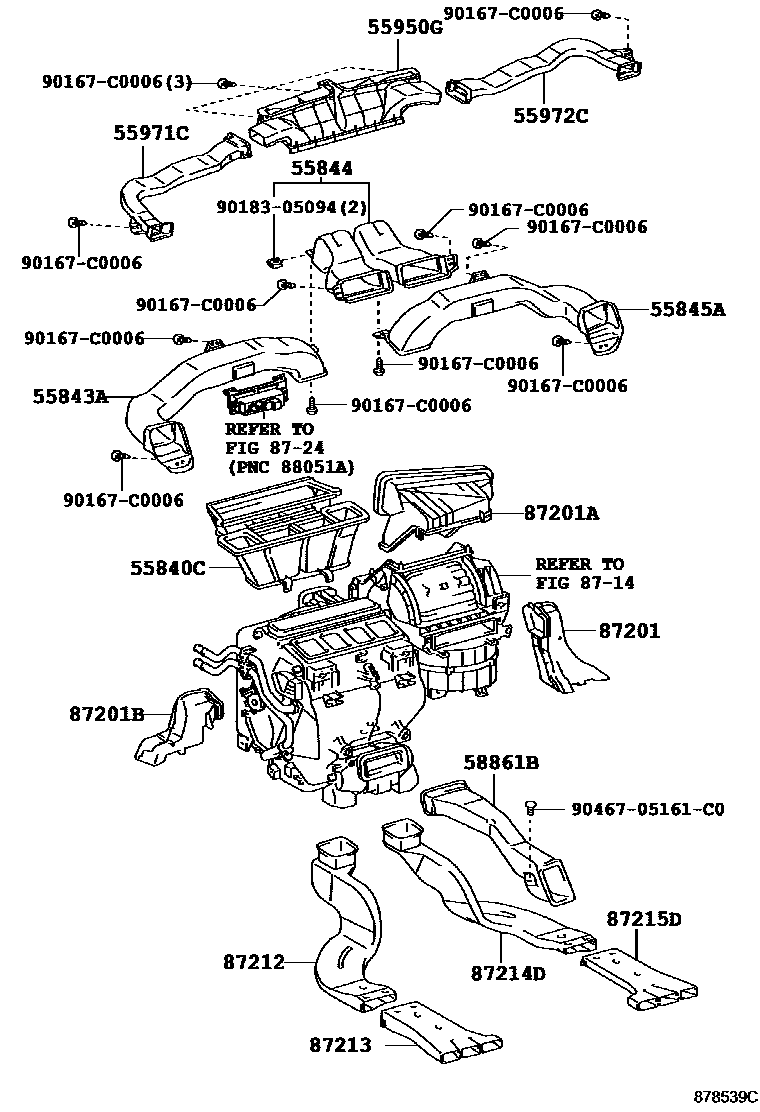

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06080 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06130 · 55843-06140 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06100 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06090 |
| 55900 | Air conditioning control assembly | 55900-06180 · 55900-06181 · 55900-06220 · 55900-06221 · 55900-06240 · 55900-06241 · 55900-06340 |
| 55902C | Air conditioning panel sub-assembly | 55902-06200 |
| 55902D | Air conditioning panel sub-assembly | 55902-06210 · 55902-06220 |
| 55905J | Control lever handle sub-assembly | 55905-06170 · 55905-06220 |
| 55950G | Defroster nozzle assembly | 55950-06090 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06080 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06080 |
| 58861B | Air duct No. 1 for armrest box | 58861-06100 |
| 87201 | No. 1 air duct sub-assembly | 87201-06410 |
| 87201A | Air duct sub-assembly | 87201-06380 |
| 87201B | No. 2 air duct sub-assembly | 87201-06400 |
| 87212 | No. 1 rear air duct | 87213-06070 |
| 87213 | No. 2 rear air duct | 87216-06040 |
| 87214D | No. 3 rear air duct | 87212-06070 |
| 87215D | No. 4 rear air duct | 87215-06040 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-02010 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88669A | Hoses (for cooler thermistor) | 88669-06050 |
| 88897P | aspirator | 88897-06030 |
