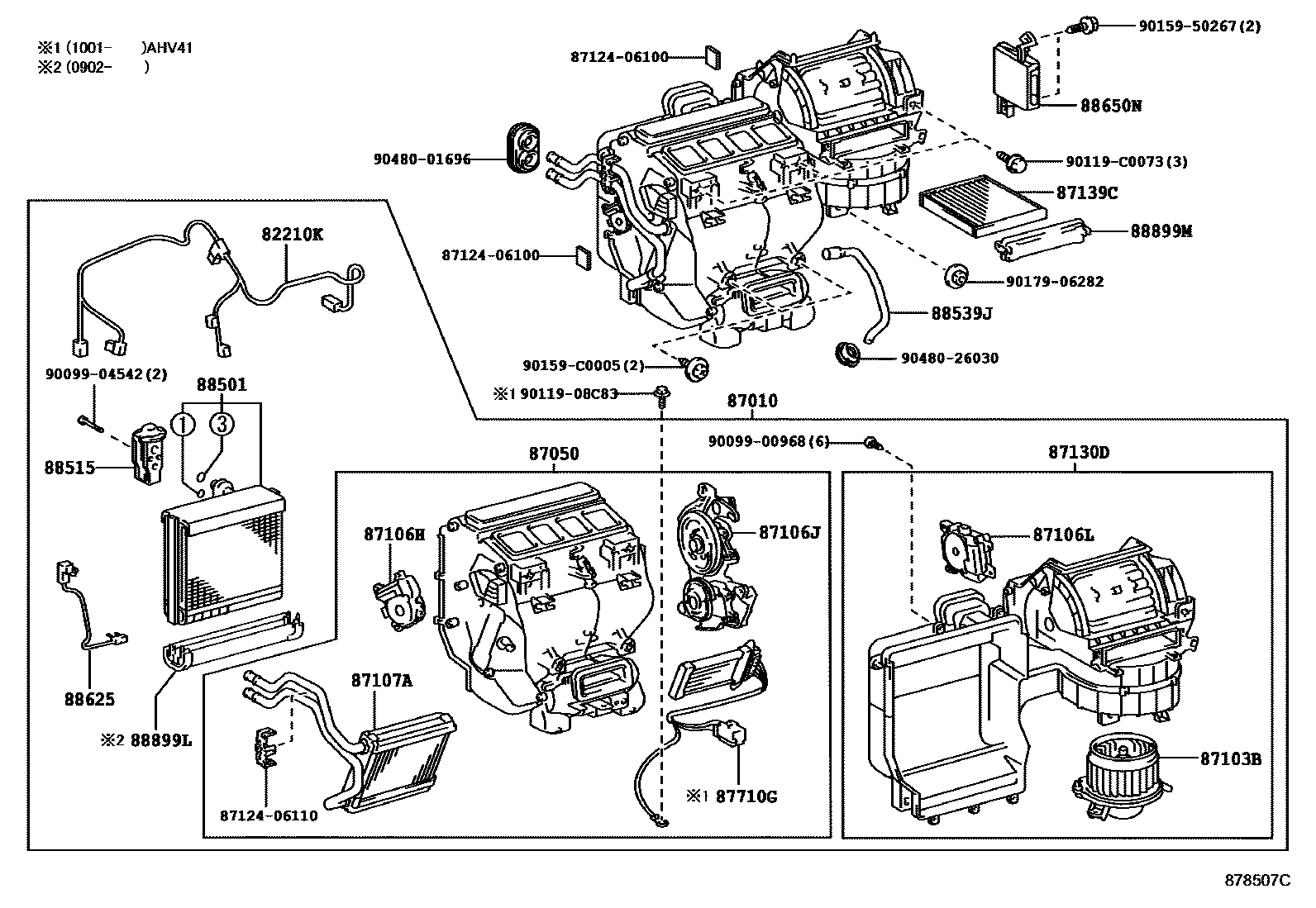

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06040 |
| 87010 | Air conditioning unit assembly | 87010-06550 · 87010-06551 · 87010-06552 · 87010-06553 · 87010-06610 |
| 87050 | Air conditioning radiator assembly | 87050-06500 · 87050-06501 · 87050-06502 · 87050-06503 · 87050-06550 |
| 87103B | Blower motor sub-assembly with fan | 87103-06090 · 87103-0E070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-06230 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06220 · 87106-06221 |
| 87106L | Damper servo mechanism sub-assembly | 87106-06240 |
| 87107A | Heater radiator device sub-assembly | 87107-06080 |
| 87130D | Blower assembly | 87130-06320 · 87130-06321 · 87130-0E070 |
| 87139C | air purification filter | 87139-06060 · 87139-06140 |
| 87710G | Rapid heater assembly | 87710-06020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06121 · 88501-06140 · 88501-06141 · 88501-06350 · 88501-06360 |
| 88515 | Cooler expansion valve | 88515-06070 · 88515-06100 |
| 88539J | Cooler drain hose | 88539-06110 |
| 88625 | Cooler No. 1 Thermistor | 88620-0E020 · 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-06220 · 88650-06221 · 88650-06230 · 88650-06231 · 88650-06410 · 88650-06440 · 88650-06441 · 88650-06450 · 88650-06451 · 88650-06460 |
| 88899L | Cooling unit parts | 88899-06130 |
| 88899M | cover (for air cleaner) | 88899-06070 |
