Toyota CAMRY 后视镜 — Figure 8701

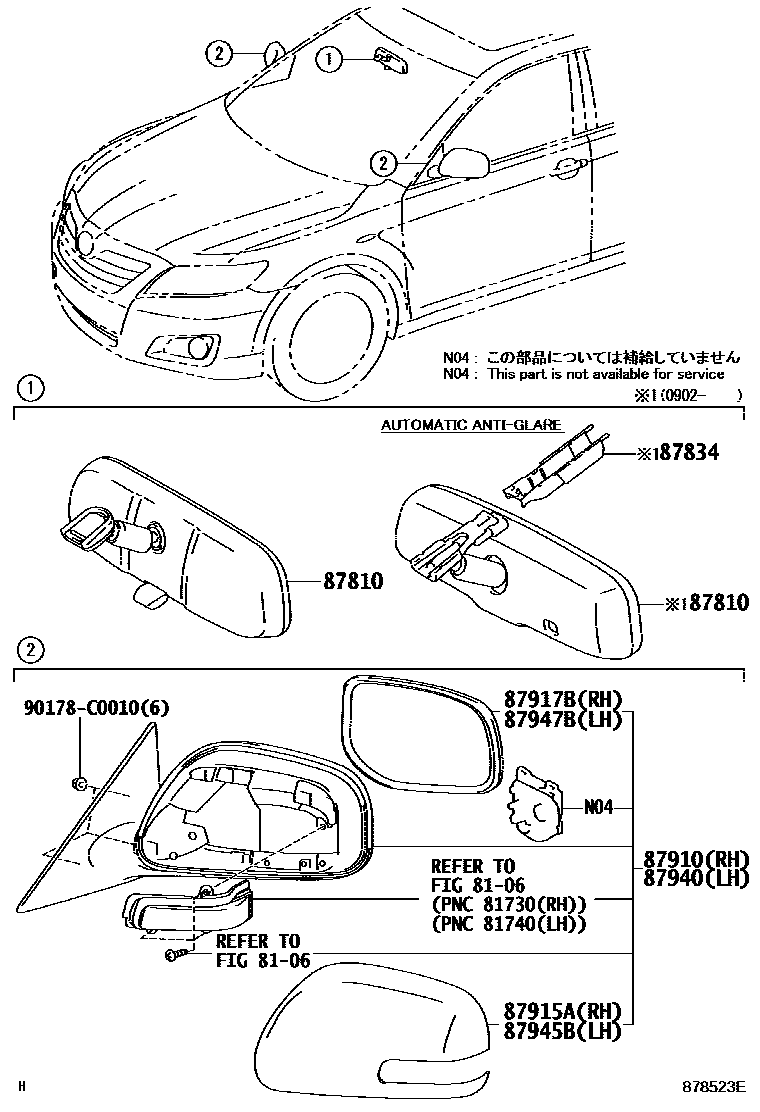

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06060 · 87810-06061 · 87810-06062 · 87810-06071 · 87810-0D070 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87915A | Right exterior rearview mirror cover | 87915-06905 |
| 87917B | Right exterior rearview mirror | 87931-06320 · 87931-06330 · 87931-06390 |
| 87945B | Left exterior rearview mirror cap | 87945-06905 |
| 87947B | Left exterior rearview mirror | 87961-06320 · 87961-06330 · 87961-06390 |
