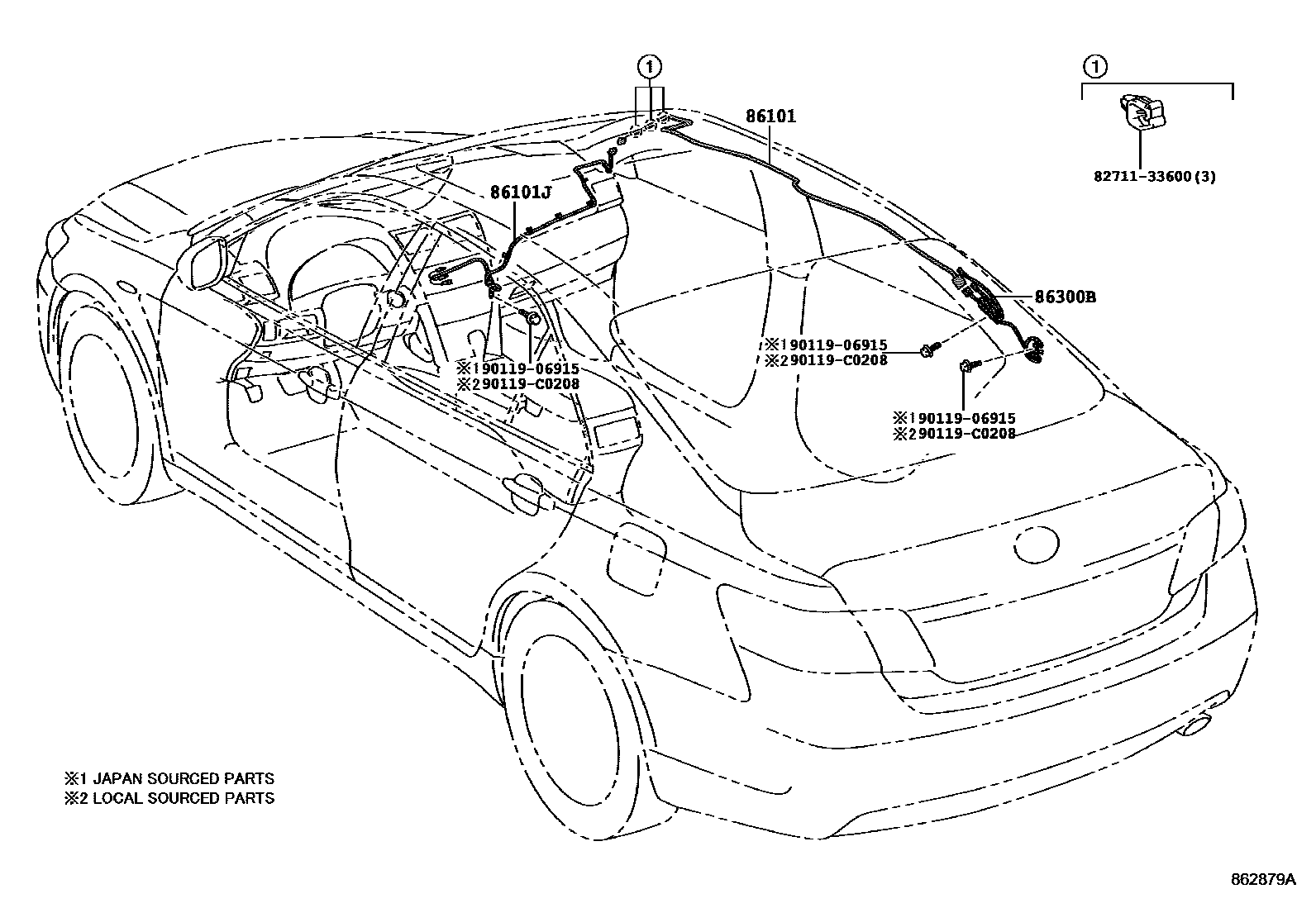

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-33570 · 86101-33650 · 86101-33760 · 86101-YL010 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-06670 · 86101-06680 · 86101-33580 · 86101-33590 |
| 86300B | No. 1 amplifier antenna assembly | 86300-06090 · 86300-06091 |
