Toyota CAMRY 前大灯清洗器 — Figure 8505

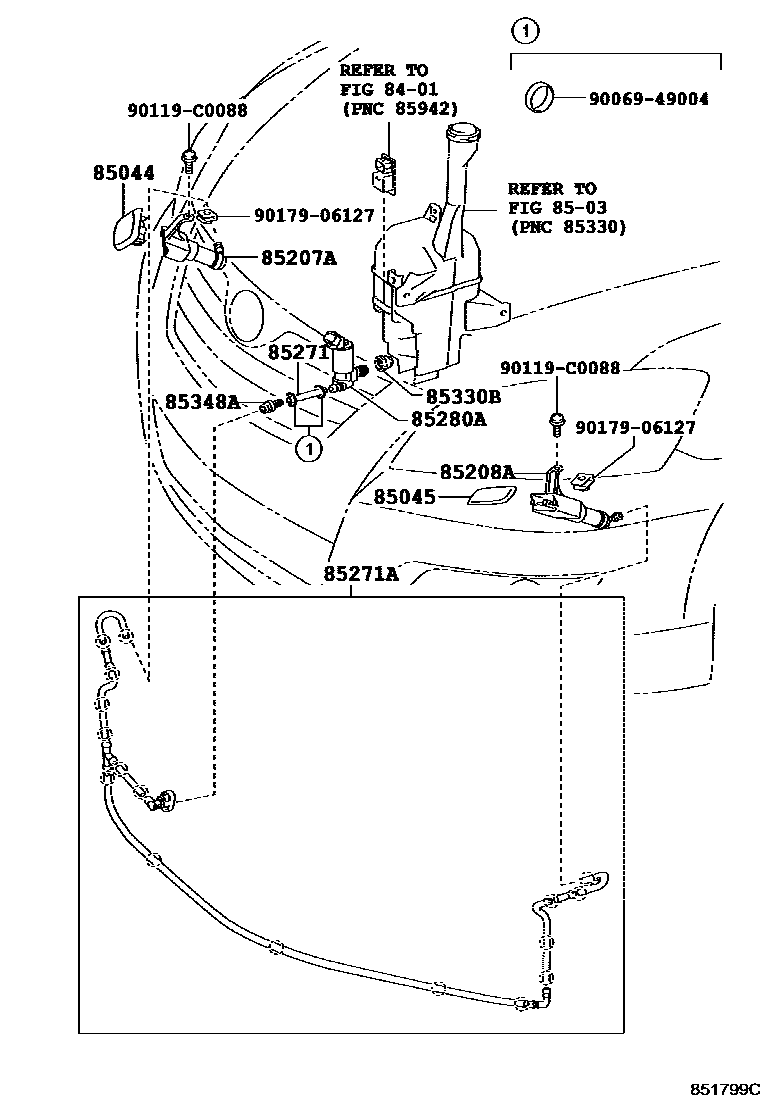

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-06020 · 85207-06030 · 85207-06040 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-06020 · 85208-06030 · 85208-06040 |
| 85271 | No. 1 headlight washer hose | 90069-46026 |
| 85271A | No. 2 headlight washer hose | 85271-06020 · 85271-06030 · 85271-06040 |
| 85280A | Headlight washer motor and pump assembly | 85280-30040 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 85279-33040 |
