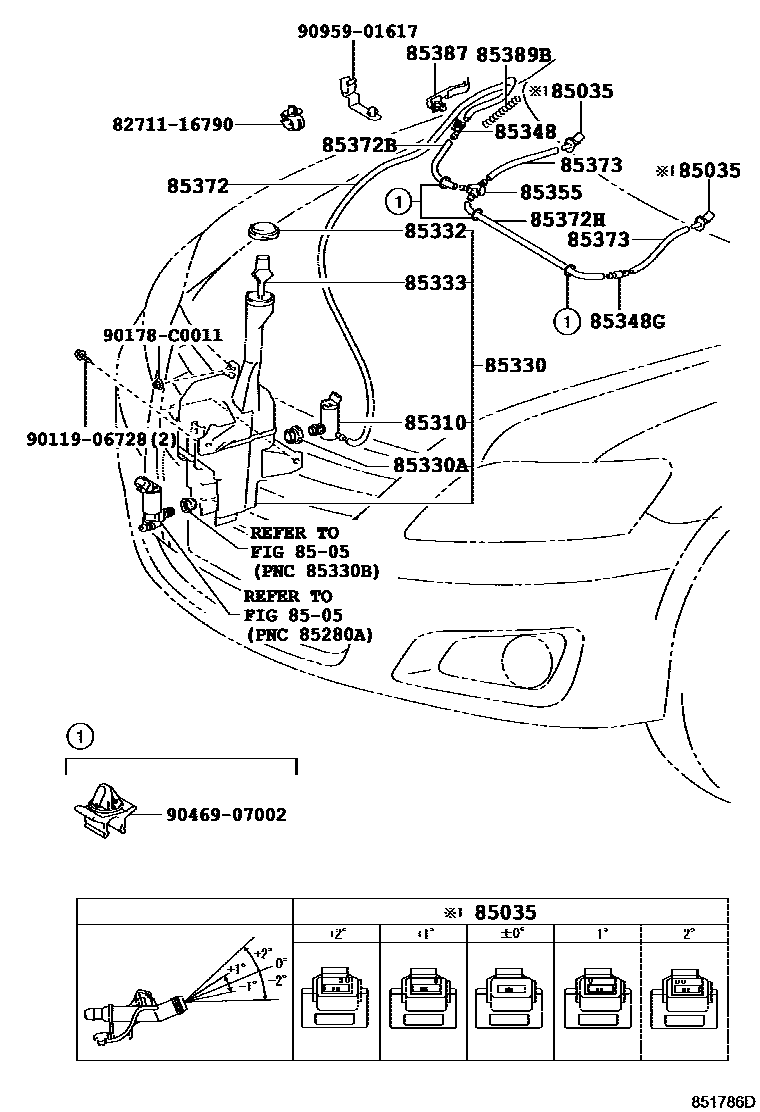

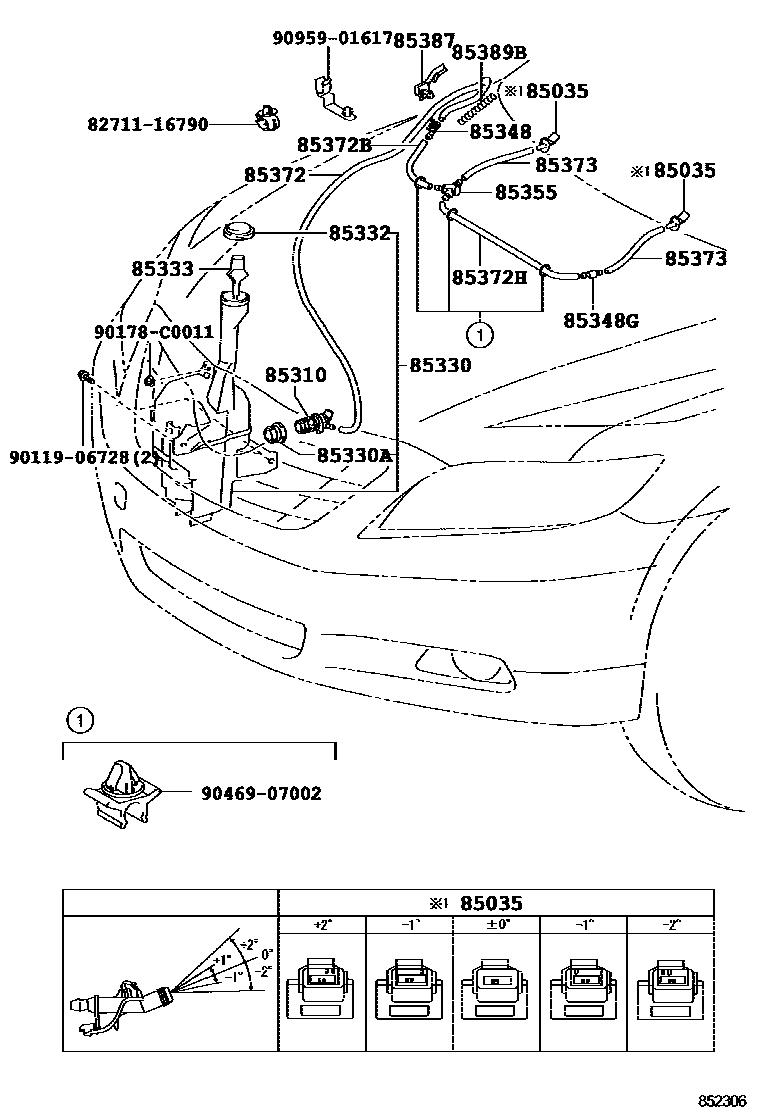

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30110 · 85381-30130 · 85381-30140 · 85381-30150 · 85381-30160 |
| 85310 | Windshield washer motor and pump assembly | 85330-06050 · 85330-0D010 |
| 85330 | Windshield washer fluid tank assembly | 85315-06190 · 85355-06030 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-06190 |
| 85333 | Windshield washer fluid tank filter | 85312-06030 |
| 85348 | Windshield washer hose connector No. 1 | 85376-06120 |
| 85348G | Windshield washer hose connector No. 2 | 85375-06120 |
| 85355 | Windshield washer hose valve | 85321-30080 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-06120 |
| 85389B | Windshield washer protection device | 85389-22660 · 85389-28A20 |
