Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

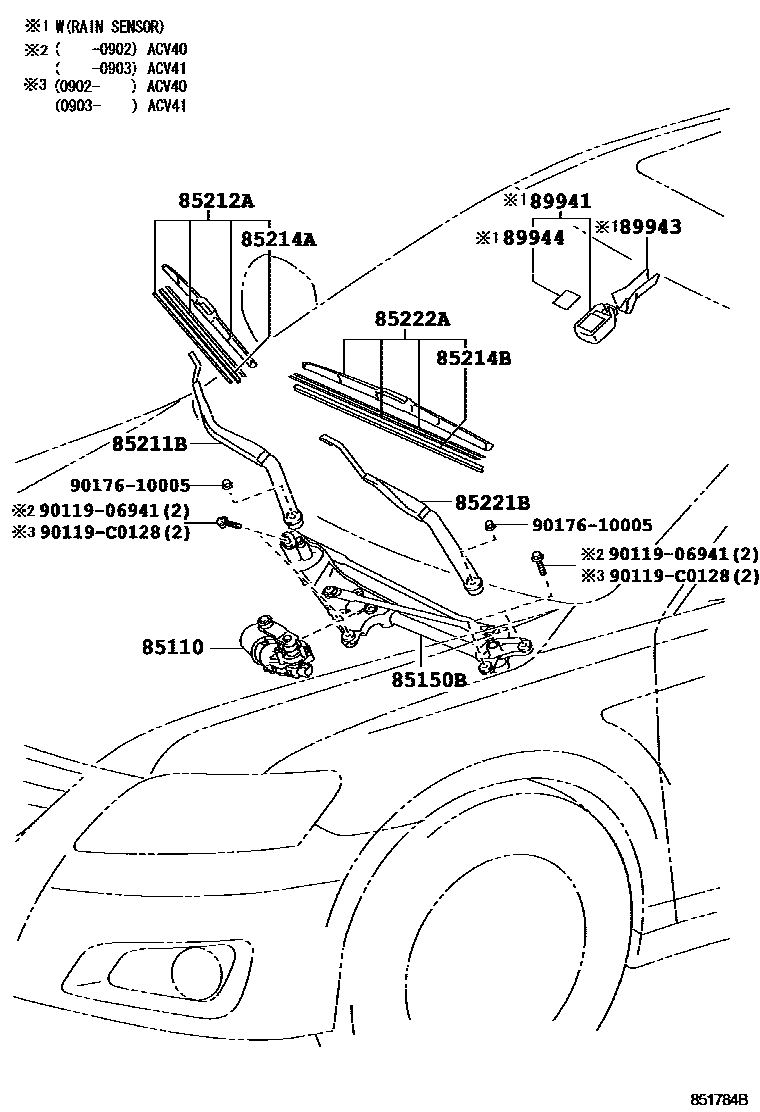

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06110 |
| 85150B | Wiper connecting rod assembly | 85150-06110 |
| 85211B | Right front wiper arm | 85211-06100 |
| 85212A | Right front wiper blade | 85212-06120 · 85212-53080 · 85212-53081 |
| 85214A | Right wiper rubber strip | 85214-53090 |
| 85214B | Left wiper rubber strip | 85214-30380 |
| 85221B | Left front wiper arm | 85221-06100 |
| 85222A | Left front wiper blade | 85222-06120 · 85222-0N010 · 85222-33250 |
| 89941 | rain sensor | 89941-42010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
