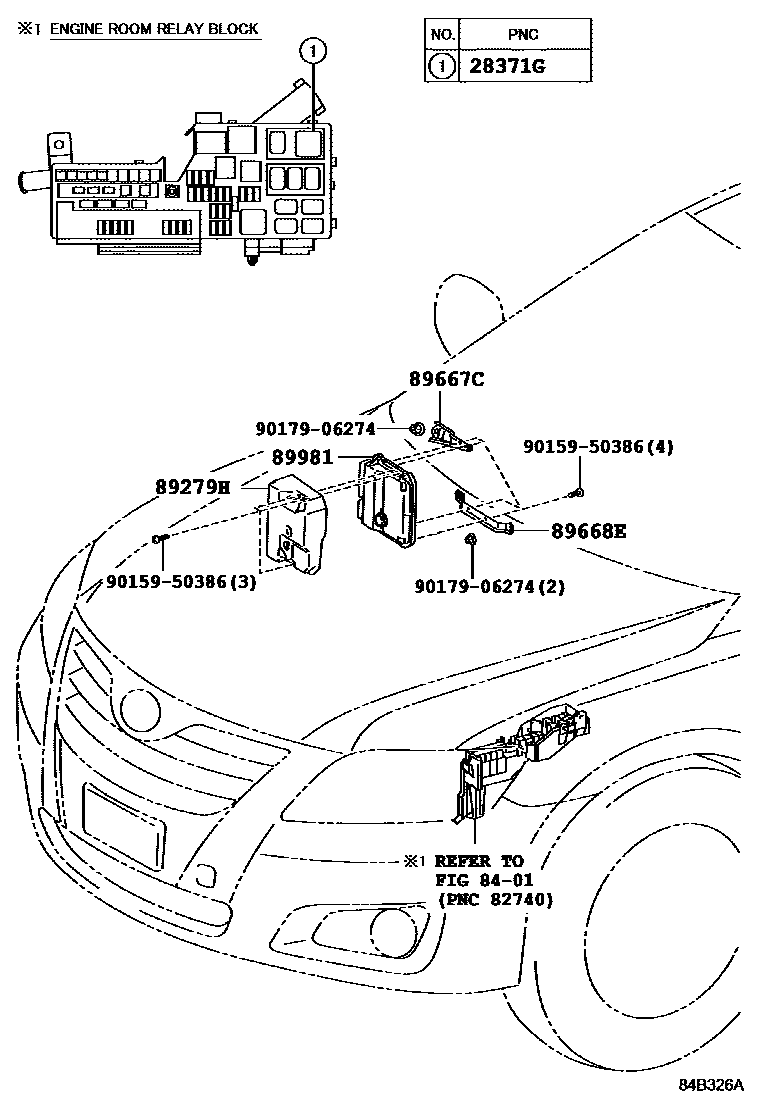

Toyota CAMRY HEV 控制ECU — Figure 8433
Toyota CAMRY EPC diagram 8433, HEV 控制ECU, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371G | Ignition contact relay | 90987-T2004 |
| 89279H | ECU cover | 89279-33010 |
| 89667C | No. 1 engine control ECU bracket | 89667-33140 |
| 89668E | No. 2 engine control ECU bracket | 89668-33190 |
| 89981 | Hybrid vehicle control ECU | 89981-33100 |
