Toyota CAMRY 逆变器冷却系统 — Figure 8432

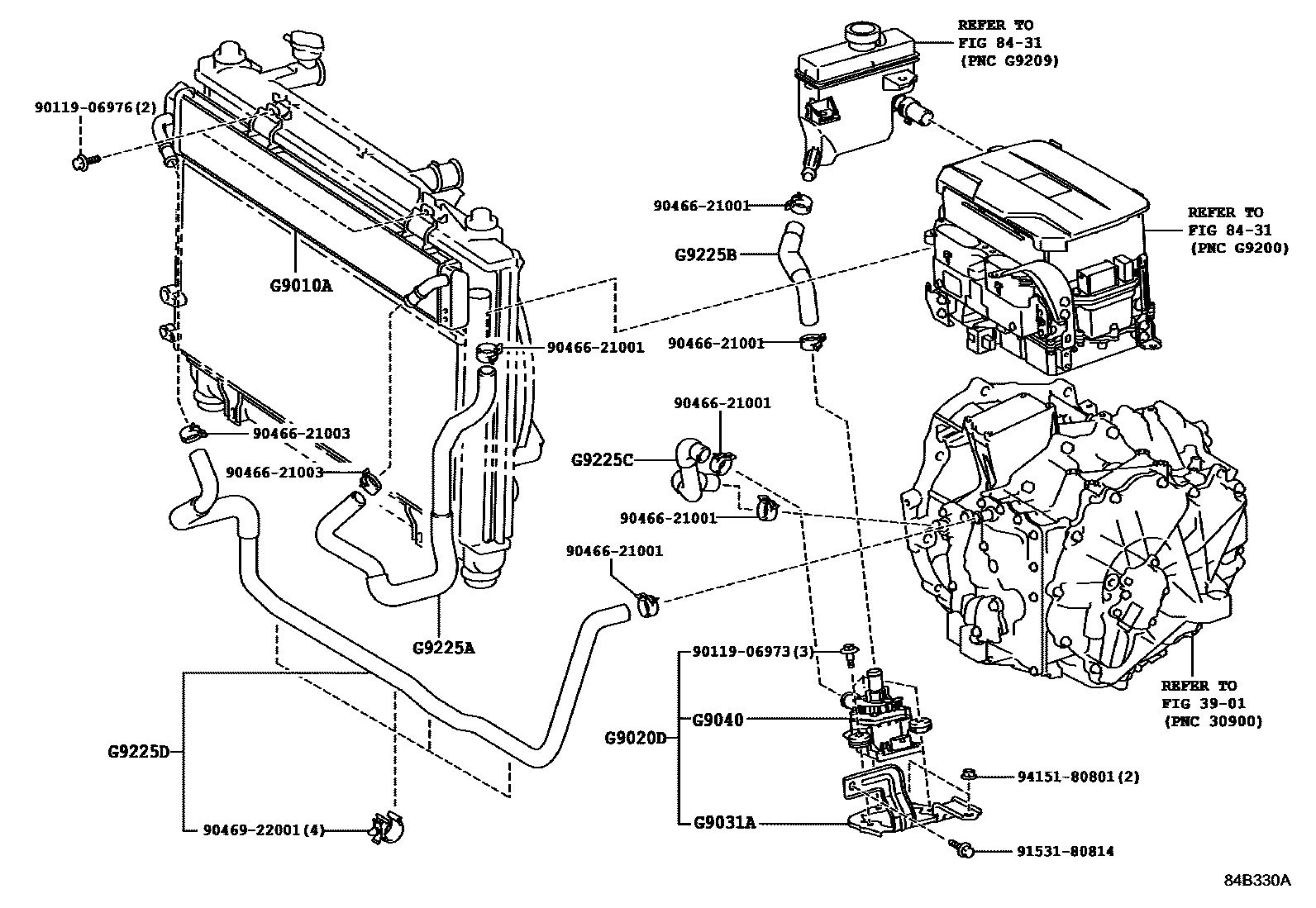

Toyota CAMRY EPC diagram 8432, 逆变器冷却系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9010A | Radiator assembly | G9010-33020 |
| G9020D | Water pump assembly with motor and bracket | G9020-33010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9031-33010 |
| G9040 | Inverter water pump assembly (with motor) | G9040-33010 |
| G9225A | No. 7 inverter cooling hose | G9225-33020 |
| G9225B | No. 8 inverter cooling hose | G9225-33030 |
| G9225C | No. 9 inverter cooling hose | G9225-33040 |
| G9225D | No. 10 inverter cooling hose | G9225-33050 |
