Toyota CAMRY HEV 逆变器 — Figure 8431

Toyota CAMRY EPC diagram 8431, HEV 逆变器, with 1 images and 15 PNC and OE references.

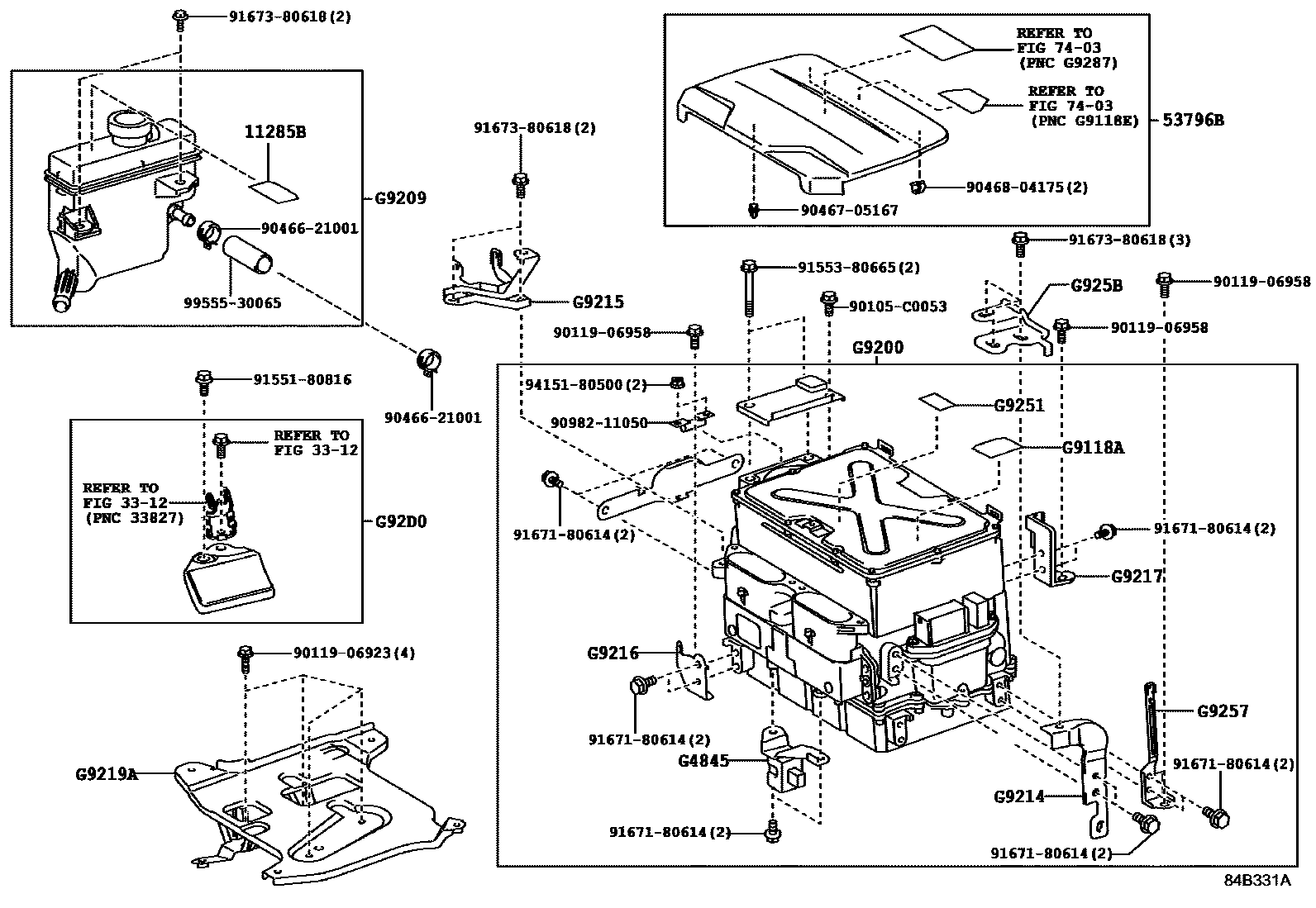

Toyota CAMRY HEV 逆变器 EPC diagram — 84B331A
HEV 逆变器 — 84B331A (201003 – 999999)

PNC and OE references

PNCPart nameOE numbers
11285BCoolant System Caution Labels11285-31010
53796BNo. 2 engine room left side cover51470-33020
G4845No. 1 circuit breaker sensorG4845-33010
G9118AHV Motor Control Inverter Warning LabelsG9118-30020
G9200Inverter assembly with converterG9200-33100
G9209Inverter liquid tank sub-assemblyG9209-33010
G9214No. 1 inverter bracketG9214-33010
G9215No. 2 inverter bracketG9215-33010
G9216No. 3 inverter bracketG9216-33010
G9217No. 4 inverter bracketG9217-33010
G9219AInverter tray bracketG9219-33020
G9251Inverter nameplateG9251-47010
G9257No. 5 inverter bracketG9257-33011
G925BNo. 6 inverter bracketG925B-33020
G92D0HV inverter protection device assemblyG92D0-33010
