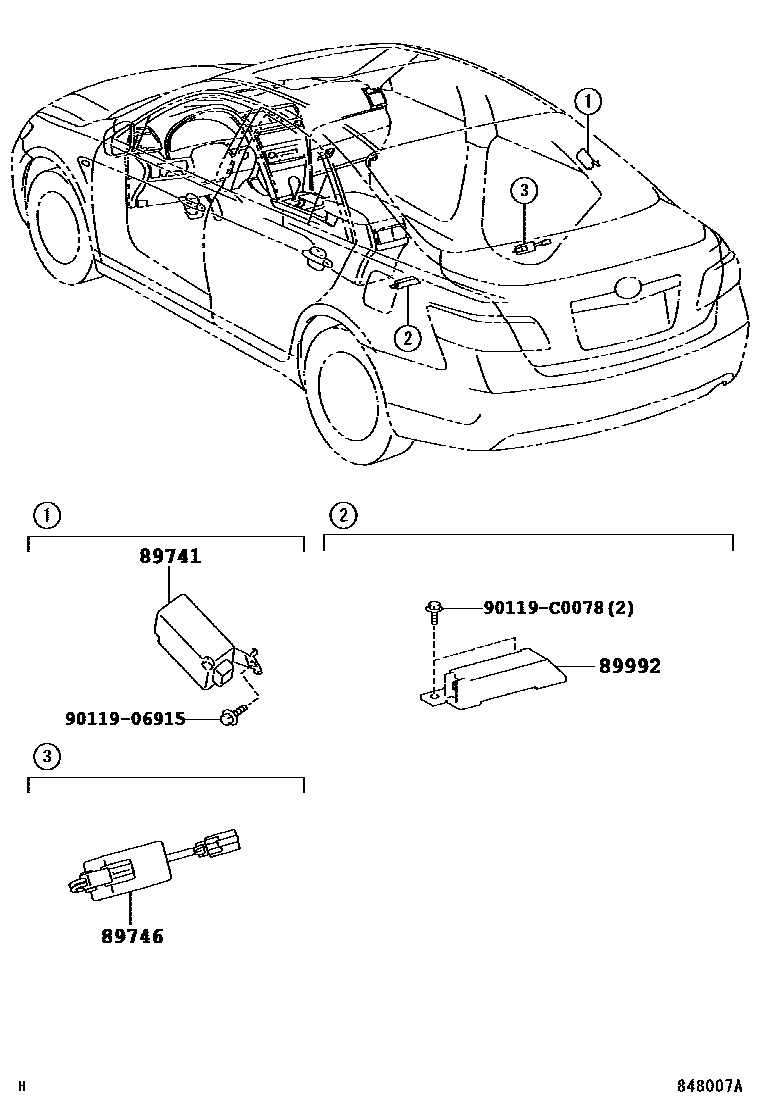

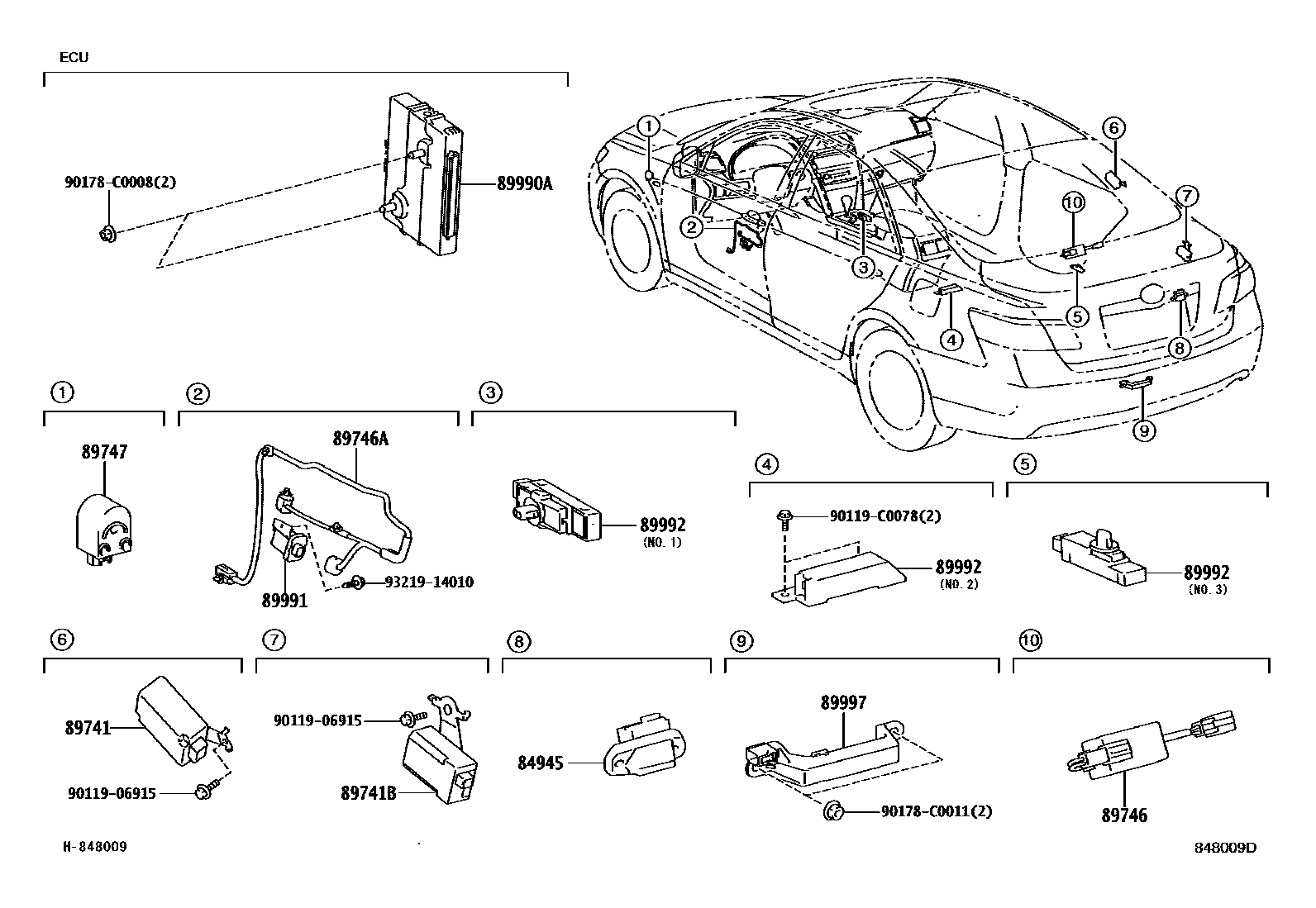

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-33010 |
| 89741 | door control receiver | 89740-06010 · 89740-06011 · 89741-06030 · 89741-06031 |
| 89741B | Door control receiver No. 2 | 89740-06020 |
| 89746 | Remote door lock filter | 89746-33090 |
| 89746A | Electronic key wiring harness | 89746-06040 |
| 89747 | Remote door lock buzzer | 89747-48020 |
| 89990A | Smart key ECU assembly | 89990-06020 · 89990-06021 · 89990-06022 · 89990-06060 · 89990-06061 |
| 89991 | Door electronic key oscillator | 89991-30040 |
| 89992 | Car electronic key oscillator | 89992-06050 · 89992-06060 · 89992-06070 · 89992-06080 |
| 89997 | electronic key antenna | 89997-30070 · 89997-41010 |
