Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

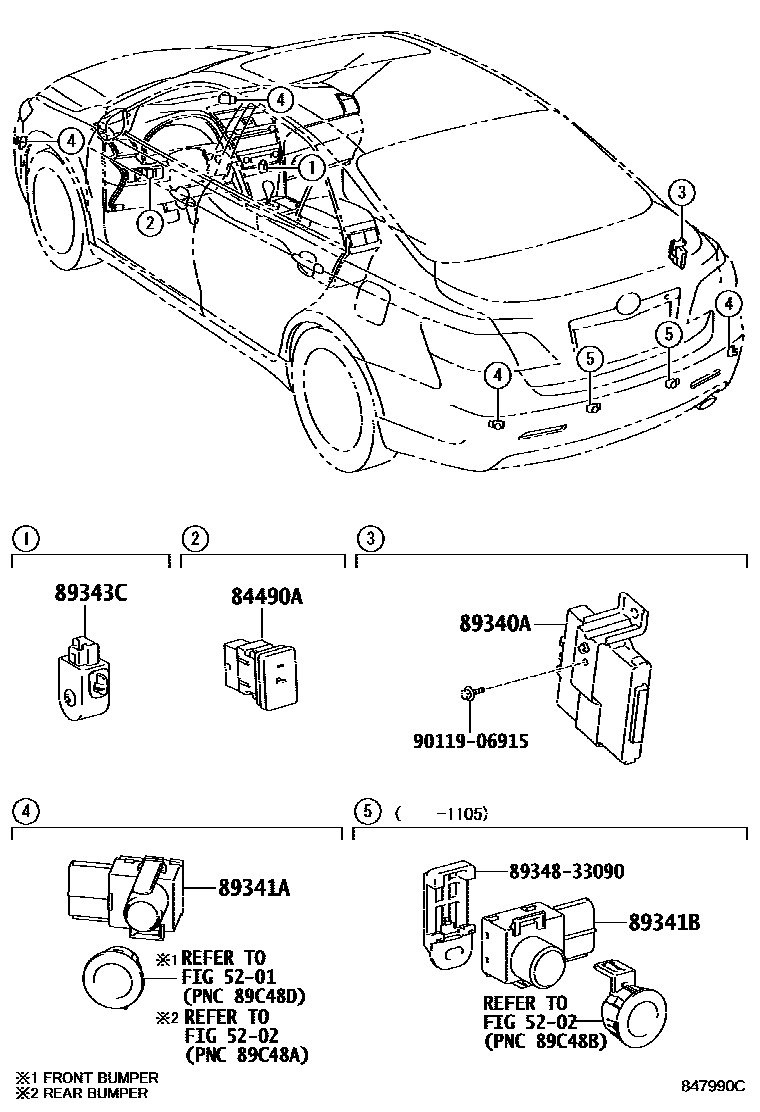

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-06030 |
| 89340A | Distance warning ECU assembly | 89340-06010 · 89340-06020 · 89340-33070 · 89340-33080 |
| 89343C | No. 1 distance warning buzzer | 89343-30010 |
