Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

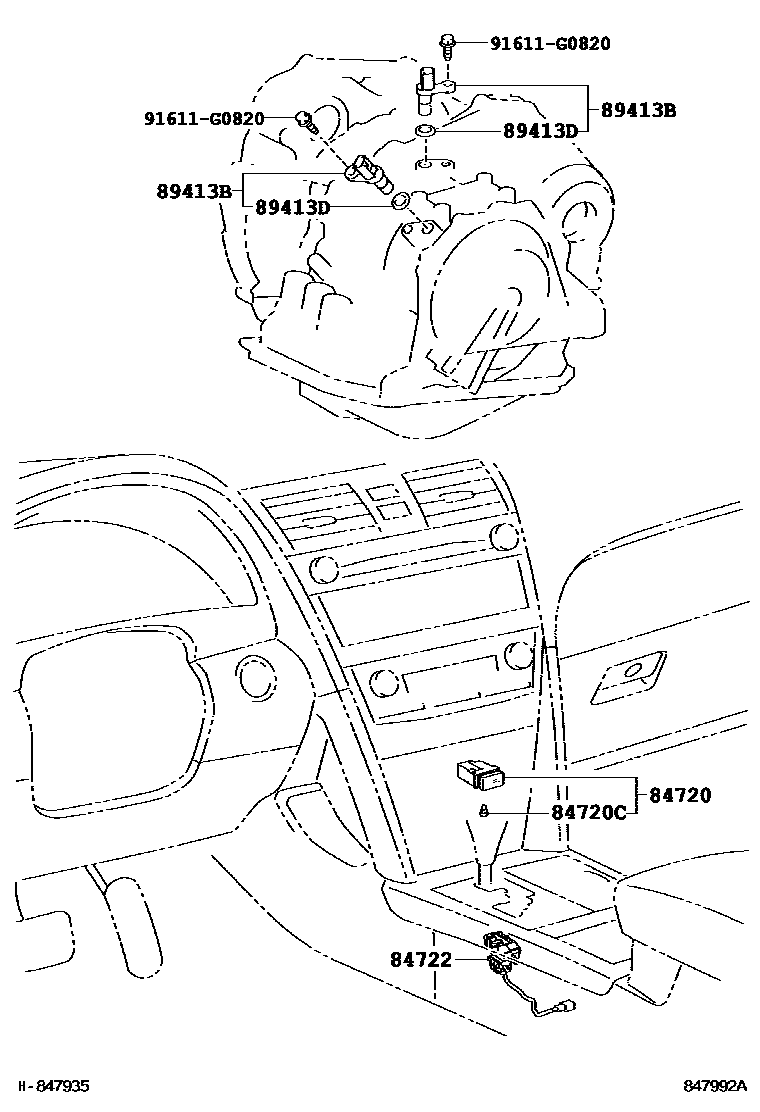

| 84720 | Mode selection switch assembly | 84720-06030 |
| 84720C | Light bulb (for mode selector switch) | 84999-10320 |

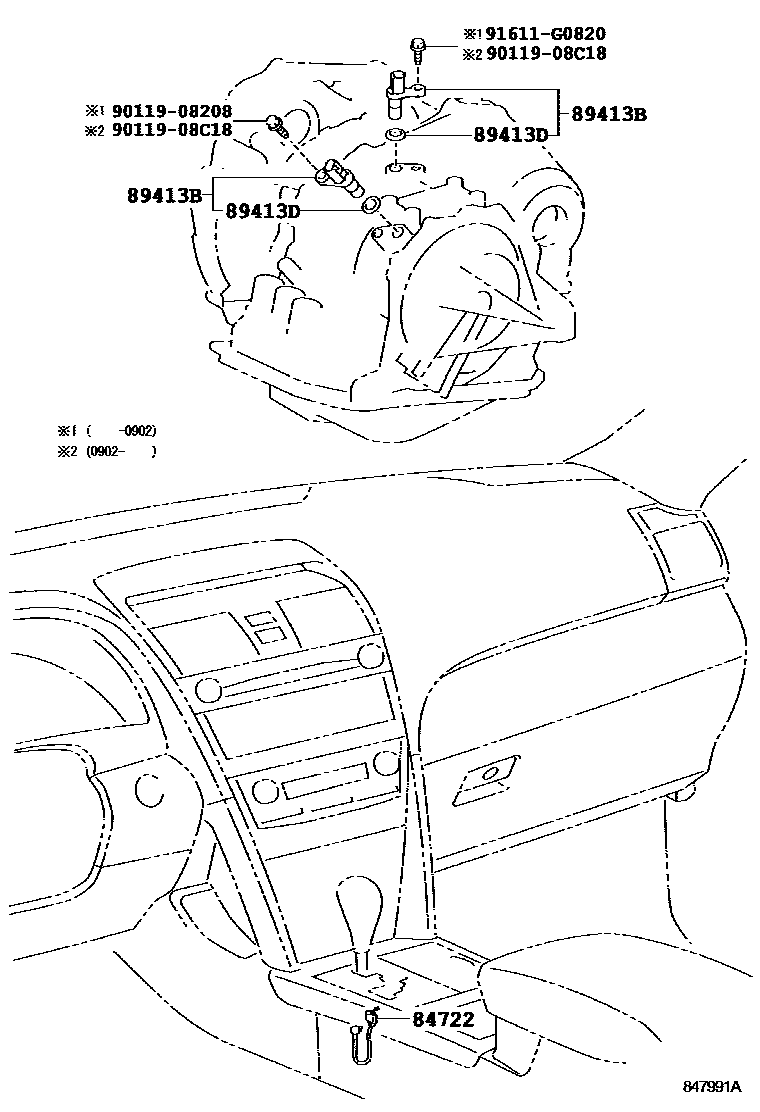

| 84722 | transmission control switch | 84722-06070 · 84722-06080 |
| 89413B | Transmission speed sensor | 89413-24010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |

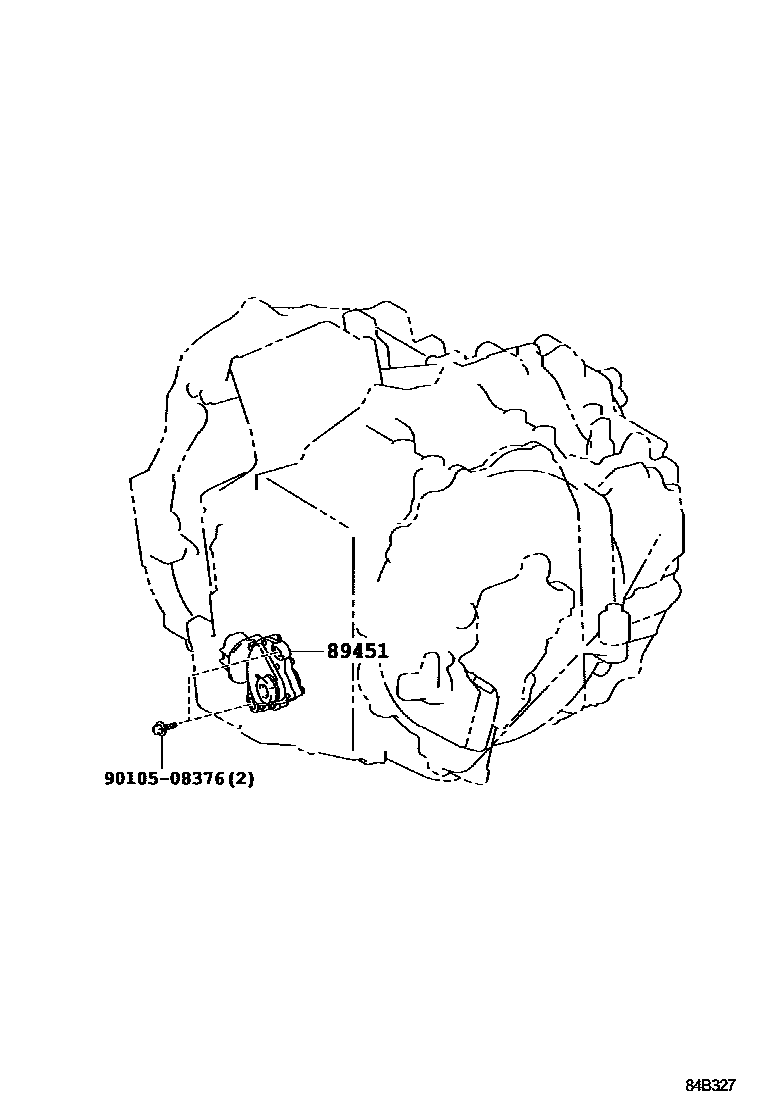

| 89451 | shift lever position sensor | 89451-48010 |
