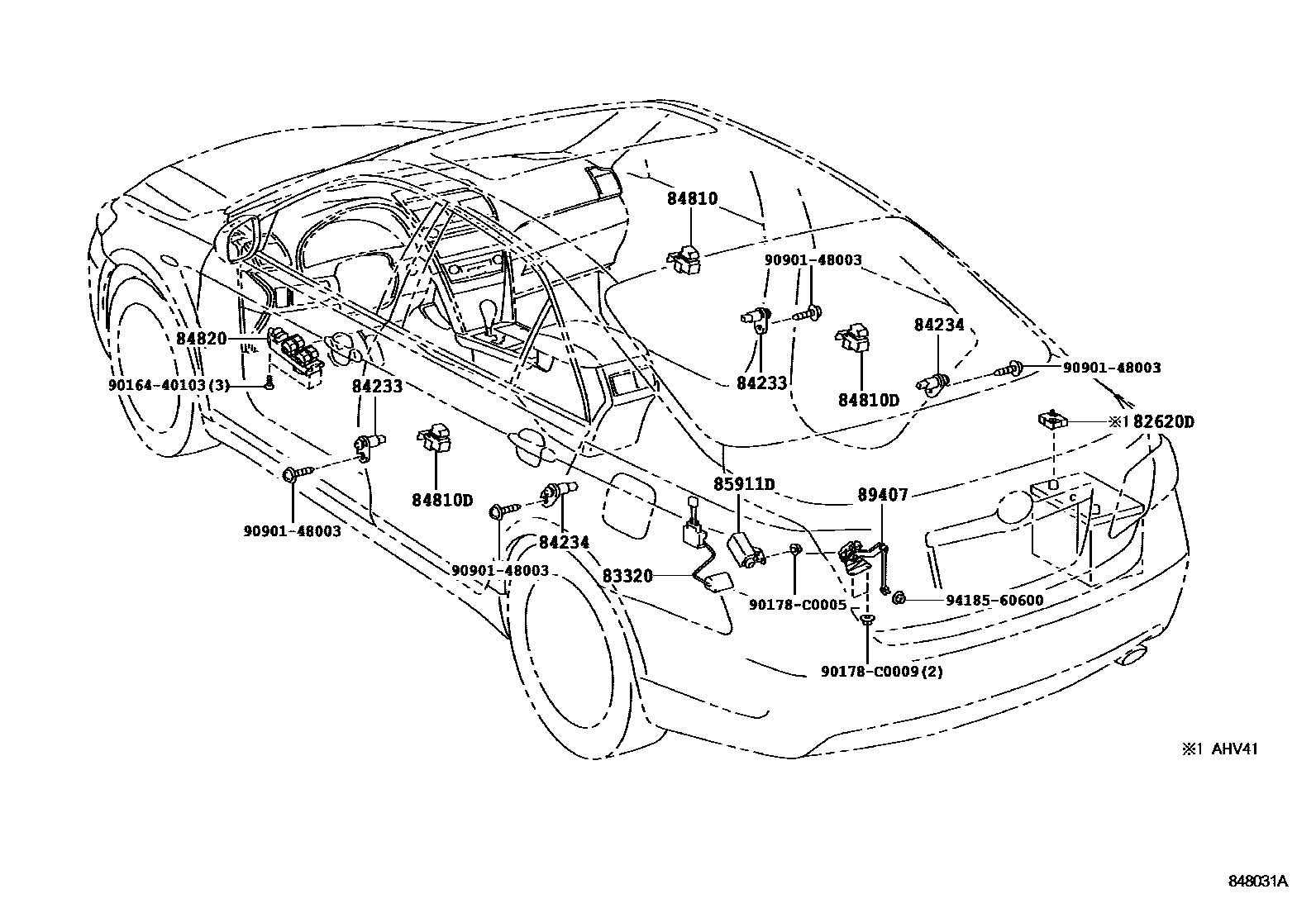

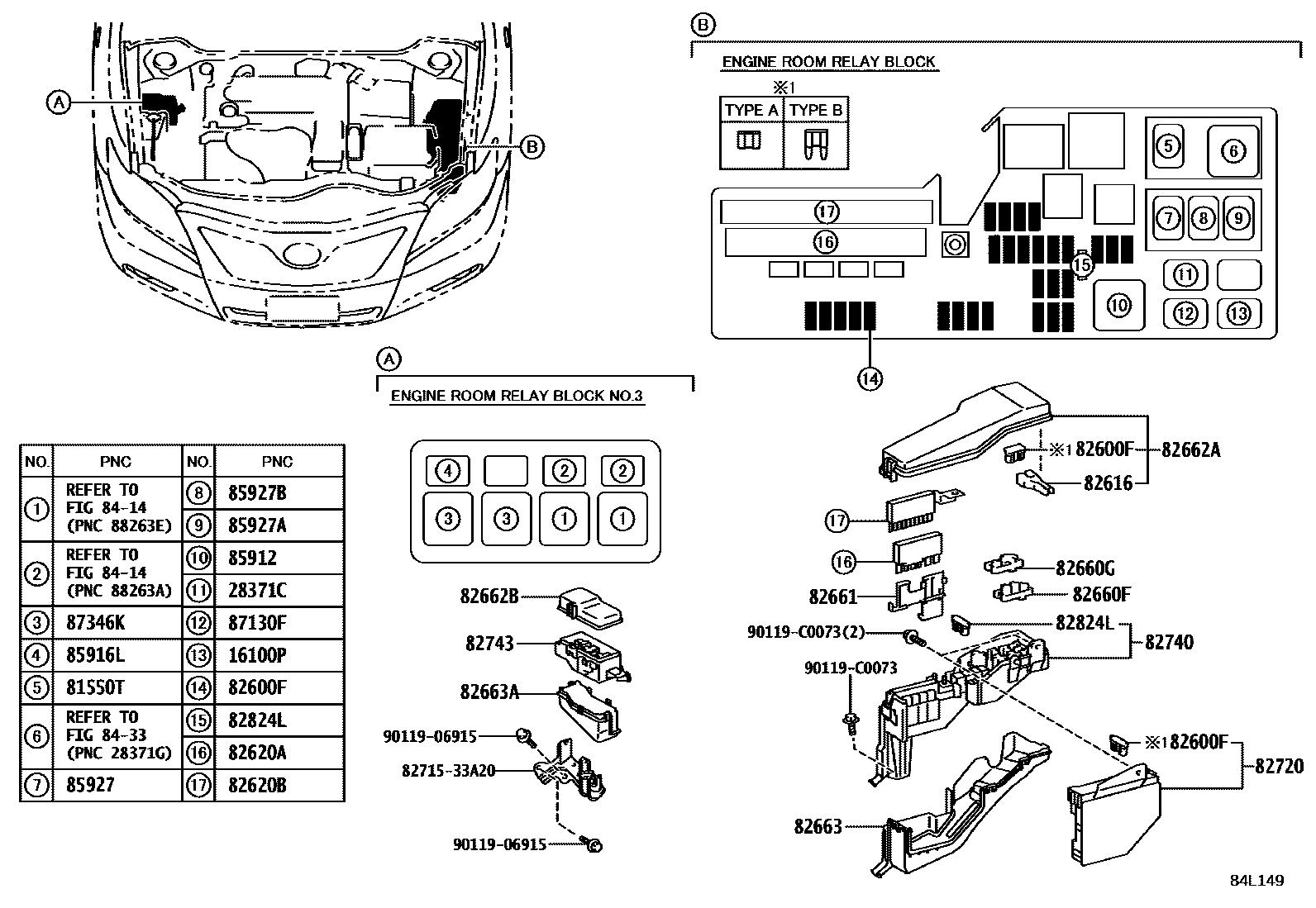

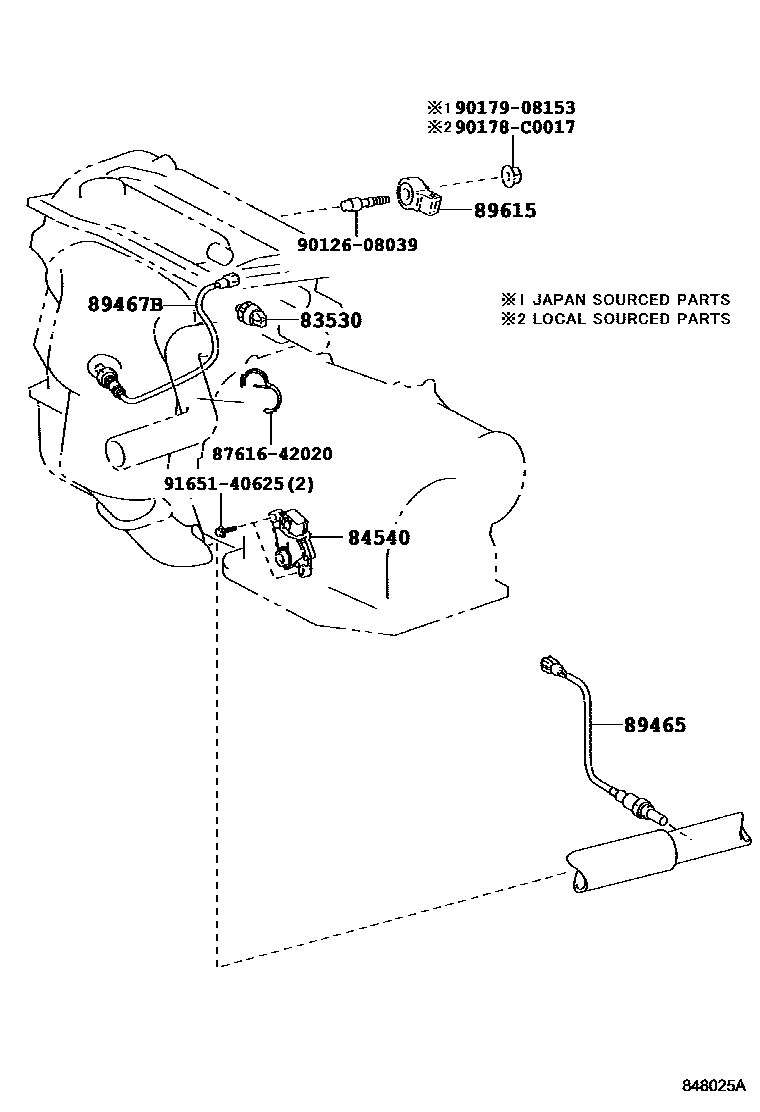

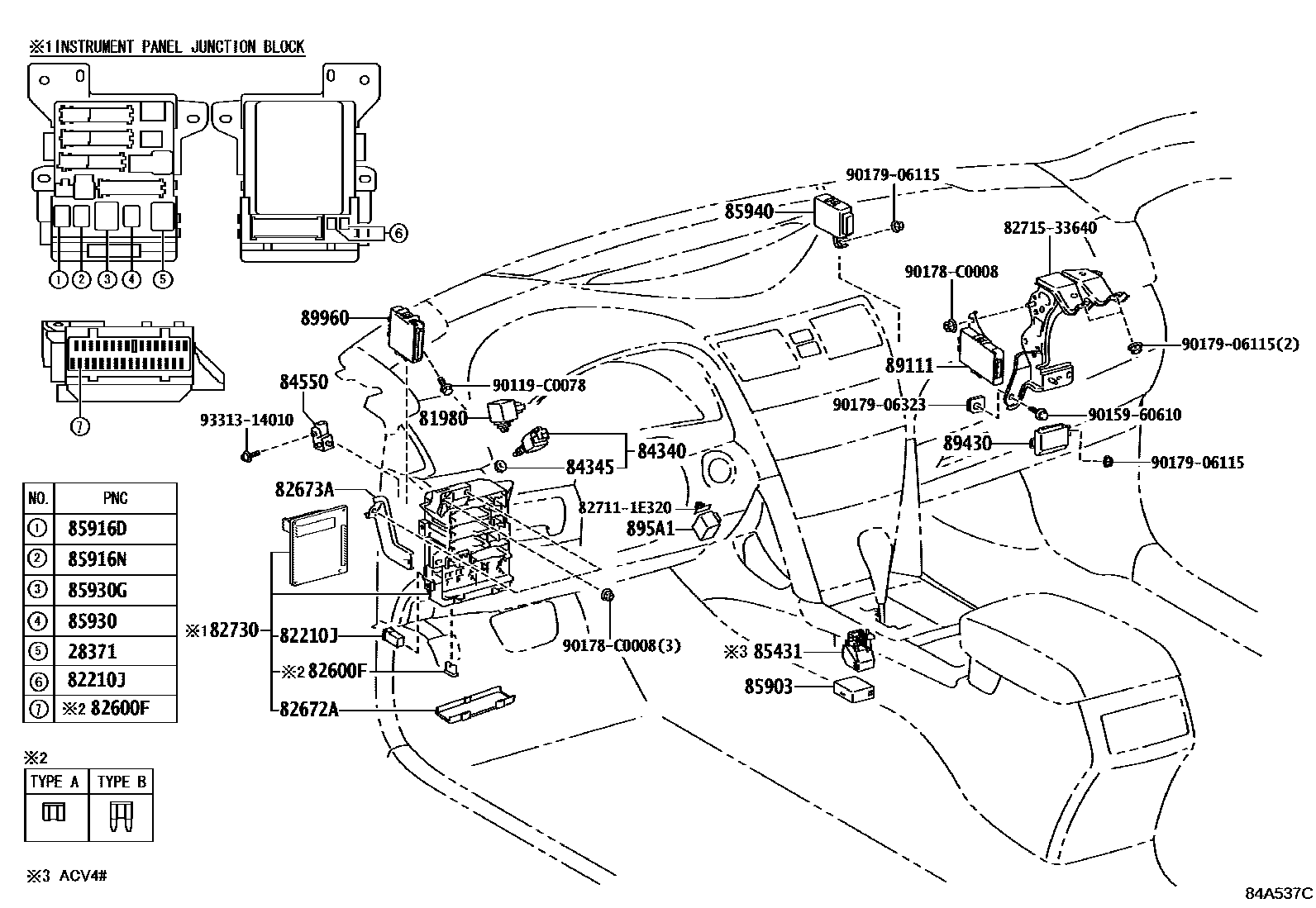

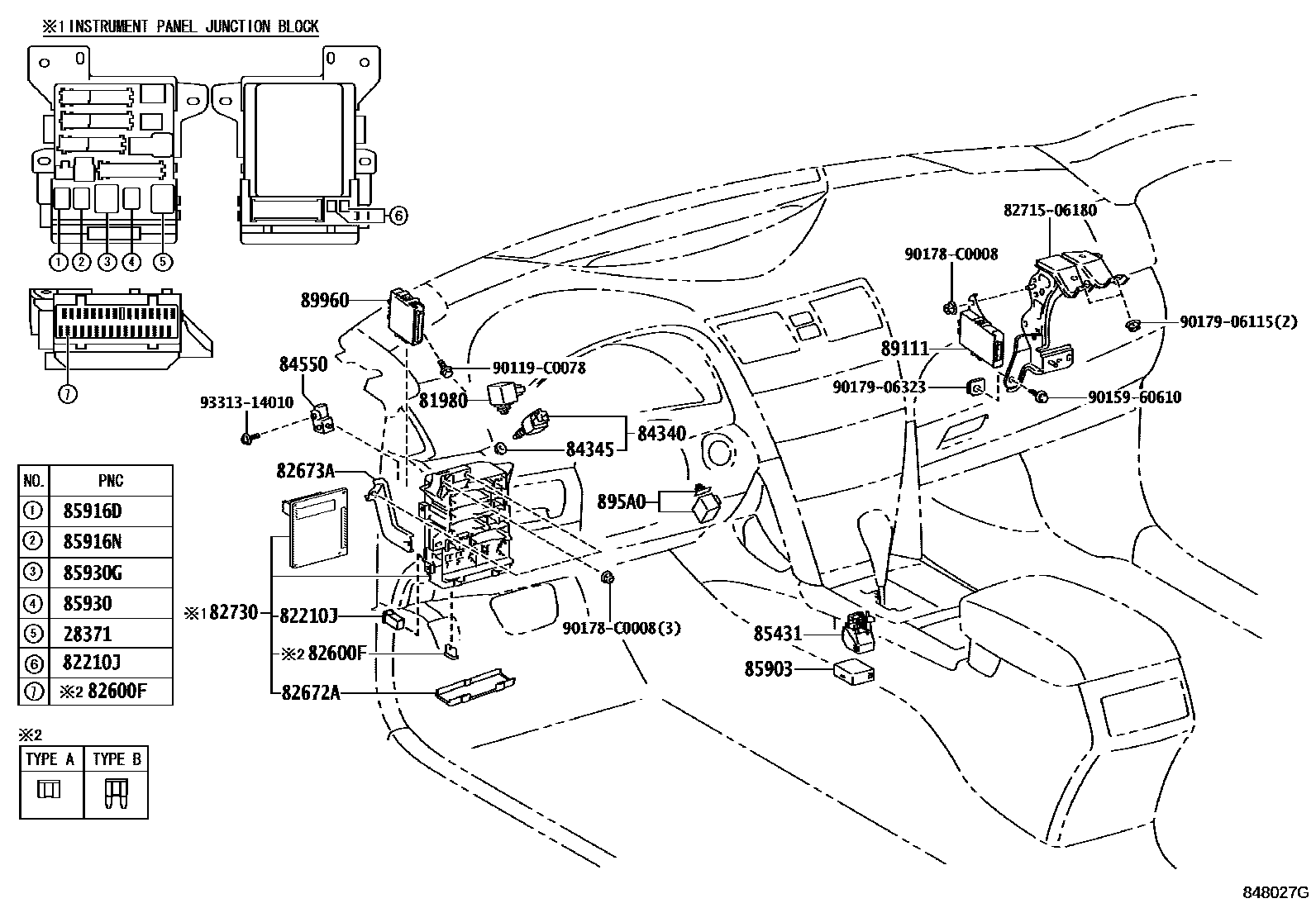

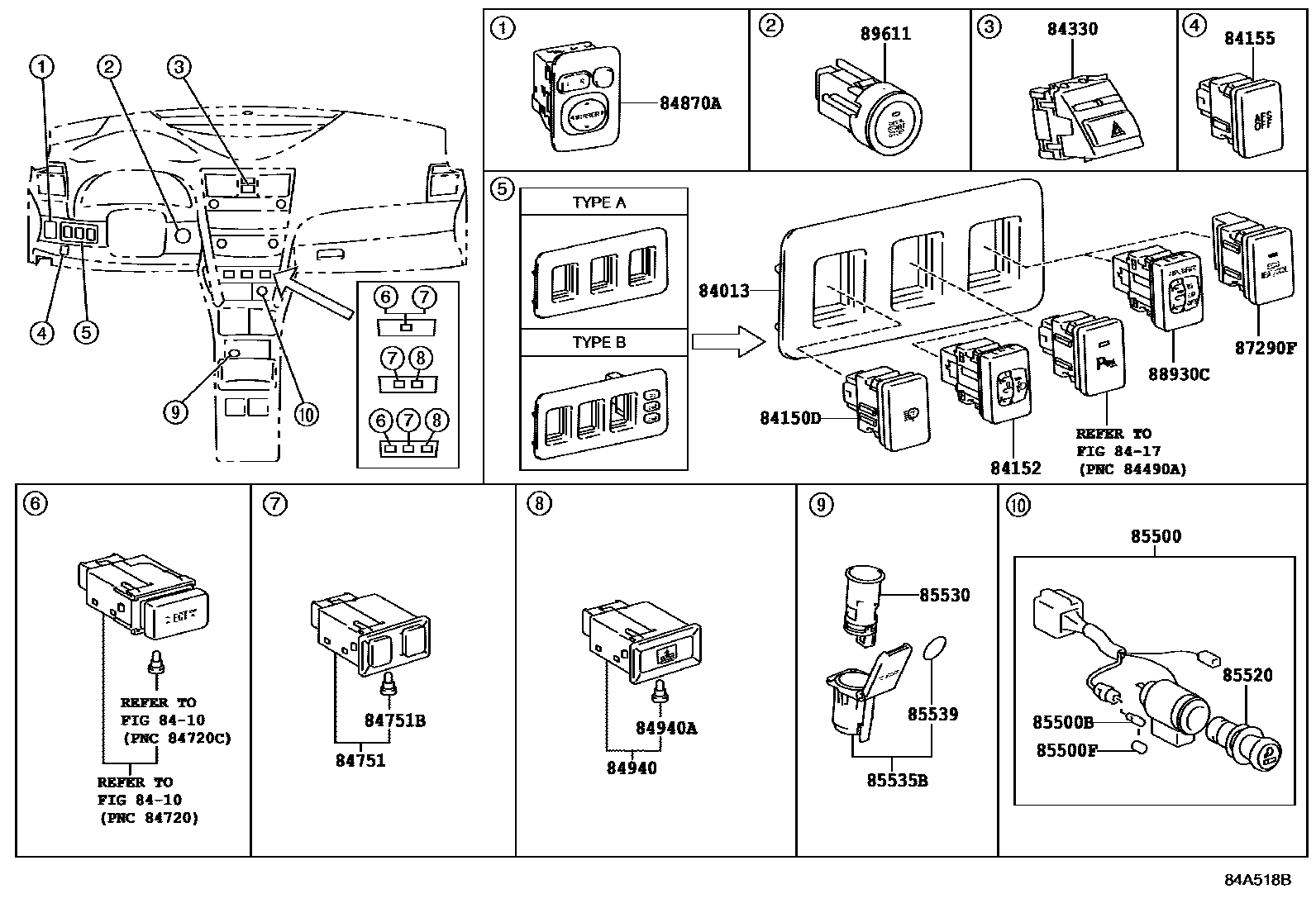

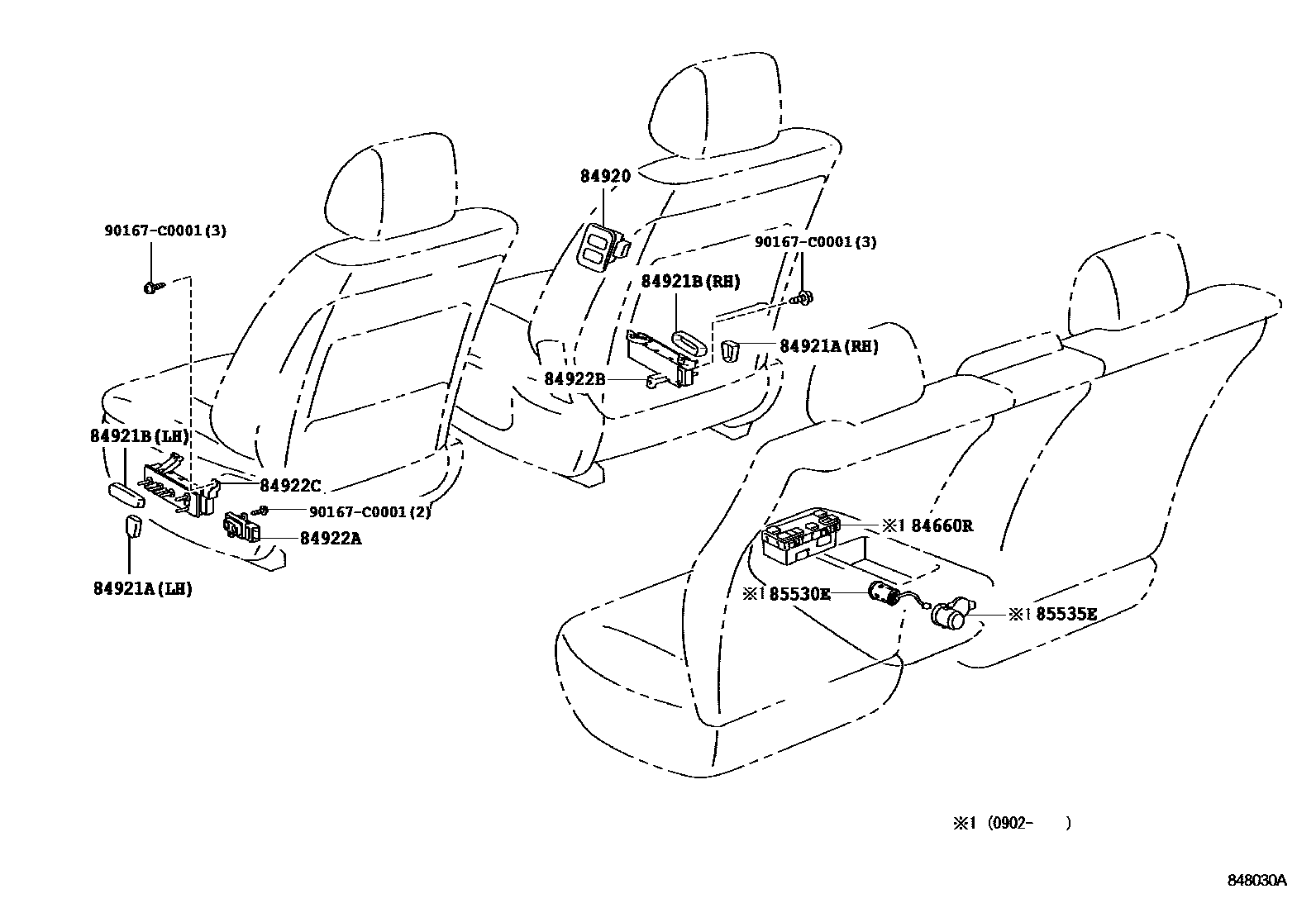

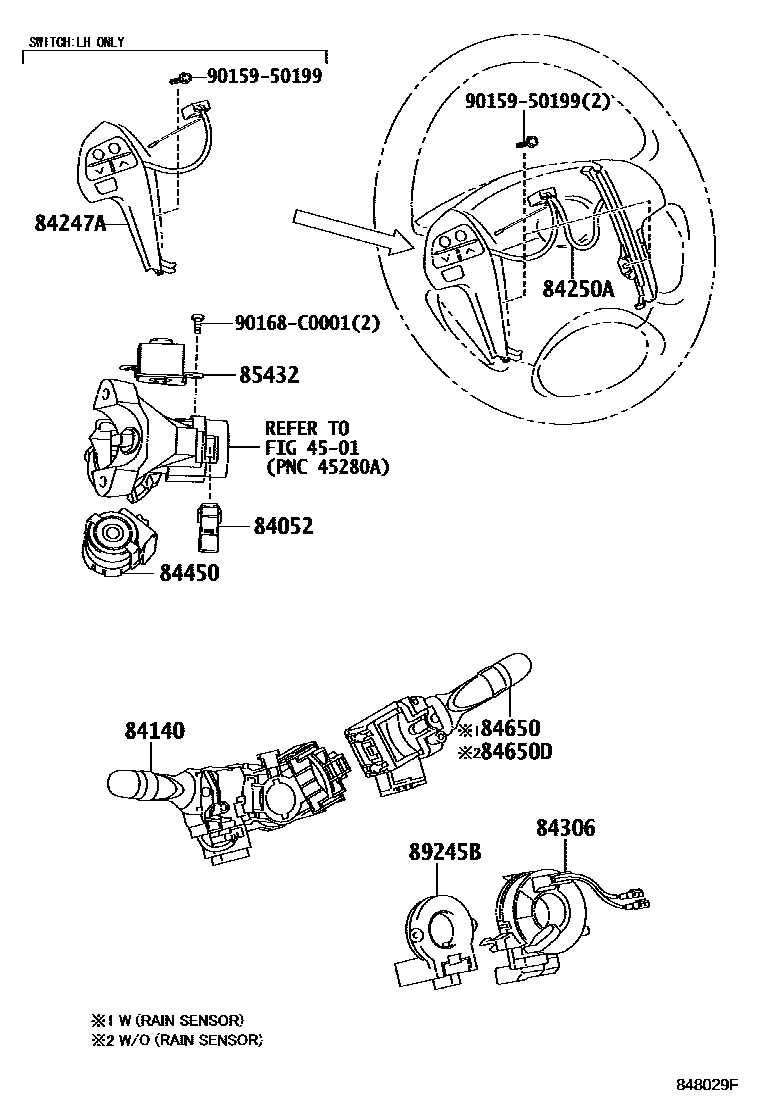

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 13 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02028 |
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28300D | starter cutoff relay | 90987-T2005 |
| 28371 | No. 1 ignition relay | 90987-C2001 · 90987-T2004 |
| 28371C | No. 2 ignition relay | 90987-T2005 |
| 81550T | Reversing light relay | 90987-T2005 |
| 81980 | Turn signal flasher relay assembly | 81980-0N010 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09012 · 90982-09013 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33030 |
| 82620B | Fuse box assembly | 82620-07050 |
| 82620D | Fuse box assembly | 82620-33040 |
| 82660F | Relay assembly | 82660-33010 |
| 82660G | Relay assembly | 82660-07010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-06080 · 82662-06081 · 82662-06120 |
| 82662B | No. 2 relay box upper cover | 82662-06130 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82663A | No. 2 relay box lower cover | 82663-33090 |
| 82672A | Junction box cover | 82672-06230 |
| 82673A | Junction box bracket | 82673-06020 |
| 82715 | Wire harness clamp bracket | 82715-33C20 |
| 82720 | Engine room junction box assembly | 82720-06070 · 82720-33110 · 82720-33120 |
| 82730 | Instrument panel junction box assembly | 82730-06480 · 82730-06481 · 82730-06490 · 82730-06491 · 82730-06680 · 82730-06690 · 82730-06691 · 82730-06700 · 82730-06701 · 82730-06710 · 82730-06720 |

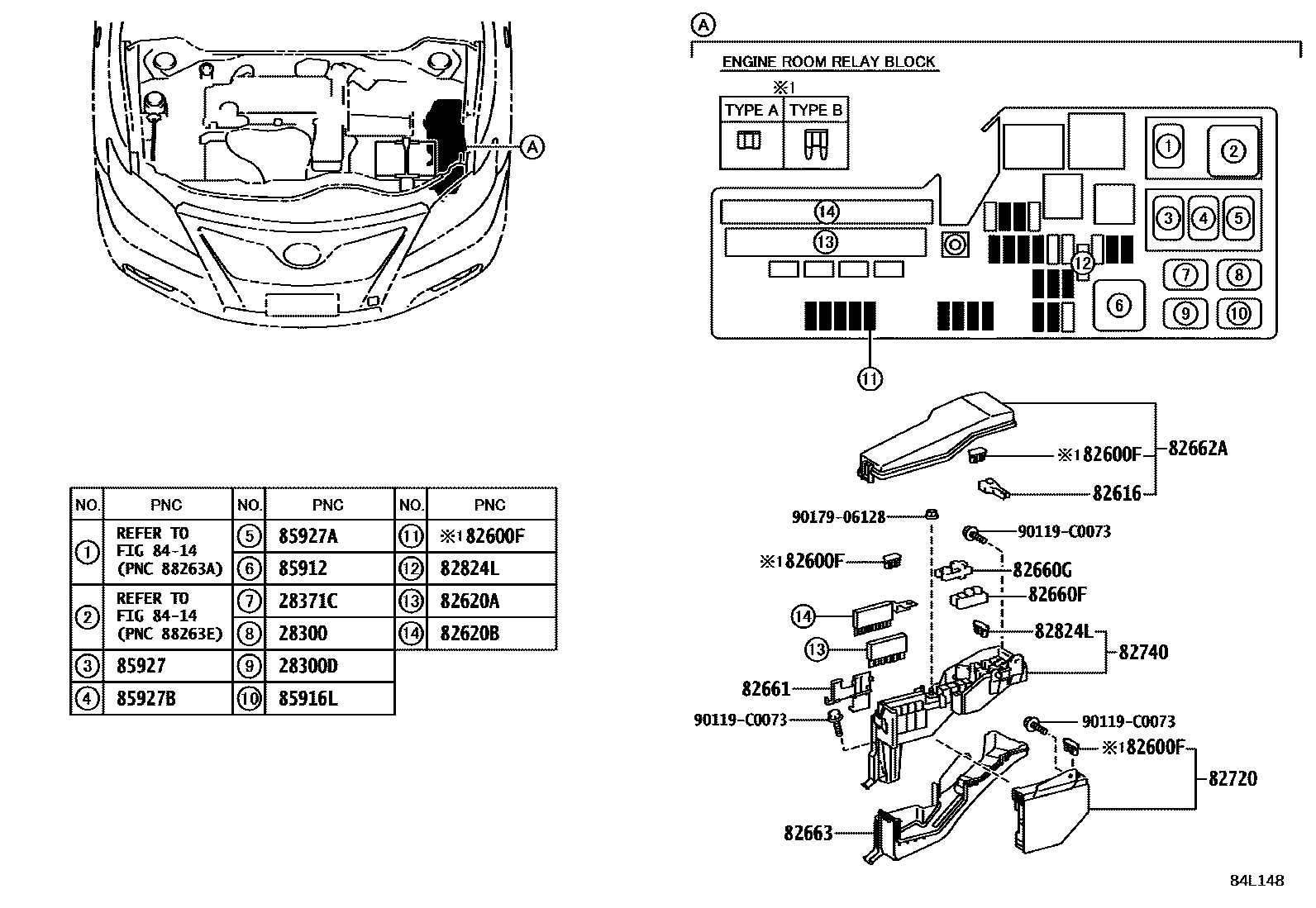

| 82740 | Engine room relay box assembly | 82740-33010 · 82740-33020 |
| 82743 | Engine room No. 3 relay box | 82743-33030 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-06080 · 83320-33130 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-06380 · 84140-06381 |
| 84150D | Headlight washer switch assembly | 84150-06010 |
| 84152 | Headlight beam height adjustment switch | 84152-06010 · 84152-06011 |
| 84155 | Headlight rotary main switch | 84155-06030 |
| 84233 | Door control light switch assembly (for front door) | 84231-06020 · 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-06020 · 84231-0R010 |
| 84247A | Steering wheel decorative cover left switch | 84247-06080 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06160 · 84250-06180 |
| 84306 | Spiral cable sub-assembly | 84306-06130 · 84306-06140 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-06010 |
| 84540 | Neutral start switch assembly | 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-06181 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06190 · 84652-06191 · 84652-06192 |
| 84660R | Cooler switch (rear) | 84660-33030 |
| 84751 | Seat heater switch | 84751-06020 |
| 84751B | Seat heater switch light bulb | 90011-01002 |
| 84810 | Electric window lift switch assembly | 84810-06060 |
| 84810D | Rear electric window lift switch assembly | 84810-06060 |
| 84820 | Electric window lift main switch assembly | 84820-06100 · 84820-06130 |
| 84922B | Front right electric seat switch | 84922-06130 |
| 84922C | Front left electric seat switch | 84070-33030 · 84922-06120 |
| 84940 | Curtain switch assembly | 84940-06030 |
| 84940A | curtain switch light bulb | 84999-10860 |
| 85431 | Shift lock solenoid valve | 85431-06010 |
| 85432 | Key interlock solenoid valve | 85432-02010 · 85432-06010 |
| 85500 | Cigarette lighter assembly | 85500-33060 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-06040 |
| 85530E | No. 3 power socket assembly | 85530-0N020 |
| 85535B | No. 1 power outlet cover | 85535-06040 · 85535-06041 · 85535-06050 |
| 85535E | No. 2 power outlet cover | 85535-0N010 |
| 85539 | Power socket attention labels | 85539-48030 · 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06030 · 85903-06040 |
| 85911D | Rear sun visor relay | 85911-06030 |
| 85912 | defogger relay | 90987-T4002 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916N | Tail light relay | 90987-T2005 |
| 85927 | cooling fan relay | 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-T4001 |
| 85927B | Cooling fan relay No. 3 | 90987-T2005 |
| 85930 | Electric window relay assembly | 90987-T2005 |
| 85930G | ACC relay | 90987-C2001 · 90987-T2004 |
| 85940 | Windshield wiper relay assembly | 85940-33190 |

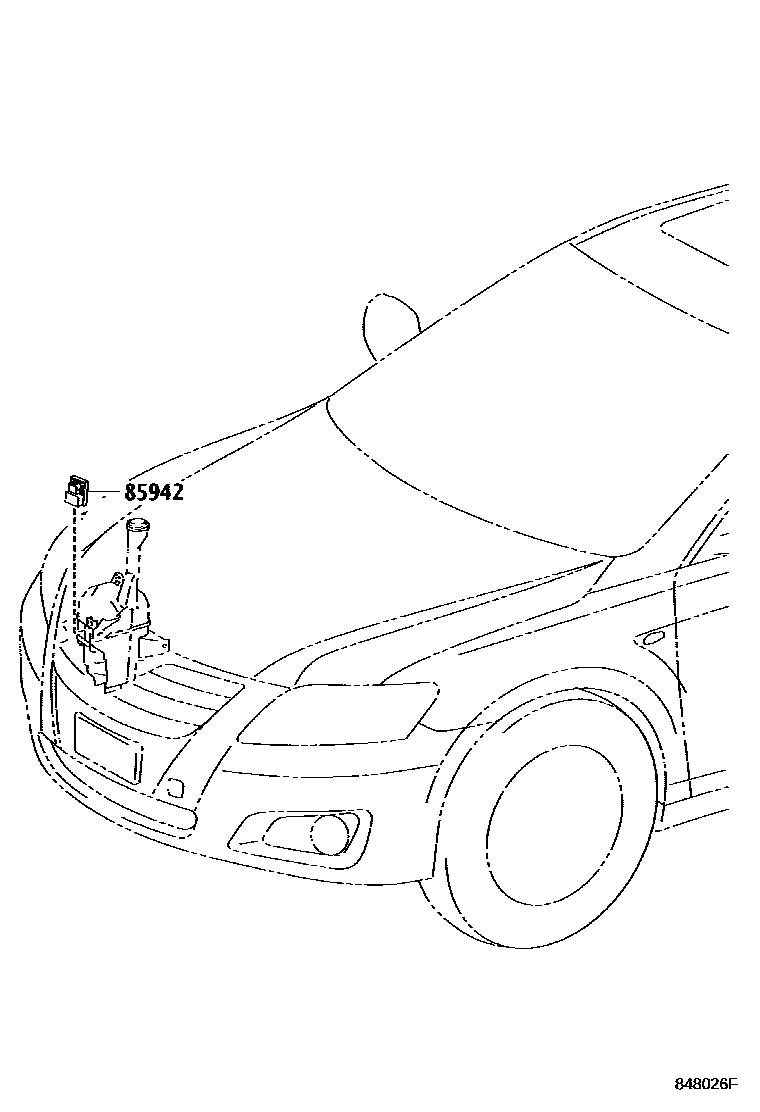

| 85942 | Headlight washer control relay | 85942-30020 · 85942-58010 |
| 87130F | No. 1 battery blower relay | 90987-T2005 |
| 87290F | ECO switch assembly | 87290-33040 |
| 87346K | PTC heater relay | 90987-T2004 |
| 88930C | Air purifier switch assembly | 88930-06020 |
| 89111 | Network gateway ECU | 89111-33010 · 89111-33040 |
| 89245B | steering sensor | 89245-06030 |
| 89407 | Right rear height control sensor sub-assembly | 89407-41010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33080 |

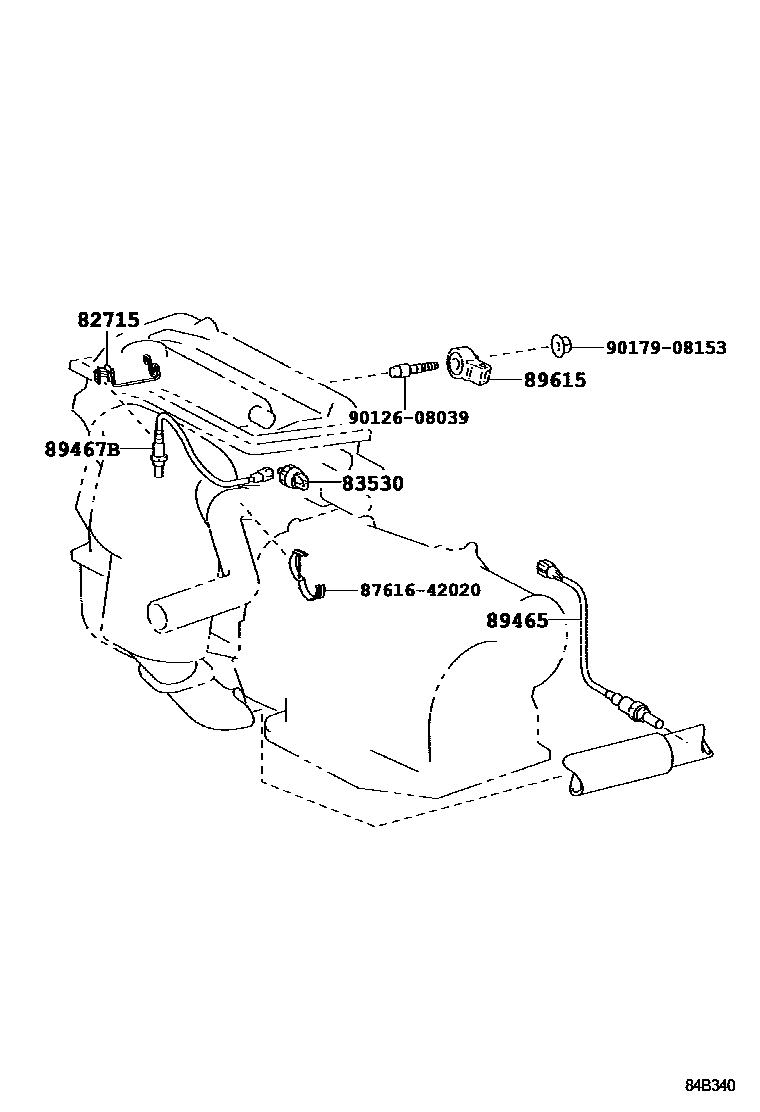

| 89465 | oxygen sensor | 89465-06240 · 89465-06310 |
| 89467B | air fuel ratio sensor | 89467-06080 · 89467-06090 · 89467-06150 · 89467-33080 |
| 895A0 | Brake light control relay assembly | 895A0-33010 |
| 895A1 | brake light control relay | 895A1-12010 |

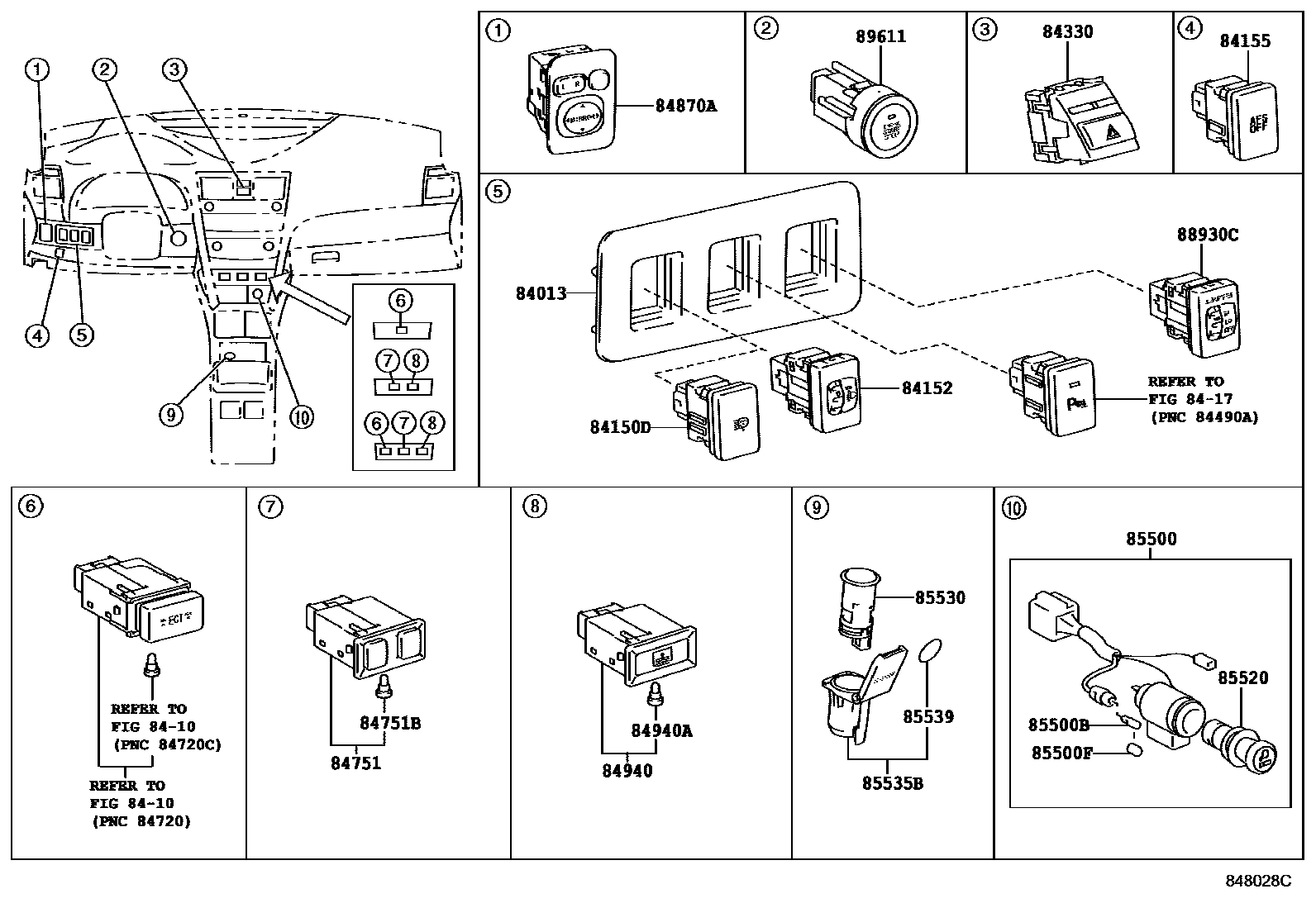

| 89611 | One-button start switch | 89611-06010 · 89611-06011 · 89611-06030 · 89611-06031 |
| 89615 | knock control sensor | 89615-20090 |

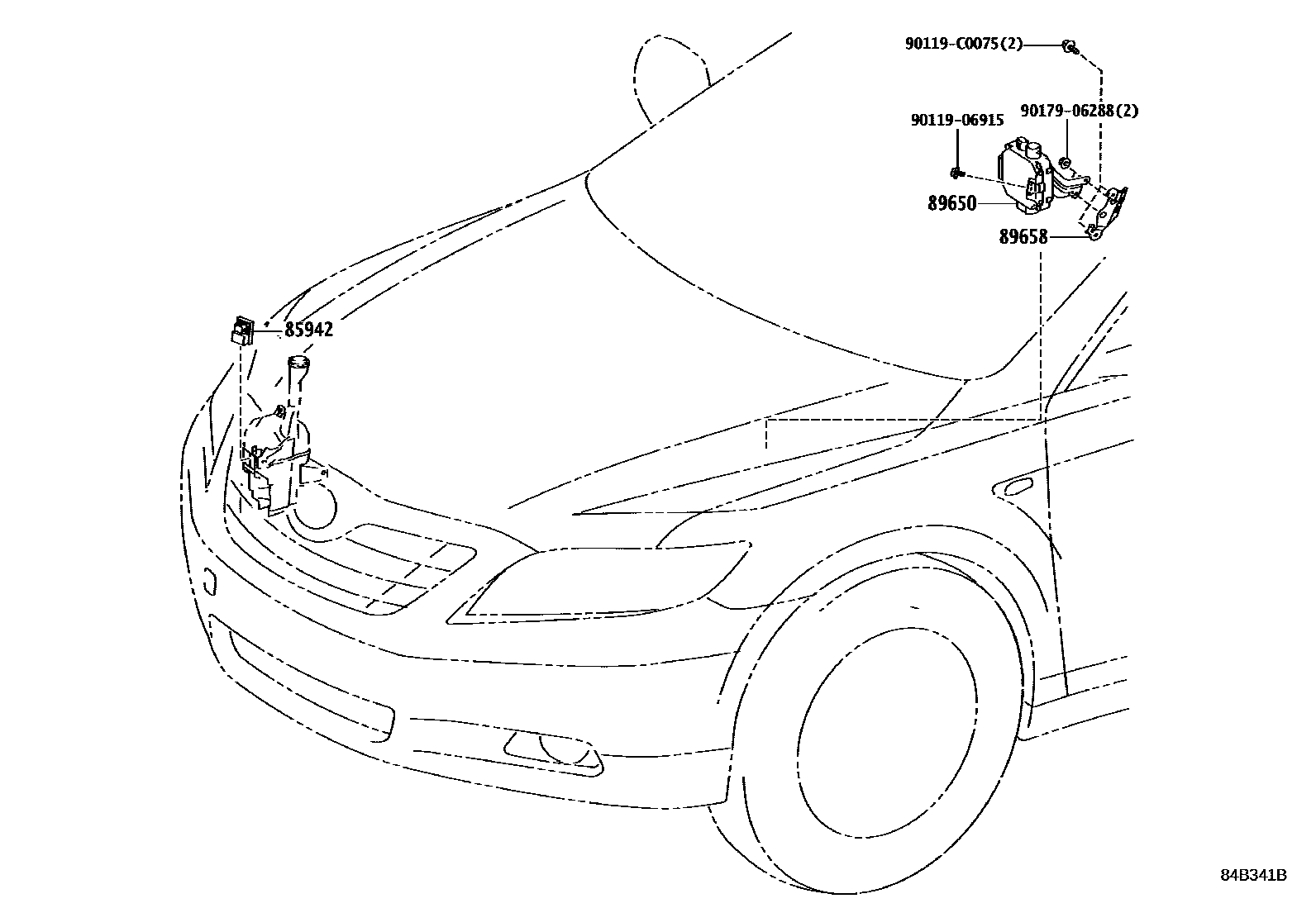

| 89650 | Power steering ECU assembly | 89650-33100 |
| 89658 | Power steering ECU bracket | 89658-33010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89940-33120 · 89940-33180 · 89940-33190 · 89960-33270 · 89960-33370 · 89960-33380 |
