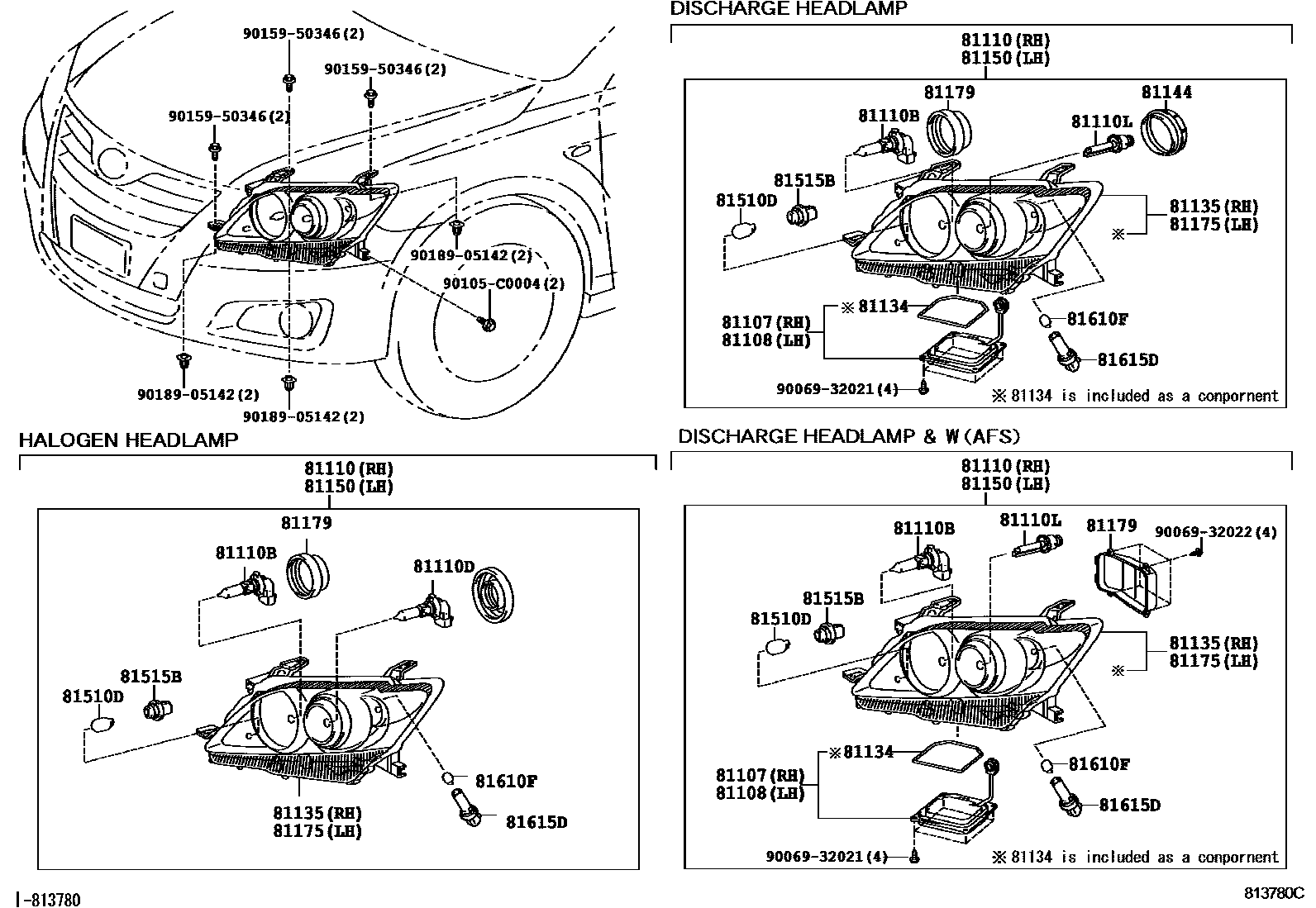

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-06400 · 81107-06410 |
| 81108 | Left headlight control ECU sub-assembly | 81107-06400 · 81107-06410 |
| 81110 | Right headlight assembly | 81110-06390 · 81110-06391 · 81110-06392 · 81110-06393 · 81110-06400 · 81110-06401 · 81110-06402 · 81110-06403 · 81110-06410 · 81110-06411 · 81110-06412 · 81110-06620 · 81110-06630 · 81110-06640 · 81110-06660 · 81110-06670 · 81110-YL010 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81110L | Discharge headlight bulb | 90981-20013 · 90981-20021 · 90981-20024 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-06390 · 81130-06620 · 81130-YL010 · 81145-06400 · 81145-06410 · 81145-06630 · 81145-06640 · 81145-06660 · 81145-06670 |
| 81139 | Headlight lamp holder cover | 90075-65006 |
| 81144 | No. 1 headlight cover | 81136-06400 · 81136-06630 |
| 81150 | Left headlight assembly | 81150-06390 · 81150-06391 · 81150-06392 · 81150-06393 · 81150-06400 · 81150-06401 · 81150-06402 · 81150-06403 · 81150-06410 · 81150-06411 · 81150-06412 · 81150-06620 · 81150-06630 · 81150-06640 · 81150-06660 · 81150-06670 · 81150-YL010 |
| 81175 | Left headlight assembly assembly | 81170-06390 · 81170-06620 · 81170-YL010 · 81185-06400 · 81185-06410 · 81185-06630 · 81185-06640 · 81185-06660 · 81185-06670 |
| 81179 | Headlight lamp holder cover | 81135-06390 · 81135-06410 · 81135-06640 · 81175-06410 · 81175-06640 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90069-81069 · 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81070 · 90075-60077 |
