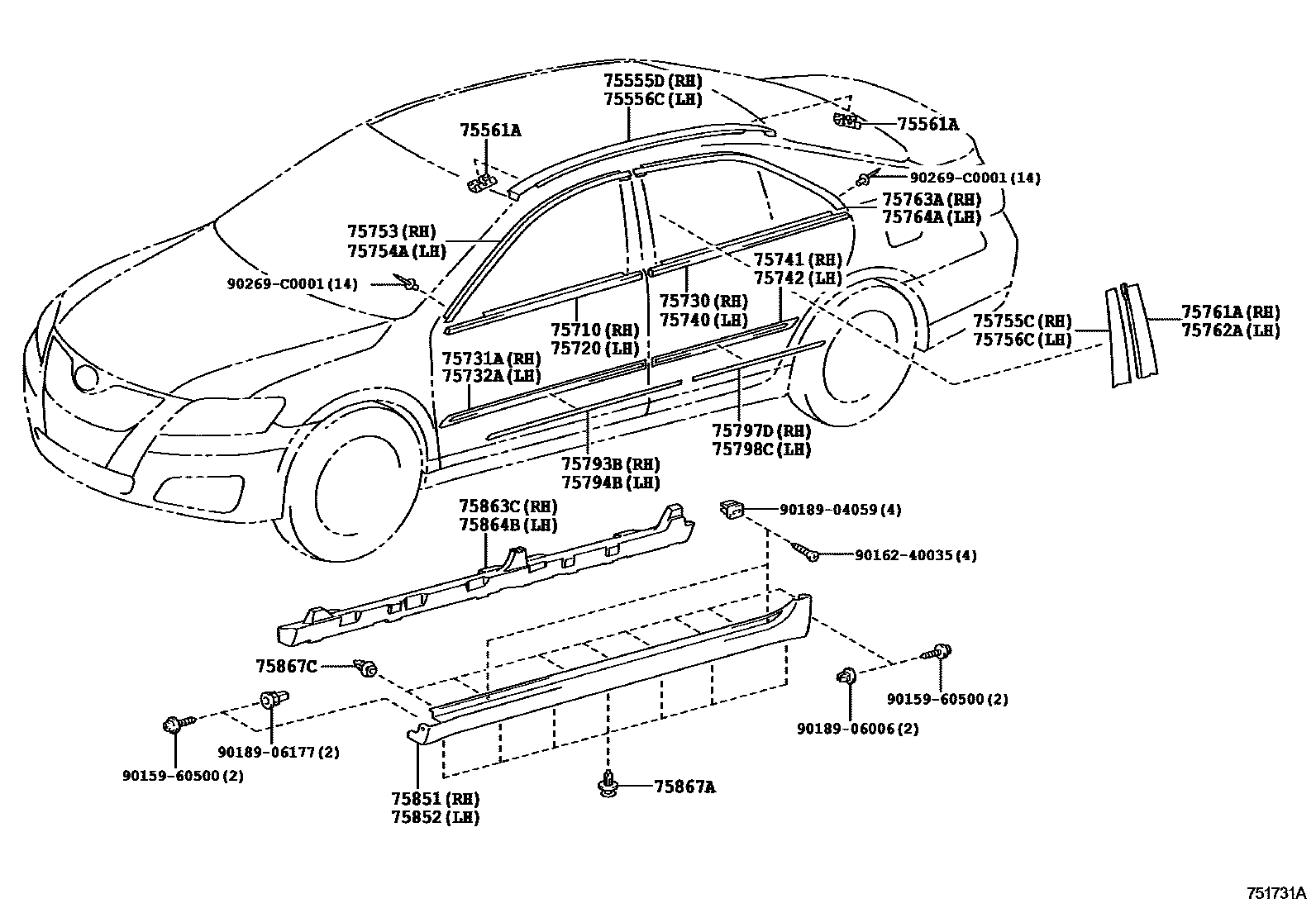

Toyota CAMRY 侧防护条 — Figure 7503
Toyota CAMRY EPC diagram 7503, 侧防护条, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-06070 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-06070 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75710 | Right front door waistline protection strip assembly | 75710-06100 |
| 75720 | Left front door waistline protection strip assembly | 75720-06100 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06080 |
| 75731A | Right front door outer protective strip | 75731-06917 |
| 75732A | Left front door outer protective strip | 75732-06917 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06080 |
| 75741 | Right rear door outer protective strip | 75741-06915 |
| 75742 | Left rear door outer protective strip | 75742-06915 |
| 75753 | Protective strip on right front door window frame | 75753-06070 |
| 75754A | Protective strip on left front door window frame | 75754-06070 |
| 75755C | Right front door window frame rear protective strip | 75755-06070 · 75755-33030 |
| 75756C | Left front door window frame rear protective strip | 75756-06070 · 75756-33030 |
| 75761A | Right rear door window frame front protective strip | 75761-06070 · 75761-33030 |
| 75762A | Left rear door window frame front protective strip | 75762-06070 · 75762-33030 |
| 75763A | Protective strip on right rear door window frame | 75763-06080 |
| 75764A | Protective strip on left rear door window frame | 75764-06080 |
| 75793B | Right front door outer protective strip insert | 75793-06040 |
| 75794B | Left front door outer protective strip insert | 75794-06040 |
| 75797D | Right rear door outer protective strip insert | 75797-06040 |
| 75798C | Left rear door outer protective strip insert | 75798-06040 |
| 75851 | Right side door sill panel protective strip | 75851-06903 |
| 75852 | Left side door sill panel protective strip | 75852-06903 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06100 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06100 |
| 75867A | Door sill panel protective strip clip | 75867-06090 · 75867-30120 |
| 75867C | Door sill panel protective strip clip | 75867-33030 |
