Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 10 PNC and OE references.

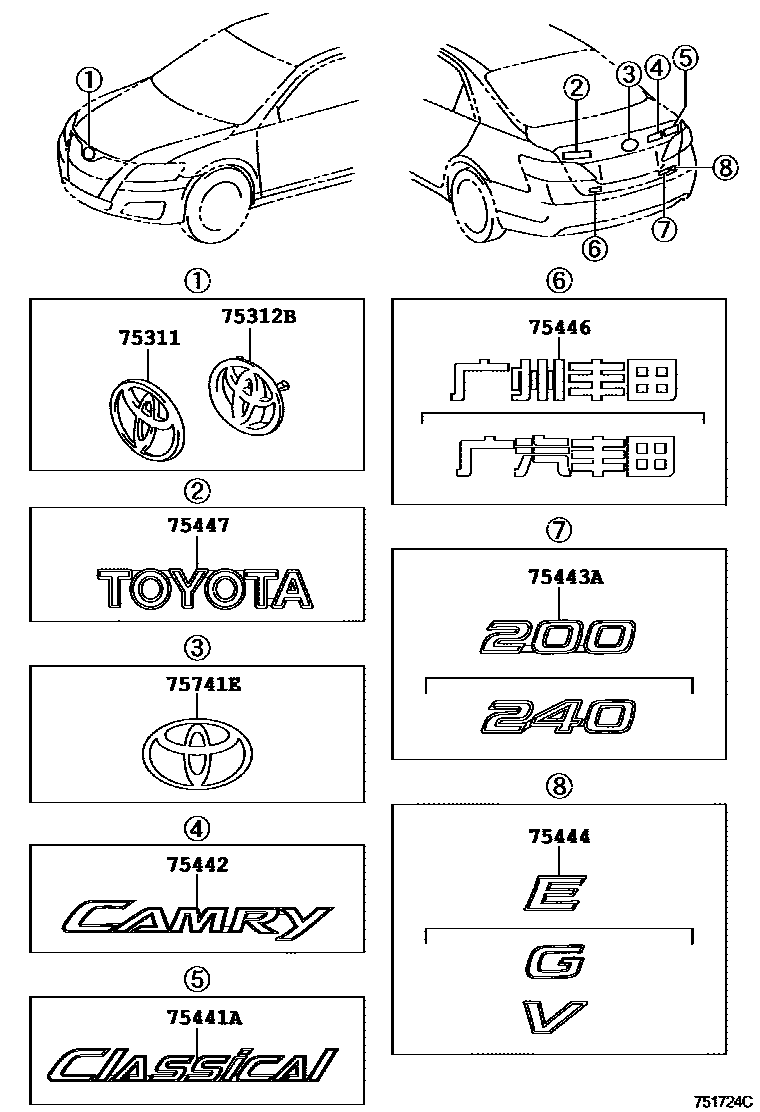

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 751724C
丰田徽标和铭牌(车外和车内) — 751724C (200605 – 200903)

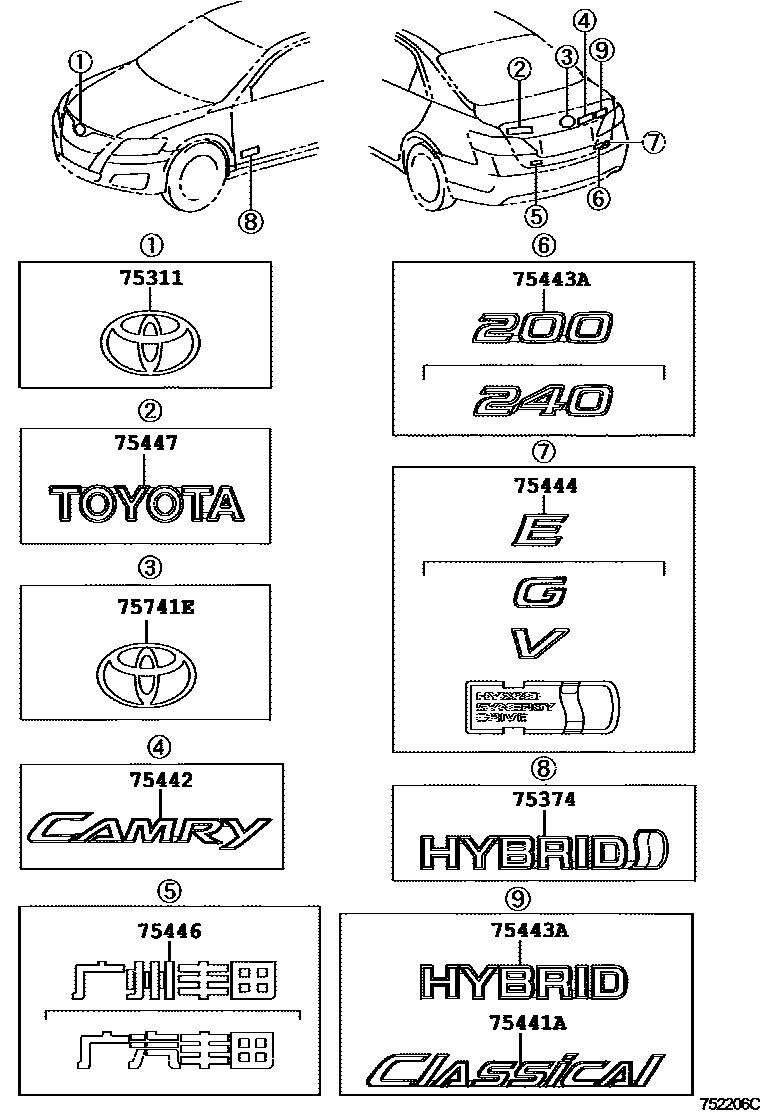

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752206C
丰田徽标和铭牌(车外和车内) — 752206C (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02170 · 90975-02064 · 90975-02176
75312BRadiator grille number 2 plate75311-06090
75374side panel sign75374-33030 · 75374-33031 · 75374-33040 · 75374-33041
75441ATrunk door No. 1 name plate75443-YL010
75442Trunk door number plate No. 275442-06070 · 75442-06100
75443ATrunk door No. 3 nameplate75443-06370 · 75443-06380 · 75443-06600
75444Trunk door No. 4 nameplate75444-06220 · 75444-06230 · 75444-06240 · 75444-28100 · 75444-28101
75446Trunk door No. 6 nameplate75446-06010 · 75446-06020
75447Trunk door No. 7 nameplate75447-06090 · 75447-33120
75741Elogo75312-0D040 · 90975-02064
