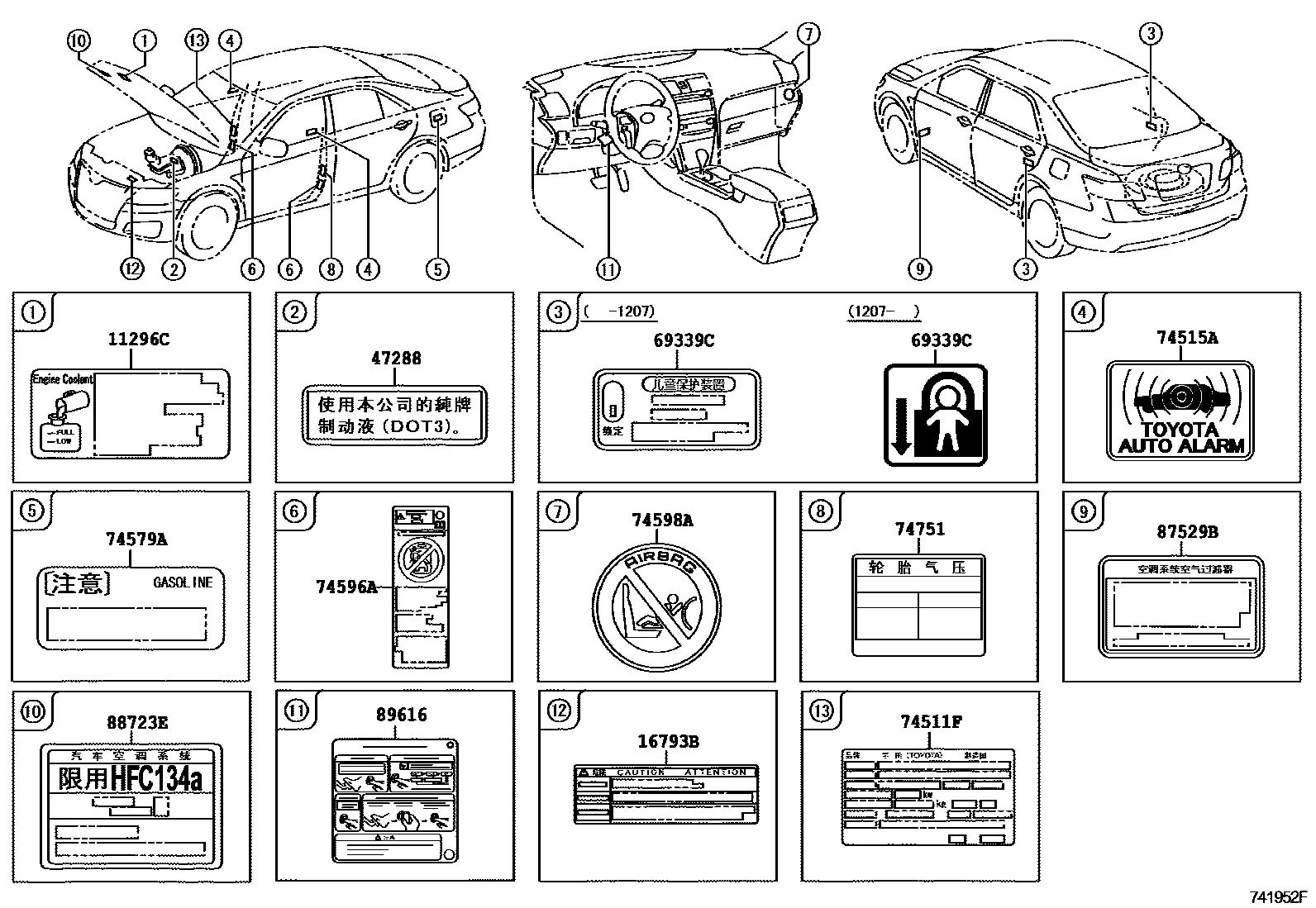

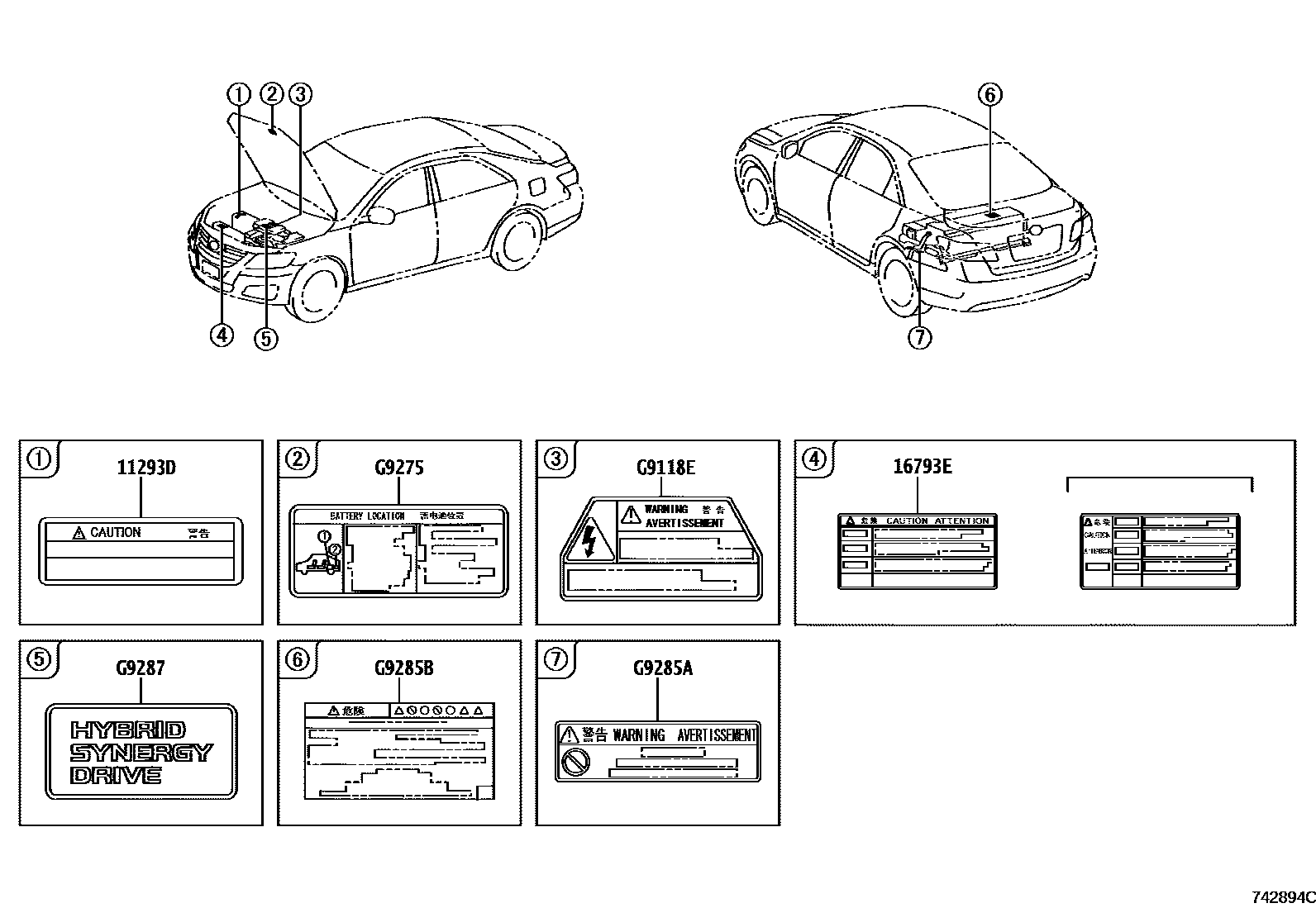

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-28130 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 16793B | Cooling fan information label | 16793-28020 |
| 16793E | Cooling fan warning label | 16793-28010 · 16793-28020 · 16793-50010 |
| 47288 | Brake Fluid Caution Label | 47288-06010 |
| 69339C | Child Restraint Information Label | 69339-06030 · 69339-06080 |
| 74511F | Nameplate (laser identification label) | 74511-06012 |
| 74515A | Anti-theft warning nameplate | 74515-06020 |
| 74579A | Unleaded Fuel Information Label | 74579-26010 · 74579-30030 |
| 74596A | Side air bag warning label | 74596-30040 · 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-06620 · 42661-06630 |
| 87529B | Cabin filter information label | 87529-0D020 |
| 88723E | Cooler maintenance warning label | 88723-06110 · 88723-0D020 |
| 89616 | Launch information labels with one click | 89616-30081 |
| G9118E | No. 1 Electric Vehicle Device Controller Warning Label | G9118-30030 |
| G9275 | No. 1 battery warning label | G9275-47040 |
| G9285A | HV Battery No. 1 Warning Label | G9279-47050 |
| G9285B | HV Battery No. 2 Warning Label | G9288-47090 |
| G9287 | Inverter cover | G9287-33010 |
