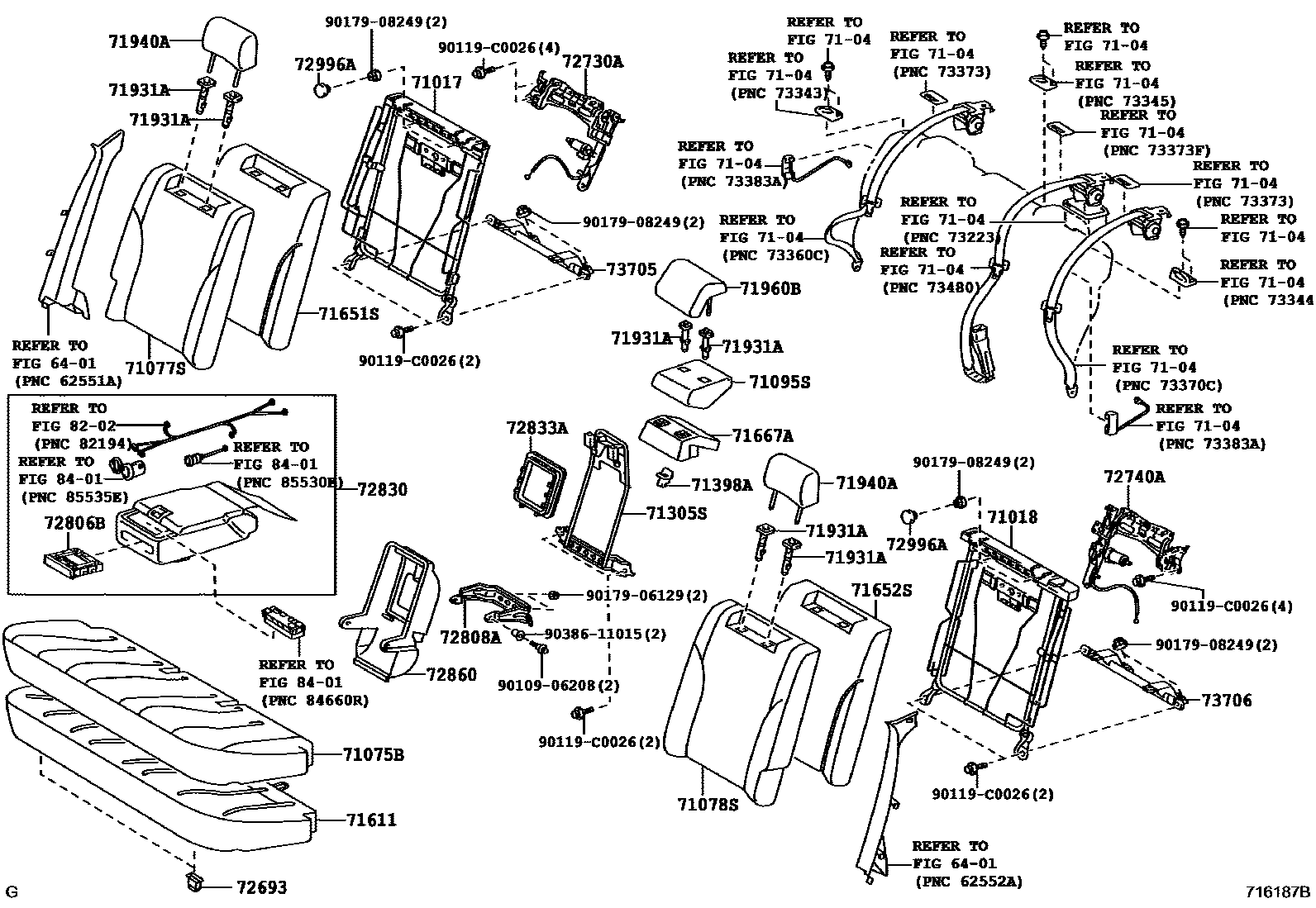

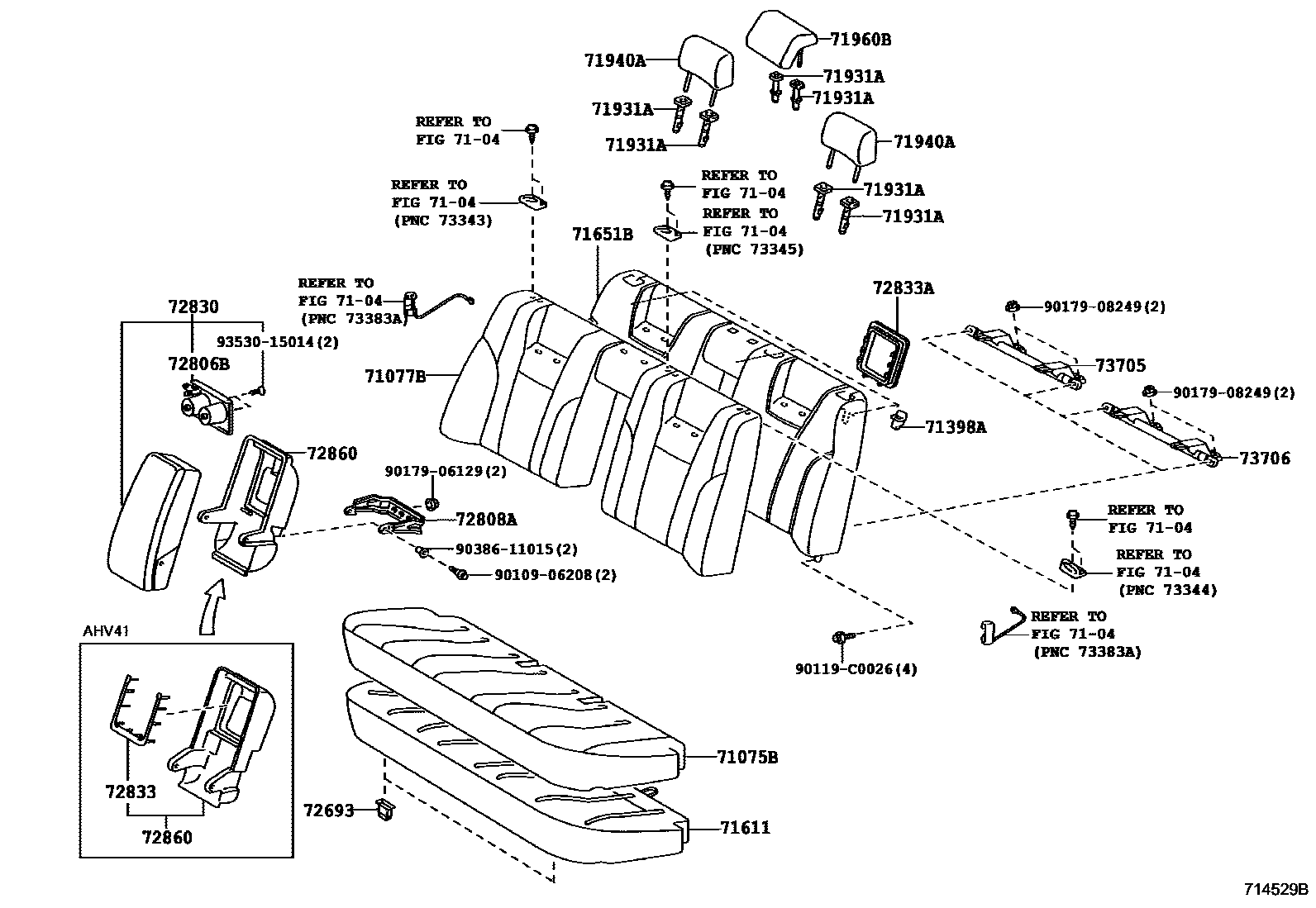

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06140 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06090 |
| 71305S | Center seat back frame sub-assembly | 71305-06040 |
| 71611 | Rear seat cushion cushion | 71503-06160 · 71503-06200 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06190 · 71651-06240 · 71651-06320 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06220 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06130 |
| 71667A | Rear center A seat back cushion | 71507-06070 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33030 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33020 |
| 72806B | Rear seat center armrest cup holder sub-assembly | 72806-06120 · 72806-06121 · 72806-YL010 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06050 · 72883-06070 · 72883-06090 |
| 72833A | Seat center armrest inner panel | 72831-06050 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06040 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06040 |
